ACCESSORIES FOR SZE3 CABINETS - LIGHTING

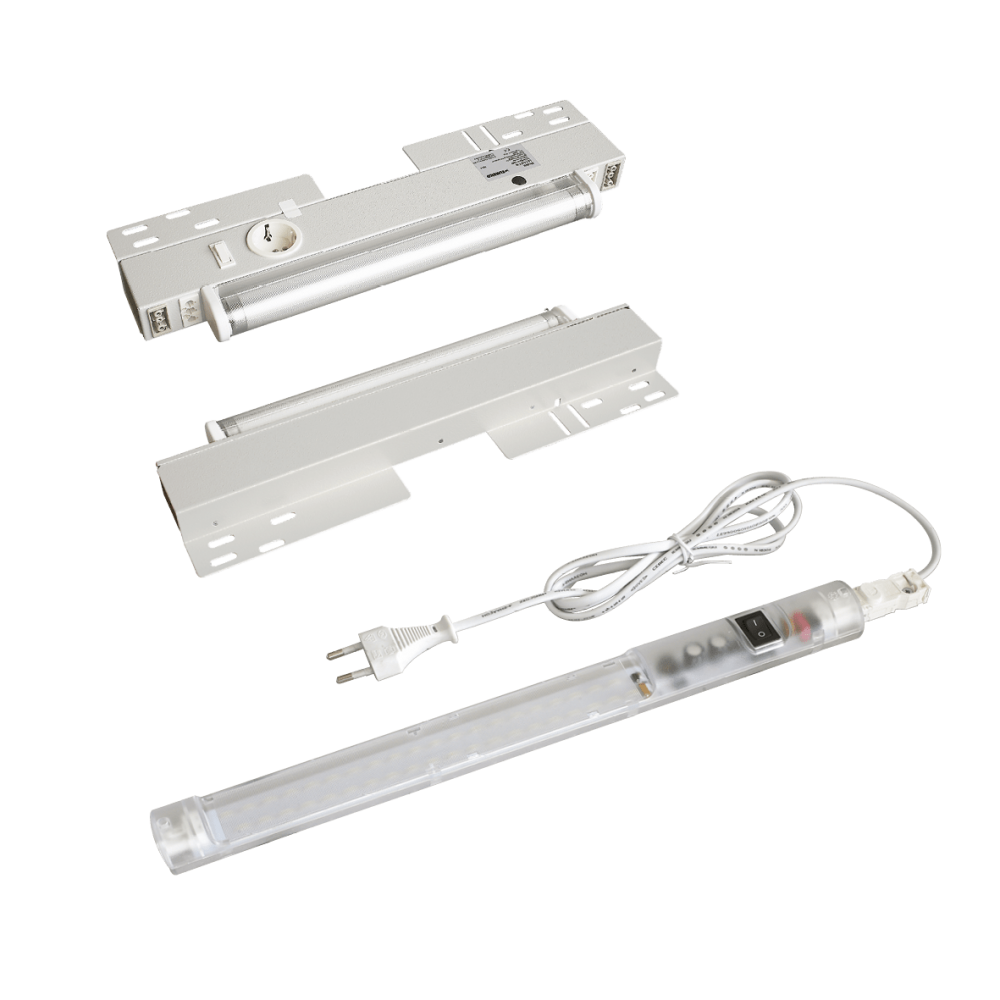

System lighting kit
Electric light fitting fixed into the horizontal profile of the cabinet’s frame. Equipped with a Schuko power socket (max. 16 A) and 0-1-AUTO switch. Possibility of direct power supply or use of the connecting cable from an adjacent lighting fitting. Possibility of door switch control.
Material
Electric light fitting - anodised aluminium, plastic.
Scope of delivery
Set contains: electric light fitting with LEDs (luminous flux 850 lm, light temperature 4000 K, power supply 230 V, 50/60 Hz, output 8 W), fixing accessories. Connecting cable, power supply cable and door switch set are to be ordered separately.
| Product name | For cabinet width [mm] | Catalogue number |
|---|---|---|
| System lighting set | 1200 - 600 | W-6282-39-02-000 |

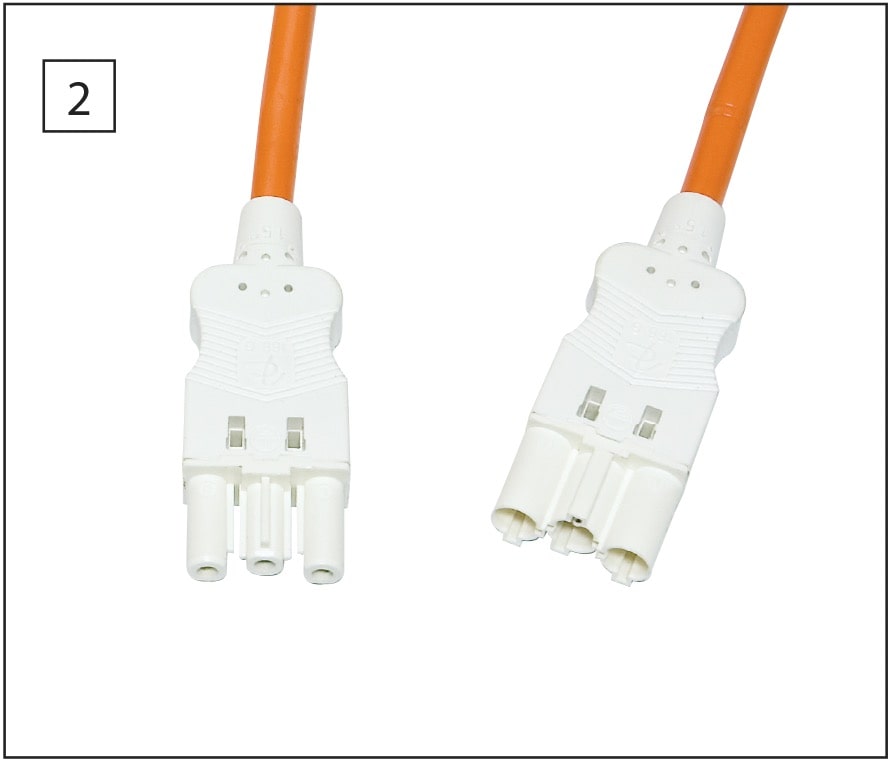

| Connecting cable 0.6 m | 600 - 800 | M1T-02-0012 |
| Connecting cable 1.0 m | 1000 - 1200 | M1T-02-0011 |

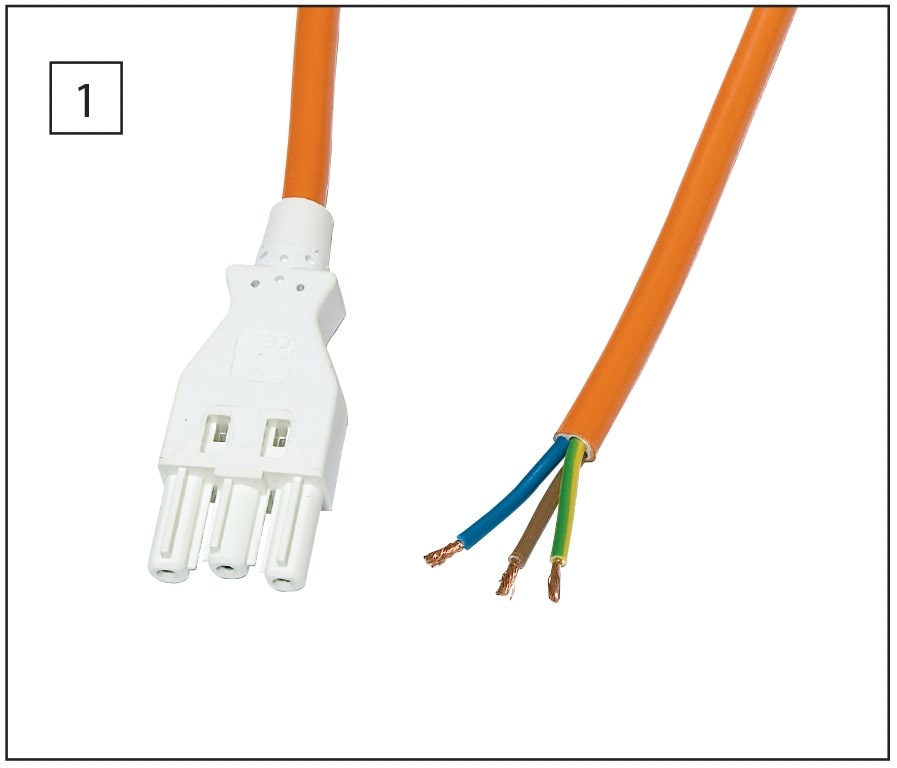

| Power supply cable 3.0 m | M1T-02-0016 | |

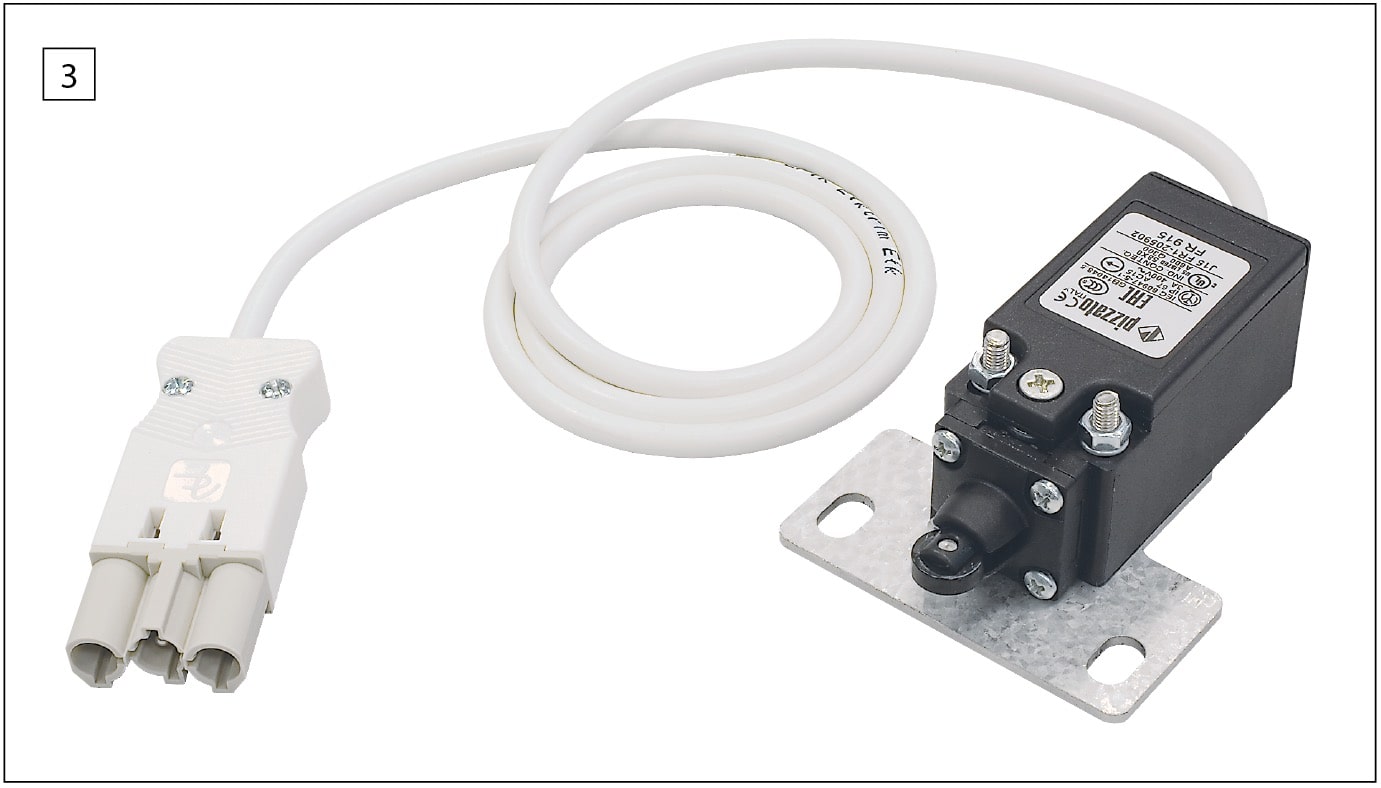

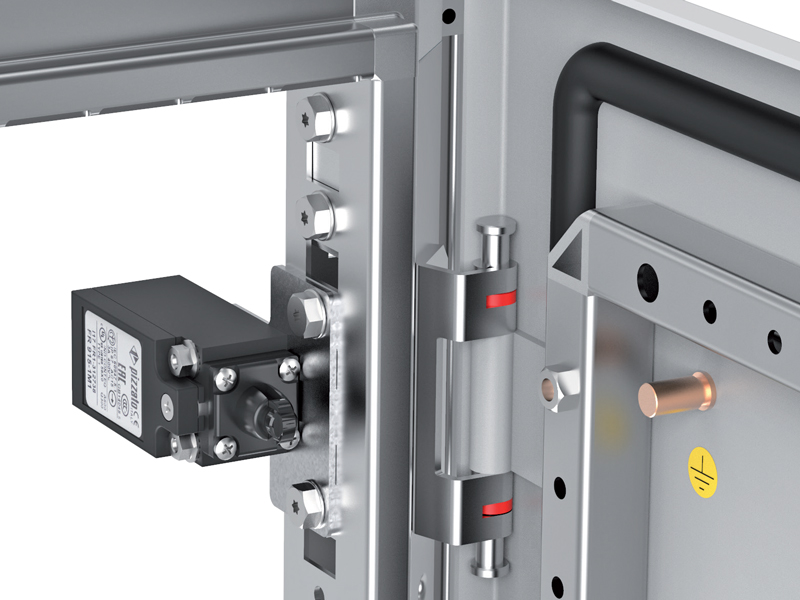

| Door switch set with 1.0 m cable | W-6282-71-00-000 | |
Package: 1 pc
CONNECTION DIAGRAM FOR SYSTEM LIGHTING IN THE SZE3 CABINET SET

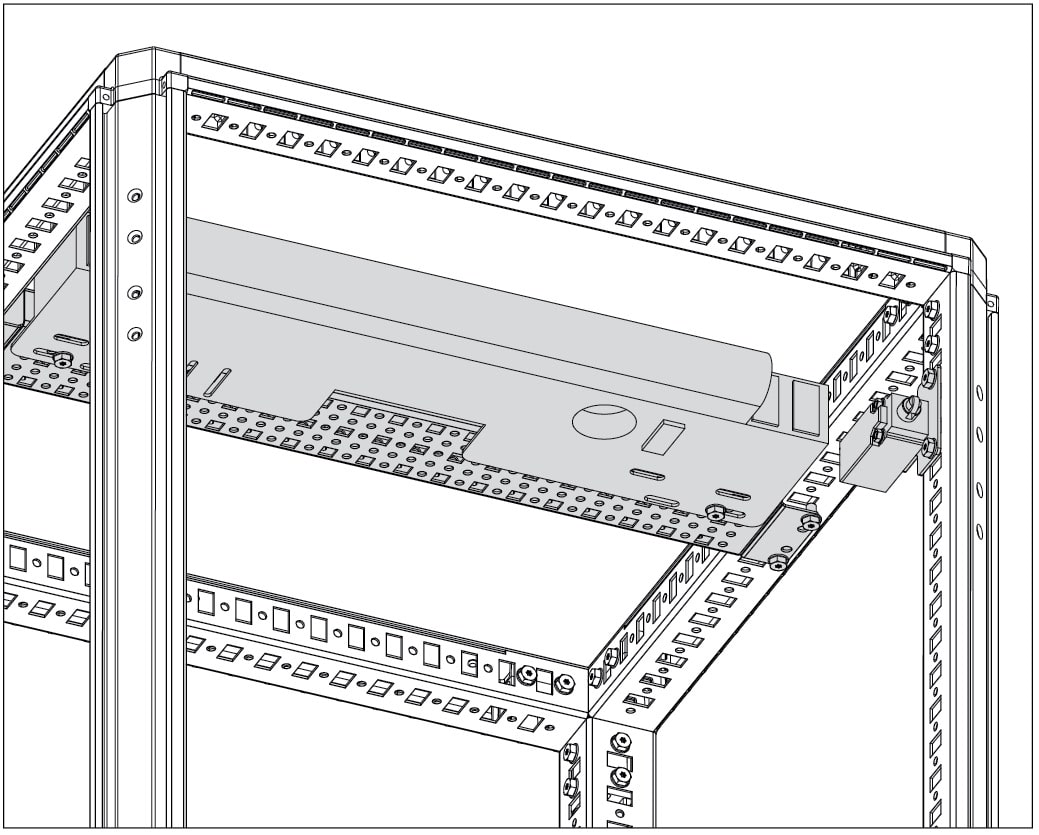

SYSTEM LIGHTING KIT IN SZE3 CABINET 600 MM WIDE
SYSTEM LIGHTING KIT IN SZE3 CABINET 800 MM WIDE OR WIDER

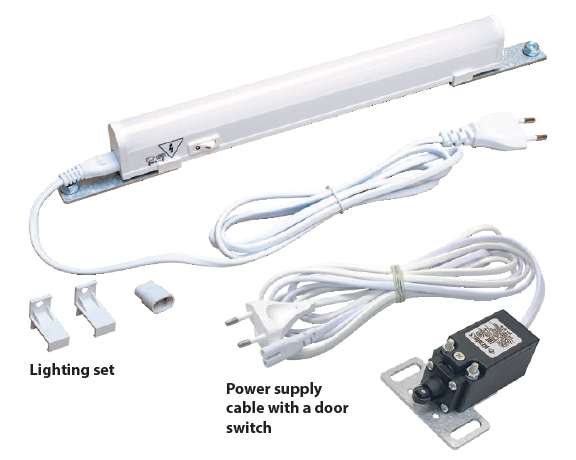

Lighting set
Electric light fitting with mounting brackest for attaching it to:
- horizontal or vertical profiles of cabinet frame,
- mounting bars type A or B,
- or 19" transverse bar.
Total length of the electric light fitting with mounting brackets: 340 mm
Material
Body of the light fitting
- aluminium
Mounting brackets
- Al-zinc coated sheet steel
Scope of delivery
Set: electric light fitting with a LED lamp 230 V, 5 W and switch, two mounting brackets, 1.5 m power supply cable, fixing accessories.
The power supply cable equipped with a door switch is to be ordered separately.
| Lighting set | |||
| Power supply cable 1,6 + 1,0 m with a door switch | |||
