Cable gland plates and blanking plates - SZE3 system cabinets

Zaślepki osłony górnej i płyty dolnej - Szafy systemowe SZE3

.

ACCESSORIES FOR SZE3 CABINETS - CABLE GLAND PLATES AND BLANKING PLATES

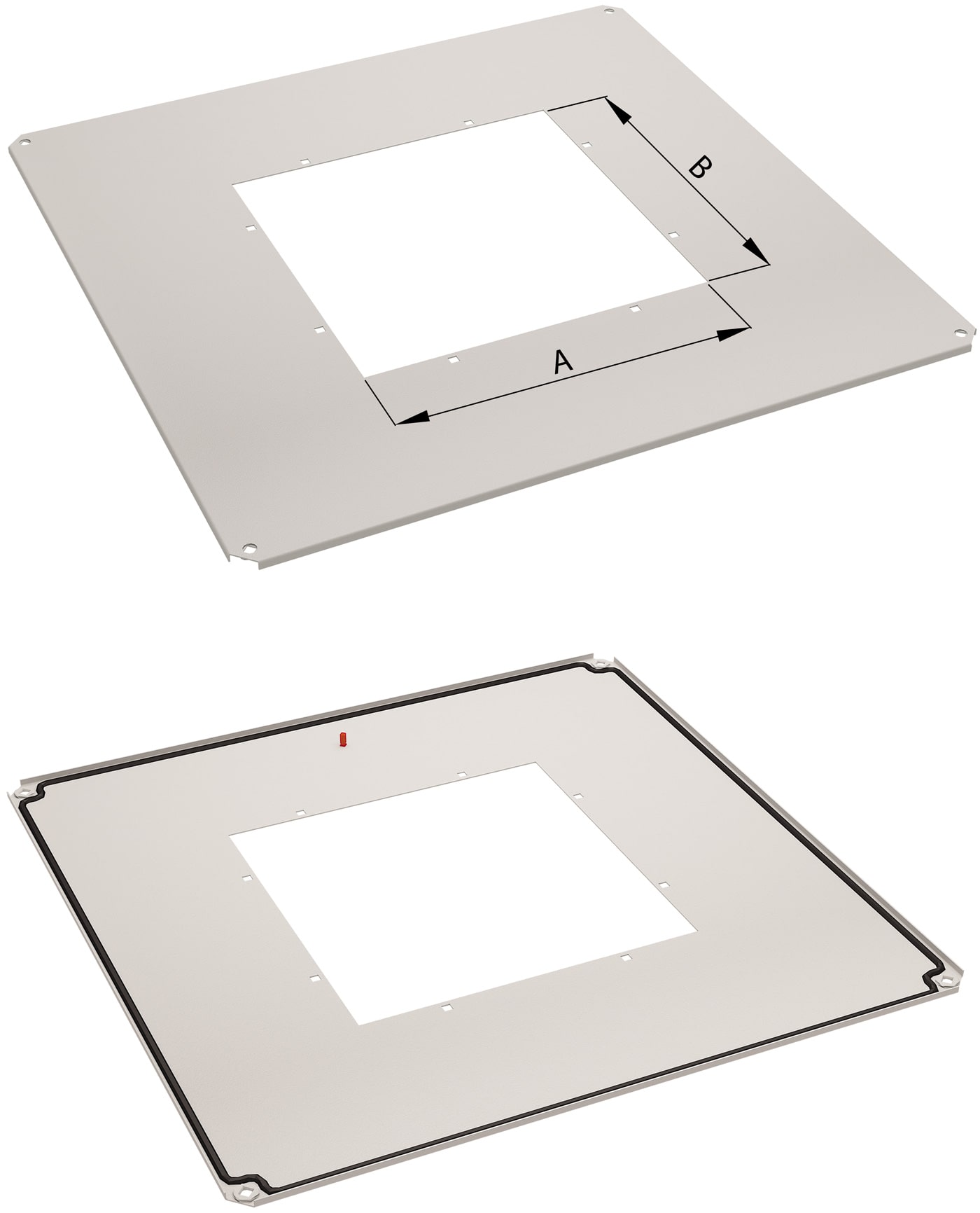

Top panel with opening

Top panel with opening can be used instead of the solid top panel.
With a sealing gasket and the opening for blanking plate or a roof fan unit

Material
Sheet steel powder painted in light grey (RAL 7035).

Scope of delivery
Top panel with fixing accessories for mounting to the cabinet.

For cabinet Opening dimensions A x B
[mm]		 Catalogue number
Width
[mm]		 Depth
[mm]
600 400 380 x 210 W-6282-53-16-011
500 380 x 210 W-6282-53-15-011
600 380 x 380 W-6282-53-14-011
800 380 x 380 W-6282-53-13-011
800 400 380 x 210 W-6282-53-12-011
500 380 x 210 W-6282-53-11-011
600 380 x 380 W-6282-53-10-011
800 380 x 380 W-6282-53-09-011
1000 400 380 x 210 W-6282-53-08-011
500 380 x 210 W-6282-53-07-011
600 380 x 380 W-6282-53-06-011
800 380 x 380 W-6282-53-05-011
1200 400 380 x 210 W-6282-53-04-011
500 380 x 210 W-6282-53-03-011
600 380 x 380 W-6282-53-02-011
800 380 x 380 W-6282-53-01-011

Package: 1 pc.

Blanking and cable entry plates for cabinet's top panel

Available in 5 types.
For blanking the opening in the top panel.

Material
Sheet steel powder painted in RAL 7035.

Scope of delivery
Blanking or cable entry plate with mounting elements.

Type of blanking
or cable entry
plate		 Protection degree of cabinets
equipped with a blanking plate		 For
opening
[mm]		 Catalogue number
Cabinet without
a roof		 Cabinet with
a roof
Solid
blanking
plate		 IP 55 IP 55 380 x 380 W-4810-07-00-011
380 x 210 W-1951-26-00-011
Perforated
blanking
plate		 IP 20 IP 21 380 x 380 W-1718-39-01-011
380 x 210 W-1718-39-02-011
Blanking
plate with
a fabric filter		 IP 10 IP 21 380 x 380 W-1718-42-01-011
380 x 210 W-1718-42-02-011
Cable
entry
plate with
a brush
strip		 IP 00 IP 21 380 x 380 W-5271-10-00-011
380 x 210 W-5271-14-00-011
Cable
entry
plate with
a foam strip		 IP 10 IP 21 380 x 380 W-1718-40-01-011
380 x 210 W-1718-40-02-011
Cable
entry plate with
a fabric filter
and a brush
strip		 IP 00 IP 21 380 x 380 W-SB76-00-00-011

Package: 1 pc.

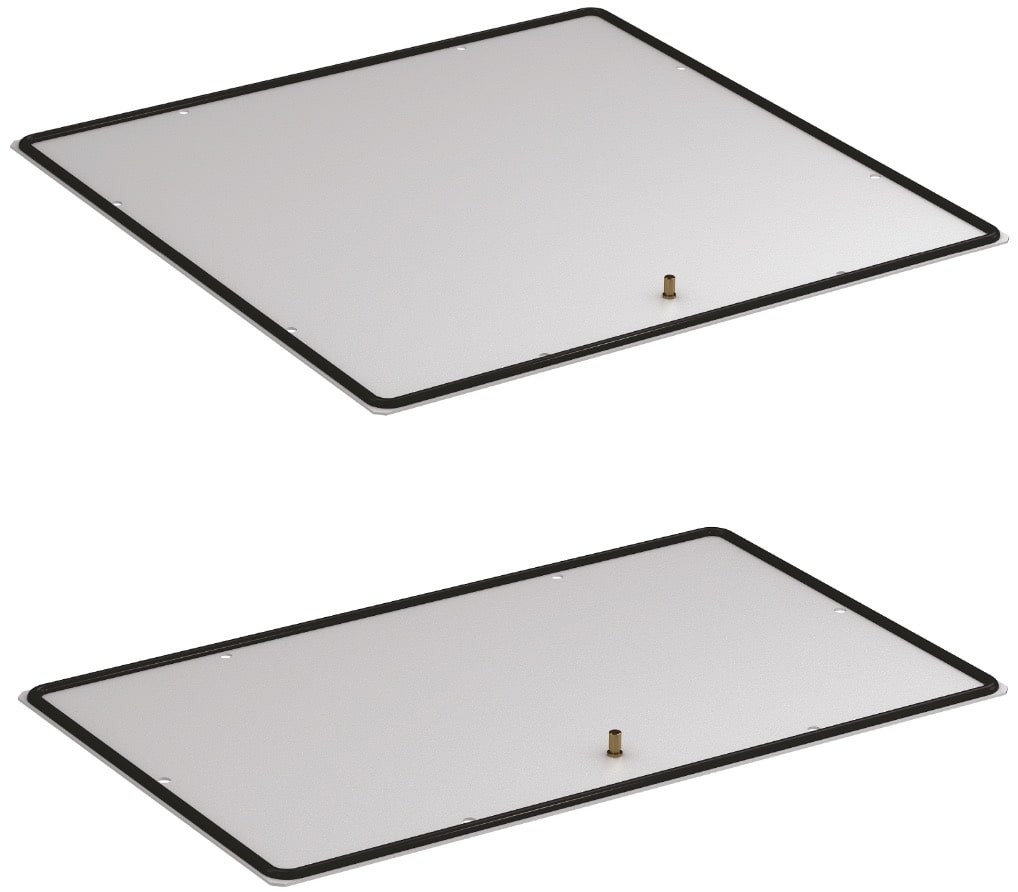

Solid blanking plates

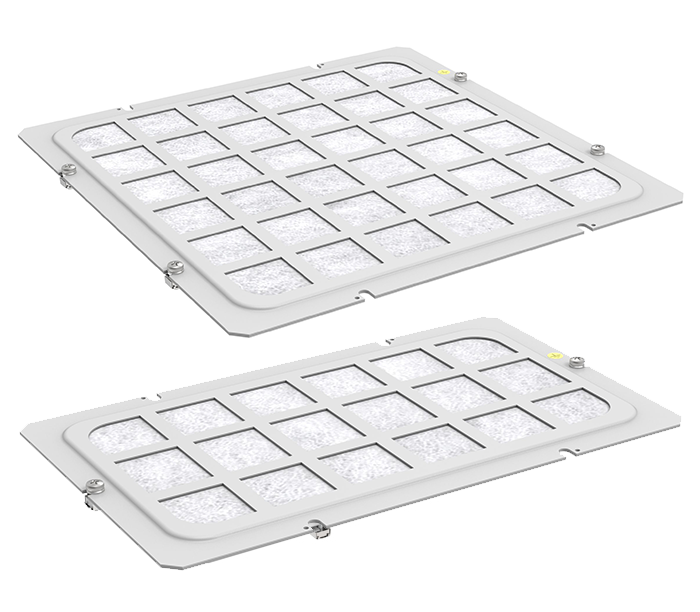

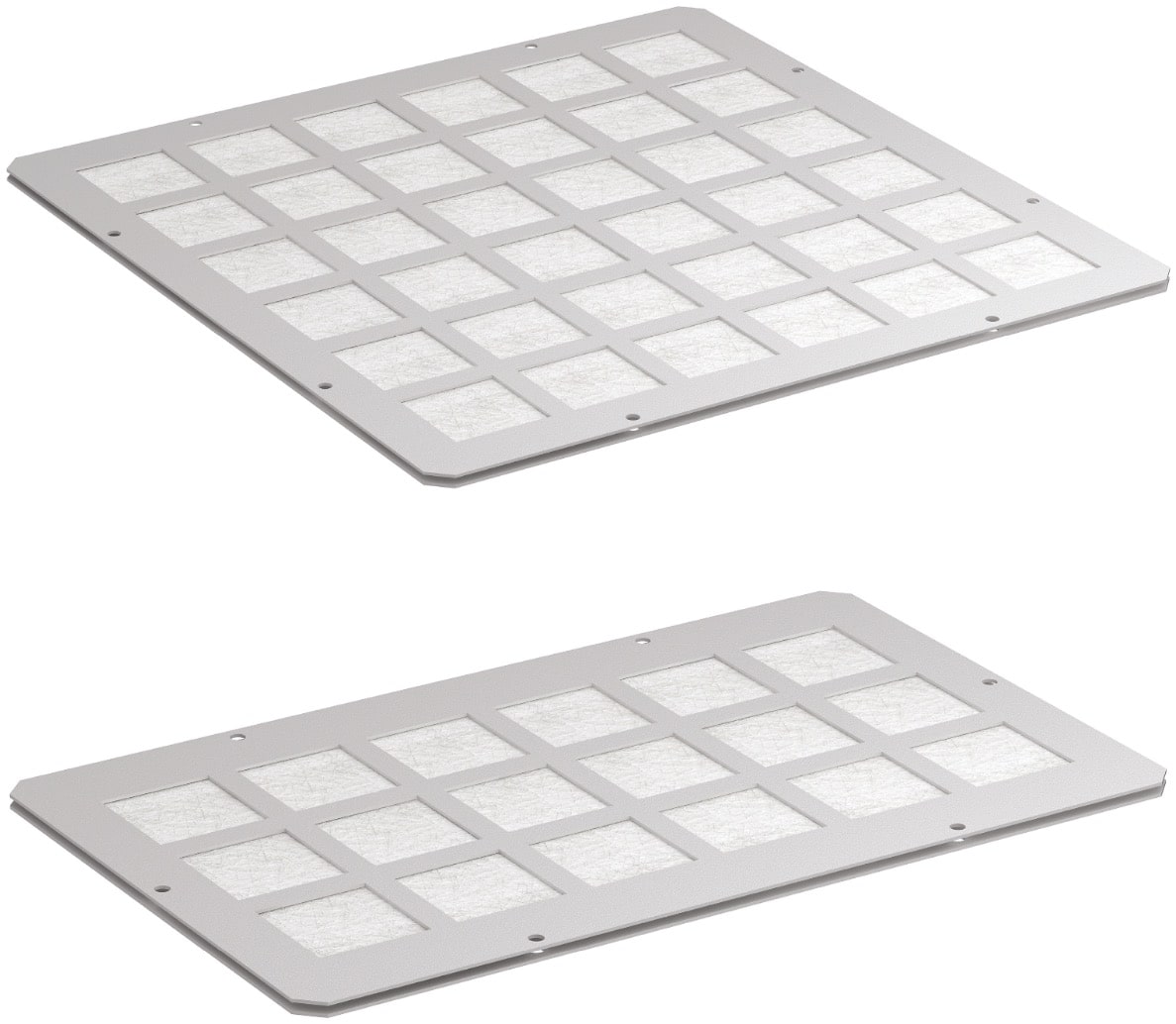

Blanking plates with a fabric filter

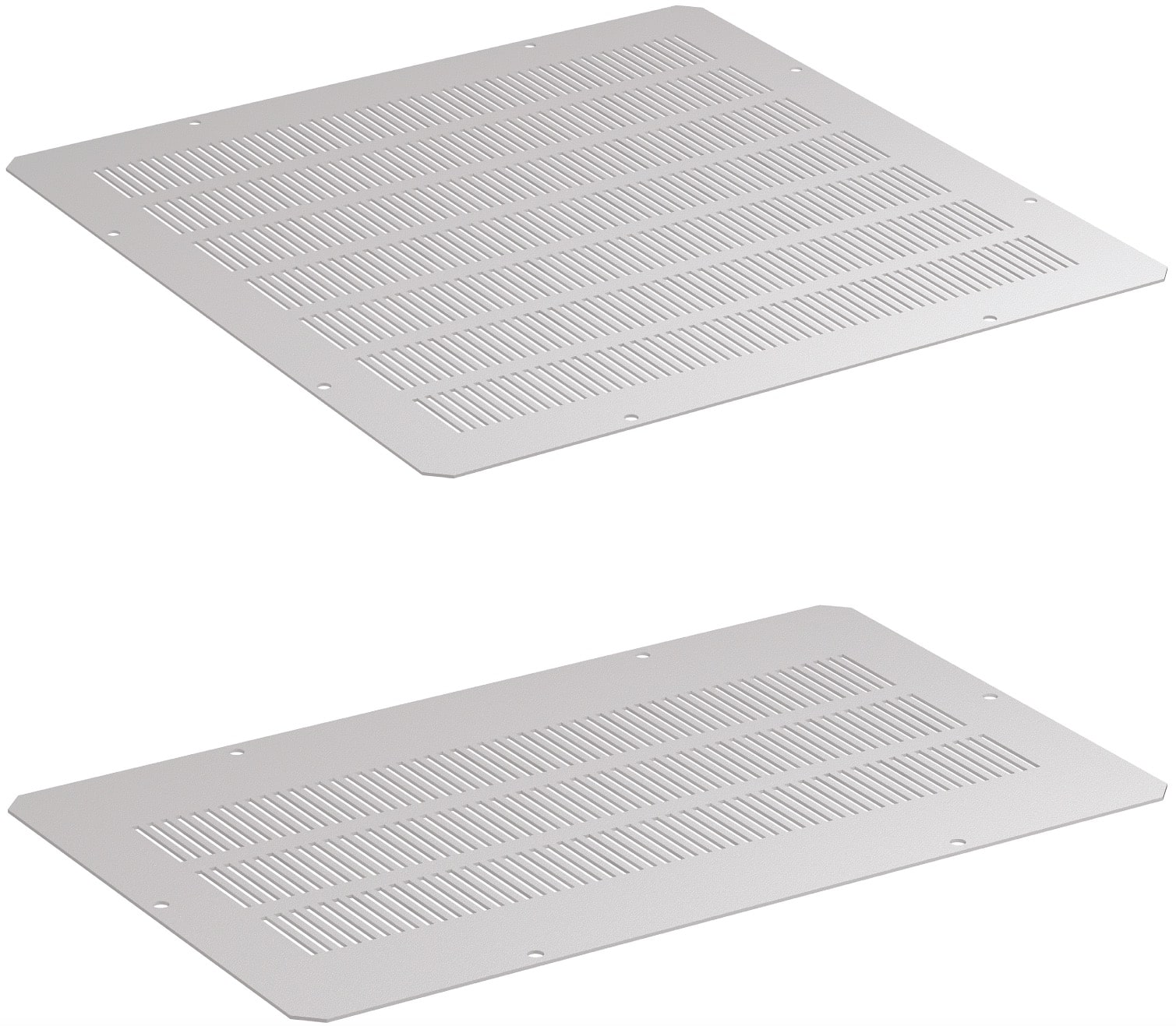

Perforated blanking plates

Cable entry plates with a brush strip

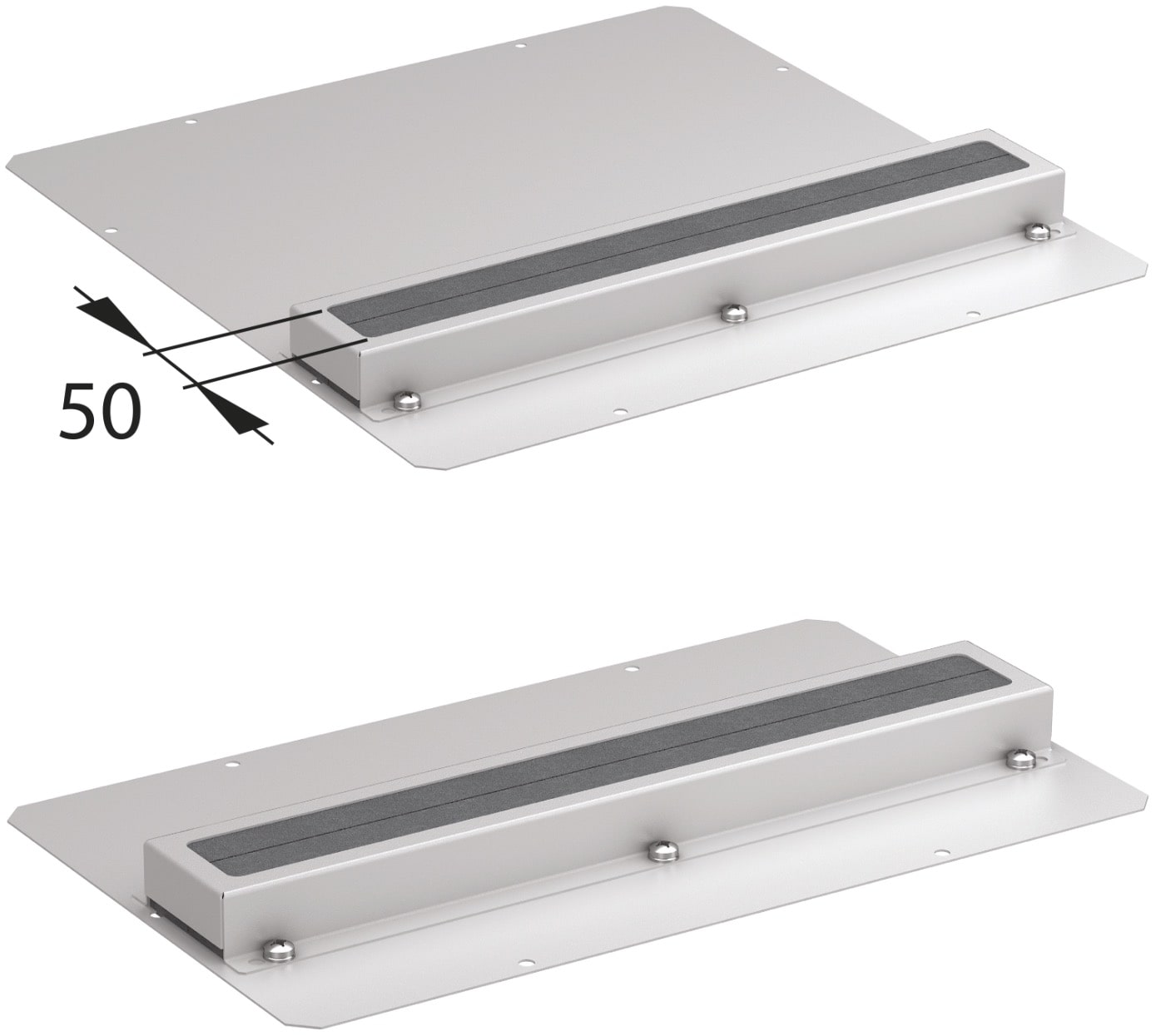

Cable entry plates with a foam strip

Spare kit of sliding gland plates for cabinet's bottom plate

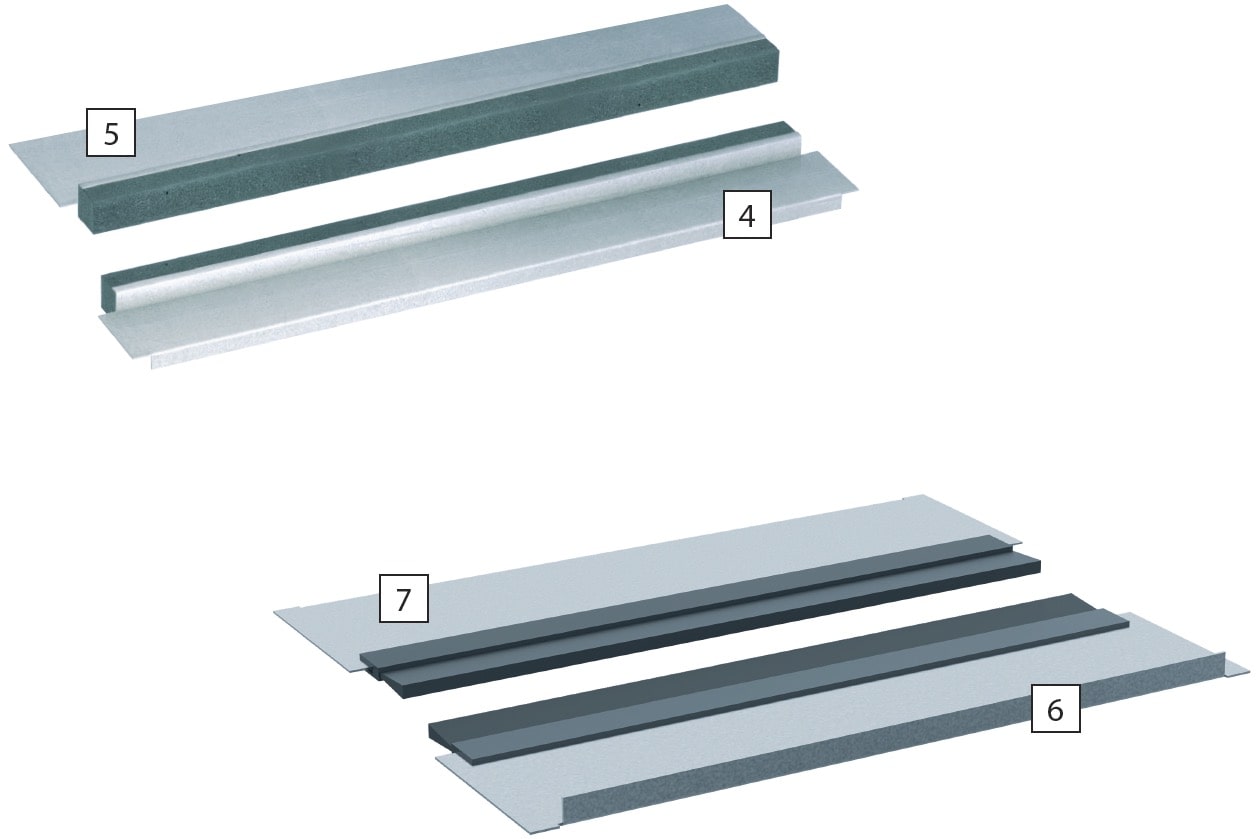

Sliding gland plates with foam strip (4, 5) or brush strip (6, 7) are intended for application instead of standard sliding gland plates (1, 2). They create a cable opening with adjustable width. Foam strip protects cable isolation lead into the cabinet from any defects, at the same time increasing the cabinet’s tightness. Brush strip protects against dust.

Material
zinc coated sheet steel, polyurethane foam, plastic brush.

Scope of delivery
Set of 2 sliding gland plates with foam strip (No. 4 and 5) or brush strip (No. 6 and 7). Used for one opening in SZE3 cabinet bottom plate (note: 1000 and 1200 mm wide cabinets have two openings in the bottom plate).

For cabinet
width [mm]		 Width of the opening for the sliding gland plate L1 [mm] Width of the sliding gland plate L2 [mm] Catalogue number
Kit of sliding gland plates with foam strip Kit of sliding gland plates with brush strip
800 586 616 W-1951-81-01-000 W-8186-50-01-000
1200
lub 600		 386 416 W-1951-81-02-000 W-8186-50-02-000
1000 356 386 W-1951-81-03-000 W-8186-50-03-000

Package: 1 set

Spare kit of sliding gland plates with foam strip / Spare kit of sliding gland plates with brush strip

Method of fastening sliding gland plates in the bottom plate of the SZE3 cabinet

Supply of all cabinets includes:
1, 2, 3 – standard sliding gland plates (without foam or brush) for each omening in the bottom plate of the cabinet.

Supplementary accessories:
4, 5 - spare kit of sliding gland plates with foam strip
or
6, 7 - spare kit of sliding gland plates with brush strip (intended for fastening instead of standard gland plates without foam or brush)

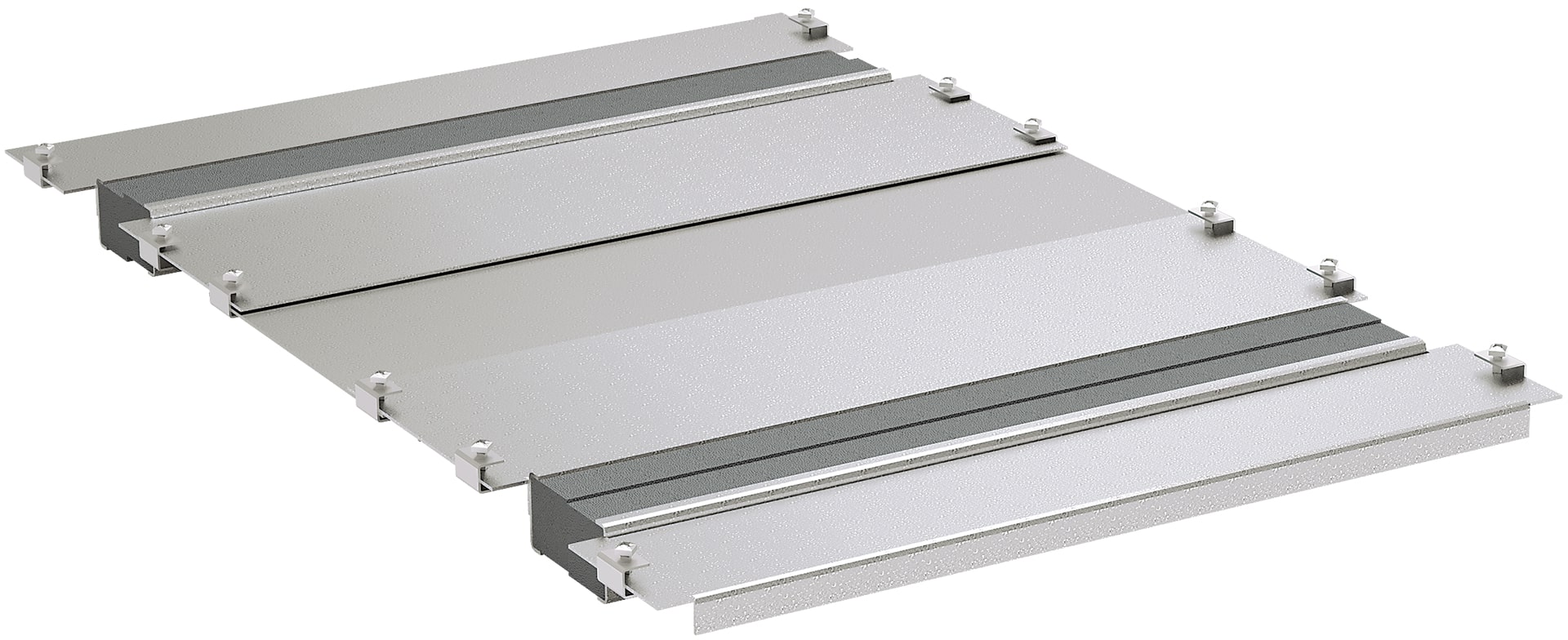

Kit of sliding gland plates with a foam strip

For 800 mm deep SZE3 cabinets.

Material
zinc coated sheet steel, polyurethane foam.

Scope of delivery
Set of 4 sliding gland plates with foam, 1 central plate, fixing elements. Used for one opening in SZE3 cabinet bottom plate (note: 1000 and 1200 mm wide cabinets have two openings in the bottom plate).

Form cabinet width
[mm]		 Width of the opening
for the sliding gland plate [mm]		 Width of the sliding
gland plate [mm]		 Catalogue number
800 586 616 W-5716-13-05-000
1200 or 600 386 416 W-5716-13-07-000
1000 356 386 W-5716-13-03-000

Package: 1 set
