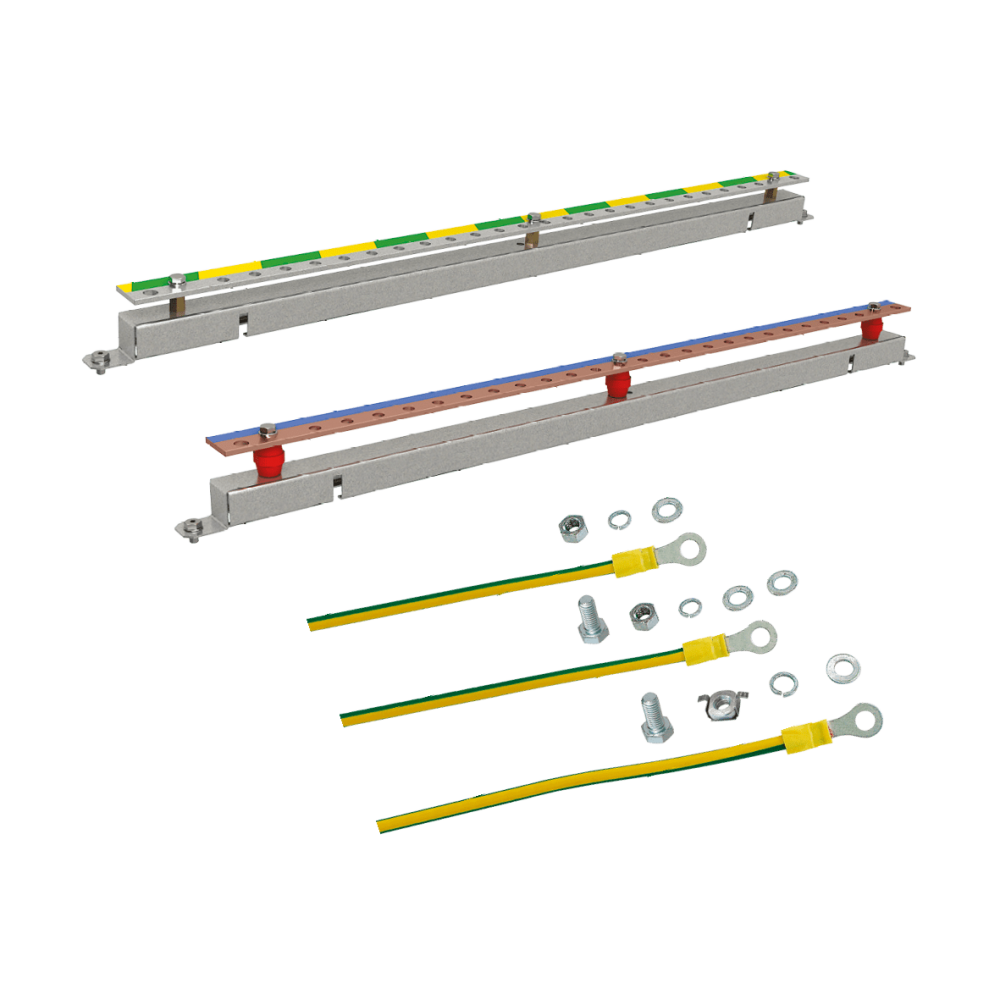

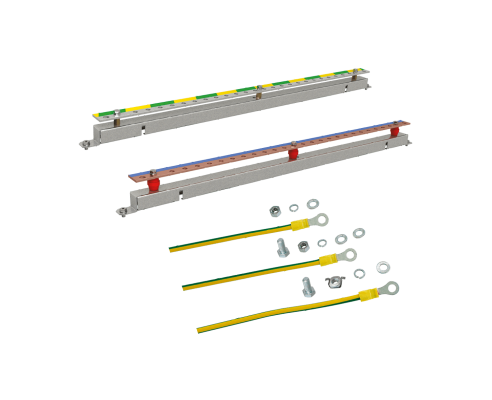

Earthing and shielding - SZE3 system cabinets
.
ACCESSORIES FOR SZE3 CABINETS - EARTHING AND SHIELDING

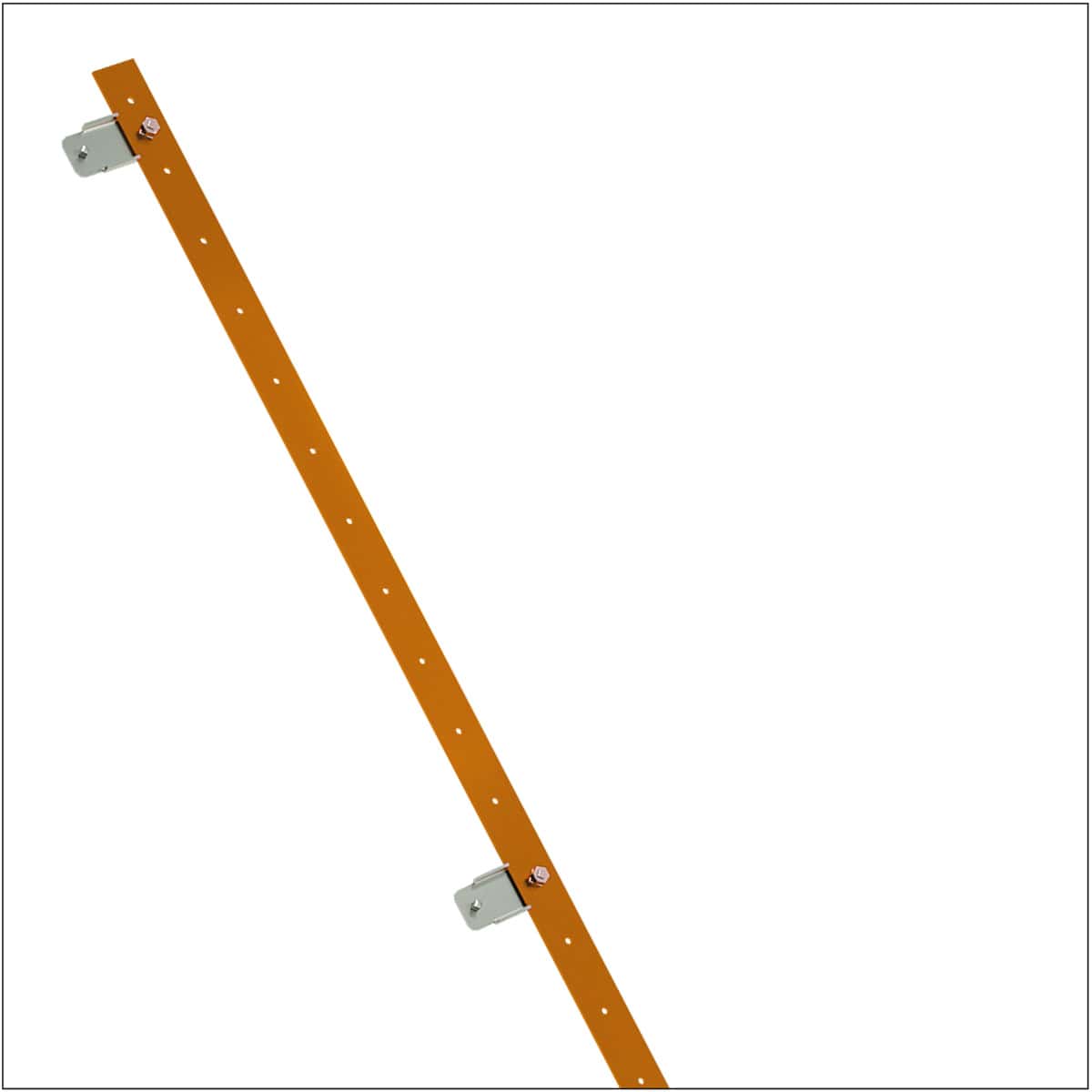

Vertical earthing bar
Mounted vertically to the 19" swing frame using brackets.
It has threaded holes M6 for cables fixing.
Length: 1650 mm
Material
Copper bar 30 x 3 mm
Scope of delivery
Earthing bar with brackets and fixing elements.
| Package | Catalogue number |
|---|---|
| 1 set | W-7580-11-00-000 |

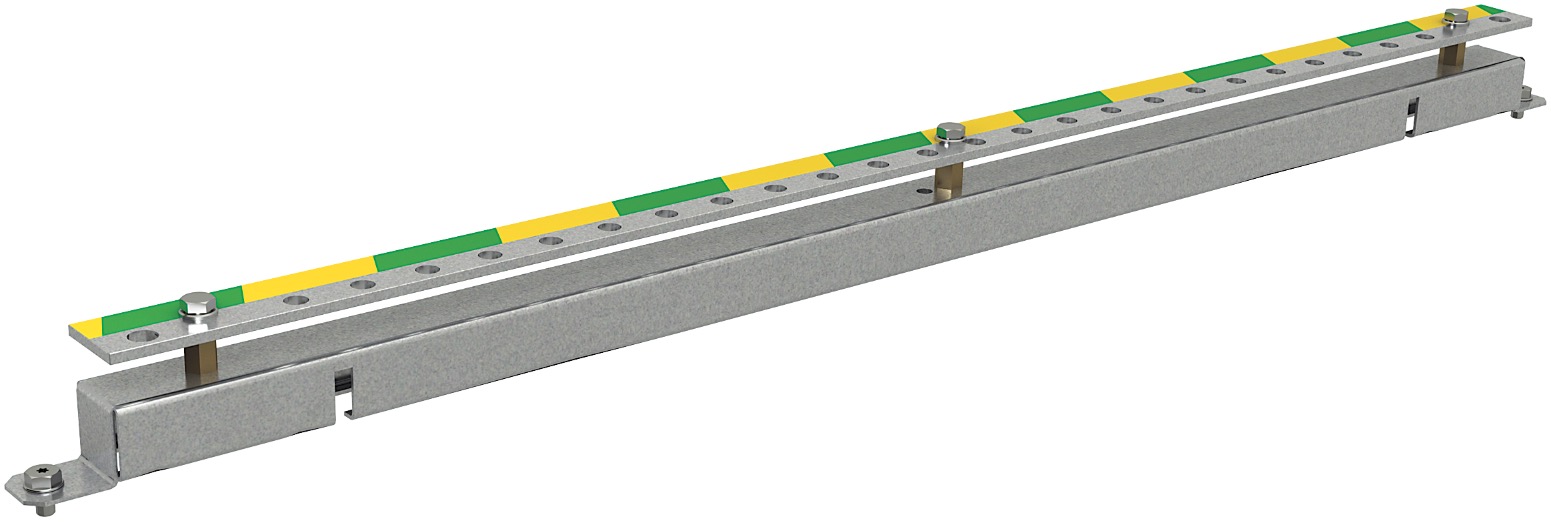

Earthing bar

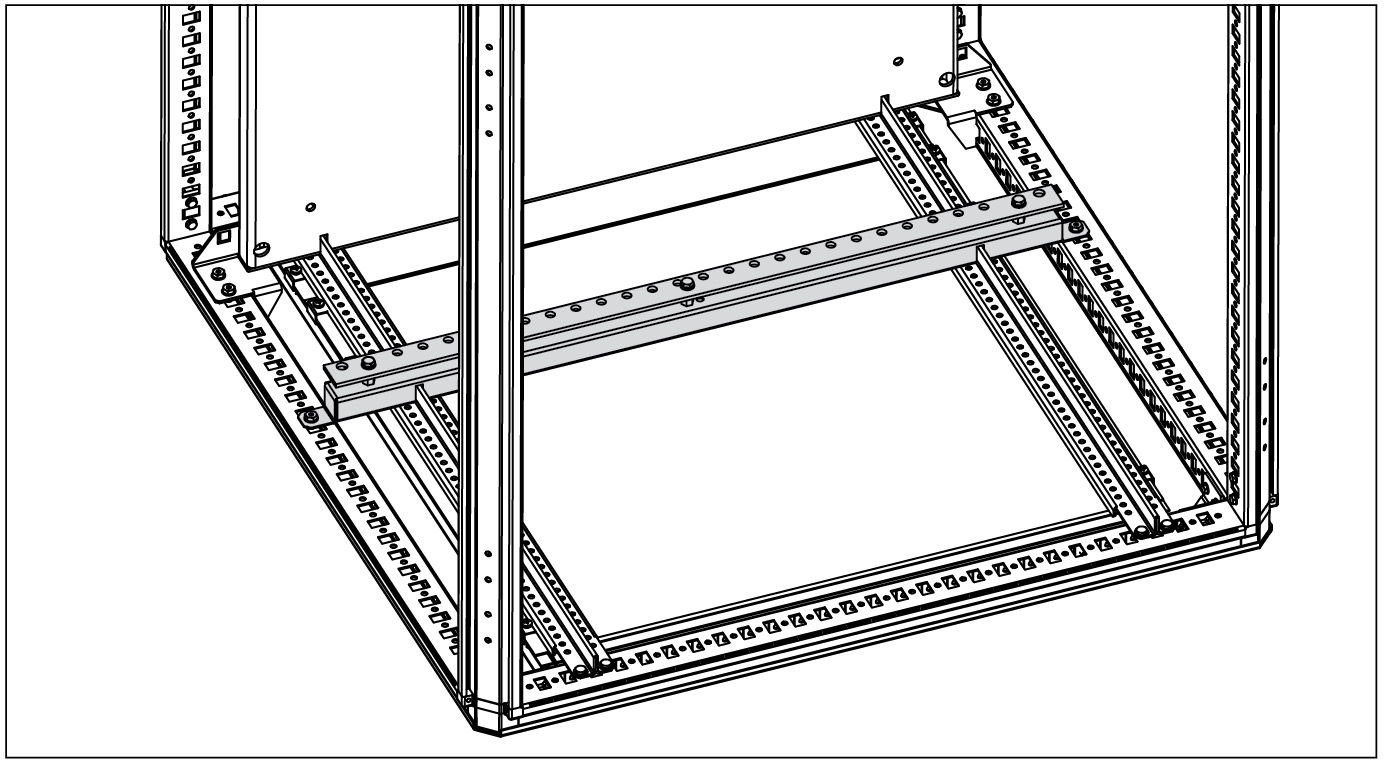

Earthing bar with a bracket for mounting on horizontal profiles of SZE3 cabinet's frame. It has M8 threaded holes for fastening cables. Bar mounted to the bracket using metal fixing/spacer bolts.
Material
Earthing bar - zinc coated steel Mounting bracket - zinc coated sheet steel
Scope of delivery
Earthing bar with bracket and fixings accessories for assembling into the cabinet.
| For cabinet width [mm] | Package | Catalogue number |
|---|---|---|
| 600 | 1 pc. | W-6282-78-04-000 |
| 800 | 1 pc. | W-6282-78-03-000 |
| 1000 | 1 pc. | W-6282-78-02-000 |
| 1200 | 1 pc. | W-6282-78-01-000 |

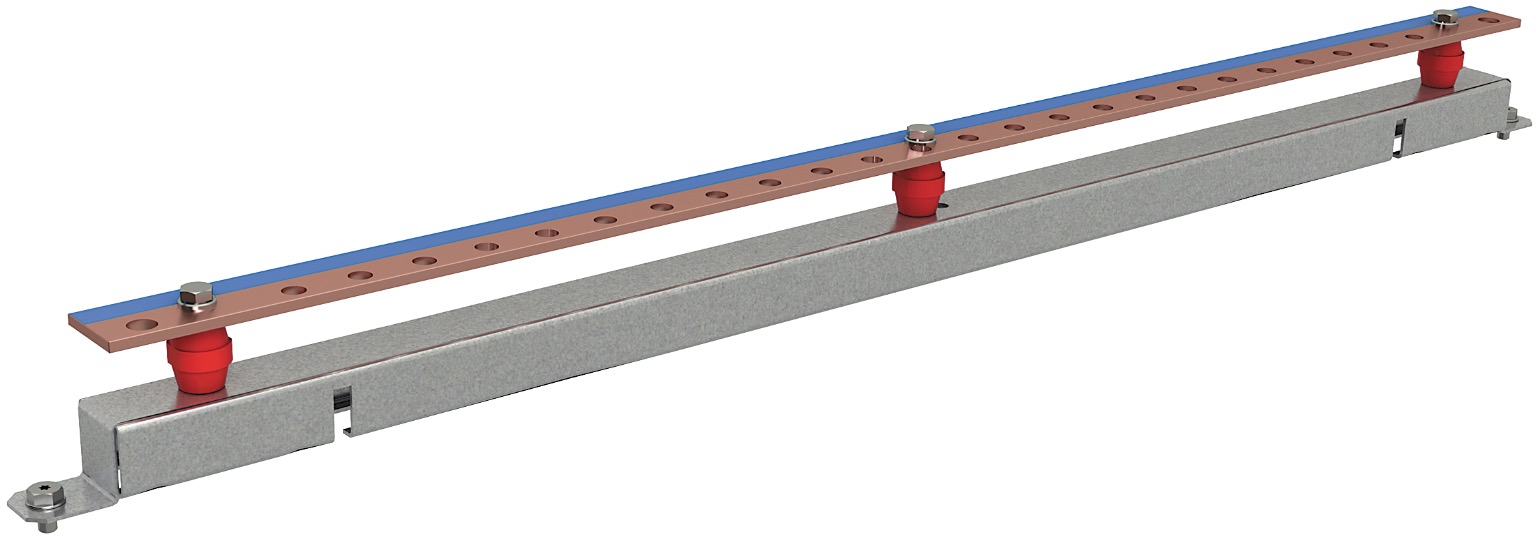

Shielding bar
Shielding bar with a bracket for mounting on horizontal profiles of SZE3 cabinet's frame.
Shielding bar with a bracket for mounting on horizontal profiles of SZE3 cabinet's frame.
It has M8 threaded holes for fastening cables. Bar mounted to the bracket using insulators.
Material
Shielding bar - copper
Mounting bracket - zinc coated sheet steel
Scope of delivery
Shielding bar with bracket and fixing accessories for assembling into the cabinet.
| For cabinet width [mm] | Package | Catalogue number |
|---|---|---|
| 600 | 1 pc. | W-6282-79-04-000 |
| 800 | 1 pc. | W-6282-79-03-000 |
| 1000 | 1 pc. | W-6282-79-02-000 |
| 1200 | 1 pc. | W-6282-79-01-000 |

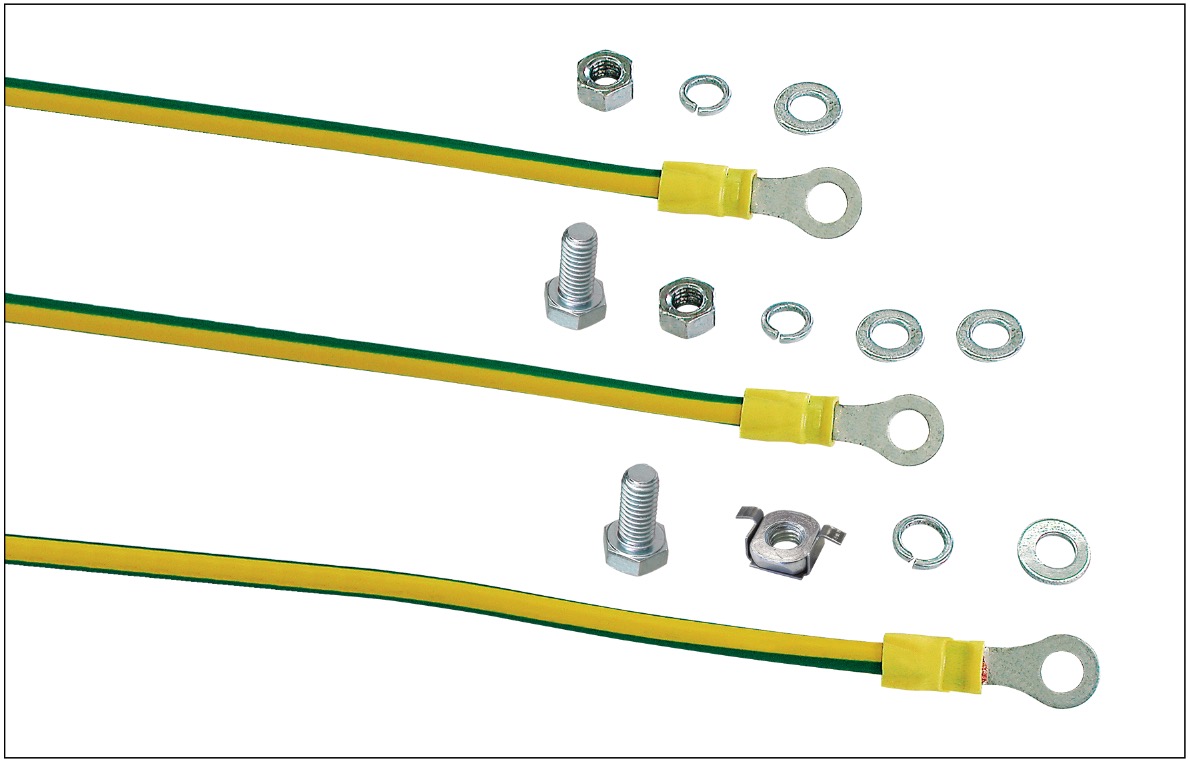

Earthing cable set
Copper wires for making compensation protective connections between all the removable components of the cabinet, its structure, and the earthing strip.
Cables are terminated with ring terminals for M8 bolts.
Material
Copper, galvanized steel, stainless steel
Scope of delivery
Set: 9 insulated strand, full section 6 mm2, fixing accessories.
| Packag | Catalogue number |
|---|---|
| 1 set | W-6282-50-00-000 |
