ACCESSORIES FOR SZE3 CABINETS - 19" MOUNTING PROFILES SYSTEM

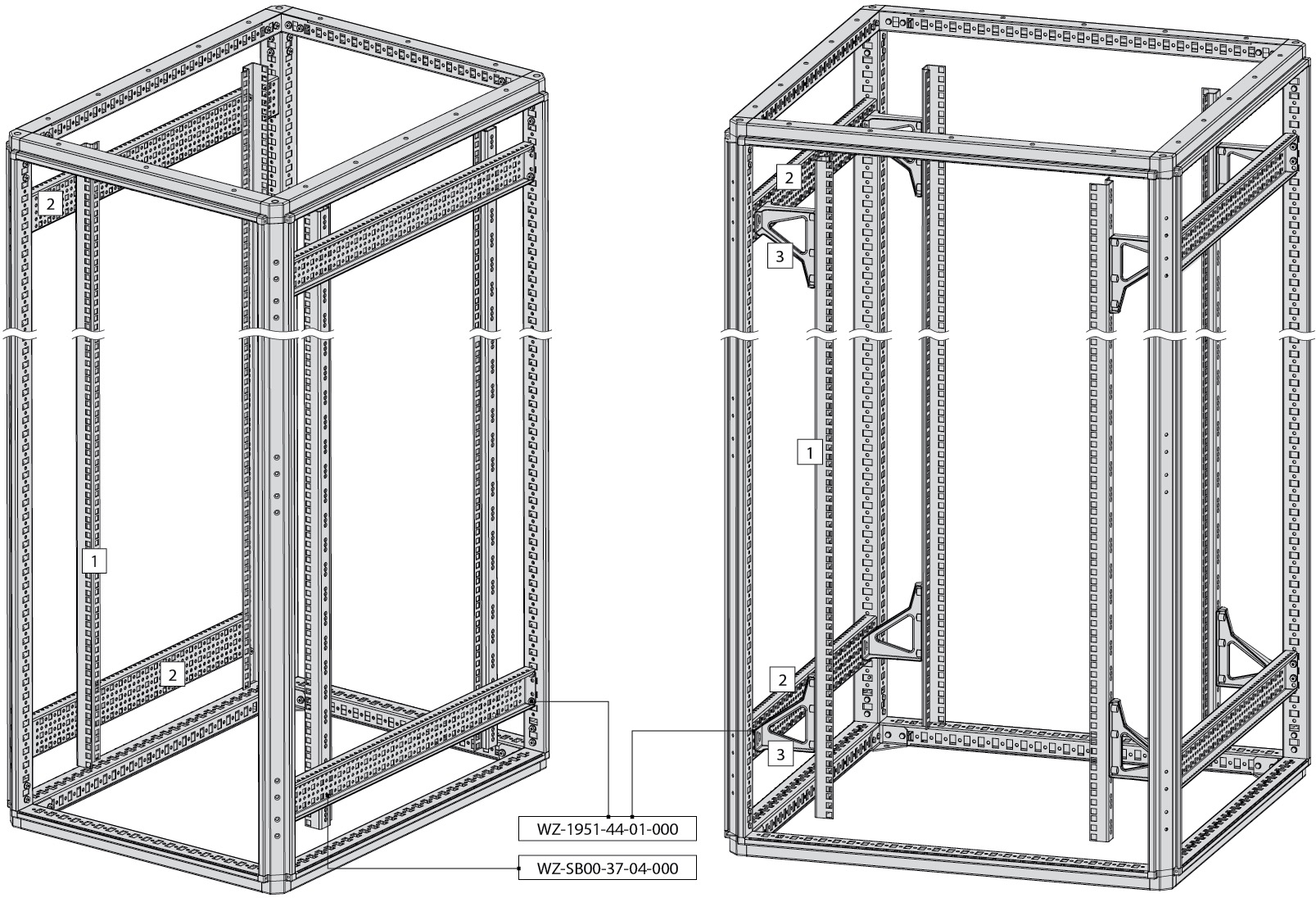

19" rack construction methods
19" rack in a cabinet with a width of 600 mm
1. 19" mounting profile
2. Mounting bar type C
19" rack in a cabinet with a width of 800 mm
1. 19" mounting profile
2. Mounting bar type C
3. Outrigger
Used fixing accessories:
W-1951-44-01-000 - M6x16 self-forming screws
W-SB00-37-04-000 - fixing accessories for mounting profiles

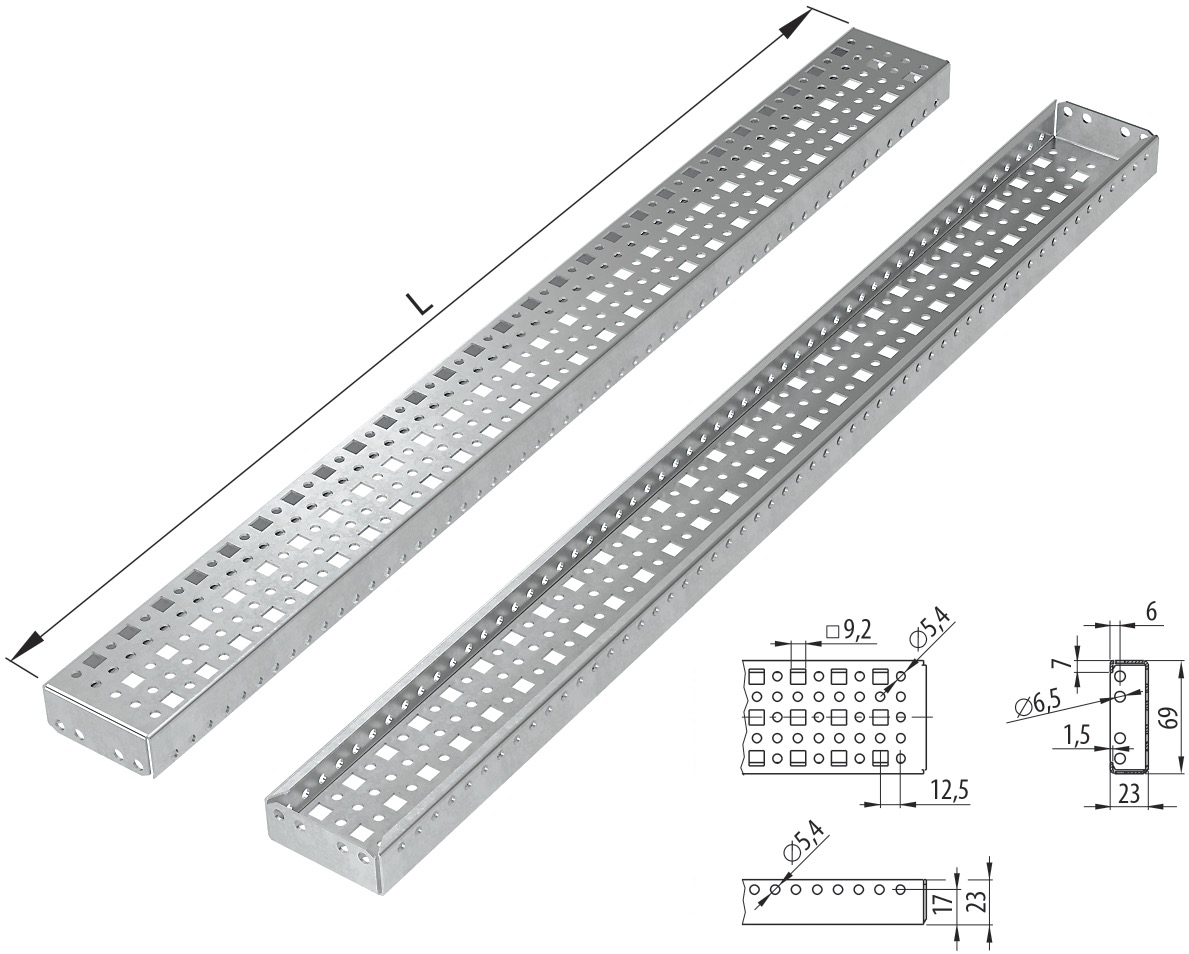

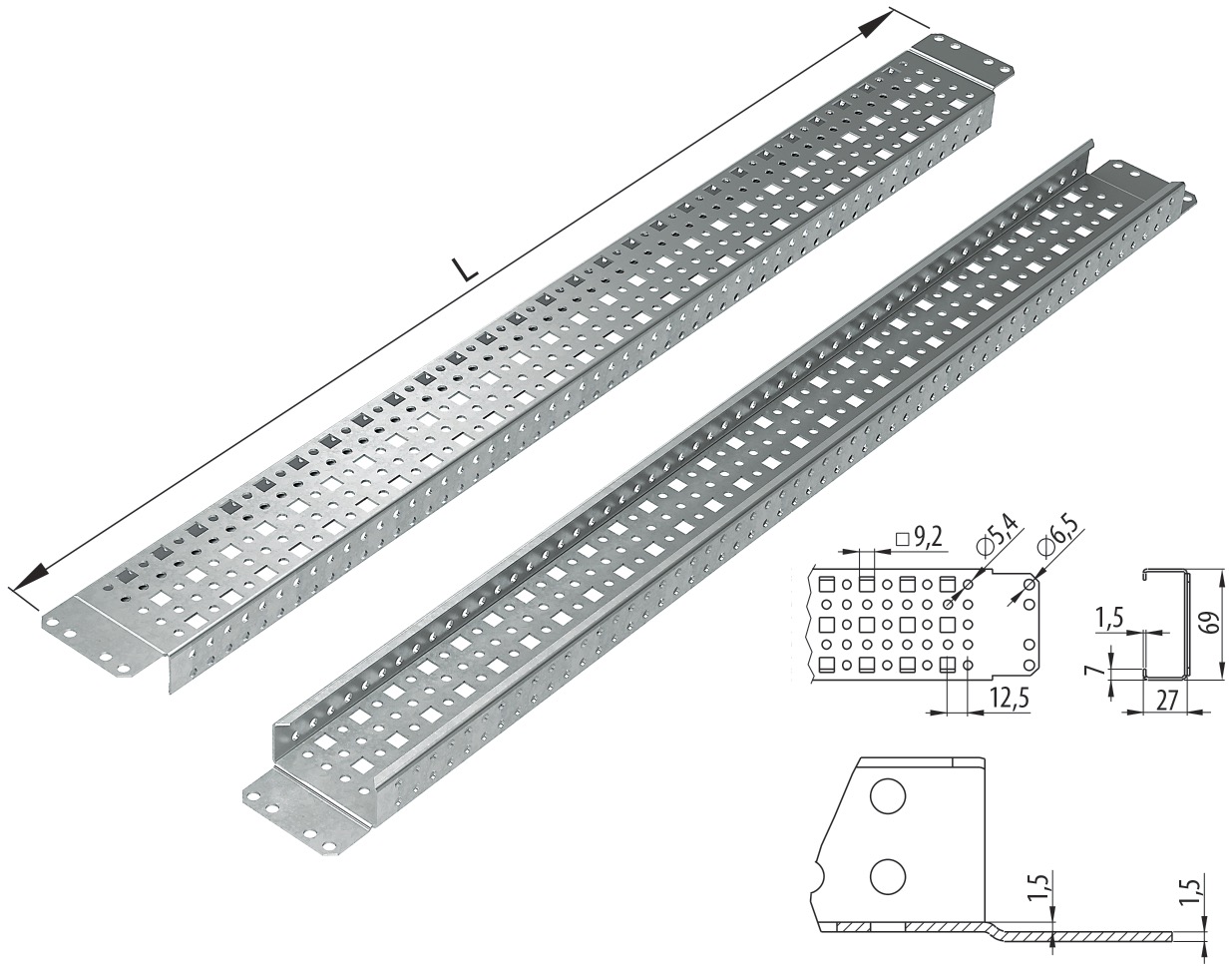

Mounting bar type C
For fixing 19" mounting profiles to SZE3 cabinet frame.
Material
zinc coated sheet steel
Scope of delivery
Mounting bar C without fixing accessories.
| For cabinet width or depth [mm] | Lenght of mounting bar C L [mm] | Catalogue number |
|---|---|---|
| W-6282-43-06-000 | ||
| W-6282-43-05-000 | ||
| W-6282-43-04-000 | ||
| W-6282-43-03-000 | ||
| W-6282-43-02-000 | ||
| W-6282-43-01-000 |
Package: 1 pc.

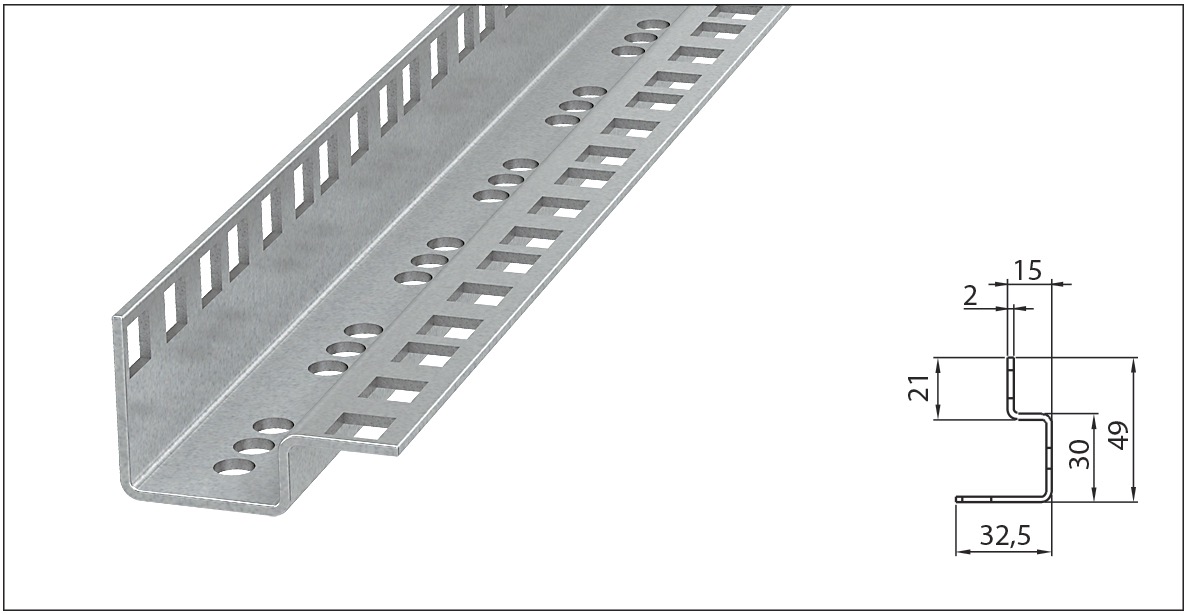

19" mounting profile
Used for installing 19" equipment in cabinets 600 or 800 mm wide. They are fixed to the cabinet’s frame by using mounting bars type C; in order to achieve the 19" spacing in cabinets 800 mm wide it is necessary to use outriggers.
Material
zinc coated sheet steel
Scope of delivery
Mounting profile without fixing accessories.
| Length of mounting profile [mm] | |||
Package: 1 pc.

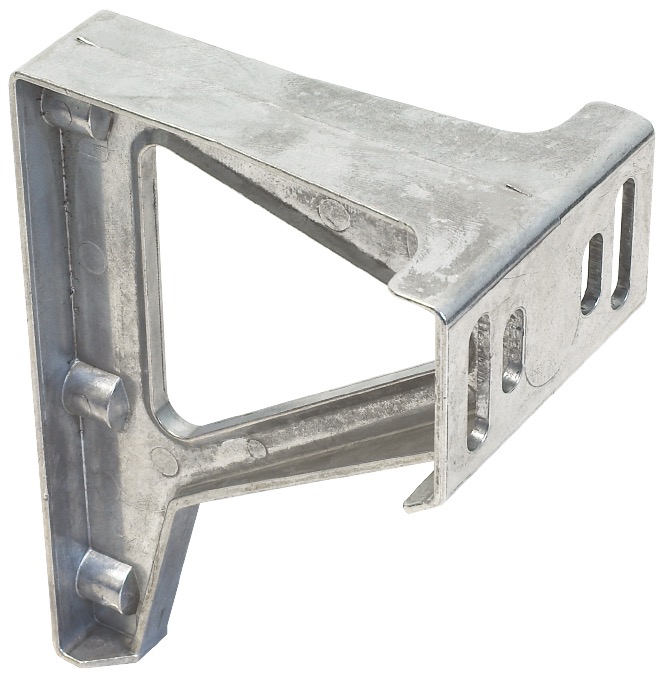

Outrigger
For fixing mounting profile in SZE3 cabinet 800 mm wide.
Material
Zamak casting
Scope of delivery
1 outrigger with fixing accessories for fastening to mounting profile and mounting bar type C.
| Package | Catalogue number |
| 1 pc. | W-5205-90-00-C12 |
19" transverse bar
For installing devices on 19" mounting profiles or 19" swing frame.
Material
zinc coated sheet steel
Scope of delivery
19" transverse bar without fixing accessories (fixing accessories should be ordered separately - cat. no W-1951-44-02-000
| Package | Catalogue number |
| 1 pc. | W-6414-05-00-000 |

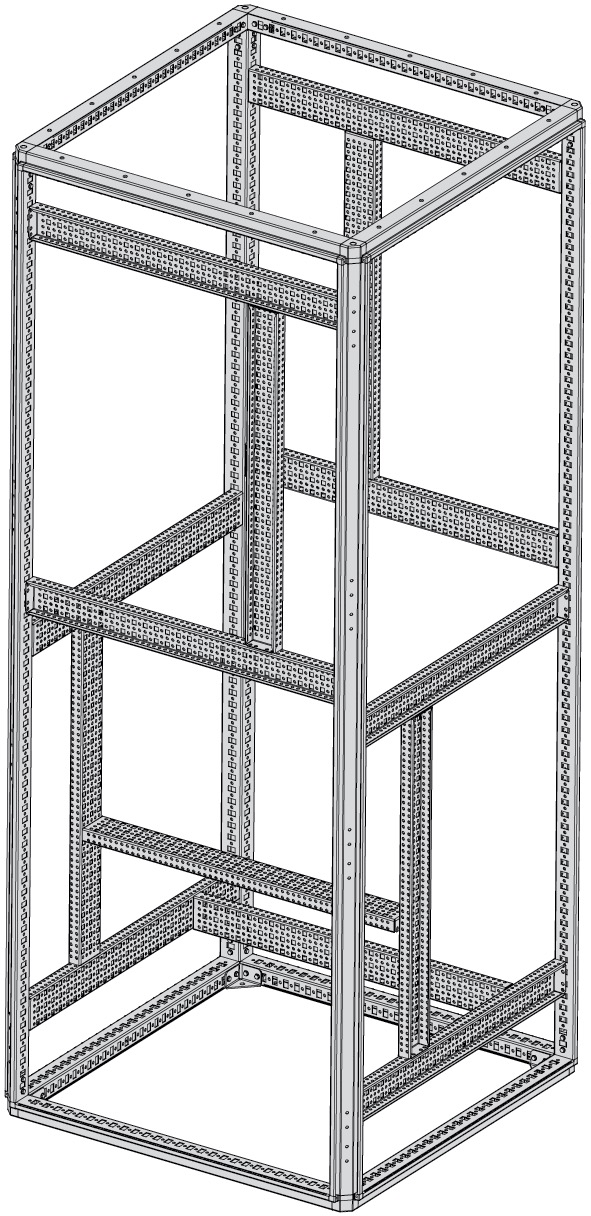

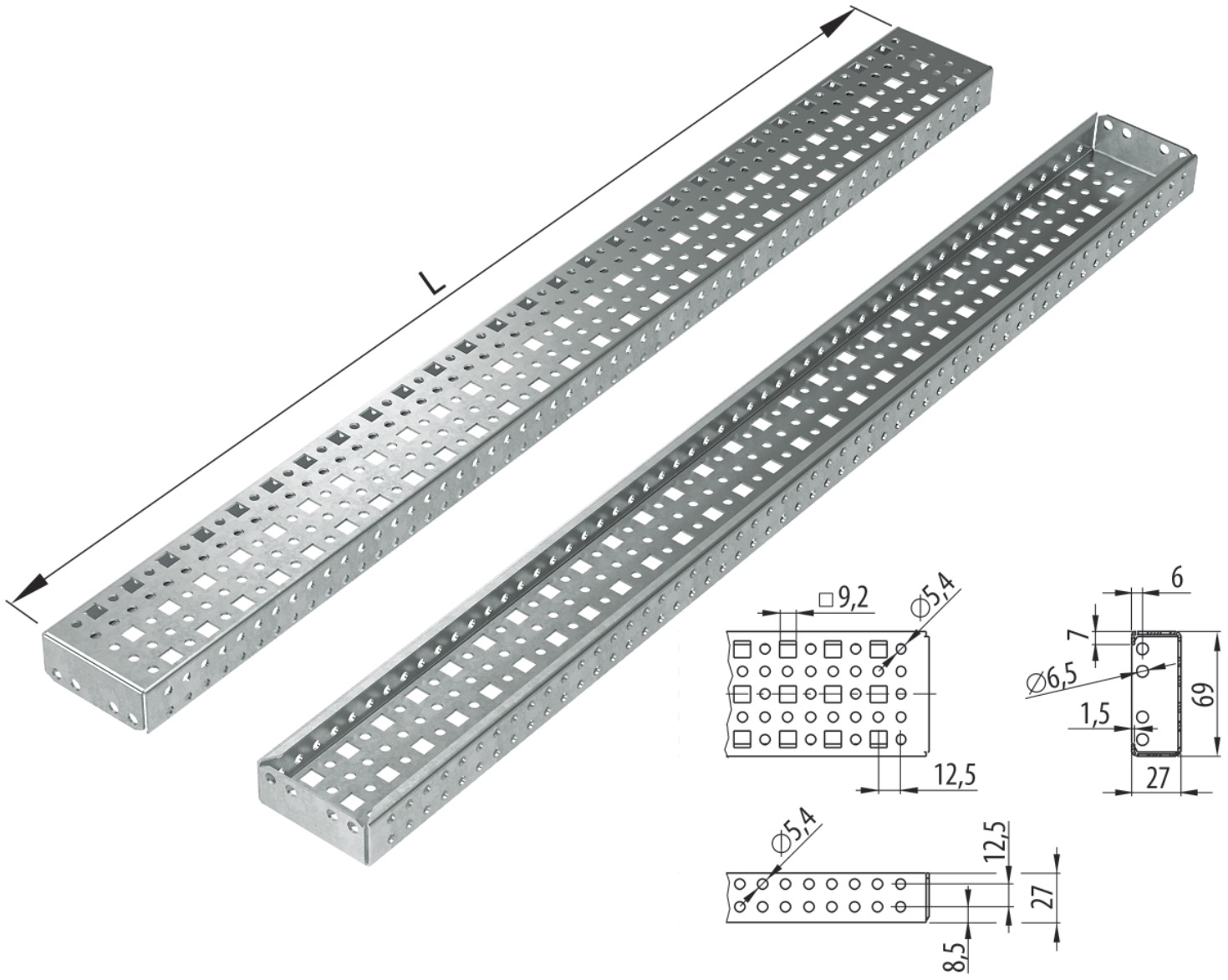

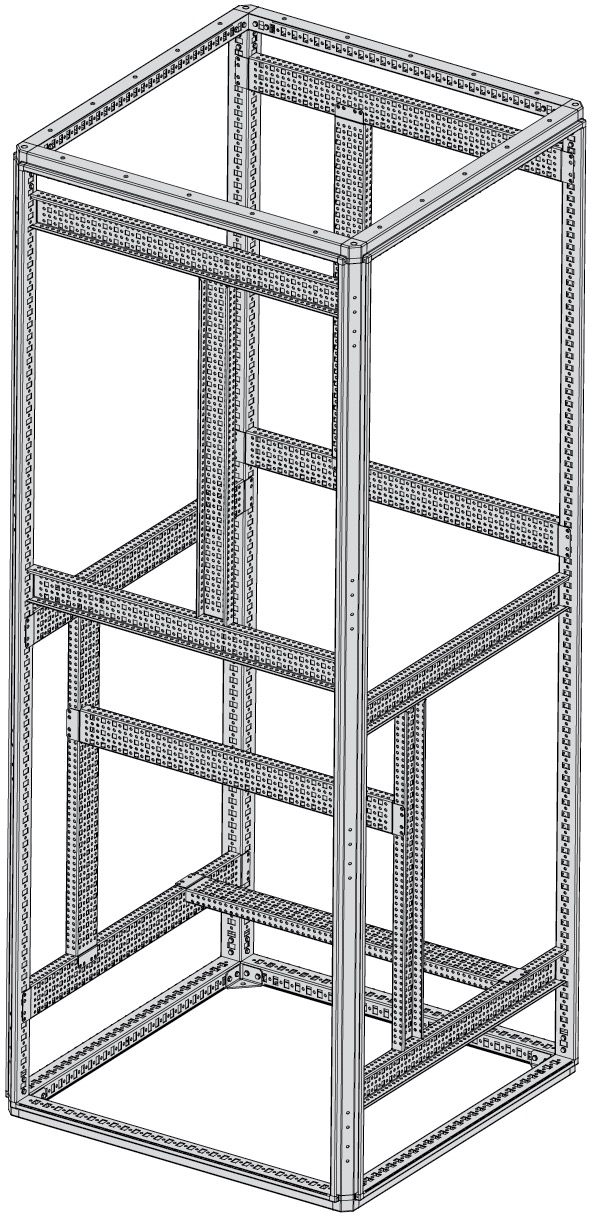

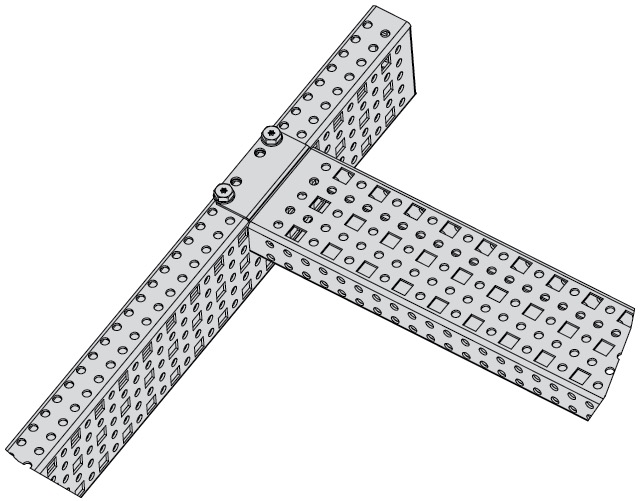

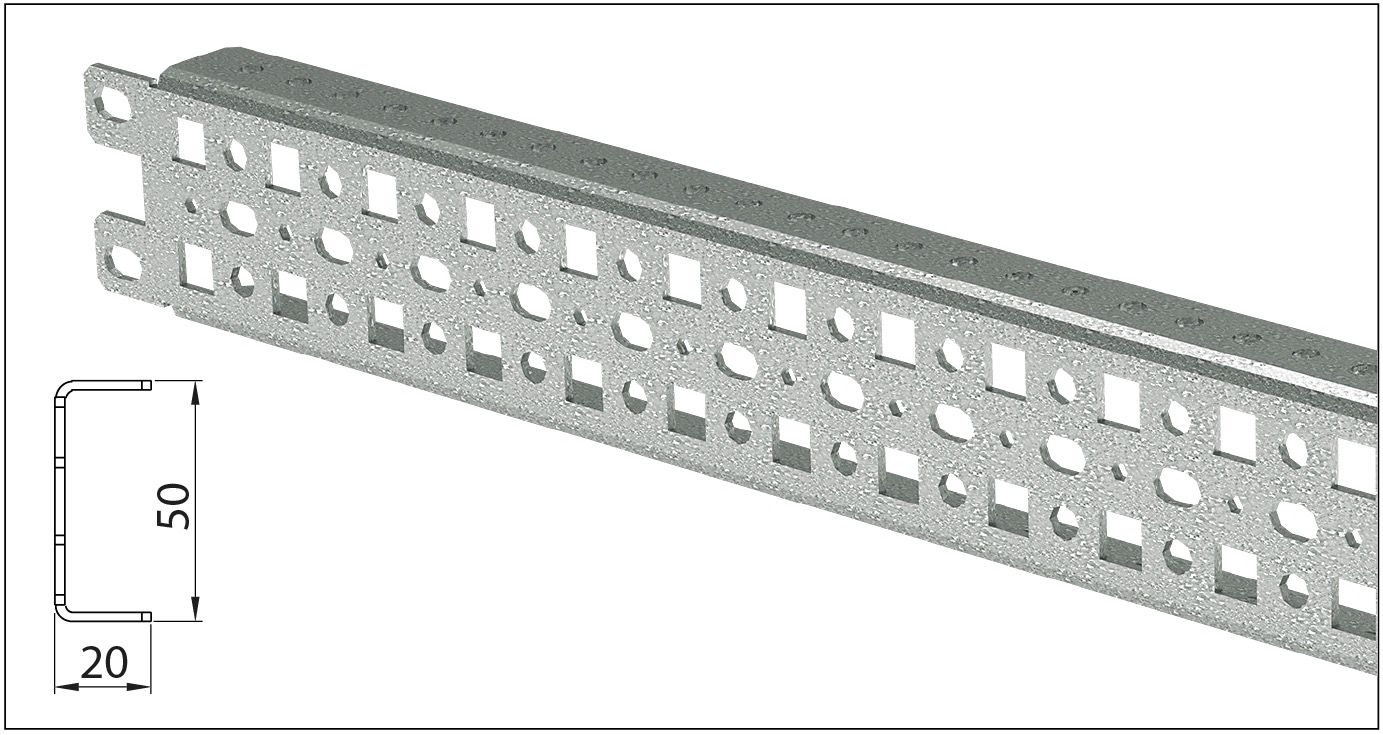

Mounting bars type A and B
For building racks inside the cabinet.
Available in two types that differ in fastening method.
Material
zinc coated sheet steel
Scope of delivery
Mounting bar without fixing accessories
| Type of mounting bar |
For cabinet
width or height [mm] |
Total length
of mounting bar L [mm] |
Catalogue number |
|---|---|---|---|
| - | 262 | W-6282-40-10-000 | |
| 400 | 362 | W-6282-40-09-000 | |
| 500 | 462 | W-6282-40-08-000 | |
| 600 | 562 | W-6282-40-07-000 | |
| - | 662 | W-6282-40-06-000 | |
| 800 | 762 | W-6282-40-05-000 | |
| - | 862 | W-6282-40-04-000 | |
| 1000 | 962 | W-6282-40-03-000 | |
| - | 1062 | W-6282-40-02-000 | |
| 1200 | 1162 | W-6282-40-01-000 | |
| - | 206 | W-6282-42-10-000 | |
| 400 | 306 | W-6282-42-09-000 | |
| 500 | 406 | W-6282-42-08-000 | |
| 600 | 506 | W-6282-42-07-000 | |
| - | 606 | W-6282-42-06-000 | |
| 800 | 706 | W-6282-42-05-000 | |
| - | 806 | W-6282-42-04-000 | |
| 1000 | 906 | W-6282-42-03-000 | |
| - | 1006 | W-6282-42-02-000 | |
| 1200 | 1106 | W-6282-42-01-000 |

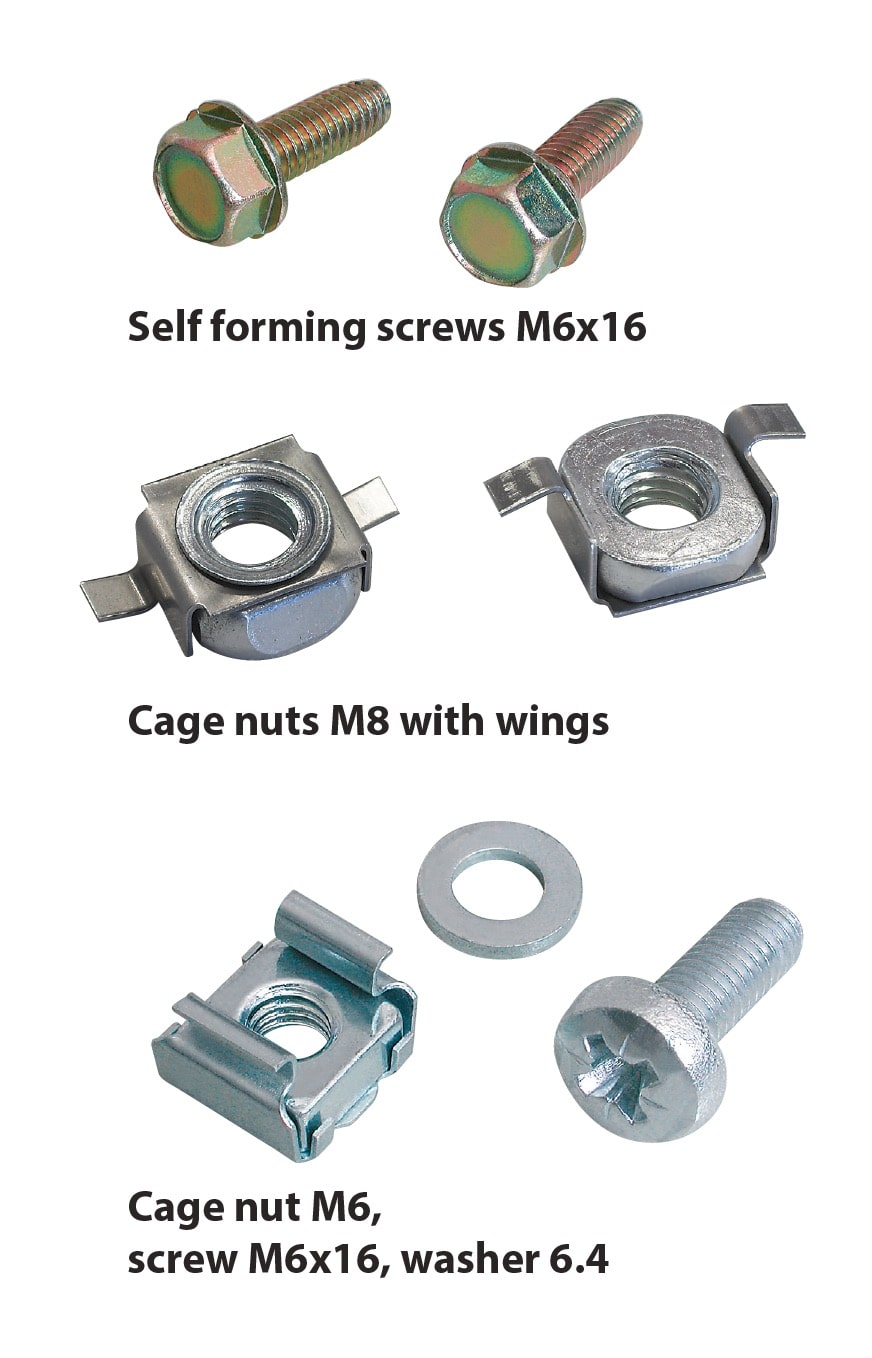

Fixing accessories
Self forming screws M6x16 – for fastening mounting profiles to the cabinet's frame and for interconnecting mounting profiles.
Cage nuts M8 with wings – for fastening devices to the cabinet's frame.
Cage nuts M6 with screws and washers – for fastening cable bar to the cable bar bracket on the cabinet’s plinth or for fastening 19" transverse bar to the 19" mounting profiles.
Scope of delivery
Sold in sets of 20 pieces.
| Description | Package | Catalogue number |
|---|---|---|
| Self forming screw M6x16 | 20 pcs | W-1951-44-01-000 |
| Cage nut M8 with wings | 10 pcs | W-M1F-03-0165-000 |
| Cage nut M6 Screw M6x16 Washer 6.4 |
20 pcs 20 pcs 20 pcs |
W-1951-44-02-000 |

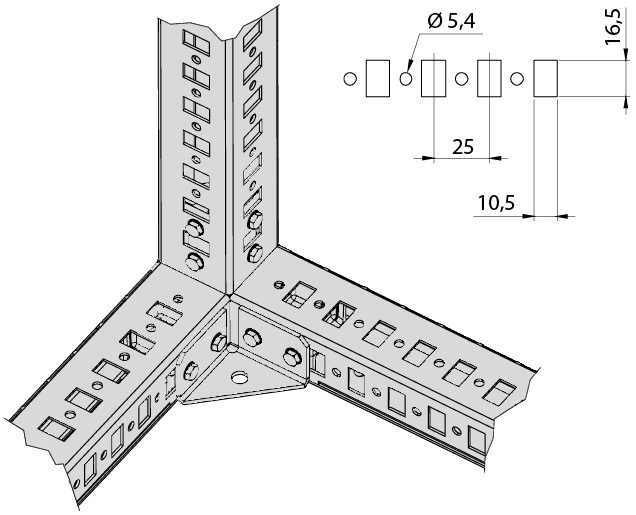

Perforation in SZE3 cabinet's frame:
- 10.5 x 16.5 mm holes for M8 cage nuts with wings,
- Ø 5.4 mm holes for M6 self-tapping screws
