Mounting plate / swing frame - SZE3 system cabinets
.
ACCESSORIES FOR SZE3 CABINETS - MOUNTING PLATE

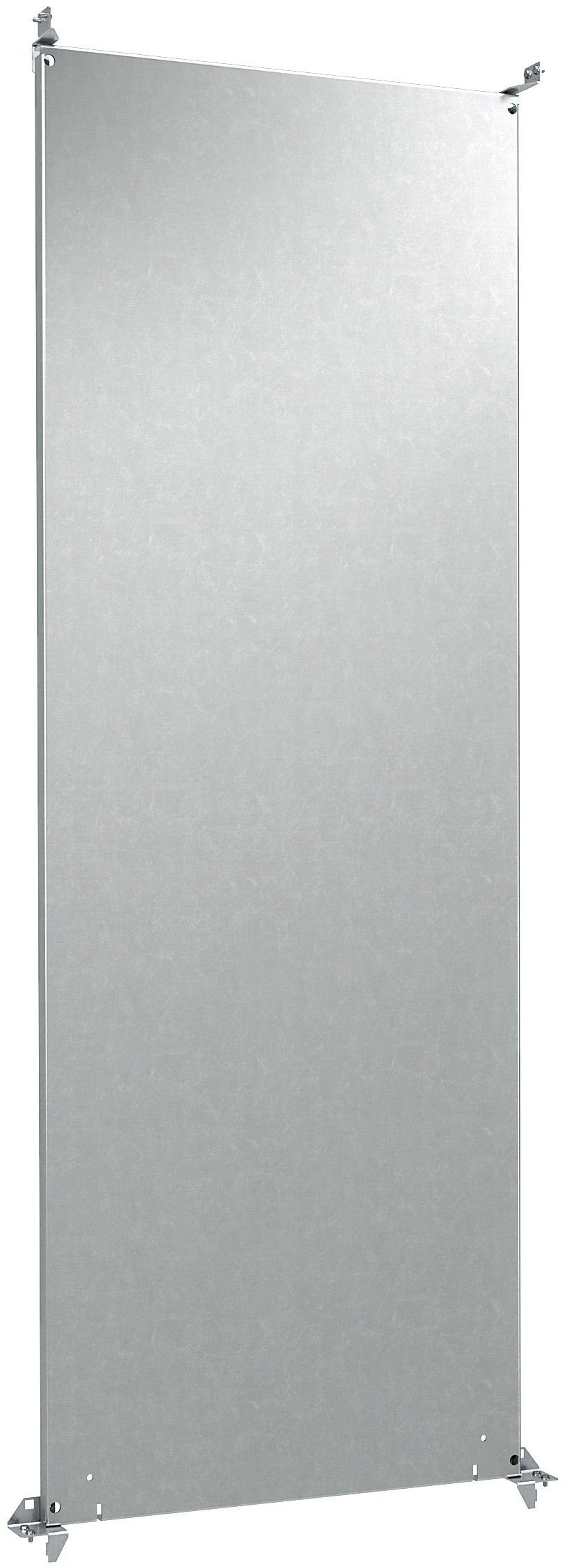

Mounting plate
The mounting plate is designed for installing different equipment inside the SZE3 cabinet.
Material
Galvanized steel sheet, 3 mm thickness; dimensional tolerances sheet steel are normal according to EN 10143.
Scope of delivery
Mounting plate with fixing accessories for smooth adjustment within the cabinet's depth. Mounting plate guides are sold separately. In order to fasten the mounting plate on the back of the cabinet, between the rear posts of the frame, requires two additional lower brackets, ordered separately
| Catalogue number | ||
|---|---|---|
| Height [mm] | Width [mm] | |
| 600 | W-6282-33-08-000 | |
| 800 | W-6282-33-07-000 | |
| 1000 | W-6282-33-06-000 | |
| 1200 | W-6282-33-05-000 | |
| 600 | W-6282-33-04-000 | |
| 800 | W-6282-33-03-000 | |
| 1000 | W-6282-33-02-000 | |
| 1200 | W-6282-33-01-000 | |
Package: 1 pc.
Note: On special order, we make hinged mounting plates, using galvanized steel sheet or textolite plate. The mounting plate can also be powder-painted in RAL 7035 (standard colour) or any other colour on demand.

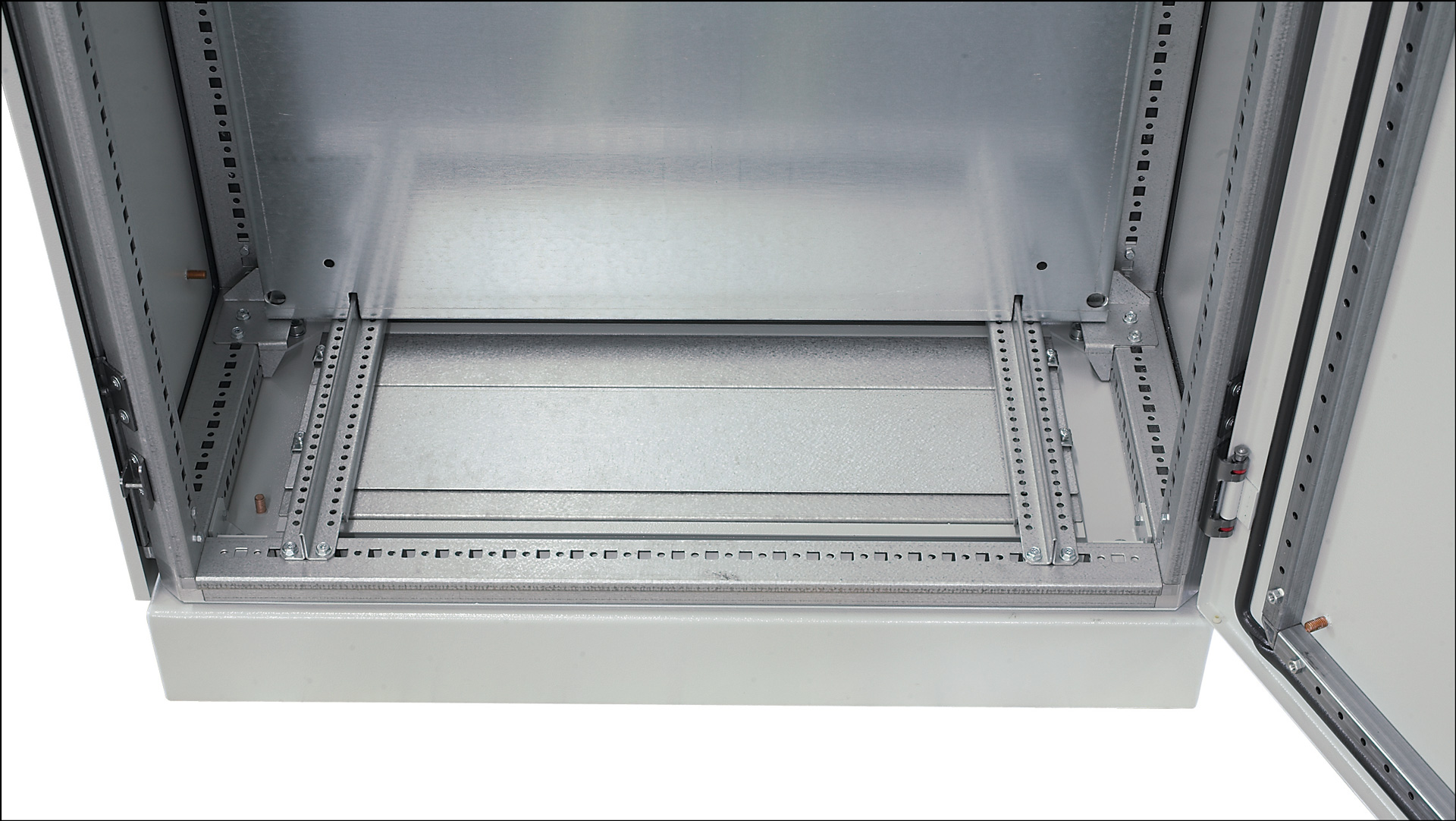

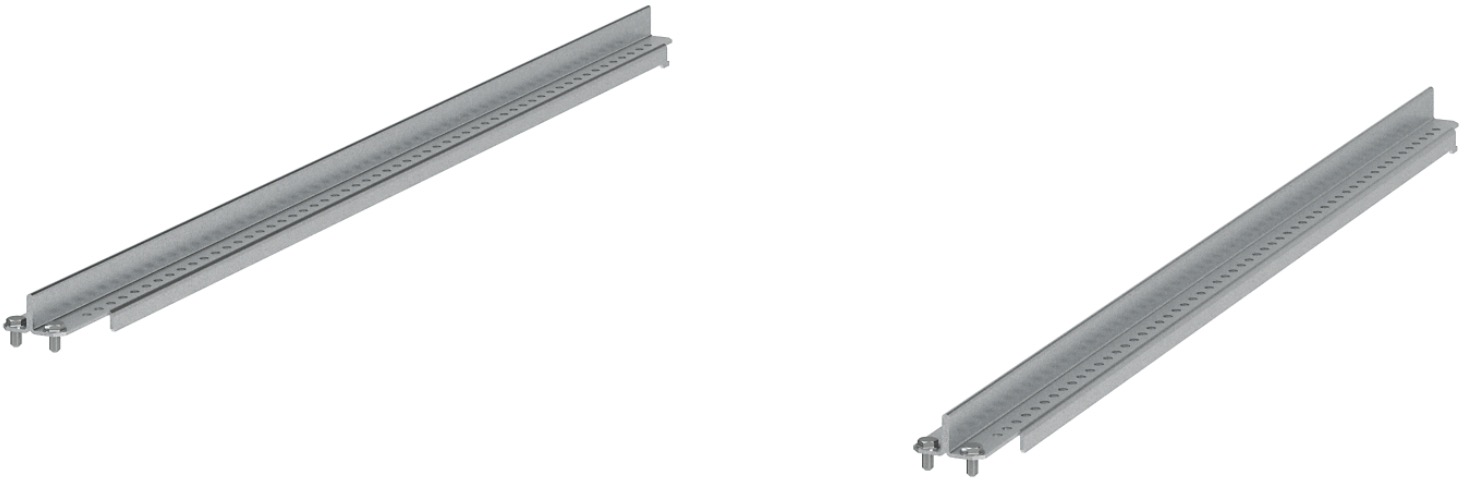

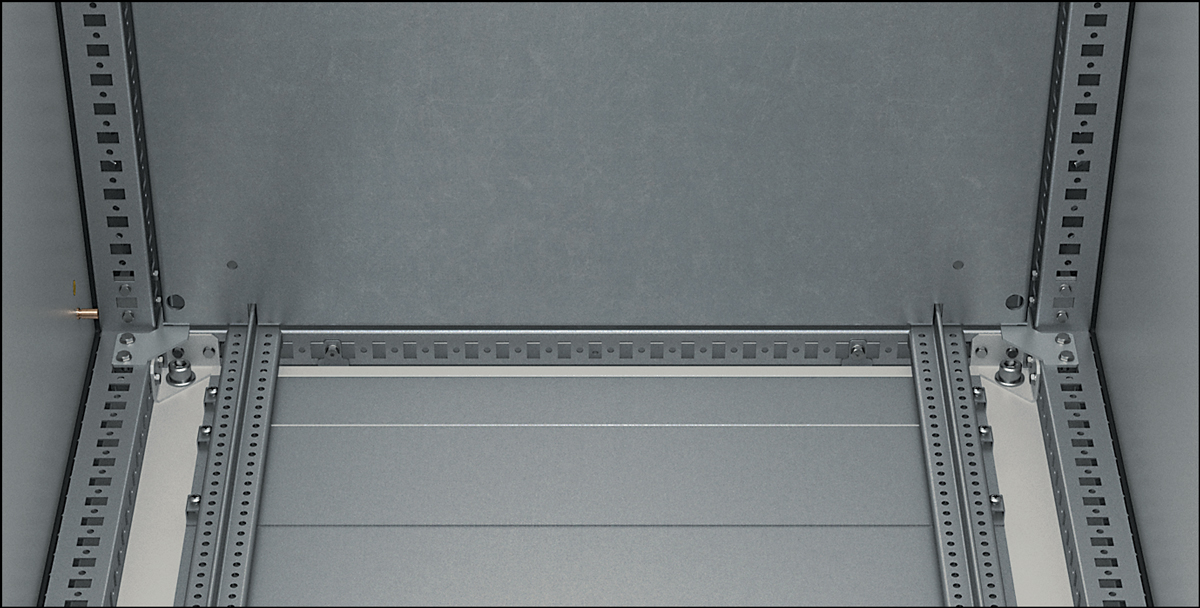

Mounting plate guides
The guides are designed for installing the mounting plate in the SZE3 cabinet. They make inserting and positioning the plate inside the cabinet easier.
Material
zinc coated steel sheet
Scope of delivery
Set of 2 guides together with accessories for fixing them on the bottom plate of the cabinet.
| For cabinet depth [mm] | Catalogue number |
|---|---|
| 400 | W-6282-35-04-000 |
| 500 | W-6282-35-03-000 |
| 600 | W-6282-35-02-000 |
| 800 | W-6282-35-01-000 |
Package: 1 set

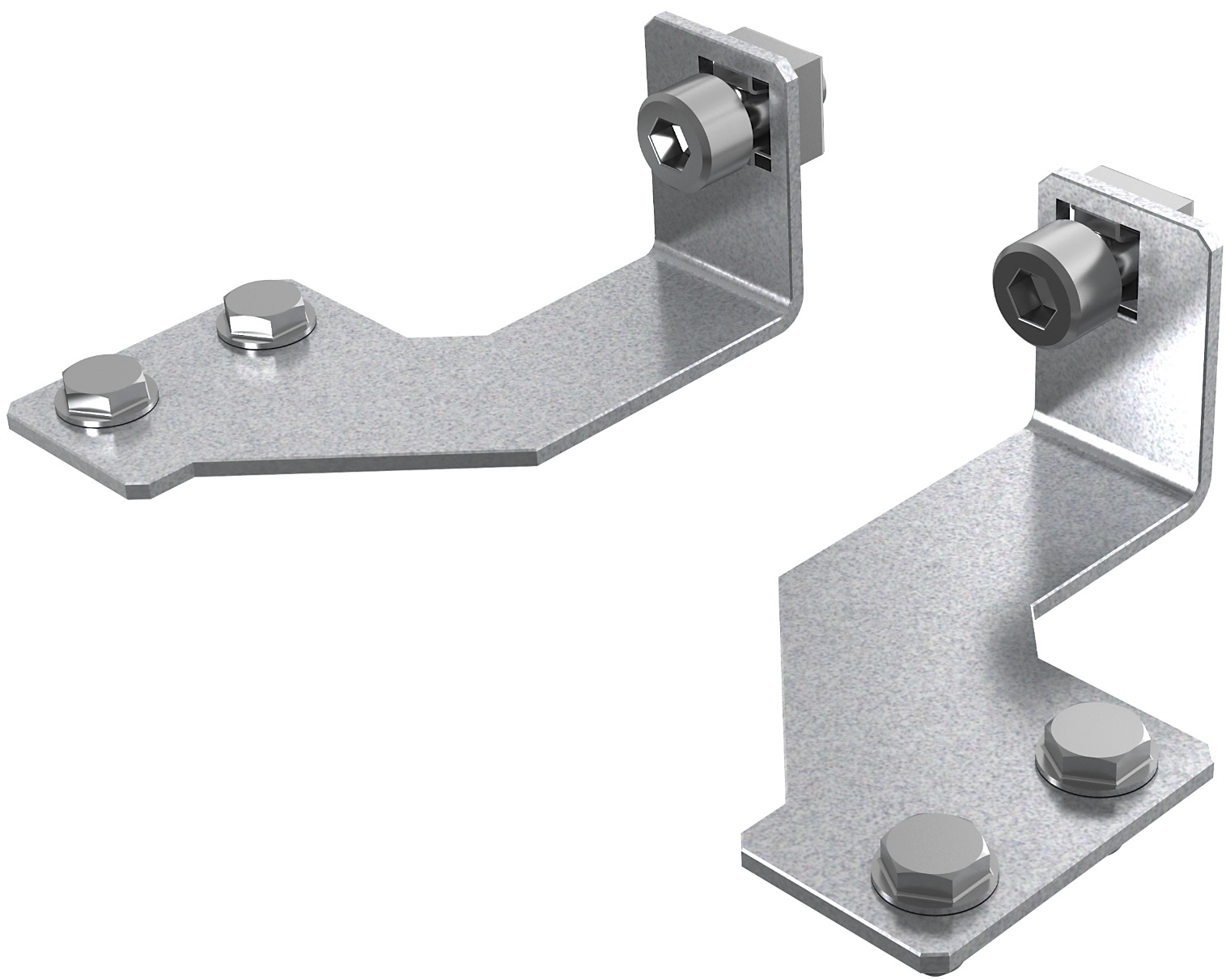

Mounting plate brackets
For fastening the mounting plate on the back of the closet, between the rear posts of the frame.
Material
zinc coated steel sheet
Scope of delivery
Two brackets (right and left) with fixing accessories.
| Package | ||
19" swing frame
Intended for cabinets 800 mm wide. Equipped with door-stop.
Two locks with double-bit insert.
Possibility of left- or right-side assembly by 180° rotation.
Maximum opening angle: 120°
Load capacity: 150 kg
Material
Galvanized steel sheet and profiles
Scope of delivery
Swing frame with fixing accessories for mounting to the cabinet.
| For cabinet
height H [mm] |
Usable
height of the frame HU [U = 44,45 mm] |
Maximum
depth for installations Dmax [mm] |
Catalogue number |
|---|---|---|---|
| 2000 | 40 U | 350 | W-6282-63-02-C08 |
| 2200 | 44 U | 350 | W-6282-63-01-C08 |
