ACCESSORIES FOR SZE3 CABINETS - CABINET'S BASE

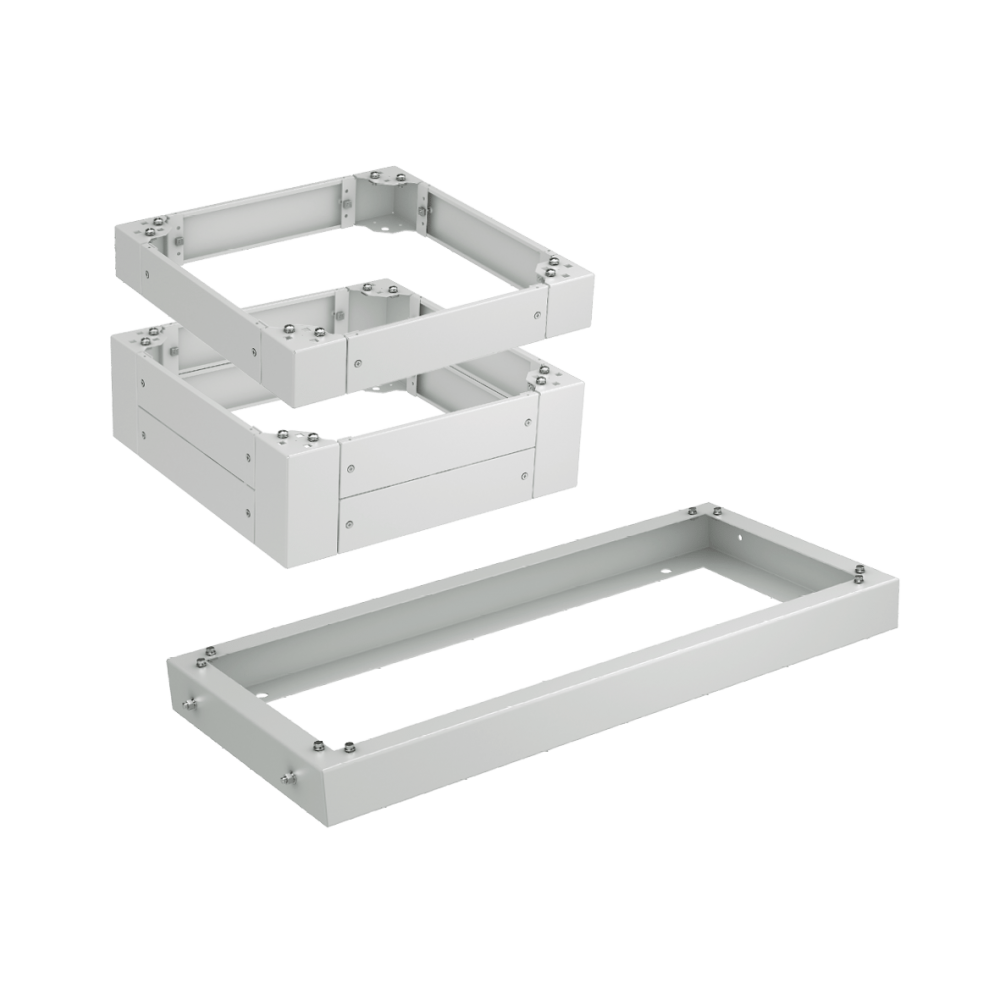

Modular plinth
Plinth consists of corners and removable side panels. Total weight of the cabinet is carried by plinth corners. It is possible to use the area under the cabinet by unscrewing the side panels. Plinth can be mounted to the base by optionally using rubber vibro-shock absorbers.
Ordering method
The plinth shall be ordered from the following components: plinth corners and plinth side panels depending on the width and depth of the cabinet.
Plinth side panels
There are three types of plinth side panels available. Side panels can be removed even when the cabinet is loaded with equipment.
Material
Sheet steel powder painted in light grey (RAL 7035).
Scope of delivery
Panel with fixing elements.
Package: 1 pc.
| Product name | Length of side
panel [mm] |
Length of
plinth’s side [mm] |
Catalogue number |
|---|---|---|---|
| Solid side panel | 200 | 400 | W-6935-46-09-011 |
| 300 | 500 | W-6935-46-07-011 | |
| 400 | 600 | W-6935-46-05-011 | |
| 600 | 800 | W-6935-46-03-011 | |
| 800 | 1000 | W-6935-46-02-011 | |
| 1000 | 1200 | W-6935-46-01-011 | |
| Perforated side panel | 200 | 400 | W-6935-92-09-011 |
| 300 | 500 | W-6935-92-07-011 | |
| 400 | 600 | W-6935-92-05-011 | |
| 600 | 800 | W-6935-92-03-011 | |
| 800 | 1000 | W-6935-92-02-011 | |
| 1000 | 1200 | W-6935-92-01-011 | |
| Side panel with brush opening |
200 | 400 | W-6935-94-09-011 |
| 300 | 500 | W-6935-94-07-011 | |
| 400 | 600 | W-6935-94-05-011 | |
| 600 | 800 | W-6935-94-03-011 | |
| 800 | 1000 | W-6935-94-02-011 | |
| 1000 | 1200 | W-6935-94-01-011 |
Plinth corners
Corners are equipped with removable plates that ease the access to assembling and levelling elements. Corners can be equipped with levelling set or vibro-shock absorbers.
Material
Body: sheet steel powder painted in light grey (RAL 7035).
Covers: black plastic.
Scope of delivery
Set of 4 corners include fixing accessories.
| Height [mm] | Package | Catalogue number |
|---|---|---|
| 100 | 4 pcs | W-6935-74-00-011 |
Vibro-shock absorbers
Vibro-shoch absorbers reduce the transmission of possible vibrations between the floor and the cabinet (e.g. in industrial buildings). Plinth with vibro-shock absorbers should be fixed into the room’s floor.
Material
10 mm thick rubber.
Scope of delivery
Set of 4 vibro-shock absorbers.
| Package | Catalogue number |
|---|---|
| 1 kpl. | W-M1Z-00-0048-000-4 |
Wibroizolator / Narożnik z zamontowanym wibroizolatorem
Set for plinth levelling
Plinth corners can be equipped with additional levelling bolts, that enable stable setting of the cabinet on uneven floor.
Adjustment range: 0–10 mm
Material
Galvanised steel
| Product name | Package | Catalogue number |
|---|---|---|
| Set of 4 plinth levelling bolts for SZE3 cabinet | 1 set | W-6935-Z1-02-000 |

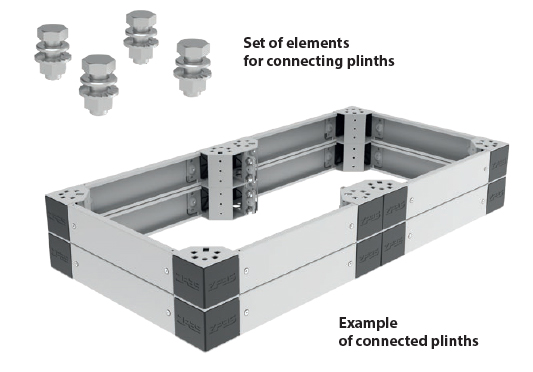

Set of elements for connecting plinths
Plinths can be joined in row or stacked.
Joining in rows
In order to join two plinths, one connecting set is needed.
Stacking
In order to stack two plinths, two connecting sets are needed.
Maximum allowed height: 4 plinths x 100 mm
| Product description | Package | Catalogue number |
|---|---|---|
|
4 bolts M10x20 4 washers 10,5 4 flange nuts M10 |
1 set | W-6935-Z1-03-000 |

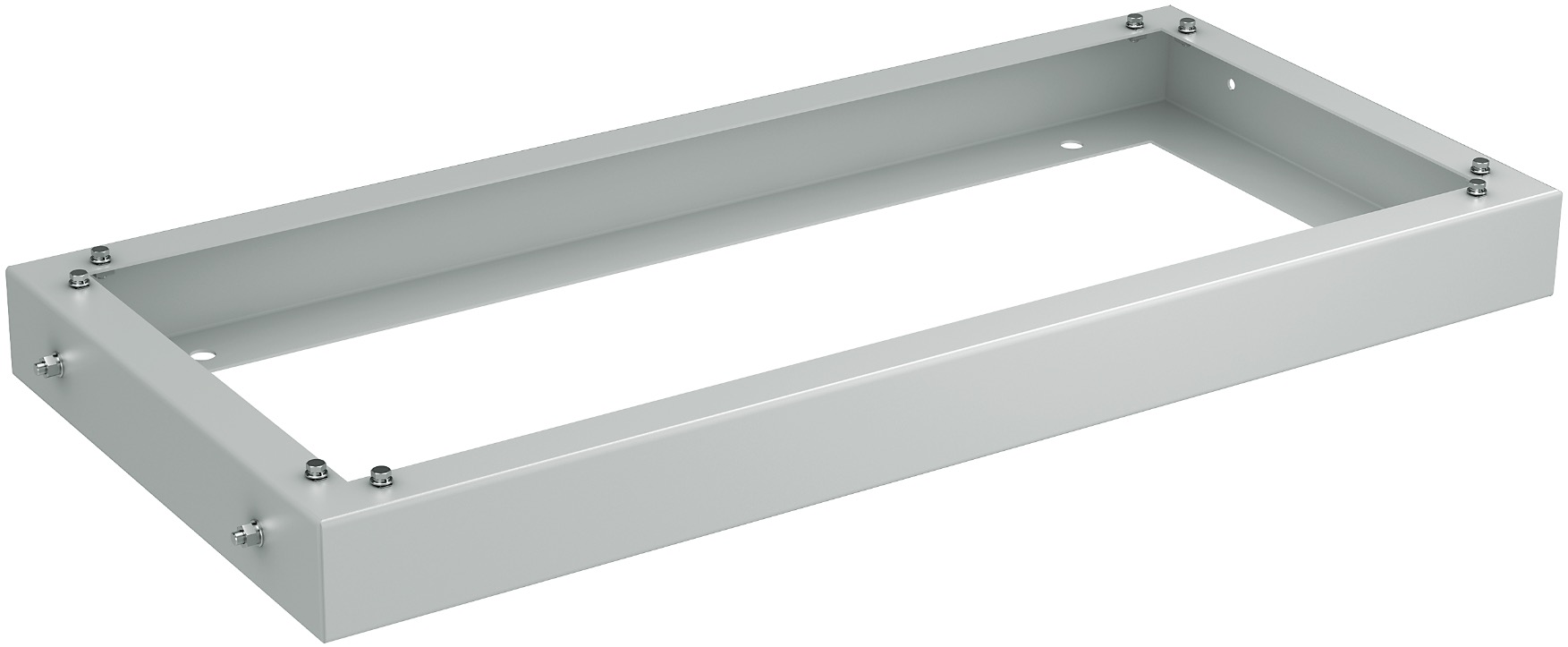

Welded plinth
Indicated for heavy duty cabinets. Provide to transport cabinets with forklift truck without using transport pallet.
Material
Sheet steel powder paint, light grey (RAL 7035)
Scope of delivery
Plinth with mounting accessories for fastening plinth to the cabinet.
| 600 | 400 | W-6282-15-16-011 |
| 500 | W-6282-15-15-011 | |
| 600 | W-6282-15-14-011 | |
| 800 | W-6282-15-13-011 | |
| 800 | 400 | W-6282-12-16-011 |
| 500 | W-6282-11-15-011 | |
| 600 | W-6282-10-14-011 | |
| 800 | W-6282-09-13-011 | |
| 1000 | 400 | W-6282-15-08-011 |
| 500 | W-6282-15-07-011 | |
| 600 | W-6282-15-06-011 | |
| 800 | W-6282-15-05-011 | |
| 1200 | 400 | W-6282-15-04-011 |
| 500 | W-6282-15-03-011 | |
| 600 | W-6282-15-02-011 | |
| 800 | W-6282-15-01-011 | |
Package: 1 pc.
