ACCESSORIES FOR SZE3 CABINETS - DOORS

Doors

SZE3 cabinets have solid metal door as standard. If required, the door can be glazed and/or ventilated. The door can be mounted not only on the cabinet's front and back but also on its sides. Tightness is ensured by a seal cast of foamed polyurethane. The door has M8 earthing bolts. A standard cabinet has a four-point lock with double-bit insert and no handle. The lock is located outside the sealed zone, so it does not compromise protection degree IP. Maximum door opening angle: 150° At the customer's request we can introduce various kinds of modifications, such as cutting out holes for touch panels, adding external hinges to increase the door opening angle, etc.

Material:

  • sheet steel powder paint, light grey (RAL 7035),
  • galvanized steel stiffening profiles, perforated for installing cable trays, for example,
  • safety glass,
  • door ventilated through plastic ventilation grilles protection degree IP 54.

Scope of delivery
Complete wing of door with hinges and lock that includes doublebit insert (no handle).

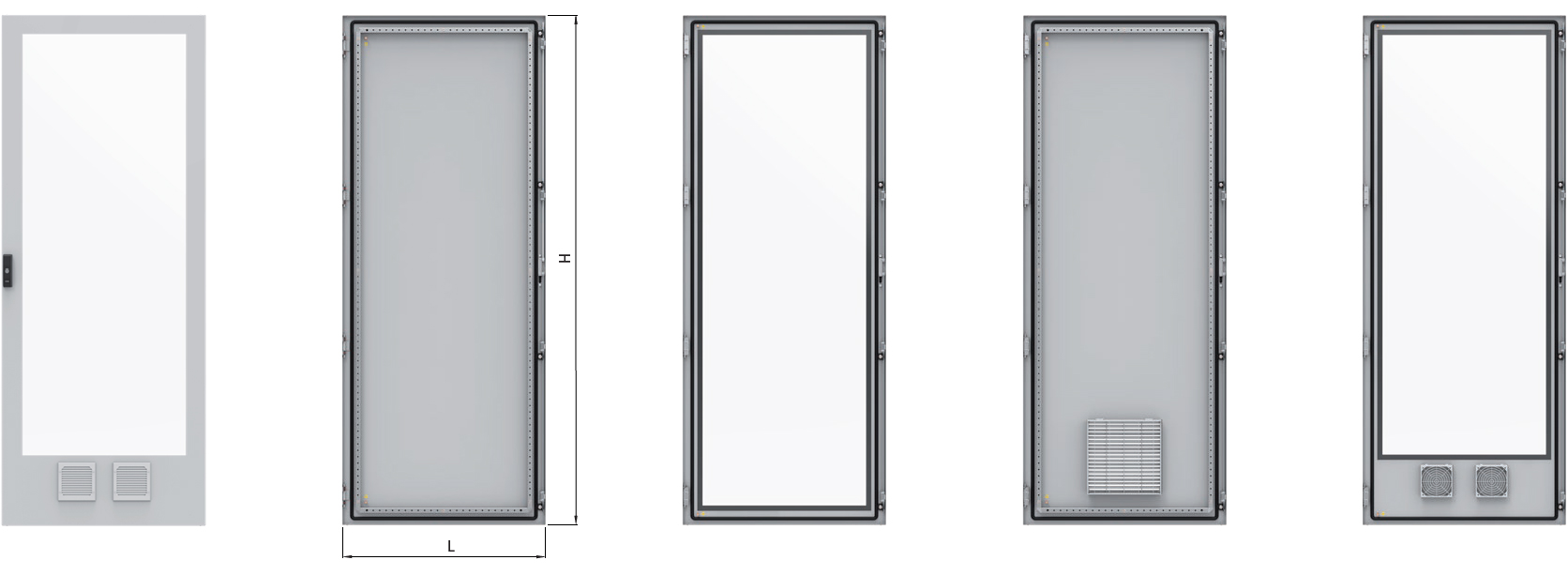

SINGLE-LEAF DOOR

For cabinet
Door dimensions
Catalogue number
height [mm]
Width [mm]
H [mm]
W [mm]
Solid door IP 55
Door with glass IP 55
Door with passive ventilation IP54
Door with glass and passive ventilation IP54
right/left right/left right left right left
2000 600 1990 595 W-6282-30-04-011 W-6282-A4-04-011 W-6282-74-04-011 W-6282-74-10-011 W-6282-A6-04-011 W-6282-A6-10-011
800 1990 795 W-6282-30-03-011 W-6282-A4-03-011 W-6282-74-03-011 W-6282-74-09-011 W-6282-A6-03-011 W-6282-A6-09-011
2200 600 2190 595 W-6282-30-02-011 W-6282-A4-02-011 W-6282-74-02-011 W-6282-74-08-011 W-6282-A6-02-011 W-6282-A6-08-011
800 2190 795 W-6282-30-01-011 W-6282-A4-01-011 W-6282-74-01-011 W-6282-74-07-011 W-6282-A6-01-011 W-6282-A6-07-011

Package: 1 pc.

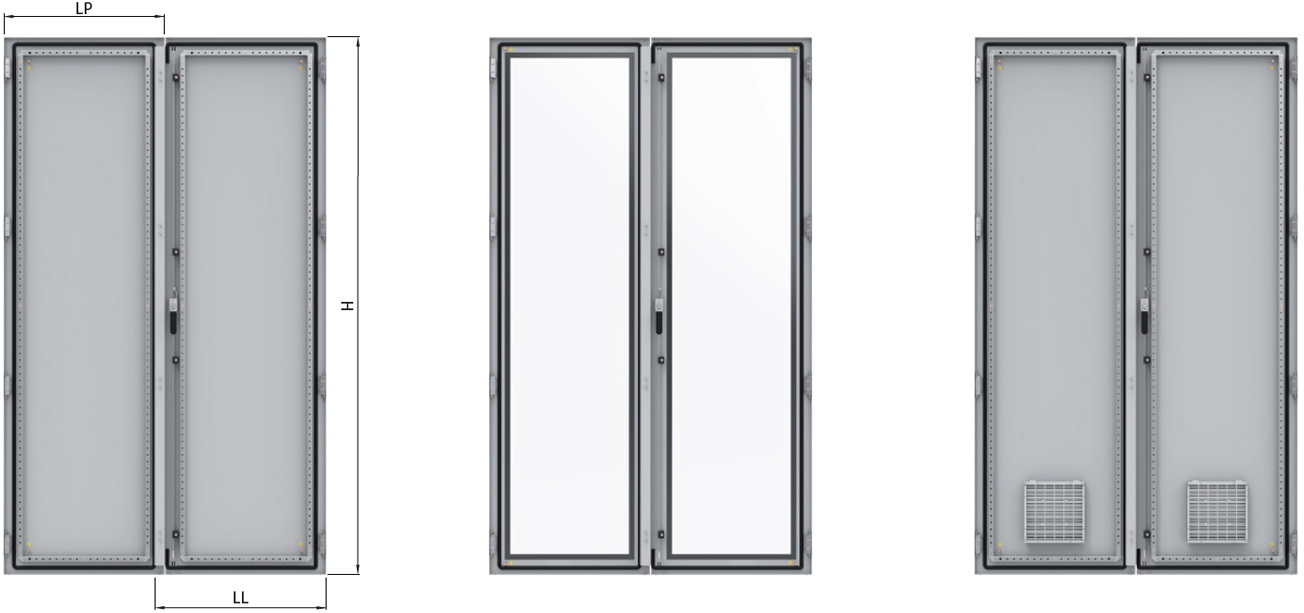

DOUBLE-LEAF DOOR

For cabinet
Door dimensions
Catalogue number
Height [mm]
Width [mm]
H [mm]
WR [mm]
WL [mm]
Solid door IP55
Door with glass IP55
Door with passive ventilation IP54
right wing left wing right wing left wing right wing left wing
2000 1000 1990 495 538 W-6282-45-04-011 W-6282-47-04-011 W-6282-D3-04-011 W-6282-D5-04-011 W-6282-85-04-011 W-6282-87-04-011
1200 1990 595 638 W-6282-45-03-011 W-6282-47-03-011 W-6282-D3-03-011 W-6282-D5-03-011 W-6282-85-03-011 W-6282-87-03-011
2200 1000 2190 495 538 W-6282-45-02-011 W-6282-47-02-011 W-6282-D3-02-011 W-6282-D5-02-011 W-6282-85-02-011 W-6282-87-02-011
1200 2190 595 638 W-6282-45-01-011 W-6282-47-01-011 W-6282-D3-01-011 W-6282-D5-01-011 W-6282-85-01-011 W-6282-87-01-011

Package: 1 pc. (wing)

*) when facing the structure

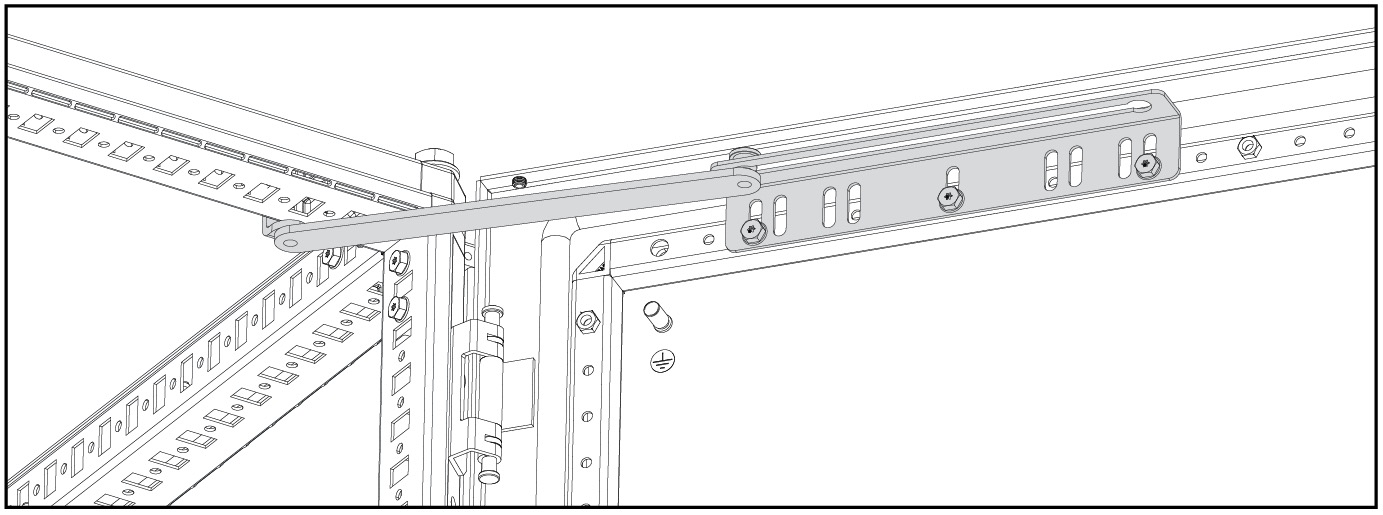

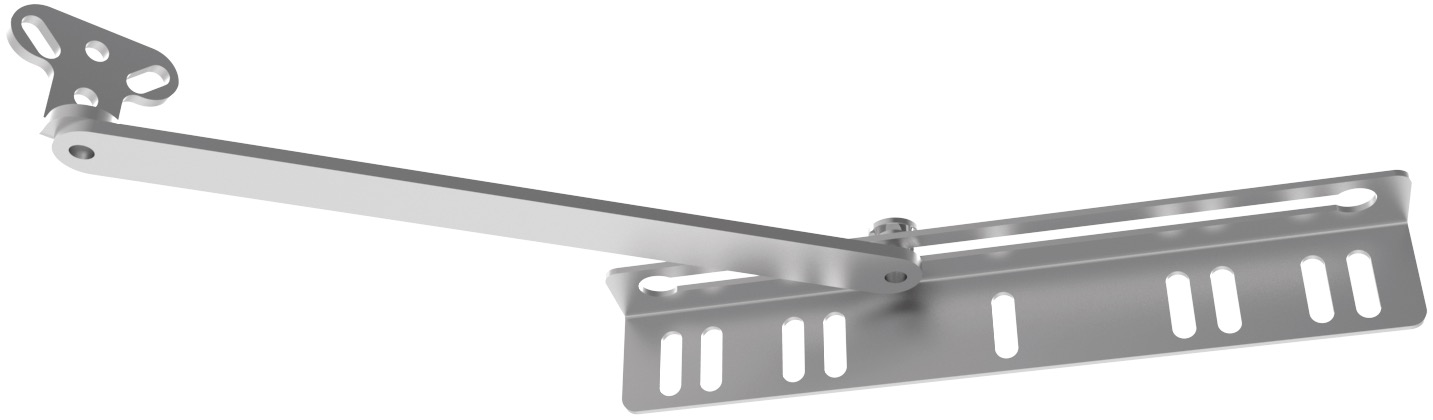

Door stop

Protects hinges from damage.
Mounted in the upper part of the cabinet to the stiffening frame of the door and the cabinet’s frame.
Note: the door stop cannot be installed on doors with glass.

Material
Galvanised sheet steel

Scope of delivery
Door stop with fixing accessories for mounting into the cabinet.

Package Catalogue number
1 pc. W-6935-17-00-000

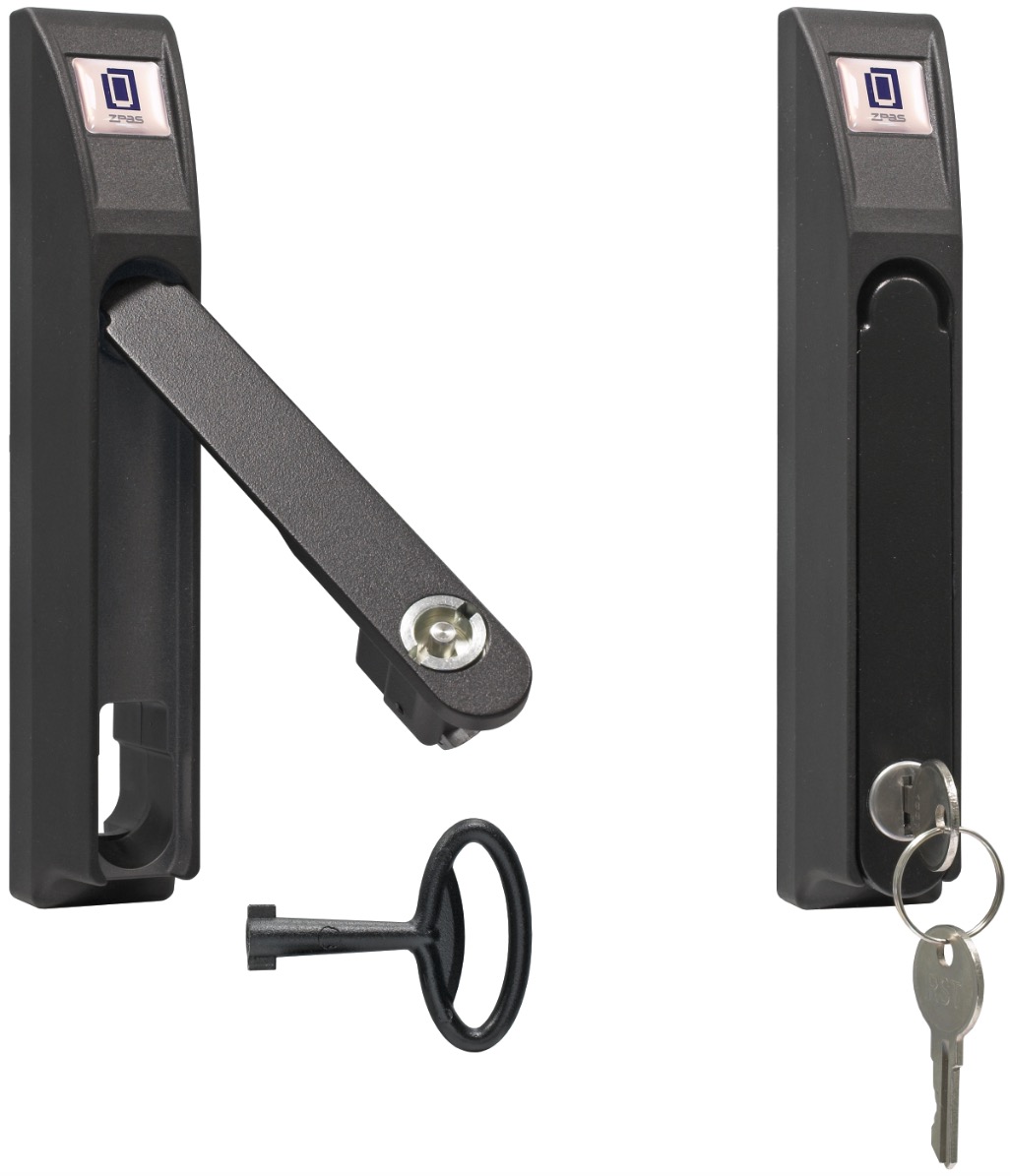

Swing handle for the door’s lock

For use in the cabinet door instead of the factory-mounted lock without a handle.

Material
Plastic body, metal handle.

Scope of delivery
Body with handle, internal mechanism, double-bit or cylinder insert and key(s).
The scope of delivery does not include elements of the latching system on the inside of the door.

Product name Package Catalogue number
Swing handle with double-bit insert + 1 key 1 set M1H-00-0532
Swing handle with double-bit insert + 2 keys 1 set M1H-00-0531

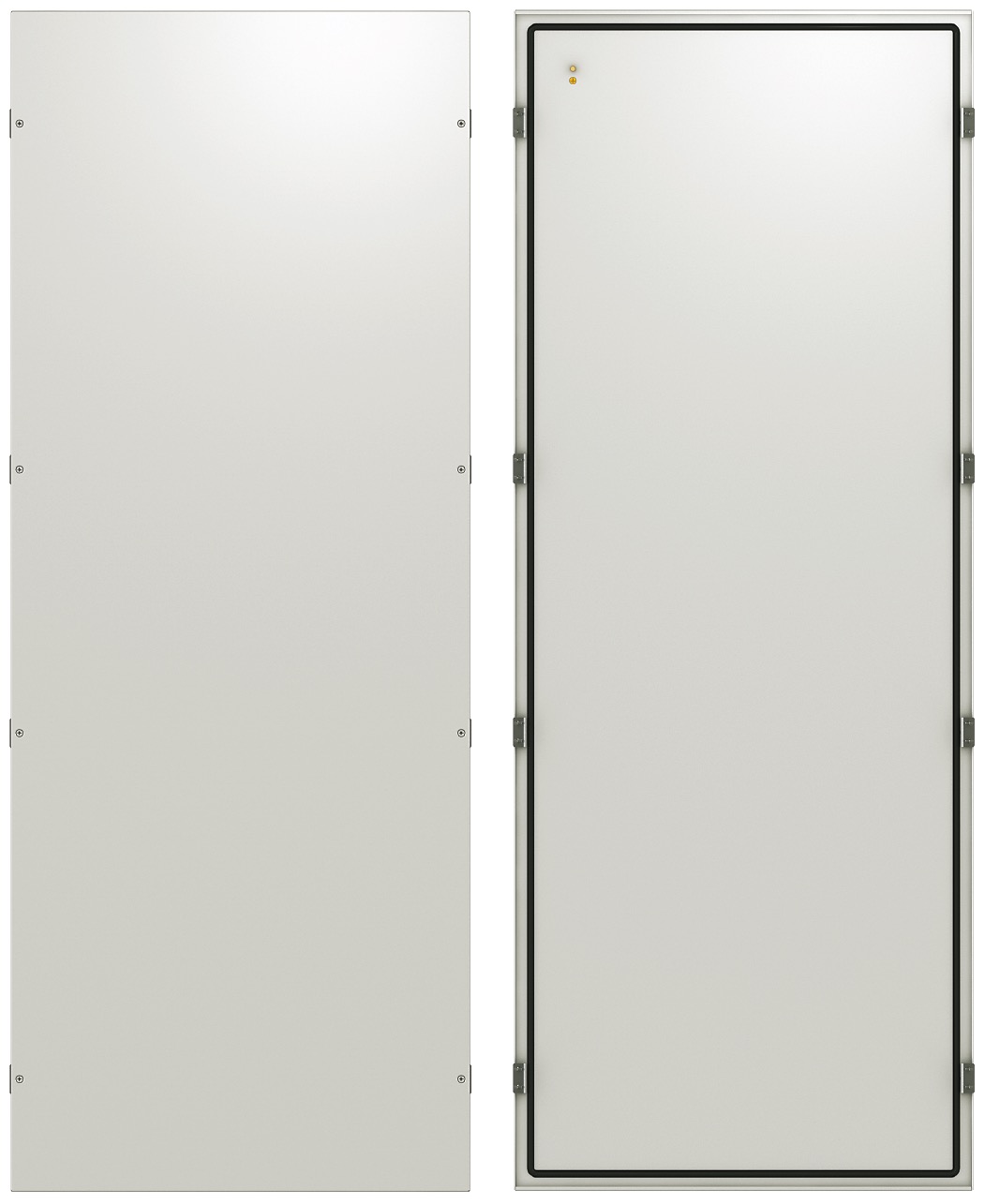

Side panels

Panels are bolted to the frame with intermediate elements that position the panel in the frame.
All panels are fitted with seals cast of polyurethane foam, and M8 stud bolts for mounting earthing wires.
If requested, the side panels can have holes for air vents, fans, heat exchangers and air conditioners.

Material
Sheet steel powder painted in light grey (RAL 7035)

Scope of delivery
Set of 2 side panels with fixing accessories for mounting into the cabinet.

For cabinet Catalogue number
Height [mm] Depth [mm]
2000 400 W-6282-18-08-011
500 W-6282-18-07-011
600 W-6282-18-06-011
800 W-6282-18-05-011
2200 400 W-6282-18-04-011
500 W-6282-18-03-011
600 W-6282-18-02-011
800 W-6282-18-01-011

Package: 2 pc.

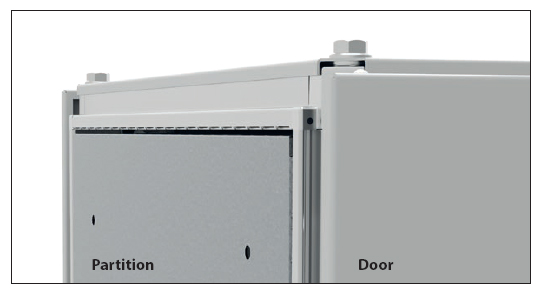

Partition

The partition is used as a separating panel between bayed cabinets. It does not increase the cabinet width after installation, it is flushed into the cabinet frame.
If requested, any holes can be made in the partition, for example for cable entries.

Material
 zinc coated sheet steel.

Scope of delivery
 Partition with fixing accessories.

For cabinet Catalogue number
Height [mm] Depth [mm]
2000 400 W-6282-98-08-000
500 W-6282-98-07-000
600 W-6282-98-06-000
800 W-6282-98-05-000
2200 400 W-6282-98-04-000
500 W-6282-98-03-000
600 W-6282-98-02-000
800 W-6282-98-01-000

Package: 1 pc.
