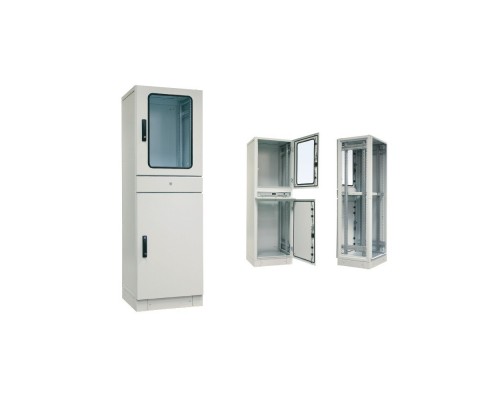

SZE2 PC19" computer cabinet IP54
SZE2 PC19"
.

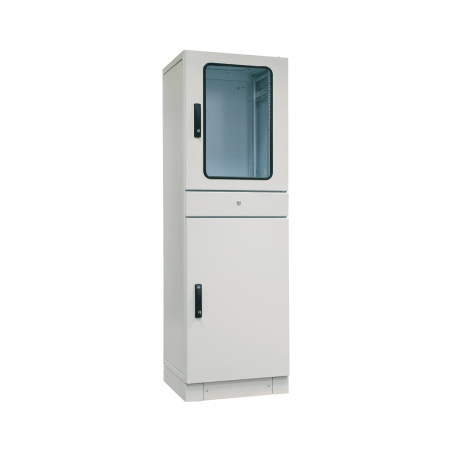

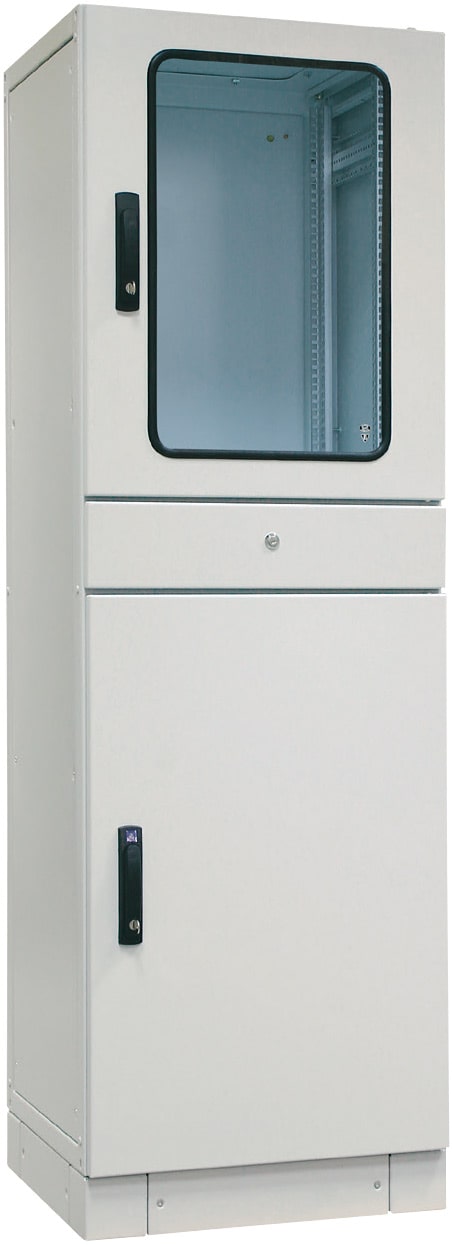

SZE2 PC 19" COMPUTER CABINET IP54
DESIGNED FOR COMPUTER EQUIPMENT IN ROOMS WITH HEAVY DUST CONCENTRATIONS
- Designed for protection of computer equipment used in industrial areas.
- The design enables selective admission of access to each section of the cabinet through use of locks with different cylinders.
- Design based on modified frame of the SZE2 cabinet.
- Easy baying in rows with SZE2 and SZE2 PC cabinets.
- Possibility of using supplementary accessories designed for SZE2 cabinets (page 143-175) and equipment for 19" installations.
- Possibility to manufacture cabinet frame, door, panels, supplementary roof and plinth of stainless sheet steel (on individual request).
- Non-standard versions on customer’s request.
SCOPE OF DELIVERY
- cabinet’s frame set on 100 mm plinth,
- 2 pairs of 19" mounting profiles,
- 2 flushed side panels,
- double front door with 3-point (rod-lath) lock and patent cylinder (upper door with glass, lower door solid),
- door for keyboard part with single-point lock (cam lock),
- rear panel,
- universal drawer for keyboard,

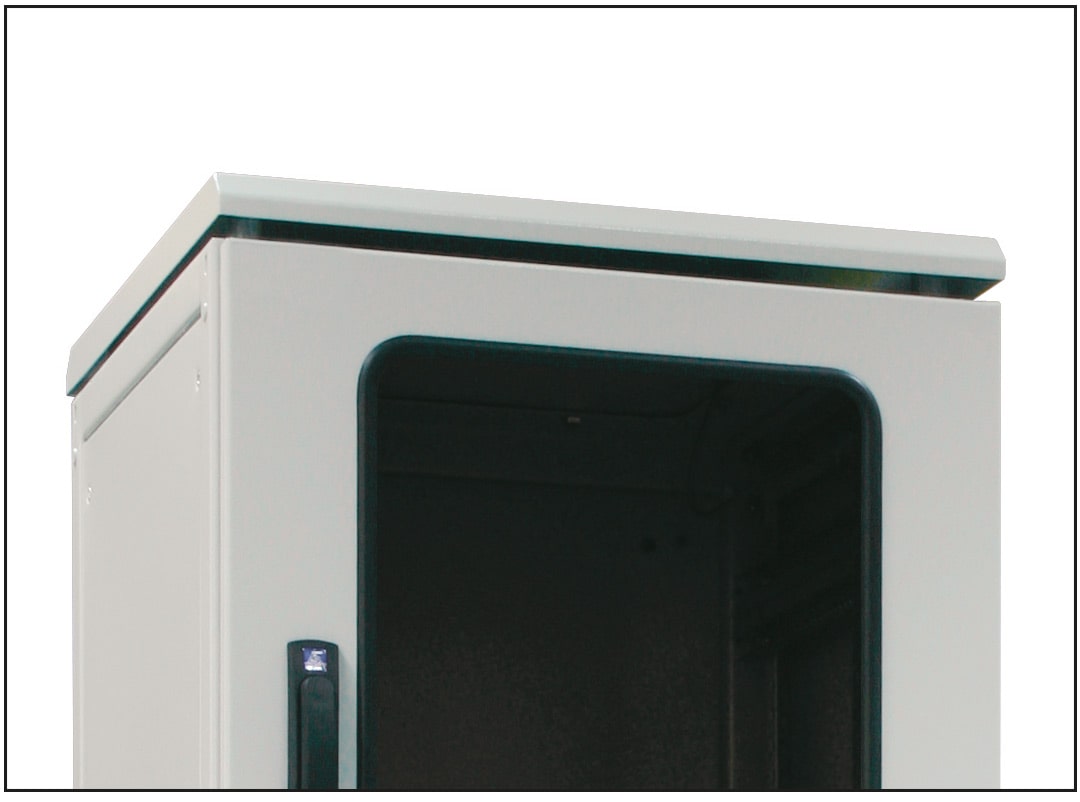

- solid blanking plate for top including sealing gasket,
- sliding gland plates for adjustable cable entry.
TECHNICAL DATA
Material
Frame, side panels, solid steel door, plinth, mounting profiles
- sheet steel
Door with glass - sheet steel, acrylic glass
Protection degree
IP 54 in accordance with EN 60529
Surface finishing
Frame, door, panels, plinth - powder paint with thick
structure, light grey (RAL 7035). All other colour options on request.
Mounting profiles – zinc coated.
Maximum load capacity
The maximum weight of equipment mounted in SZE2 PC cabinets is:
600 kg - for cabinet with plinth
500 kg - for cabinet with castors type 300
| Width W [mm] | Depth D [mm] | |||
|---|---|---|---|---|
| W-3004-00-06-011 | W-3004-00-04-011 | W-3004-00-02-011 | ||
| W-3004-00-05-011 | W-3004-00-03-011 | W-3004-00-01-011 | ||
| Usable height of cabinet HU [U = 44,45 mm] |
complete cabinet HU | 33 U | 38 U | 42 U |
| upper part HU1 | 10 U | 15 U | 19 U | |
| lower part HU2 | 18 U | 18 U | 18 U | |
| Total height of cabinet without plinth H [mm] | 1600 | 1800 | 2000 | |

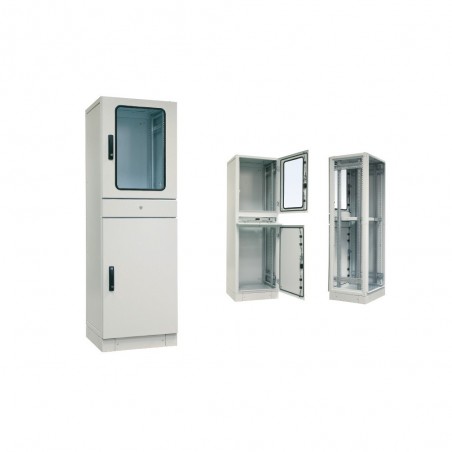

DESIGN 1. Cabinet’s frame 2. Upper door with glass 3. Lower door - solid 4. Door for keyboard 5. Rear panel 6. Flushed side panel 7. Modular plinth 8. Solid blanking plate
