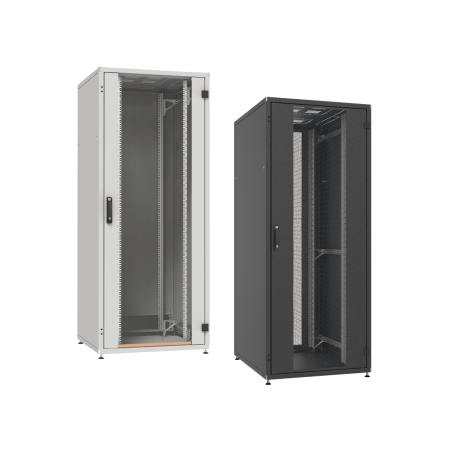

SZB IT19" Network /server cabinets
.
SZB IT 19" - NETWORK/SERVER CABINETS

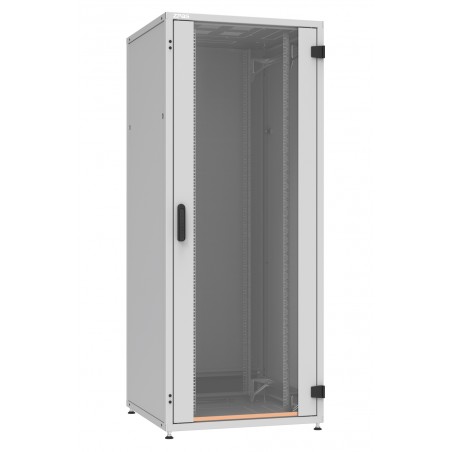

STANDARD CABINETS WITH FRONT GLASS DOOR WITH METAL SIDES, available in constant supply from warehouse
Cabinet 600 mm wide
Cabinet 800 mm wide
SCOPE OF DELIVERY
- Dismountable frame (bottom plate, top plate, four posts).
- Front glass door with metal sides and lock with swing handle; cabinets 45 or 42 U high have a three-point lock, cabinets 24 U high have a single-point lock.
- Rear solid steel, shortened door with single-point locks without handle; 3U cable entry panel with a brush strip, mounted under the shortened door.
- Two solid steel side panels with single-point locks.
- Two pairs of 19" mounting profiles, type STANDARD, stepless adjustable.
- Earthing bar and earthing cables for doors and side panels.
- Four levelling feet.
TECHNICAL DATA
Material
Frame, side panels, solid steel door, mounting profiles,
C-profiles - sheet steel
Door with glass - sheet steel, clear mineral safety glass
Outriggers - zamak casting
Protection degree
IP 20 in accordance with EN 60529
(does not apply to brush cable entries).
Surface finishing
Frame, doors, side panels
- powder paint, light grey (RAL 7035)
Mounting profiles, C-profiles
- Zinc coated
ADVANTAGES
- Cable openings in the top and bottom plates, 71 mm wide, what allows to put thought the power cable with three-phase plug.
- All openings in the top and bottom plates blanked with knock-out blanking plates. U-marking on the mounting profiles.
- Maximum opening angle for front door – 270°
- Possibility to change door opening’s direction.
- Possibility to put the cabinet directly on the floor (no protruding elements under the cabinet).
- Adaptation for bying the cabinets in the rows and Data Box creation
View on the top plate
View on the bottom plate. Under the rear door is mounted 3U cable entry panel with a brush strip.
REFERENCE CHART
| Height [U] | Width [mm] | Depth [mm] | RAL colour | Catalogue number |
|---|---|---|---|---|
| 24 U | 600 | 600 | 7035 | W-IT-246060-69AA-2-011 |
| 800 | 7035 | W-IT-246080-69AA-2-011 | ||
| 800 | 600 | 7035 | W-IT-248060-69AA-2-011 | |
| 800 | 7035 | W-IT-248080-69AA-2-011 | ||
| 42 U | 600 | 600 | 7035 | W-IT-426060-69AA-2-011 |
| 800 | 7035 | W-IT-426080-69AA-2-011 | ||
| 800 | 600 | 7035 | W-IT-428060-69AA-2-011 | |
| 800 | 7035 | W-IT-428080-69AA-2-011 | ||
| 45 U | 600 | 600 | 7035 | W-IT-456060-69AA-2-011 |
| 800 | 800 | 7035 | W-IT-458080-69AA-2-011 |

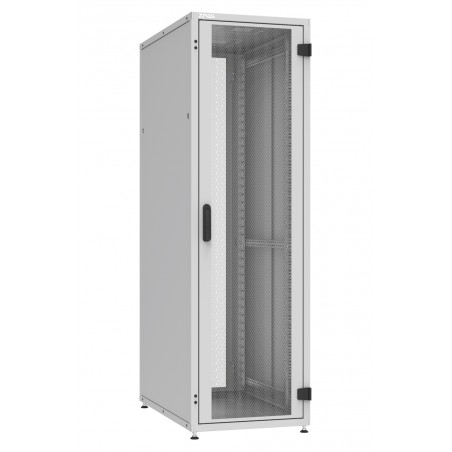

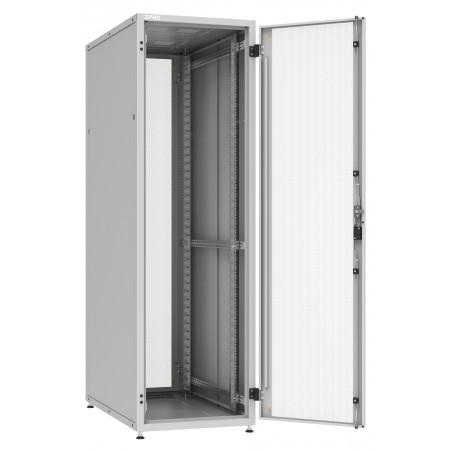

STANDARD CABINETS WITH PERFORATED STEEL DOOR, available in constant supply from warehouse
Cabinet 600 mm wide
Cabinet 800 mm wide
SCOPE OF DELIVERY
- Dismountable frame (bottom plate, top plate, four posts).
- Front and rear door steel perforated (clearance 80%) with three-point lock with swing handle.
- Two solid steel side panels with single-point locks.
- Two pairs of 19" mounting profiles, type STANDARD, stepless adjustable.
- Earthing bar.
- Earthing cables for doors and side panels.
- Four levelling feet.
TECHNICAL DATA
Material
Frame, side panels, doors, mounting profiles,
C-profiles - sheet steel
Outriggers - zamak casting
Protection degree
IP 20 in accordance with EN 60529
(does not apply to brush cable entries).
Surface finishing
Frame, doors, side panels
- powder paint, light grey (RAL 7035)
Mounting profiles, C-profiles
- Zinc coated
ADVANTAGES
- Cable openings in the top and bottom plates, 71 mm wide, what allows to put thought the power cable with three-phase plug.
- All openings in the top and bottom plates blanked with knock-out blanking plates.
- U-marking on the mounting profiles.
- Maximum opening angle for front and rear door – 270°
- Possibility to change door opening’s direction.
- Possibility to put the cabinet directly on the floor (no protruding elements under the cabinet).
- Adaptation for bying the cabinets in the rows and Data Box creation
View on the top plate
View on the bottom plate
REFERENCE CHART
| Height [U] | Width [mm] | Depth [mm] | RAL colour | Catalogue number |
|---|---|---|---|---|
| 42 U | 600 | 1000 | 7035 | W-IT-426010-44AA-2-011 |
| 9005 | W-IT-426010-44AA-2-161 | |||
| 800 | 1000 | 7035 | W-IT-428010-44AA-2-011 | |
| 9005 | W-IT-428010-44AA-2-161 |
3D models in various formats
3D models of IT, server, control cabinets and equipment are available for download in various formats on 3Dfindit.com

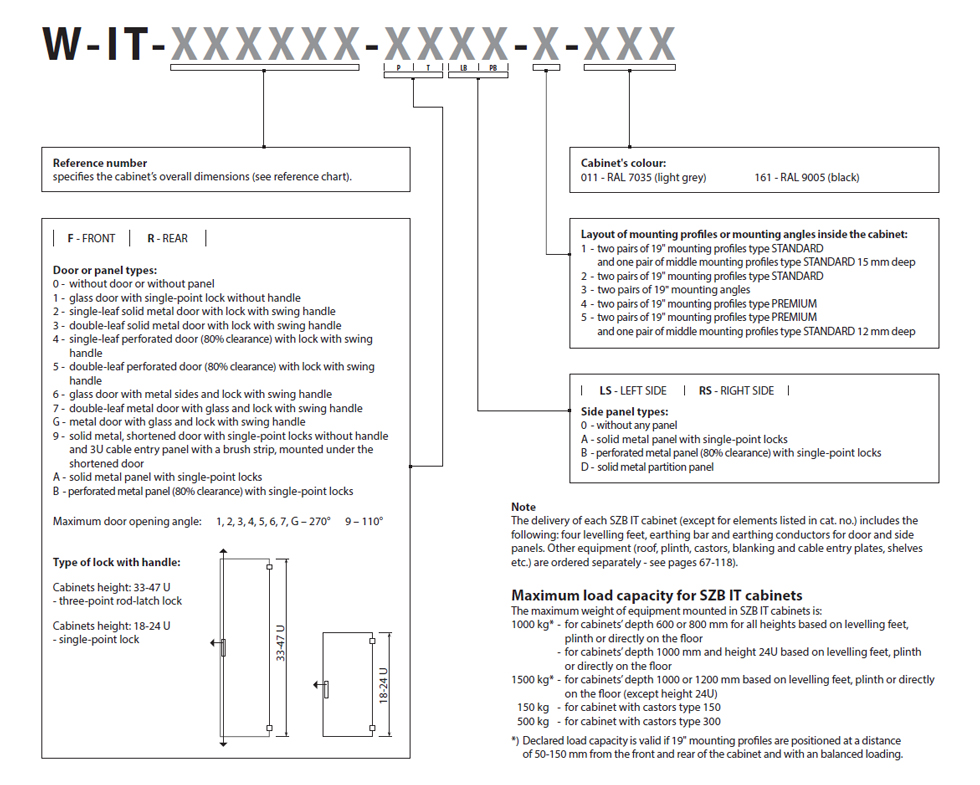

Configurator
Table for the configurator
| Width W [mm] | Depth D [mm] | Reference number | |||||
|---|---|---|---|---|---|---|---|
| 186060 | 246060 | 336060 | 426060 | 456060 | - | ||
| 186080 | 246080 | 336080 | 426080 | 456080 | - | ||
| - | 246010 | - | 426010 | 456010 | 476010 | ||
| - | - | - | 426012 | 456012 | 476012 | ||
| 188060 | 248060 | 338060 | 428060 | 458060 | - | ||
| 188080 | 248080 | 338080 | 428080 | 458080 | - | ||
| - | 248010 | - | 428010 | 458010 | 478010 | ||
| - | - | - | 428012 | 458012 | 478012 | ||
| Usable height HU [U = 44,45 mm] | 18 U | 24 U | 33 U | 42 U | 45 U | 47 U | |
| Frame height H [mm] | 896 | 1163 | 1563 | 1963 | 2096 | 2186 | |

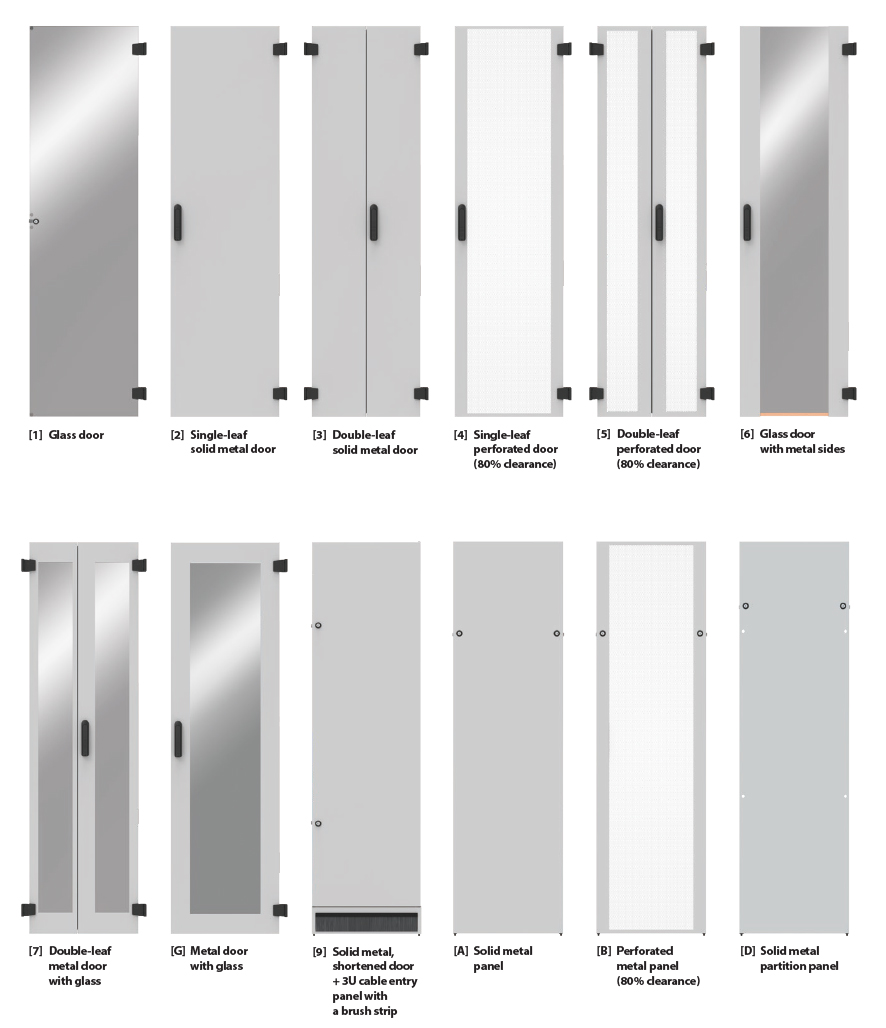

Available door types and panels
DATA BOX
|
DESIGN: 1. Frame’s post 3. Frame’s bottom plate 4. Frame’s top plate 5. Adjustable feet 6. C-profile for 15 mm deep mounting profiles 7. Outrigger 8. 19" mounting profile, type STANDARD, 15 mm deep 9. Earthing bar 10. Knock-out blanking plate 380 x 380 mm 12. Knock-out blanking plate 380 x 71 mm |
DESIGN 1. Frame’s post 2. Frame’s middle post 3. Frame’s bottom plate 4. Frame’s top plate 5. Adjustable feet 6. C-profile for 12 mm deep mounting profiles 7. Outrigger 8. 19" mounting profile, type PREMIUM, 12 mm deep 9. Earthing bar 10. Knock-out blanking plate 380 x 380 mm 11. Knock-out blanking plate 380 x 210 mm 12. Knock-out blanking plate 380 x 71 mm |
