SJB19" NETWORK CABINET

CABINET FOR OFFICE APPLICATIONS

  • SJB cabinets are perfect solution for small network systems installed in offices.
  • The design of the cabinet is based on a self-supporting body with no frame.
  • The cabinet can have a desktop made of furniture board to easily blend in with the existing interior décor.

TECHNICAL DATA

Material
Body, rear panel, mounting angles - sheet steel
Door - safety glass

Protection degree
IP 20 in accordance with EN 60529

Surface finishing
Body and rear panel – powder paint, RAL 7035 or RAL 9005.
Mounting angles – zinc coated.

SCOPE OF DELIVERY

  • cabinet body with safety glass door and removable rear panel,
  • 2 pairs of mounting angles paced at 19",
  • 4 levelling feet,
  • rear panel earthing cable,
  • brush strip for the cable opening.

SUPPLEMENTARY ACCESSORIES (ordered separately)

  • desktop - available in three different colours ,
  • desktop elevation kit - spacing sleeves,
  • castors,
  • earthing strip,
  • brush strip for the cable opening,
  • shelves, drawers, fan, power strips etc.

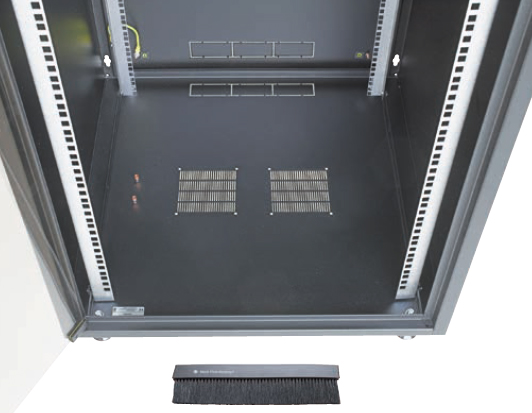

View of the bottom plate in the SJB cabinet. On the back of the cabinet there are cable openings covered with knock-out blanking plate which can be replaced with a brush strip (one brush strip is factory-mounted on the top plate, the other one can be ordered as supplementary accessories).

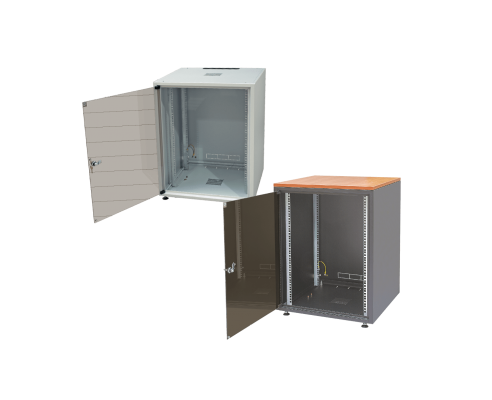

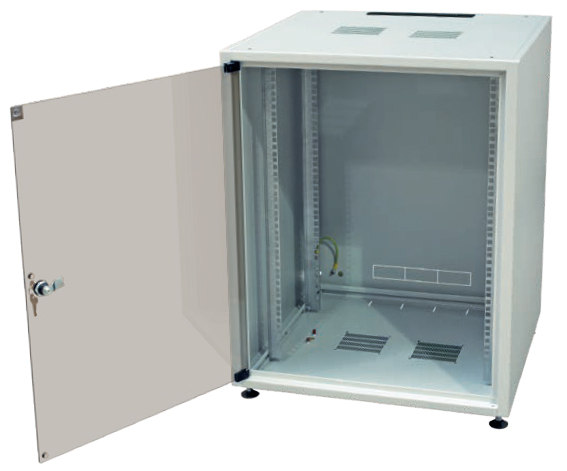

SJB 15 U cabinet finished in RAL 7035, without desktop

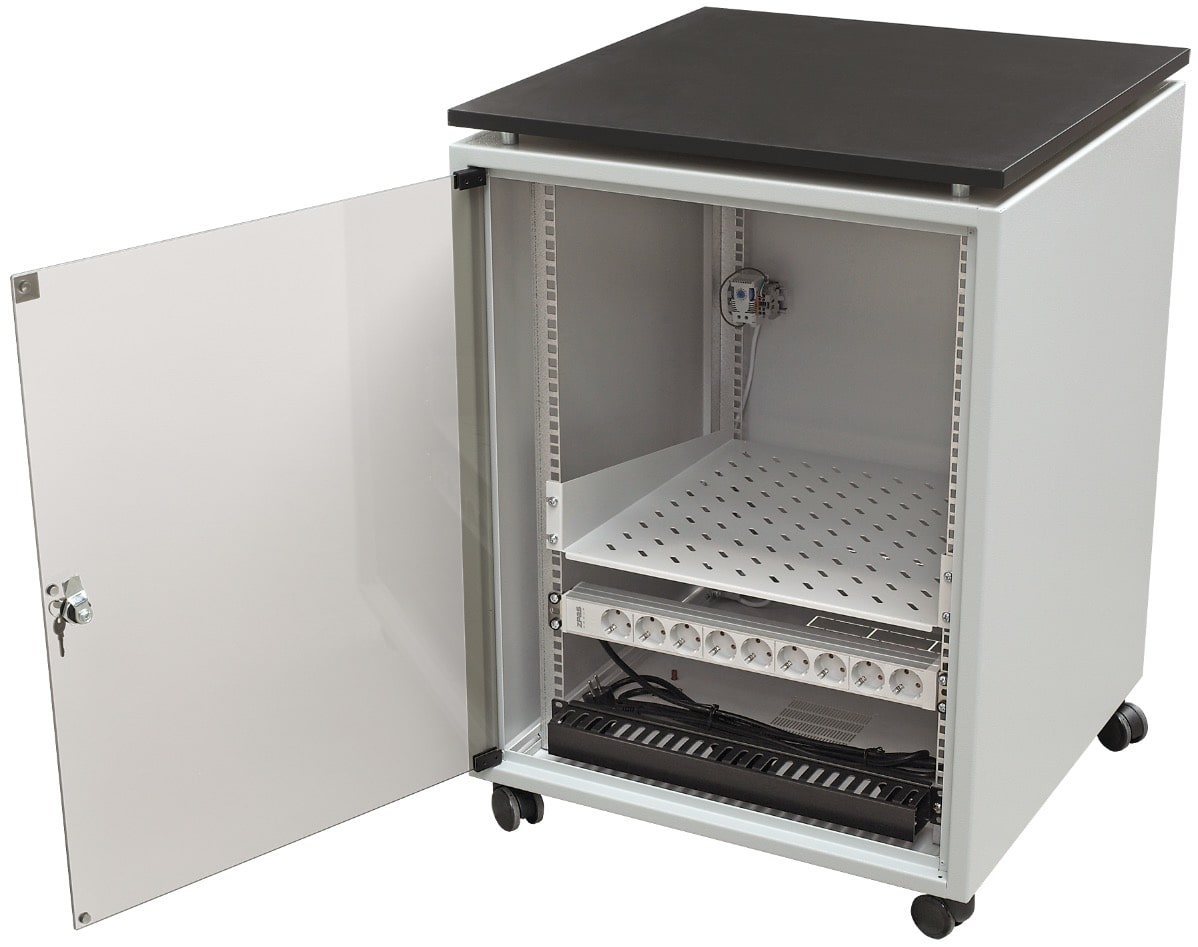

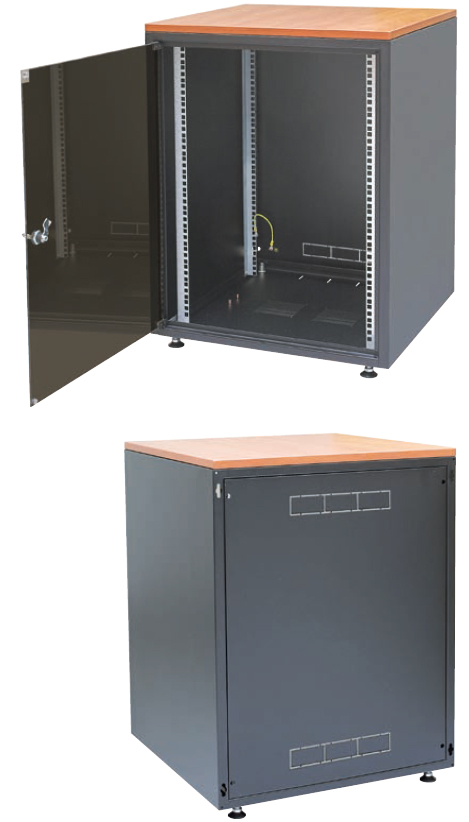

SJB 15 U cabinet finished in RAL 9005, equipped with black desktop, castors and other accessories

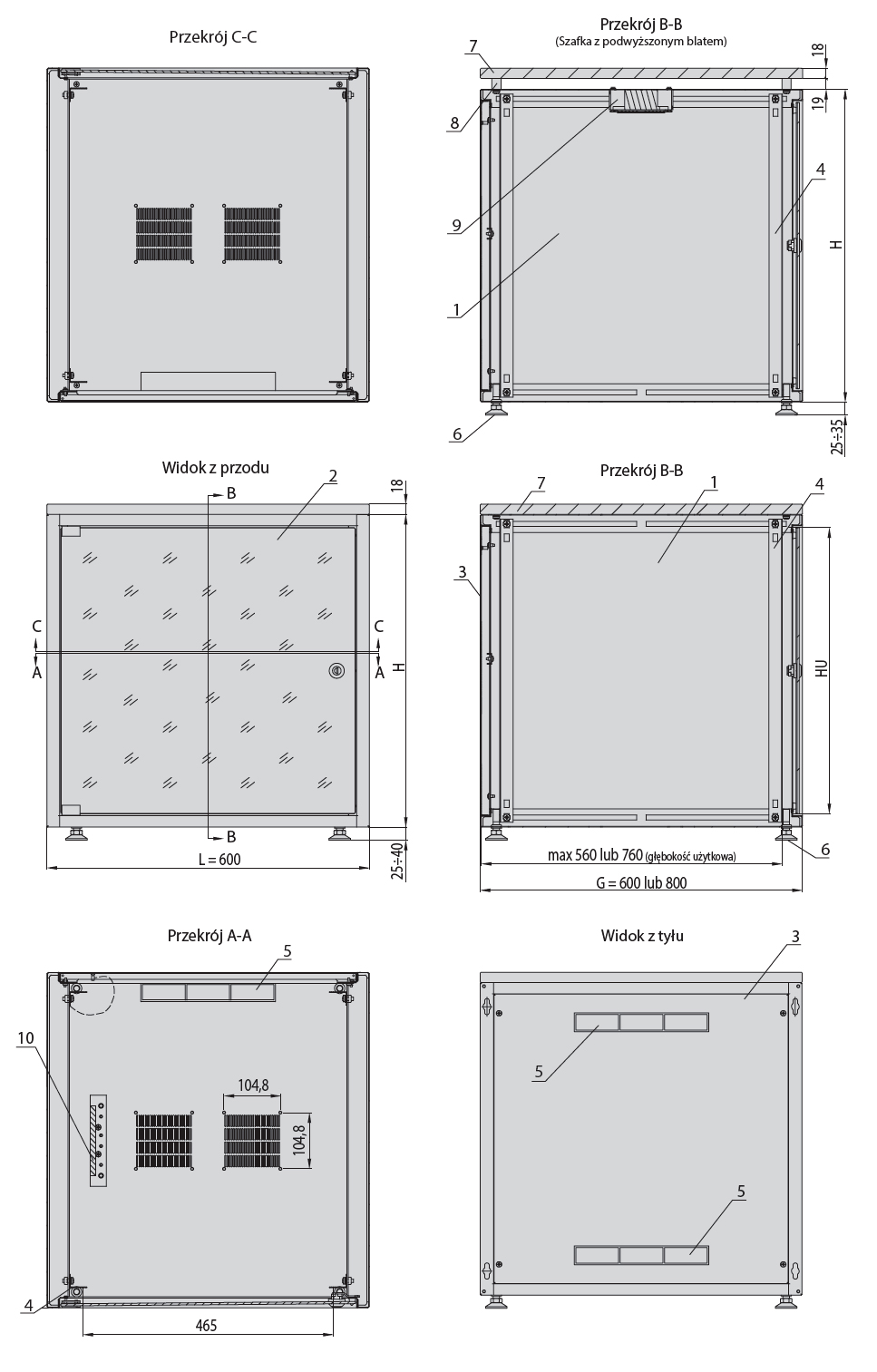

DESIGN 1. Cabinet's body, 2. Glass door, 3. Rear panel, 4. Mounting angle, 5. Knock-out blanking plate 6. Levelling feet
Supplementary accessories ordered separately: 7. Desktop, 8. Spacing sleeve for roof elevation, 9. Fan, 10. Earthing strip

Total width
W [mm]		 Total depth
D [mm]		 Body height
H [mm]		 Usable height
HU [U = 44.45 mm]		 Max load capacity
[kg]		 Catalogue number of cabinet without desktop*
RAL 7035 RAL 9005
600
600
 604 12 U 30 W-3987-01-02-011-BBL W-3987-01-02-161-BBL
737 15 U 38 W-3987-01-03-011-BBL W-3987-01-03-161-BBL
871 18 U 45 W-3987-01-04-011-BBL W-3987-01-04-161-BBL
800
 737 15 U 38 W-6729-01-03-011-BBL W-6729-01-03-161-BBL
871 18 U 45 W-6729-01-04-011-BBL W-6729-01-04-161-BBL

*) The desktop is ordered separately

SUPPLEMENTARY ACCESSORIES

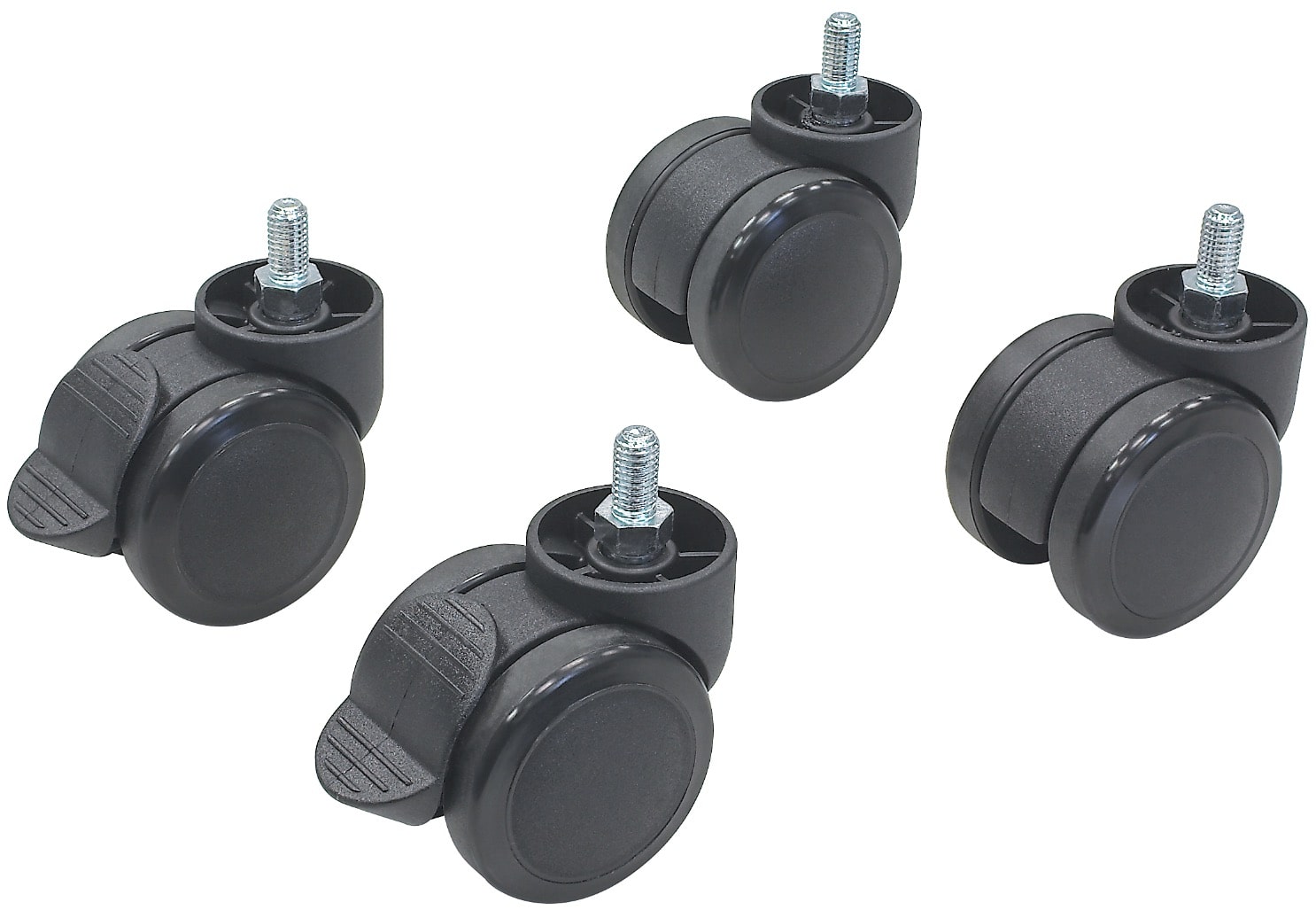

Castors for SJB cabinet

Plastic castors, mounted on a steel bolt M8.
Height of the castors (without fixing bolt): 62 mm

Scope of delivery
Set: 4 screws M6x30, 4 washers, 4 spacing sleeves

Package Catalogue number
1 set W-3987-20-00-000

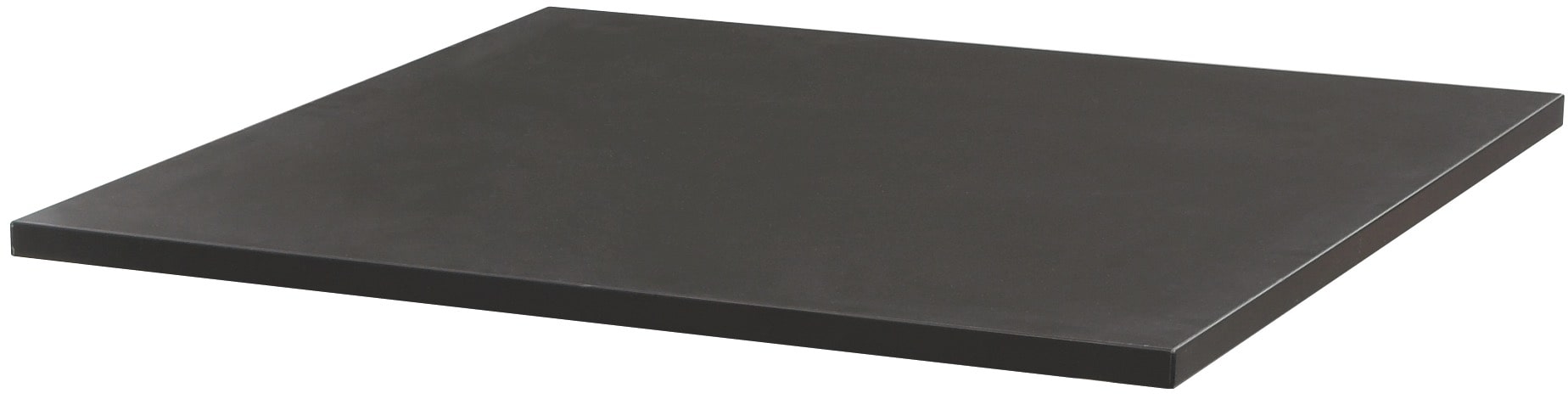

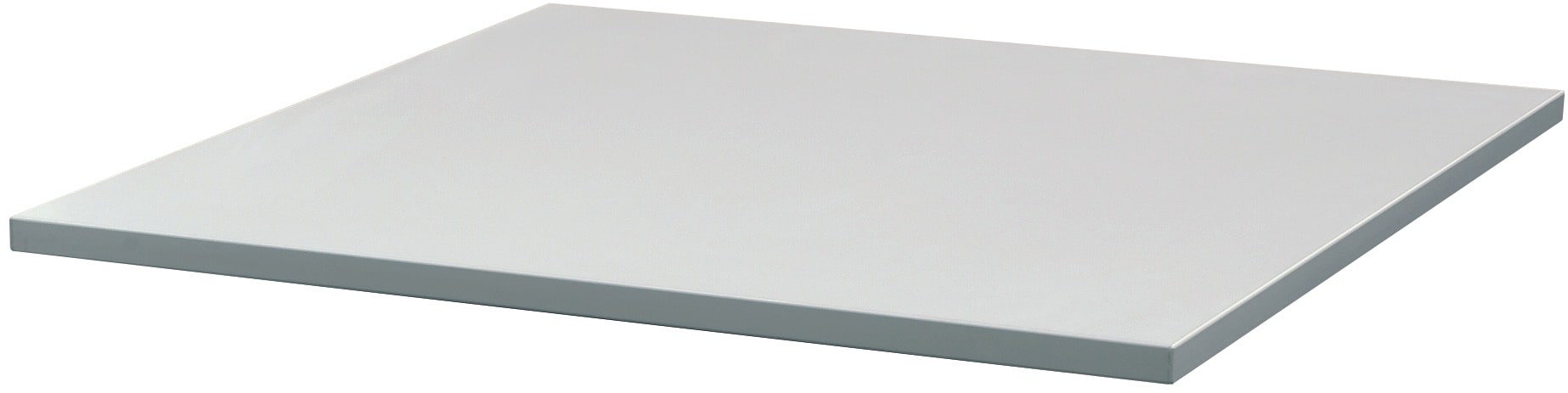

Desktop for SJB cabinet

18 mm thick furniture desktop for mounting on the top plate of SJB cabinet.
Available in three color versions.

Material
Laminated MDF board

Scope of delivery
Desktop with fixing accessories.

Colour Dimensions [mm] Catalogue number
Calvados 600 x 600 W-3987-07-00-000
600 x 800 W-6455-06-00-000
Black 600 x 600 W-3987-07-00-161
Light grey 600 x 800 W-6455-06-00-U112

Package: 1 pc

Calvados

Black

Light grey

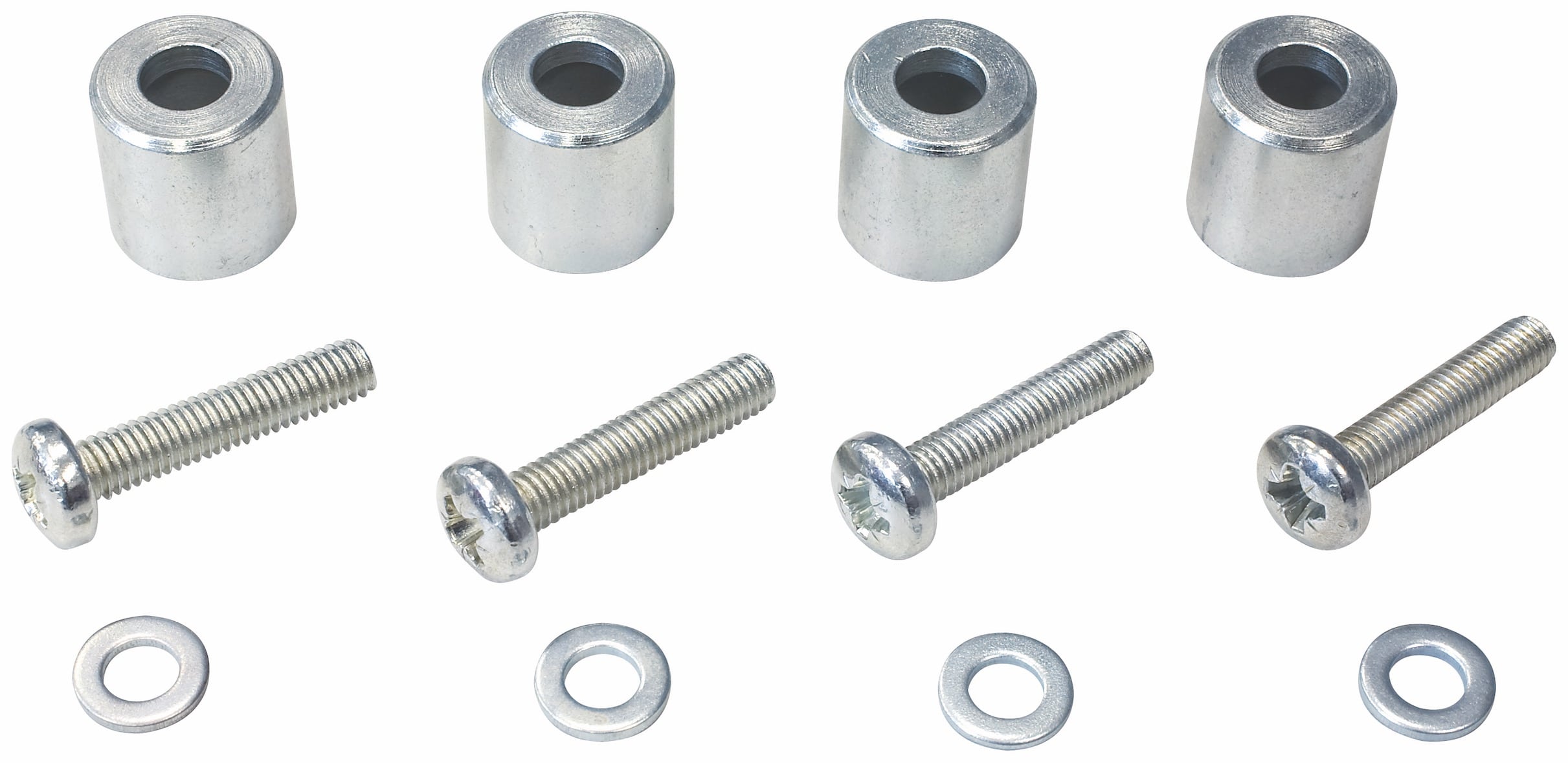

Zestaw podwyższający blat szafki SJB

The kit makes it possible to elevate the desktop by 19 mm over the top plate, thus increasing air flow through the cabinet, and enables fan mounting to the top plate.

Scope of delivery
Set: 4 screws M6x30, 4 washers, 4 spacing sleeves

Package Catalogue number
1 set W-3987-90-00-000
