Masking items
.
ACCESSORIES FOR CABINETS AND OPEN RACKS - MASKING ITEMS
Blanking and cable entry plates and strips for bottom plate, top plate and roof for cabinets: Z-SERVER, SZB IT, DSR IT.
Material
Sheet steel powder painted in light grey (RAL 7035)
or black (RAL 9005).
Scope of delivery
Blanking/cable entry plate or strip with fixing accessories.
| Product name | For opening [mm] |
Catalogue number | |
|---|---|---|---|
| RAL 7035 | RAL 9005 | ||
| Solid blanking plate | 380x380 | W-1718-38-01-011 | W-1718-38-01-161 |
| 380x210 | W-1718-38-02-011 | W-1718-38-02-161 | |
| Perforated blanking plate | 380x380 | W-1718-39-01-011 | W-1718-39-01-161 |
| 380x210 | W-1718-39-02-011 | W-1718-39-02-161 | |
| Blanking plate with a fabric filter | 380x380 | W-1718-42-01-011 | W-1718-42-01-161 |
| 380x210 | W-1718-42-02-011 | W-1718-42-02-161 | |
| Cable entry plate
with a brush strip |
380x380 | W-5271-10-00-011 | W-5271-10-00-161 |
| 380x210 | W-5271-14-00-011 | W-5271-14-00-161 | |
| Brush strip | 380x71 | W-8059-54-00-000 | W-8059-54-00-000 |
| Cable entry plate
with a foam strip |
380x380 | W-1718-40-01-011 | W-1718-40-01-161 |
| 380x210 | W-1718-40-02-011 | W-1718-40-02-161 | |
| Cable entry plate
with a fabric filter and a brush strip |
380x380 | W-SB76-00-00-011 | W-SB76-00-00-161 |
Package: 1 pc.
Solid blanking plates
Blanking plates with a fabric filter
Brush strip
Cable entry plates with a foam strip
Perforated blanking plates
Cable entry plates with a brush strip

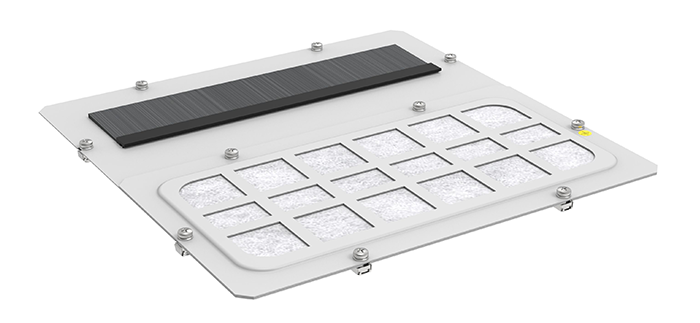

Cable entry plate with a fabric filter and a brush strip
19" blanking plates
For covering empty 19" space.
Material
Sheet steel or sheet aluminium powder painted in light grey
(RAL 7035) or black (RAL 9005).
Scope of delivery
Blanking plate with fixing accessories.
| Product name | Height [U = 44,45 mm] |
Catalogue number | |
|---|---|---|---|
| RAL 7035 | RAL 9005 | ||
| Blanking plate
assembled with screws |
1 U | W-SB00-33-01-011 | W-SB00-33-01-161 |
| 2 U | W-SB00-33-02-011 | W-SB00-33-02-161 | |
| 3 U | W-SB00-33-03-011 | W-SB00-33-03-161 | |
| 4 U | W-SB00-33-04-011 | W-SB00-33-04-161 | |
| 5 U | W-SB00-33-05-011 | W-SB00-33-05-161 | |
| 6 U | W-SB00-33-06-011 | W-SB00-33-06-161 | |
| Tool-free assembled blanking plate | 1 U | W-4687-75-01-011 | W-4687-75-01-161 |
Package: 1 pc.
Horizontal brush strips
The horizontal brushes are fitted on vertical masking panels under and over the working surface of the mounting profiles in SZB IT server cabinets. They are intended for limiting cold air circulation outside the working zone of the mounting profiles and preventing recirculation of hot air into the cold air inlet.
Material
Black plastic brush strip, steel holder powder painted in light grey (RAL 7035) or black (RAL 9005).
Scope of delivery
For 600 mm wide cabinets:
brush strip with holder and fixing accessories.
For 800 mm wide cabinets:
brush strip without holder and fixing accessories.
| For cabinet width [mm] | Package | ||
|---|---|---|---|
| RAL 7035 | RAL 9005 | ||
| 1 pc. | W-5367-45-01-011 | W-5367-45-01-161 | |
| 1 pc. | W-5367-45-02-000 | ||
Vertical masking panels with brush strips
The vertical masking panels are intended for sealing the space between the mounting profiles and the side panel in SZB IT server cabinets. They prevent hot air from being fed back into the cold air inlet.
VERSIONS AVAILABLE
For cabinets wide 800 mm:
1. Vertical masking panels with cable entries and openings for fixing cable clamps
2. Vertical solid masking panels with openings for fixing cable clamps
For cabinets wide 600 mm:
3. Vertical solid masking panels
The cable entries in masking panels for 800 mm cabinets are covered with a brush and their edges are protected with an edge seal. All three masking panels types are provided with a brush that, once assembled to the cabinet, fits tight to the side wall.
Material
Sheet steel powder painted, plastic.
Scope of delivery
A set of 2 vertical masking panels of a given type with fixing accessories.
| Height [U=44.45 mm] |
||||||
|---|---|---|---|---|---|---|
| Vertical masking panels with cable entries and openings for fixing cable clamps |
Vertical solid masking panels with openings for fixing cable clamps |
Vertical solid masking panels | ||||
| RAL 7035 | RAL 9005 | RAL 7035 | RAL 9005 | RAL 7035 | RAL 9005 | |
| W-5367-30-01-011 | W-5367-30-01-161 | W-5367-31-01-011 | W-5367-31-01-161 | W-5367-32-01-011 | W-5367-32-01-161 | |
| W-5367-30-02-011 | W-5367-30-02-161 | W-5367-31-02-011 | W-5367-31-02-161 | W-5367-32-02-011 | W-5367-32-02-161 | |
| W-5367-30-03-011 | W-5367-30-03-161 | W-5367-31-03-011 | W-5367-31-03-161 | W-5367-32-03-011 | W-5367-32-03-161 | |
