SJ 19" Wall-mounted cabinets

Reference Szafka sieciowa SJ 19"

Description
Product Details

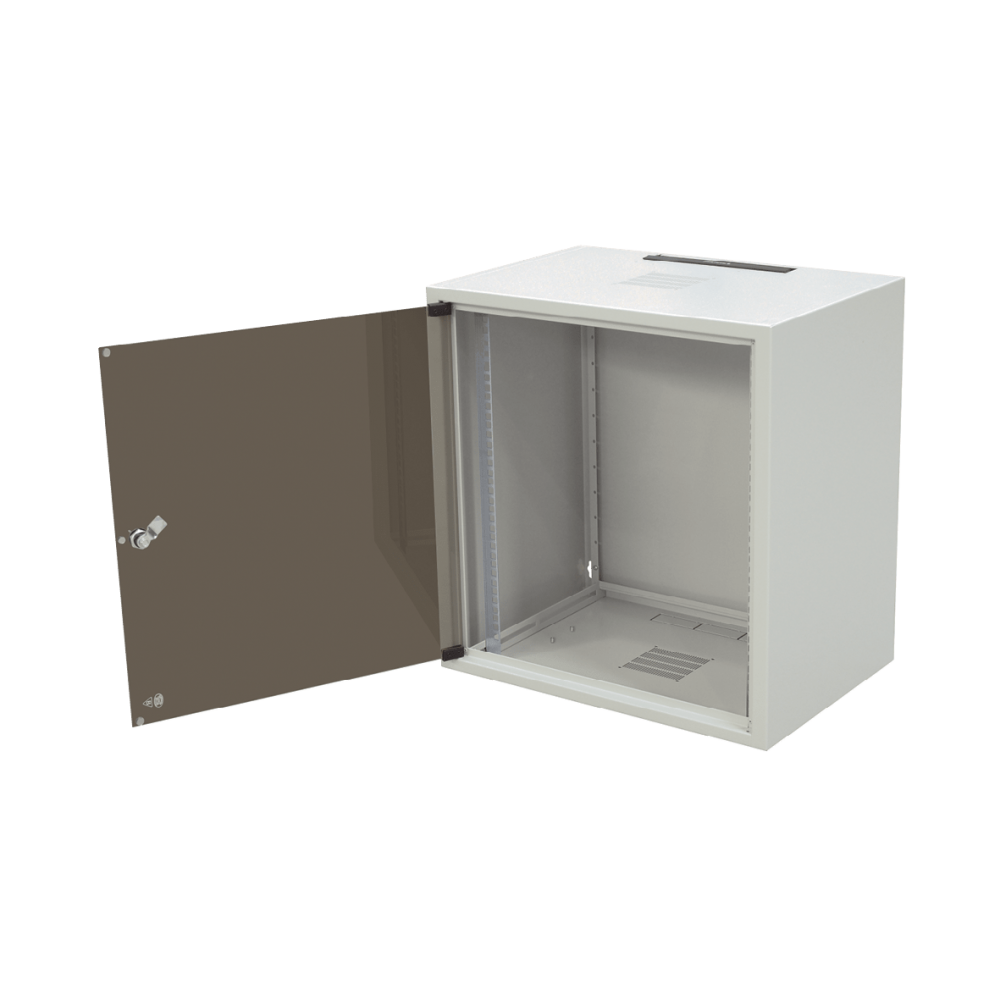

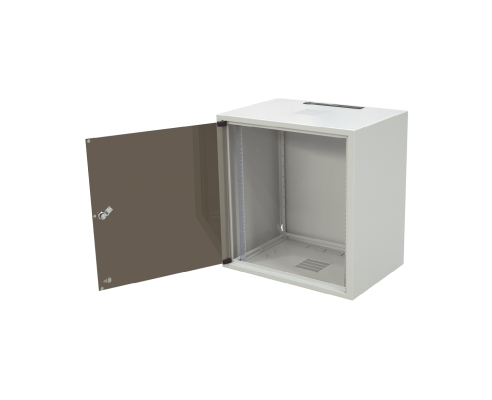

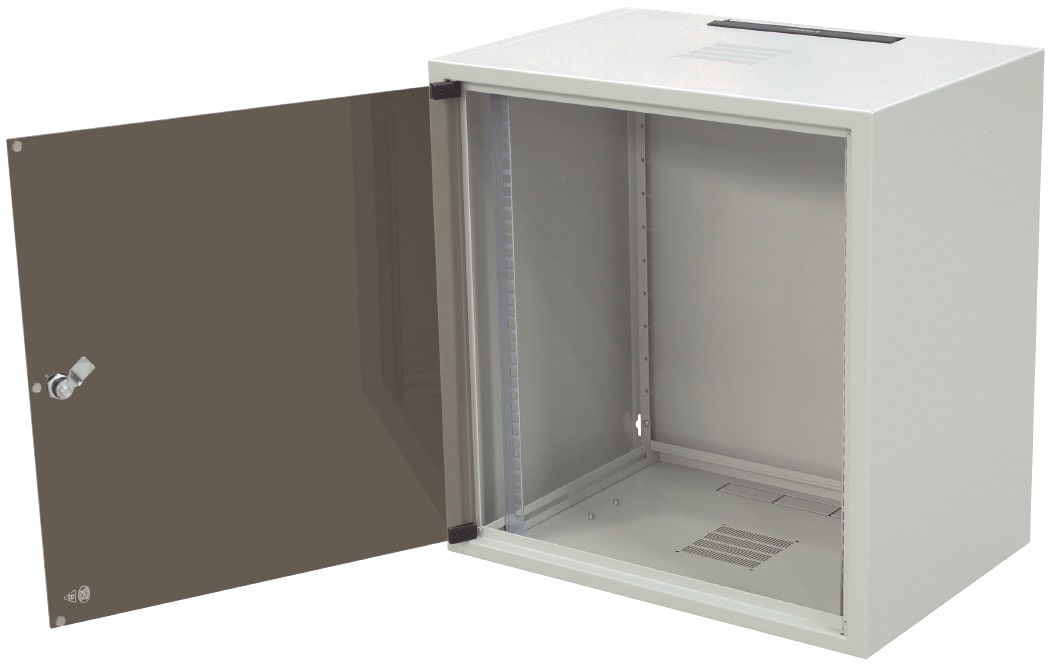

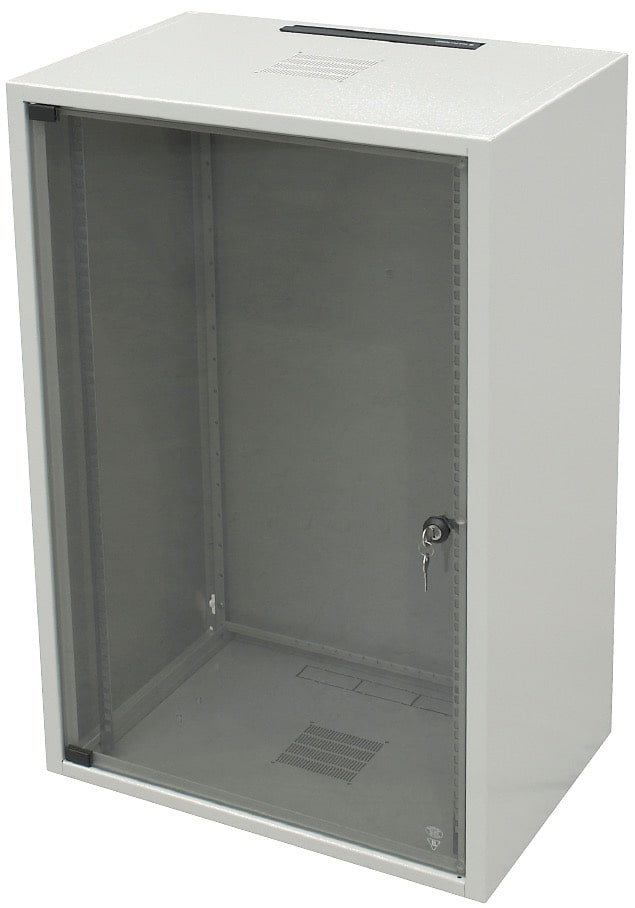

SJ 19" WALL-MOUNTED NETWORK CABINET

SINGLE-SECTION CABINET

Designed for indoor applications.

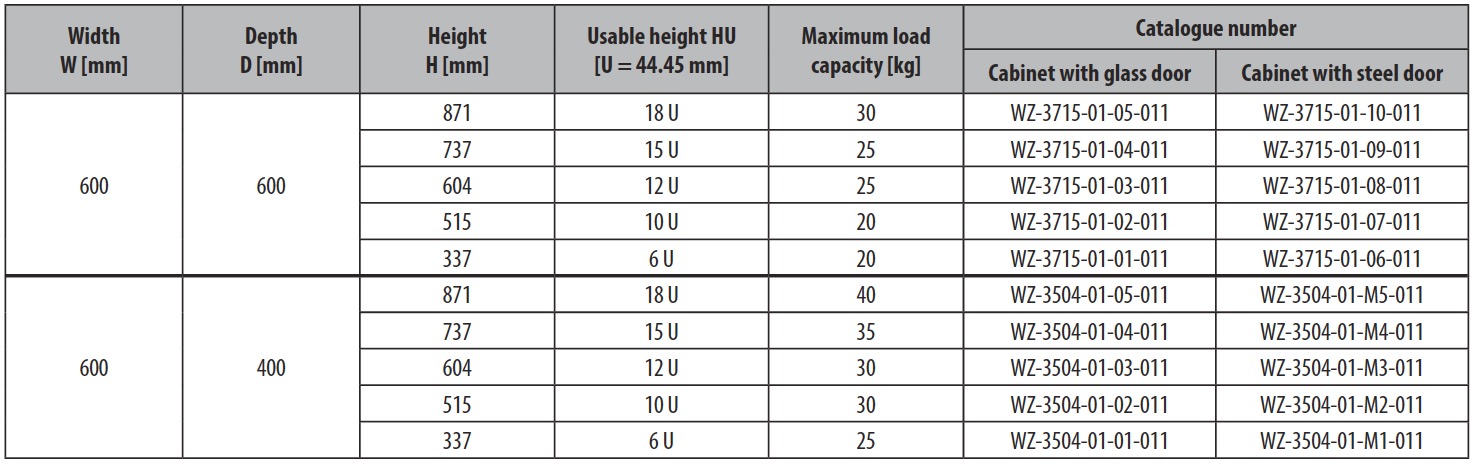

Available in 2 depths and 5 usable heights (see reference chart).
The design of the cabinet is based on a metal body with safety glass door and removable rear panel.

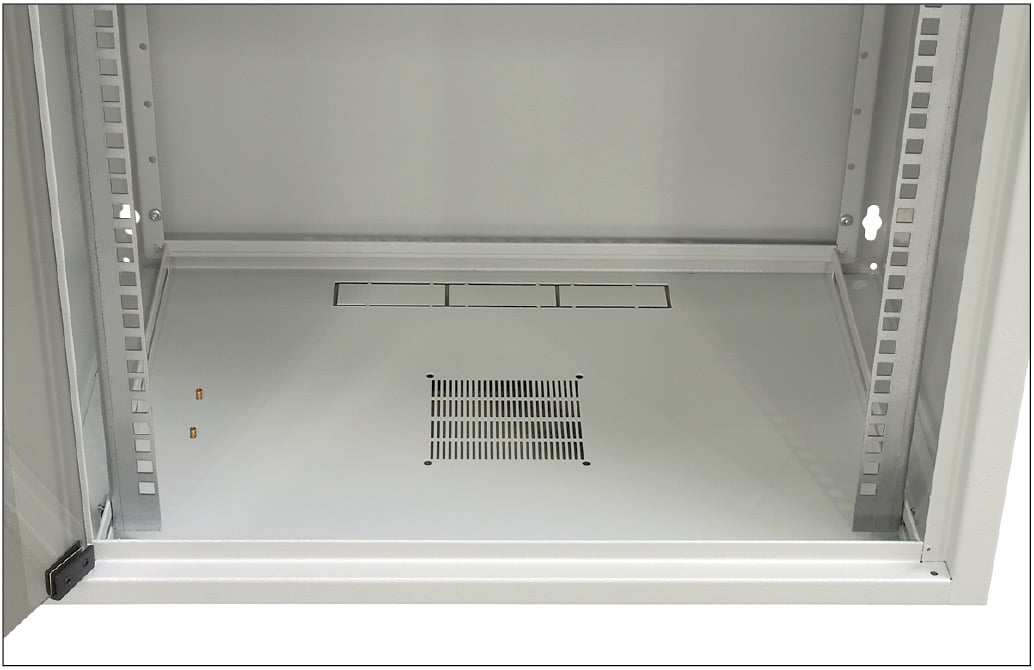

A standard cabinet is equipped with two easily adjustable mounting angles spaced at 19".
The steel door and rear panel are provided with earthing cables.
The body of the cabinet has two cable openings. One cable opening is completed with brush strip, the other with knockout blanking plate.
The door opening direction and cable opening layout can be easily changed by rotating the cabinet by 180°.
Wide range of supplementary accessories: shelves, drawers, fan kit, power strips etc.
Cabinet can be equipped with additional rear adjustable 19" mounting angles or mounting profiles.

TECHNICAL DATA

Material
Body, рear panel, mounting angles - sheet steel
Door - safety glass or sheet steel

Surface finishing
Powder paint, light grey (RAL 7035).
All other colour options on request.
Mounting angles - zinc coated.

Protection degree
IP 20 in accordance with EN 60529
(does not apply to brush cable entries).

SCOPE OF DELIVERY

Single-section body, door, rear panel, earthing cable for rear panel, door earthing cable (only for steel door), 2 mounting angles, brush, template for drilling holes in the wall.
