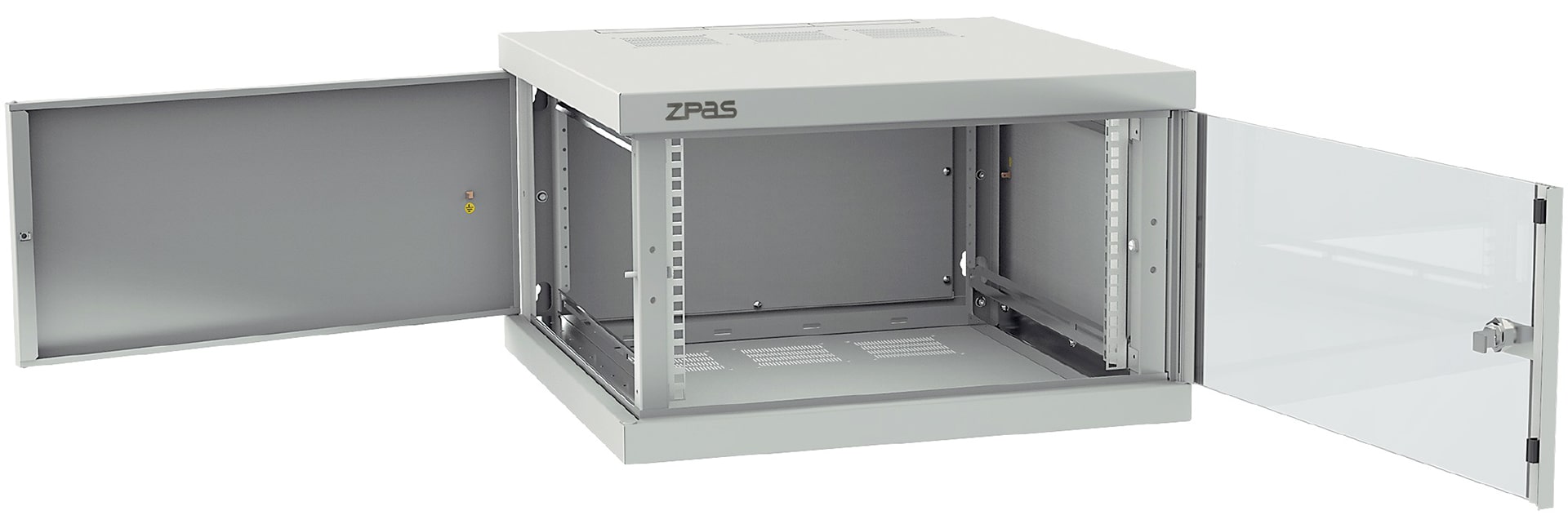

Z-BOX 19" WALL-MOUNTED NETWORK CABINET
SINGLE-SECTION CABINET WITH REMOVABLE SIDE PANELS
- Designed for indoor applications.
- Available in 1 depth (600 mm) and 5 usable heights (from 6 to 18 U).

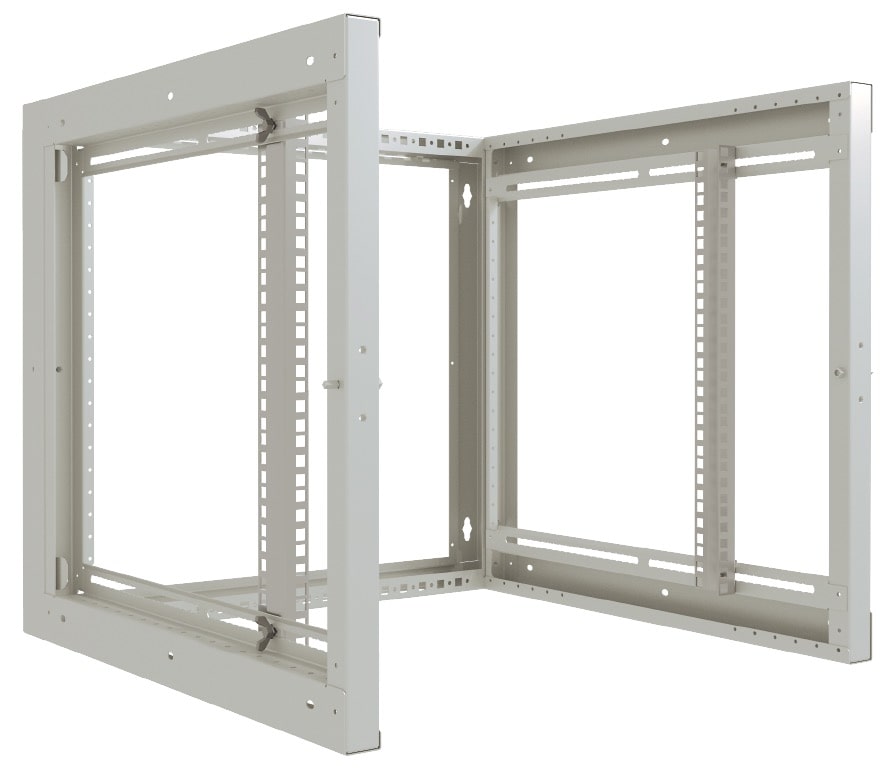

- The cabinet is made of bolted framework (composed of 3 frames), top plate, bottom plate, side panels, rear panel and front door.
- Cabinet is equipped with two adjustable 19" mounting profiles.
- Top and bottom plates have cable openings covered with knock-out blanking plates, and 3 venting holes for each plate.
- Door, side panels and mounting profiles can be installed without tools.
- The entire weight of the devices installed inside the cabinet is transferred onto its framework.
- Side panels can be removed after opening the door.
TECHNICAL DATA
Protection degree
IP 20 in accordance with EN 60529
Maximum load capacity
100 kg
Material
sheet steel, safety glass, aluminium profiles
Surface finishing
frame, steel door, panels, top and bottom plates, glass door side profiles – powder paint, light grey (RAL 7035).
Mounting profiles – Al-Zn coated.
SCOPE OF DELIVERY
Frame, bottom plate, top plate, door, 2 side panels, rear panel, 2 mounting profiles, template for drilling holes in the wall.

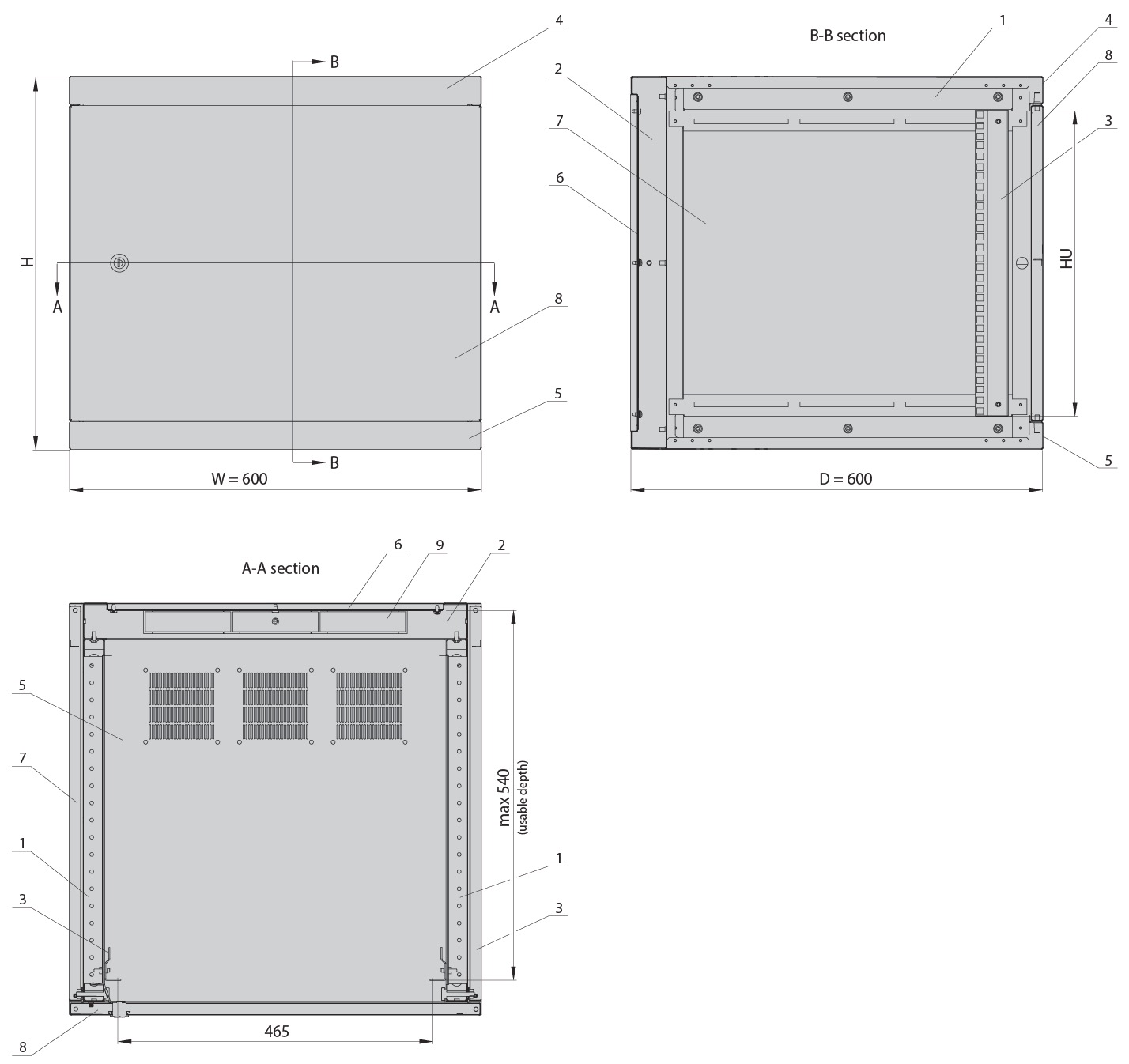

REFERENCE CHART
HU [U = 44,45 mm] |
|||||
|---|---|---|---|---|---|
| Width W [mm] |
Depth D [mm] |
Height H [mm] |
Cabinet (glass door) | Cabinet (steel solid door) | |
| 600 | 600 | 365 | 6 U | W-ZBOX6060-6S-011 | W-7240-20-M1-011 |
| 543 | 10 U | W-ZBOX6060-10S-011 | W-7240-20-M2-011 | ||
| 632 | 12 U | W-ZBOX6060-12S-011 | W-7240-20-M3-011 | ||
| 765 | 15 U | W-ZBOX6060-15S-011 | W-7240-20-M4-011 | ||
| 899 | 18 U | W-ZBOX6060-18S-011 | W-7240-20-M5-011 | ||
