PWD and PD roof fan units

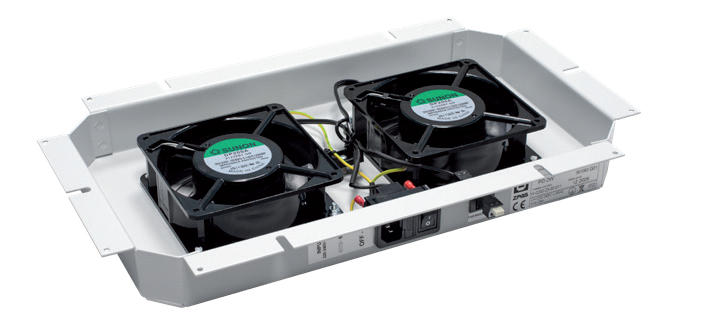

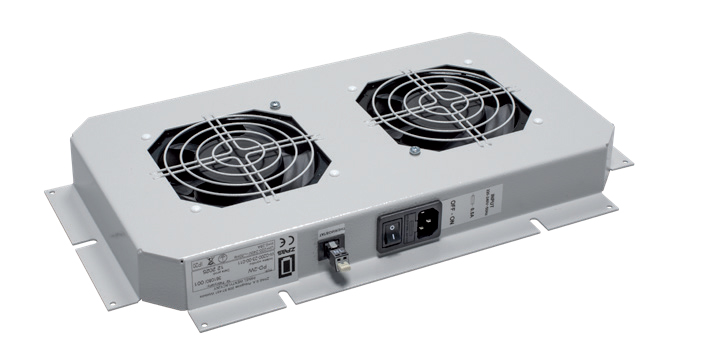

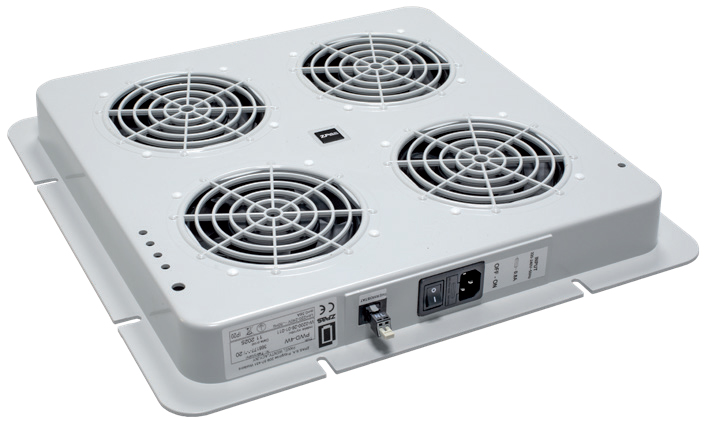

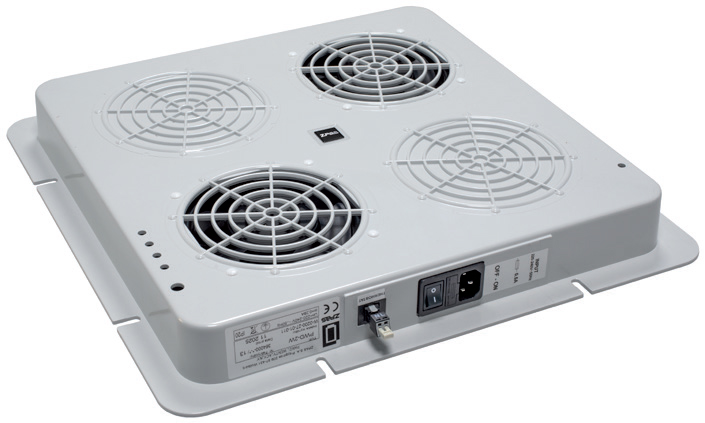

PWD-4W and PWD-2W fan units are intended for assembly to 380 x 380 mm openings which are located in the top plates of SZB IT and SZE2 PC cabinets. The PD-2W fan unit can be assembled to the 380 x 210 mm opening in the top plate of 1000 mm deep SZB IT cabinet. In the standard version, the units are equipped with 2 or 4 fans, an illuminated switch and a fuse.
TECHNICAL DATA
| Parameter | |||
|---|---|---|---|
| PWD-4W | PWD-2W | PD-2W | |
| Power supply voltage | |||
| Rated current [A] | 0,56 | 0,28 | 0,28 |
| Number of fans | 4 | 2 | 2 |
| Power rating [W] | 88 | 44 | 44 |
| Capacity [m3/h] | 660 | 330 | 330 |
| Ambient temperature [°C] | from -10 to +70 | ||
| Relative humidity [%] | from 20 to 80 | ||
| Protection degree | IP 20 (refers to fan units mounted in the cabinet) | ||
| Electric shock protection | neutralization | ||
Enclosure material
PWD-4W and PWD-2W fan units - plastic. PD-2W fan unit - sheet steel.
Enclosure colour
Light grey (RAL 7035) or black (RAL 9005)
Scope of delivery

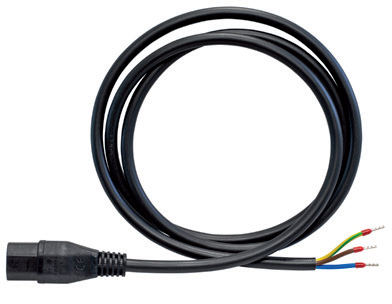

Fan unit with power cord (without plug) and fixing accessories.
Fans used in fan units:
PW, PWD and PD fan units are provided with high quality fans with ball bearings.
Technical data of one fan
- voltage rating: 220-230 V
- frequency: 50 Hz
- power rating: 22 W
- rated current 0,14 A
- speed of rotation . 2850 1/min
- level of noise: ok. 45 dB
- pressure: 75 Pa
- capacity: 165 m3/h
- durability: min. 50 000 h
- dimensions: 119 x 119 x 38 mm
| Type of fan unit | Number of fans |
For opening’s dimensions [mm] |
Catalogue number | |
|---|---|---|---|---|
| RAL 7035 | RAL 9005 | |||
| PWD-4W | 4 | 380 x 380 | W-0200-06-01-011 | W-0200-06-01-161 |
| PWD-4W with integrated thermostat | 4 | 380 x 380 | W-0200-06-04-011 | W-0200-06-04-161 |
| PWD-2W | 2 | 380 x 380 | W-0200-07-01-011 | W-0200-07-01-161 |
| PWD-2W with integrated thermostat |
2 | 380 x 380 | W-0200-07-04-011 | W-0200-07-04-161 |
| PD-2W | 2 | 380 x 210 | W-0200-03-00-011 | W-0200-03-00-161 |
