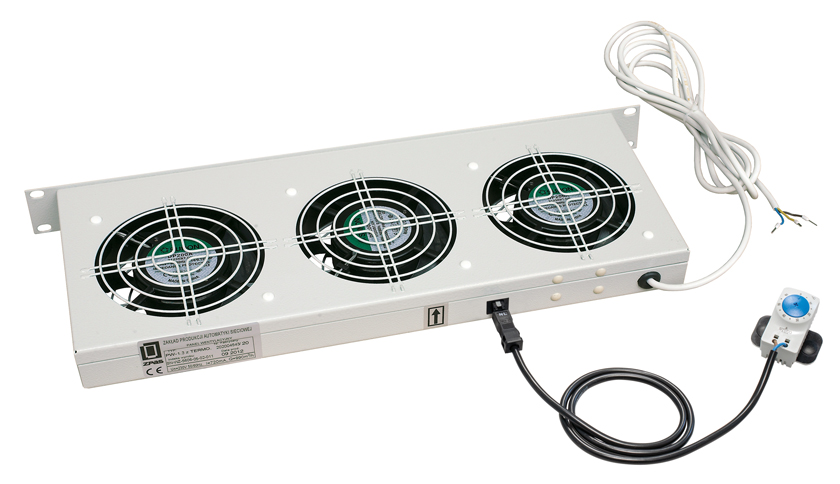

PW fan units - 19" asembly

Fan units 1 U high, intended for assembly on 19" mounting profiles or in 19" swing frames.
In the standard version, the units are equipped with 2, 3 or 4 fans, operating mode switch, fuse, power cord (without plug) and socket for thermostat connection.

TECHNICAL DATA

Parameter
Type of fan unit
PW-1.2T PW-1.3T PW-2.4T
Power supply voltage
220-240 V~ 50 Hz
Rated current [A] 0,28 0,42 0,56
Number of fans 2 3 4
Power rating [W] 44 66 88
Capacity [m3/h] 330 495 660
Ambient temperature [°C] from -10 to +70
Relative humidity [%] from 20 to 80
Protection degree IP 20
Electric shock protection neutralization

Enclosure material
Sheet steel powder painted.

Enclosure colour
Light grey (RAL 7035) or black (RAL 9005).

Scope of delivery
Fan unit with power cord (without plug) and fixing accessories.
Thermostat is ordered separately - see below.

Type of fan unit Number
of fans		 Depth
[mm]
Catalogue number
RAL 7035 RAL 9005
W-1.2T 2 180 W-5606-25-01-011 W-5606-25-01-161
PW-1.3T 3 180 W-5606-05-01-011 W-5606-05-01-161
PW-2.4T 4 350 W-5606-35-01-011 W-5606-35-01-161
PW-2.4T
PW-1.2T

PW-1.2T

PW-1.3T

PW-1.3T

PW-2.4T

Fan units are equipped with operation mode switch:
I - continuous work,
0 - fans off,
II - switching by thermostat.
Includes socket for connecting the thermostat. Thermostat is ordered separately.

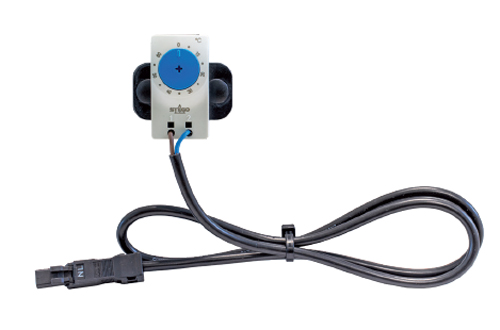

Thermostat for PW fan units

Thermostat with power cord and plug. Adapted for mounting on DIN rails.

Package Catalogue number
1 pc. W-0201-12-00-000
