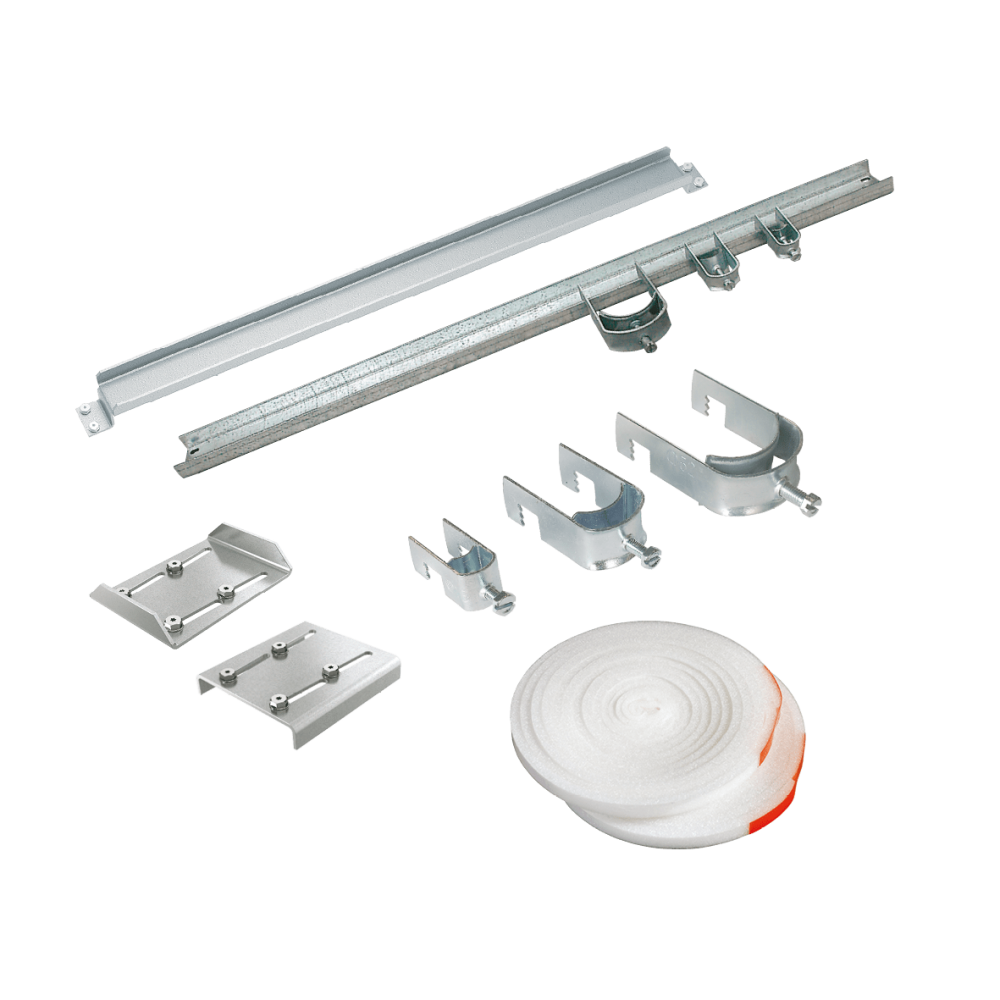

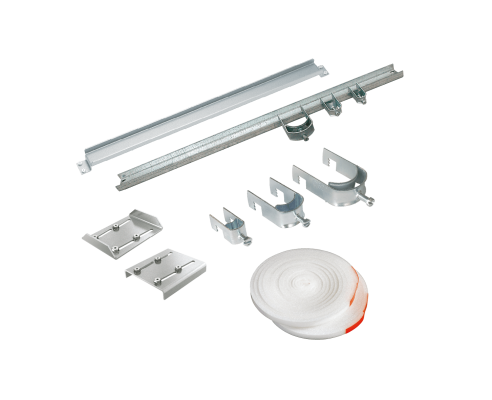

Accessories for SZE3 cabinets
.
ACCESSORIES FOR SZE3 CABINETS

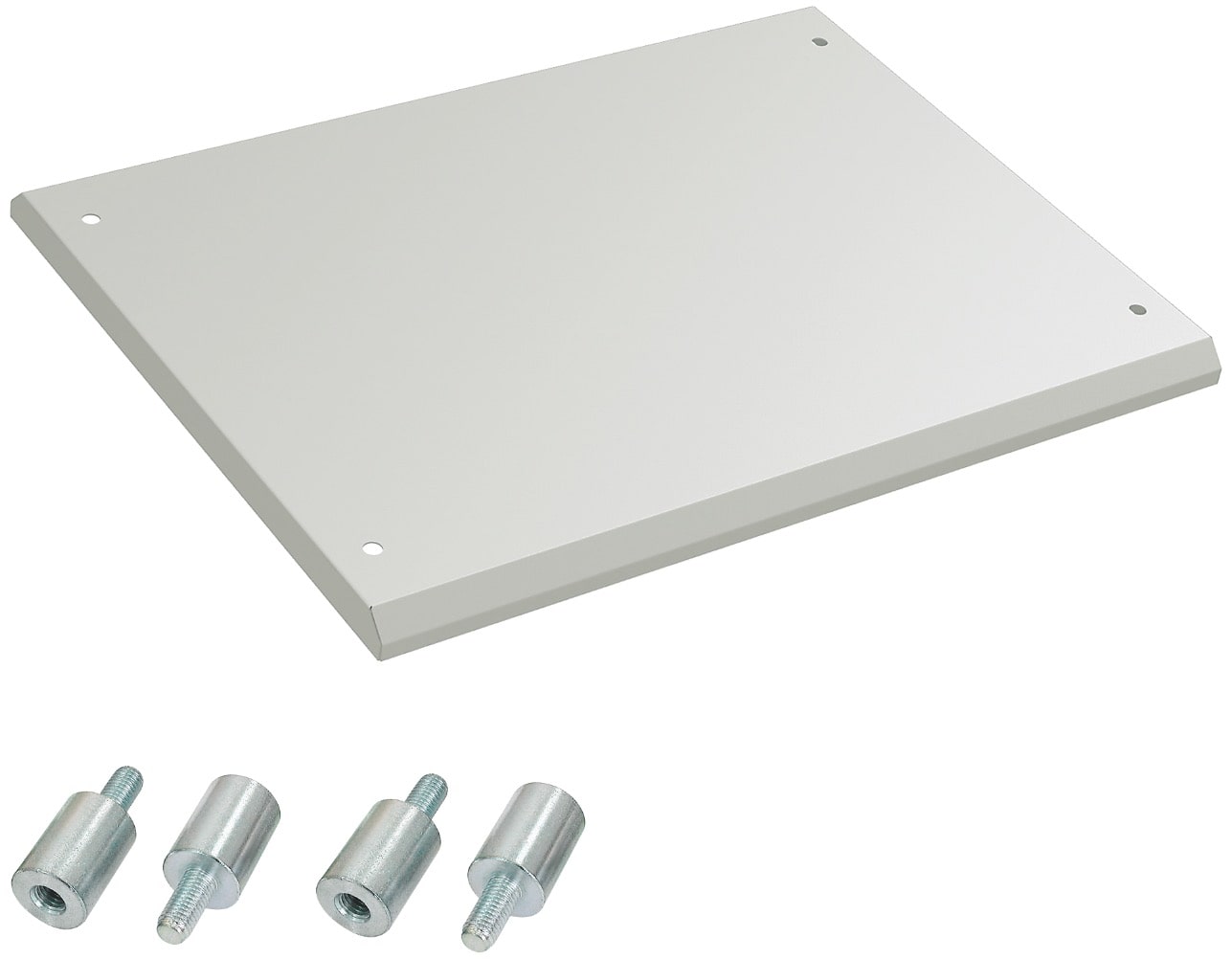

Roof
Roof’s height with fixing/spacer bolts: 41.5 mm
Material
Sheet steel powder painted in RAL 7035
Scope of delivery
Roof with 4 fixing/spacer bolts for mounting.
(Assembly screws M12 are delivered with the cabinet.)
| W-6935-56-16-011 | ||
| W-6935-56-15-011 | ||
| W-6935-56-14-011 | ||
| W-6935-56-13-011 | ||
| W-6935-56-12-011 | ||
| W-6935-56-11-011 | ||
| W-6935-56-10-011 | ||
| W-6935-56-09-011 | ||
| W-6935-56-08-011 | ||
| W-6935-56-07-011 | ||
| W-6935-56-06-011 | ||
| W-6935-56-05-011 | ||
| W-6935-56-04-011 | ||
| W-6935-56-03-011 | ||
| W-6935-56-02-011 | ||
| W-6935-56-01-011 | ||
Package: 1 pc.

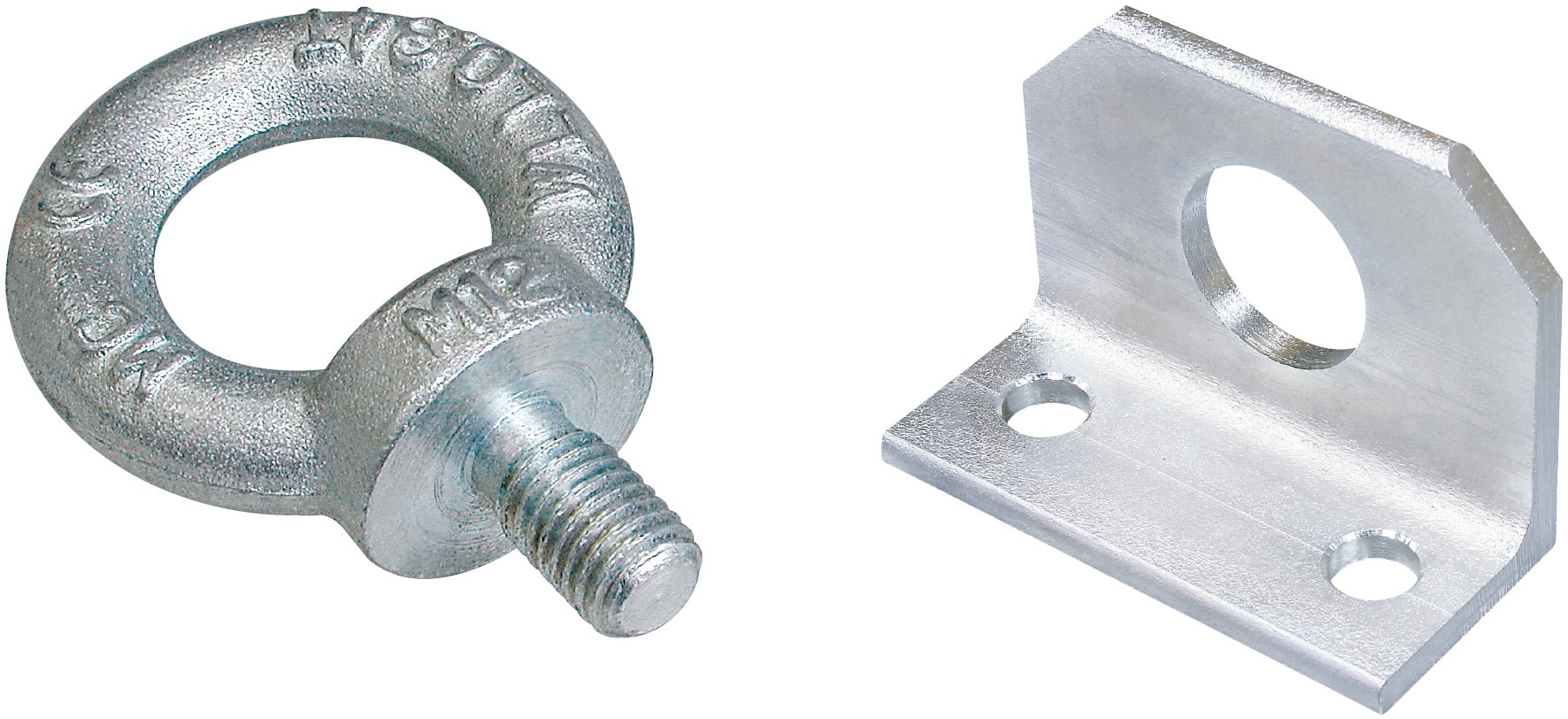

Lifting accessories
Fixed to threaded holes in the top corners of the cabinet’s frame.
Offered in two options:
- eyebolts - galvanised steel, eye diameter: 30 mm, thread for fastening: M12;
- lifting angle for cabinets bayed in rows - galvanised steel angle, lifting hole diameter: 38 mm, two holes for mounting screws M12.
Scope of delivery
Lifting accessories are sold separately.
Lifting angle is supplied with mounting screws.
| Product name | Package | Catalogue number |
|---|---|---|
| eyebolt | 1 pc. | M1F-00-0106 |
| lifting angle | 1 pc. | W-6282-69-00-C12 |

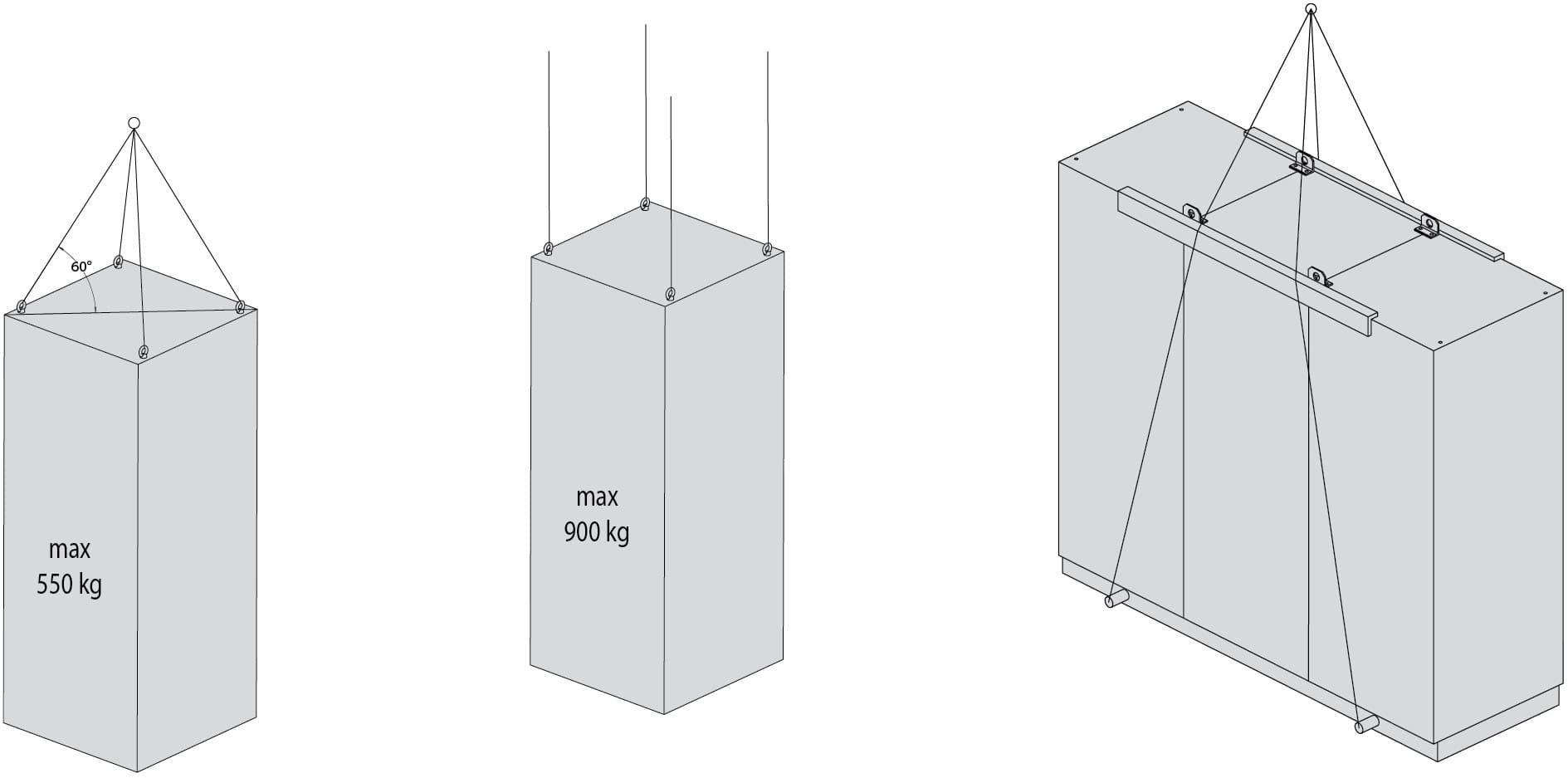

TRANSPORT OF SZE3 CABINETS
For larger loads, a set of cabinets should be preferably placed on a single shared welded plinth which reinforces the entire structure during transport. For advice on selection of an appropriate plinth type, please ask ZPAS S.A. design department.

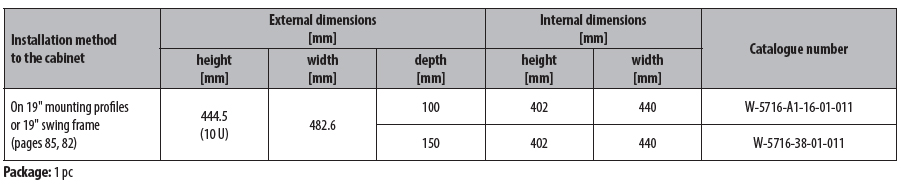

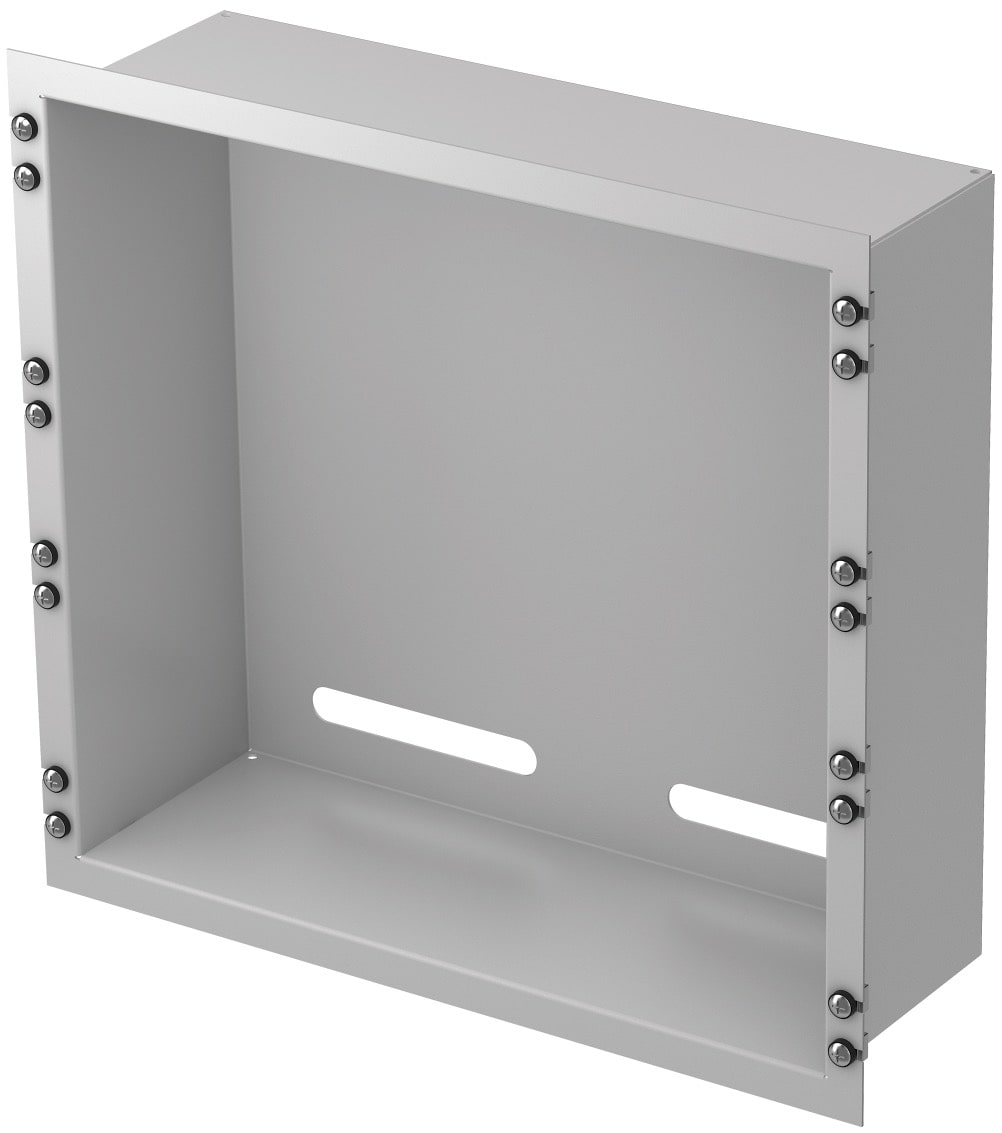

Electric meter box
It is used for installation of electricity meters in the SZE3 cabinet with 19" swing frame or 19" mounting profiles.
Material
Steel sheet powder painted in RAL 7035
Scope of delivery
Electric meter box with fixing accessories for mounting to the cabinet.
Package: 1 pc.

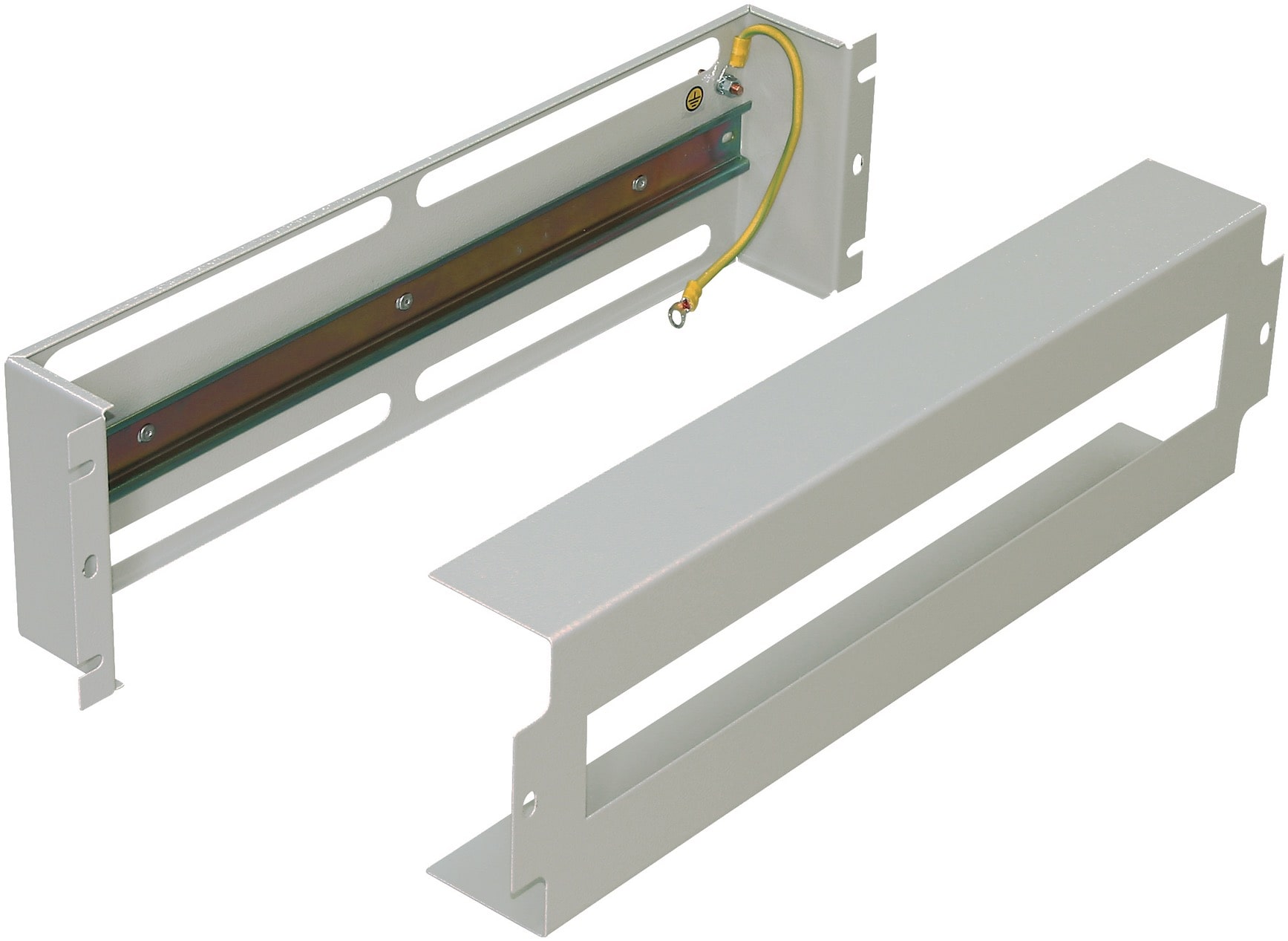

Voltage distribution panel
Universal 19" enclosure for modular devices.
Capacity of panel
Maximum number of built-in S-type modules (width of module 17.5 mm): 22 pcs.
Material
Steel sheet powder painted in RAL 7035
Scope of delivery
Mounting base, DIN rail, housing, fixing accessories for mounting to the cabinet.
Note:
On individual request, the panel can be fitted with electrical equipment
| Installation method to the cabinet | External dimensions [mm] |
Internal dimensions [mm] |
Catalogue number | ||||
|---|---|---|---|---|---|---|---|
| On 19" mounting profiles or 19" swing frame |
Height [mm] | Width [mm] | Depth [mm] | Height [mm] | Width [mm] | RAL 7035 | RAL 9005 |
| 133 (3 U) | 482,6 | 60 | 130 | 440 | W-PS3U-00-00-011 | W-PS3U-00-00-161 | |
Package: 1 pc.
CABLE MANAGEMENT

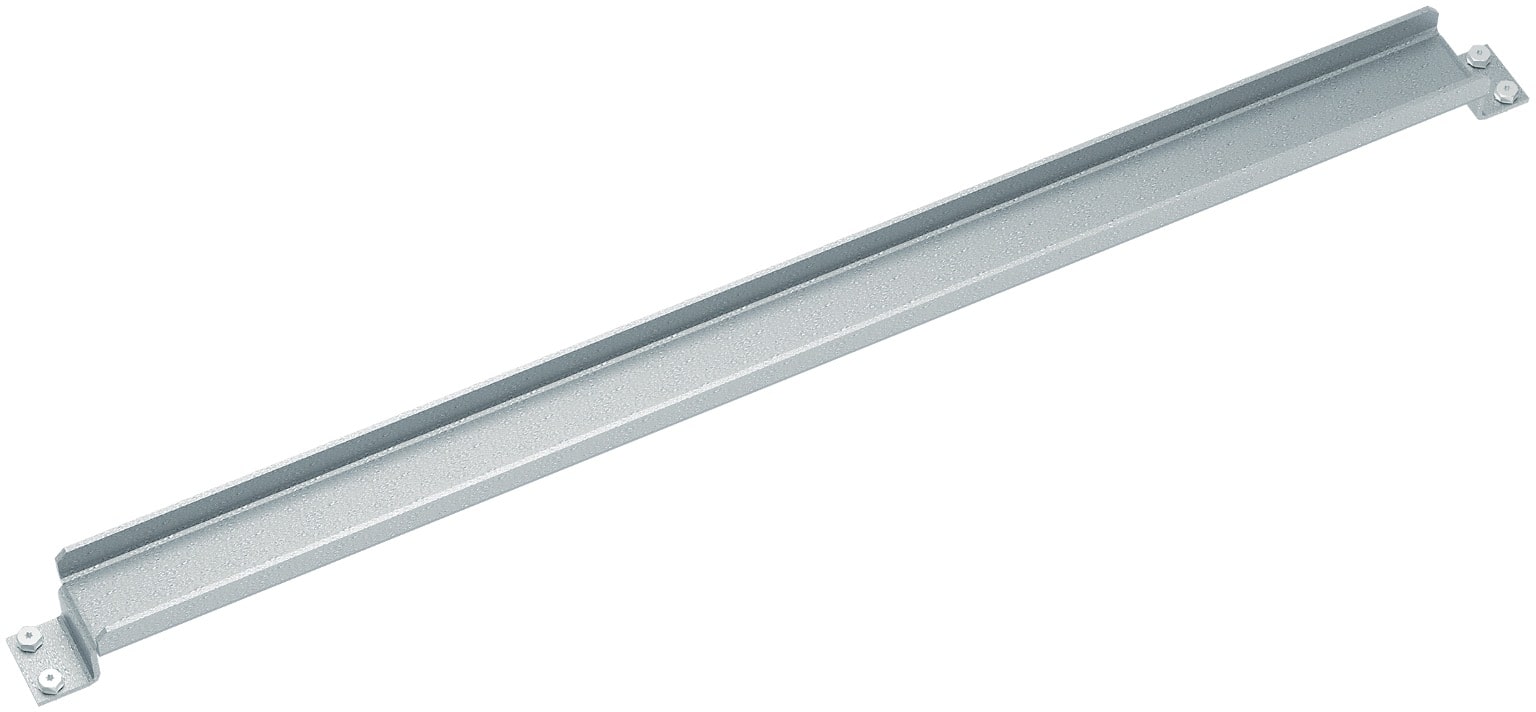

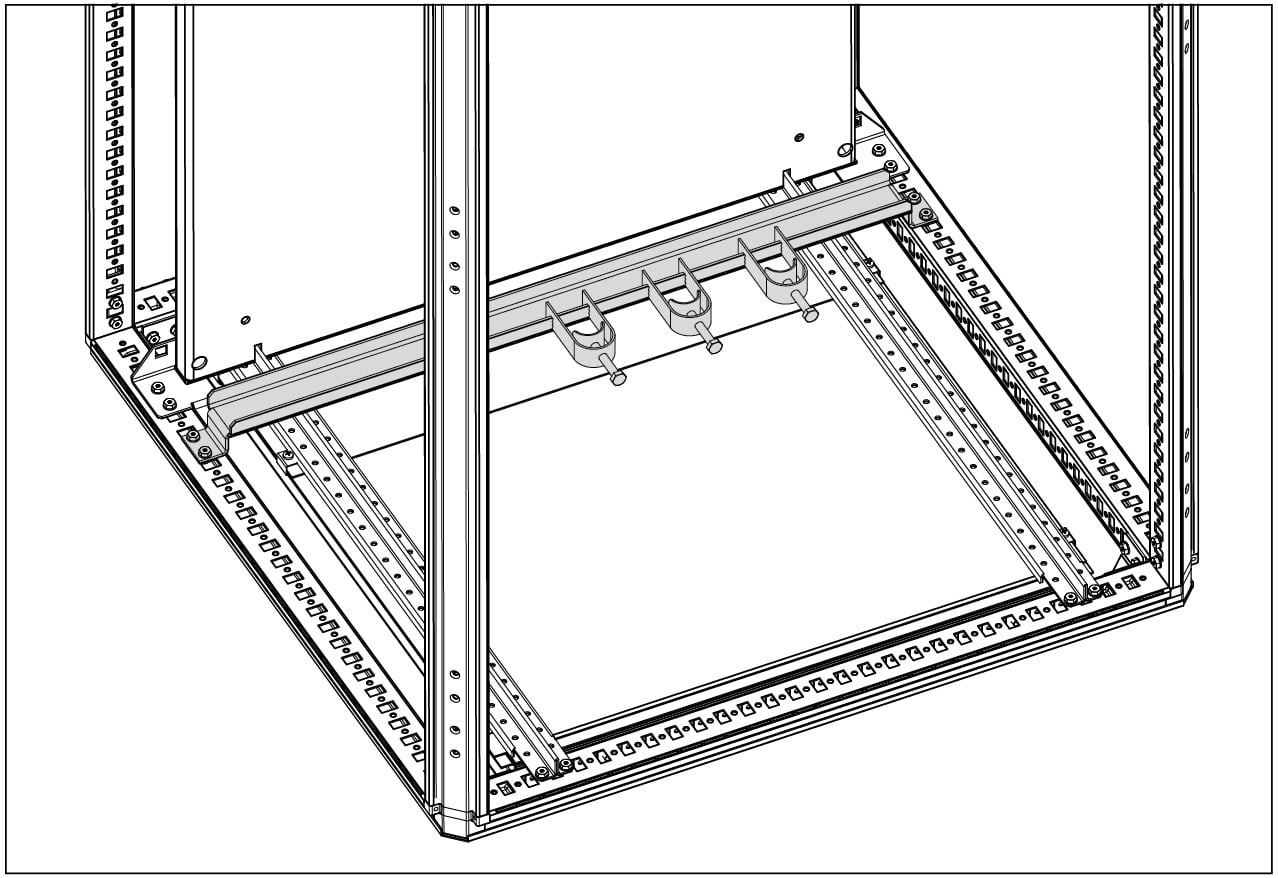

Cable bar mounted to cabinet’s frame
For fixing cables that enter the cabinet.
Fixed into the horizontal profile of the cabinet’s frame.
Material
zinc coated sheet steel
Scope of delivery
Cable bar with fixing accessories.
Cable clamps should be ordered separately.
Package: 1 pc.

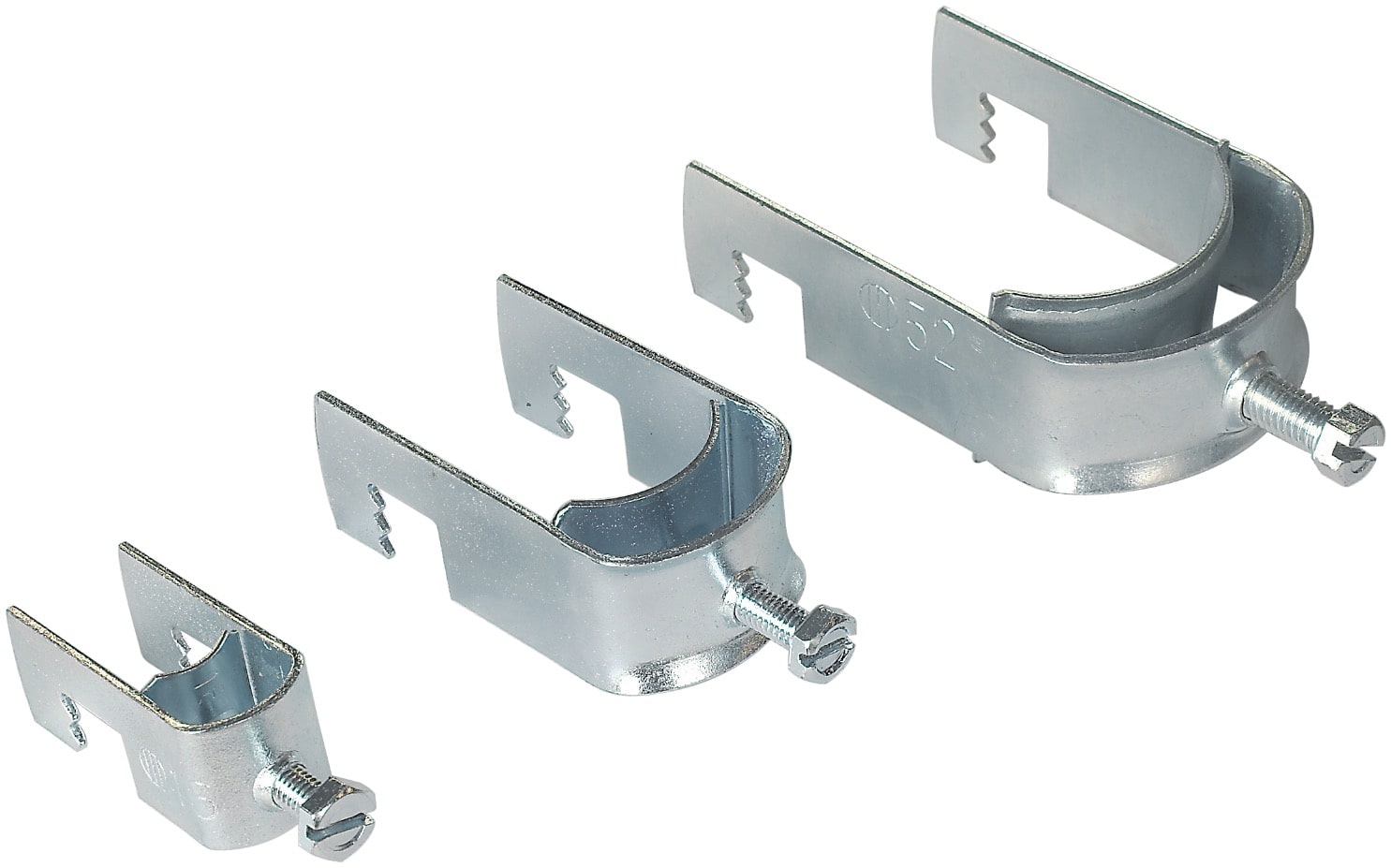

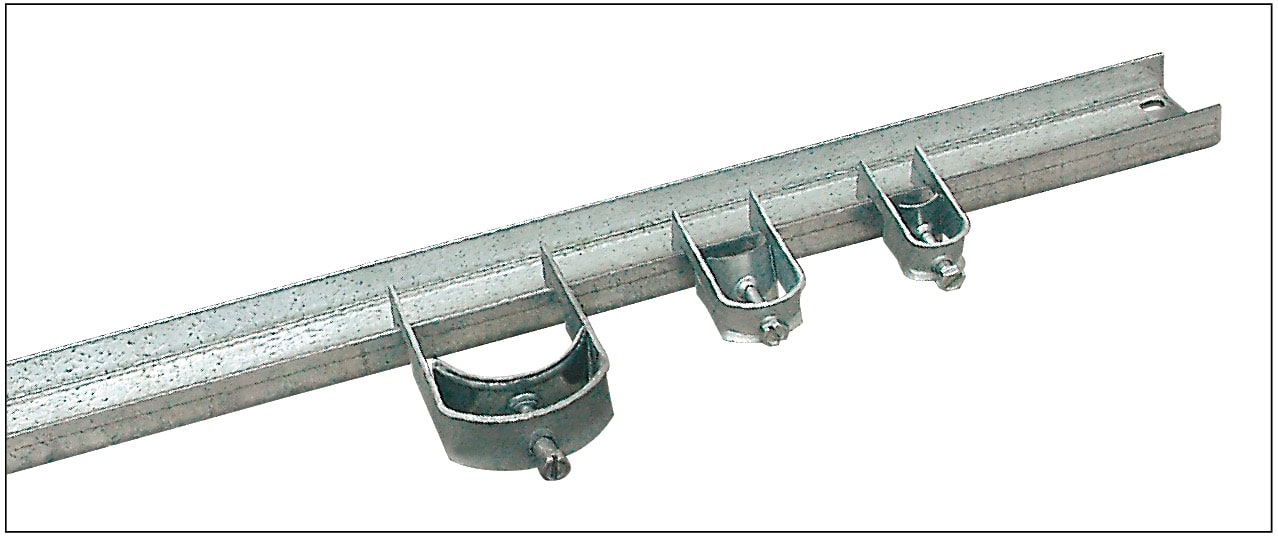

Cable clamps
For fixing cables on the cable bar fixed to the cabinet’s frame or plinth.
Material
Zinc coated sheet steel
Scope of delivery
Cable clamp - 5 pcs
Package: 5 pcs.
Cable bar mounted to plinth
For fixing cables that enter the cabinet.
Screwed to the cabinet plinth through the cable bar bracket.
Material
zinc coated sheet steel
Scope of delivery
Cable bar without fixing accessories
Cable clamps should be ordered separately.
Package: 1 pc.

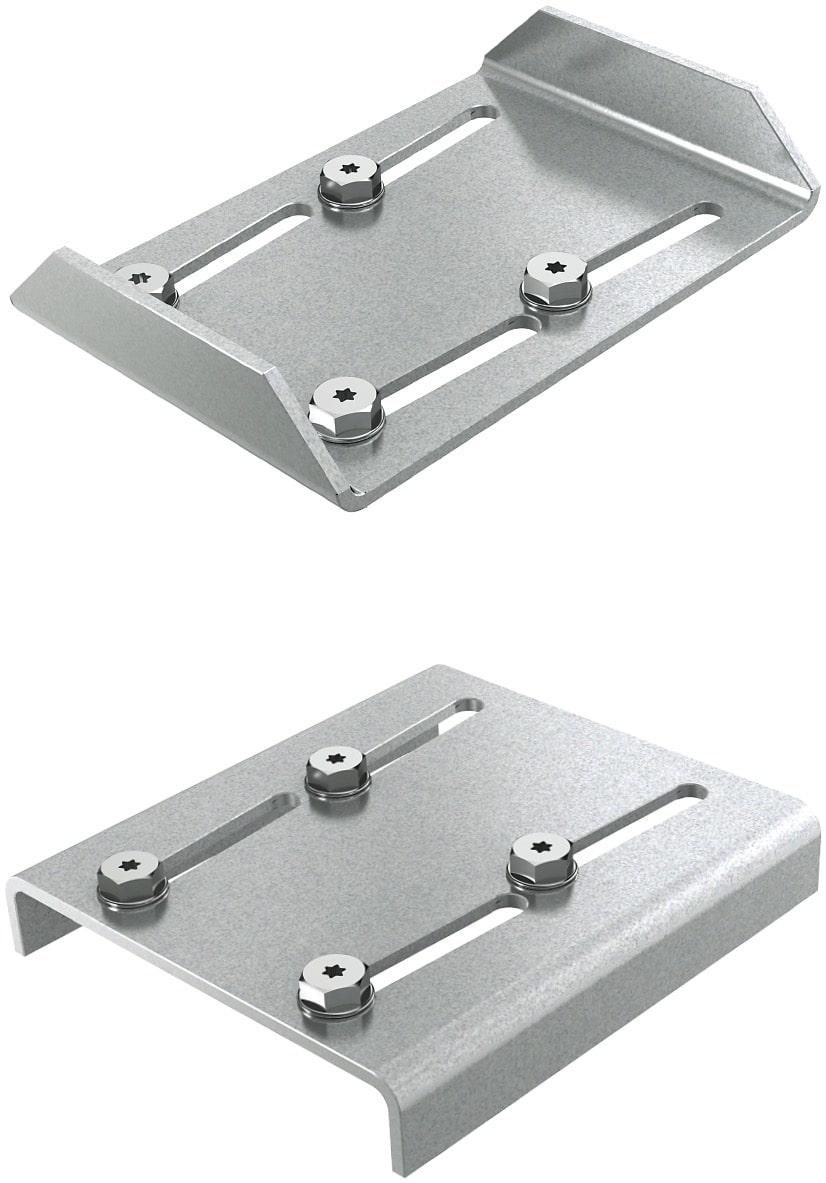

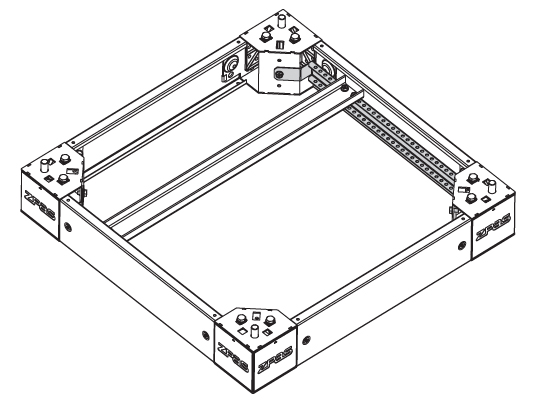

Cable bar bracket
For mounting the cable bar on the modular plinth.
Material
zinc coated sheet steel
Scope of delivery
Two supports for cable bar with fixing accessories.
Package: 1 pc.
BAYING CABINETS IN ROWS

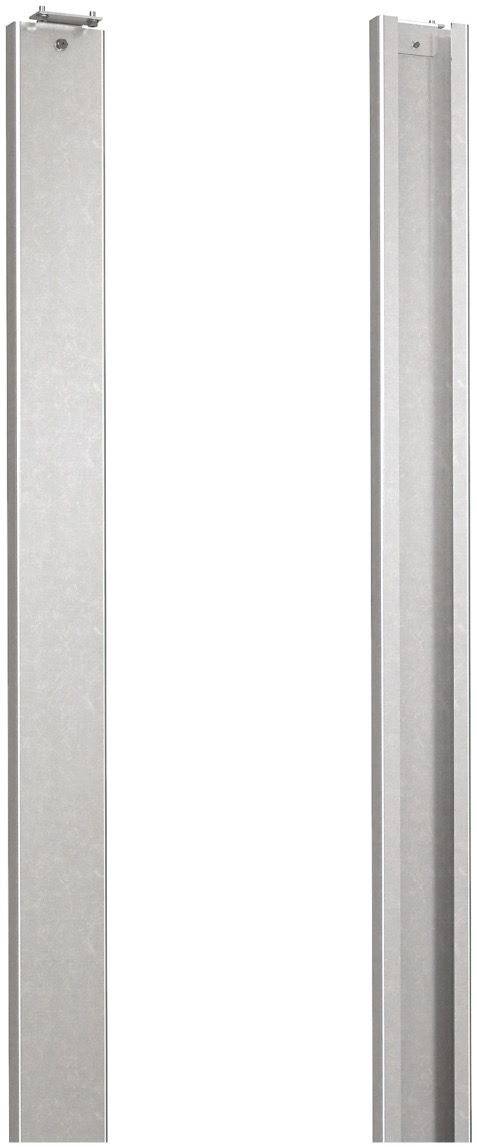

Mounting plate infill
The plate infill makes it possible to achieve uniform mounting plane in cabinets bayed in rows.
Material
Zinc coated sheet steel
Scope of delivery
Mounting plate infill with fixing accessories
1 - mounting plates connector
2 - frame connector – type A
Frame connectors and gasket
For baying cabinets in rows.
Material
Frame connectors - zinc coated sheet steel.

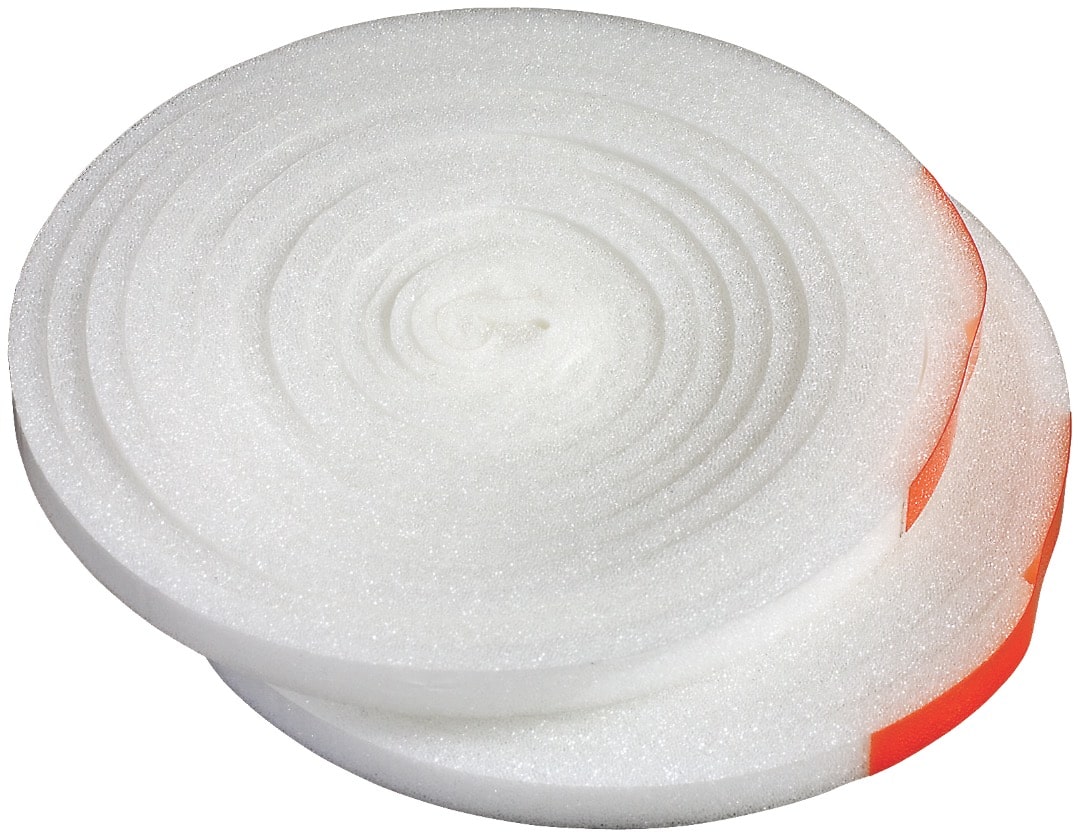

Gasket - polyurethane foam.
Scope of delivery
Frame connectors with fixing accessories, self-adhesive gasket - see table below.
Elements available separatelly or in set.
| Description | Package | Catalogue number |
|---|---|---|
|
Set for baying two cabinets together: - frame connectors type A - 4 pcs - frame connectors type B - 2 pcs - self-adhesive gasket - 6 m - fixing accessories |
1 set | W-6678-00-00-000-EM-S |

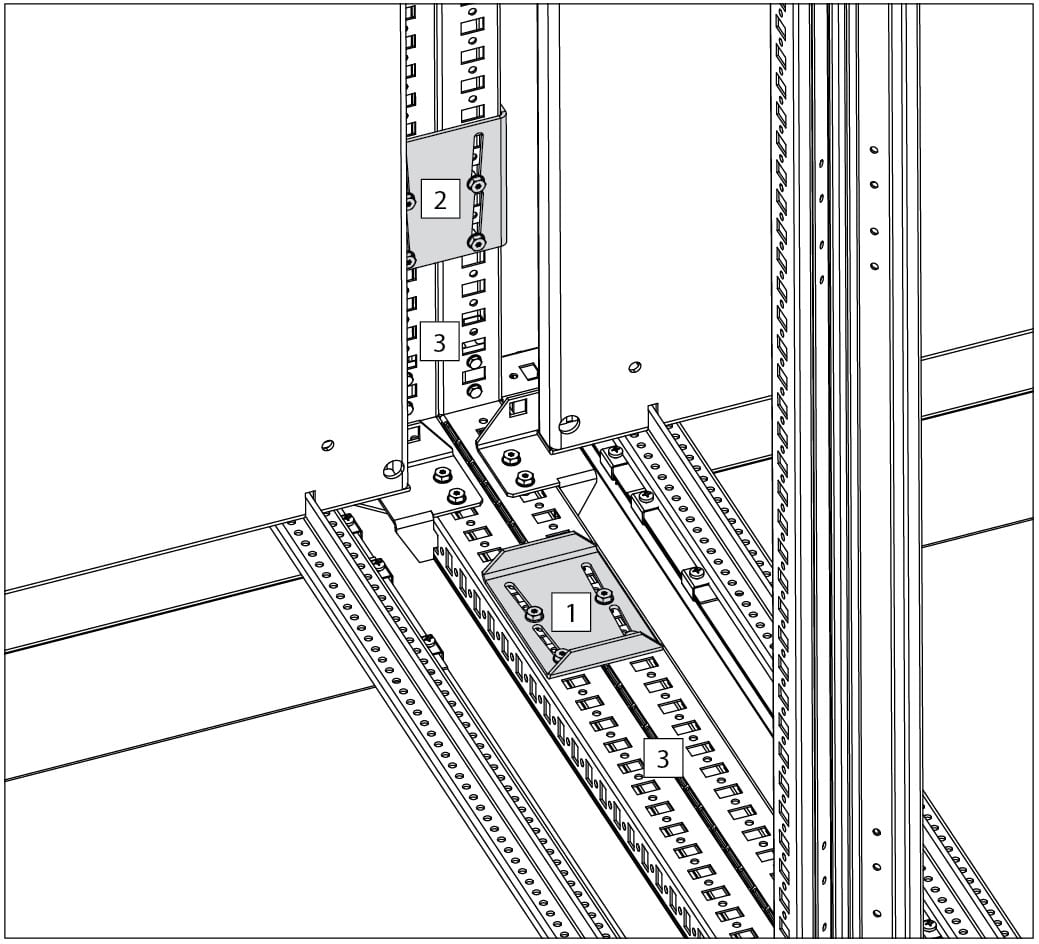

1 - frame connector – type A
2 - frame connector – type B
3 - self-adhesive gasket mounted on connection of cabinets’ frames
