ACCESSORIES FOR SZE2 CABINETS - CABLE GLAND PLATES AND BLANKING PLATES
Spare kit of sliding gland plates for cabinet's bottom plate

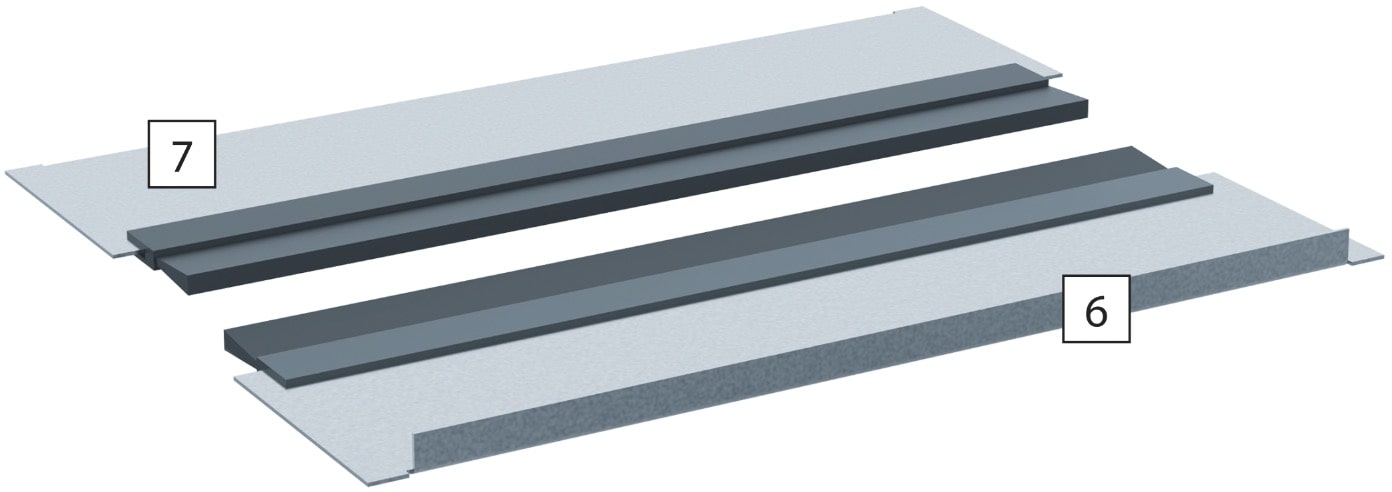

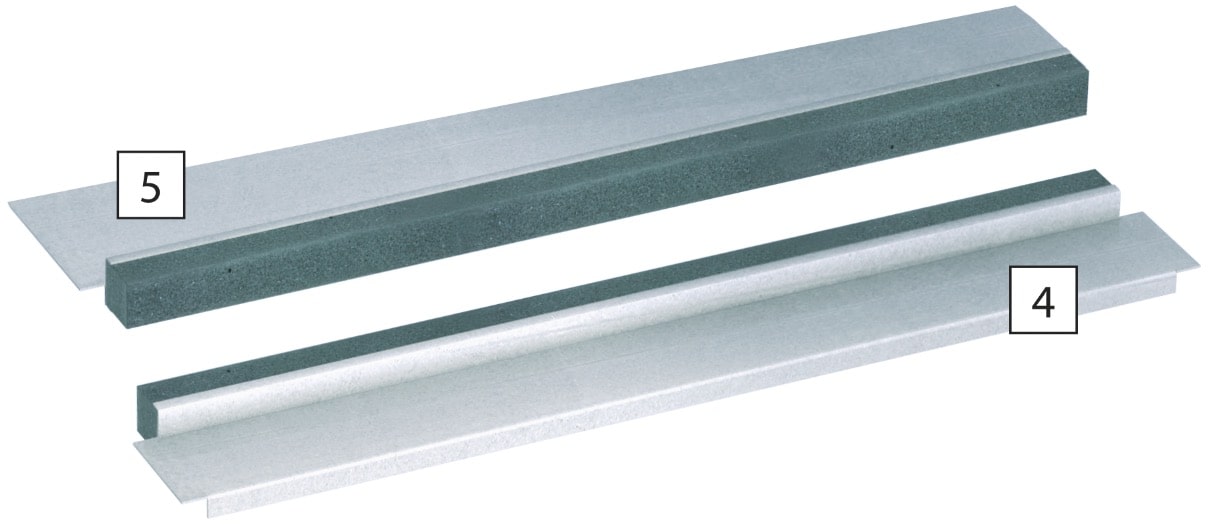

Sliding gland plates with foam strip (4, 5) or brush strip (6, 7) are intended for application instead of standard sliding gland plates (1, 2).
They create a cable opening with adjustable width.
Foam strip protects cable isolation lead into the cabinet from any defects, at the same time increasing the cabinet’s tightness. Brush strip protects against dust.
Material
Al-Zn coated sheet steel, polyurethane foam, plastic brush.
Scope of delivery
Set of 2 sliding gland plates with foam strip (No. 4 and 5) or brush strip (No. 6 and 7). Used for one opening in SZE2 cabinet bottom plate (note: 1000 and 1200 mm wide cabinets have two openings in the bottom plate).
| For cabinet width [mm] |
Width of the opening for the sliding gland plate L1 [mm] |
Width
of the
sliding
gland
plate
L2 [mm] |
Catalogue number | |
|---|---|---|---|---|
| Kit of sliding gland plates with foam strip | Kit of sliding gland plates with brush strip | |||
| 800 | 586 | 616 | W-1951-81-01-000 | W-8186-50-01-000 |
| 1200 lub 600 |
386 | 416 | W-1951-81-02-000 | W-8186-50-02-000 |
| 1000 | 356 | 386 | W-1951-81-03-000 | W-8186-50-03-000 |
Package: 1 set
Method of fastening sliding gland plates in the bottom plate of the SZE2 cabinet
Supply of all cabinets includes:

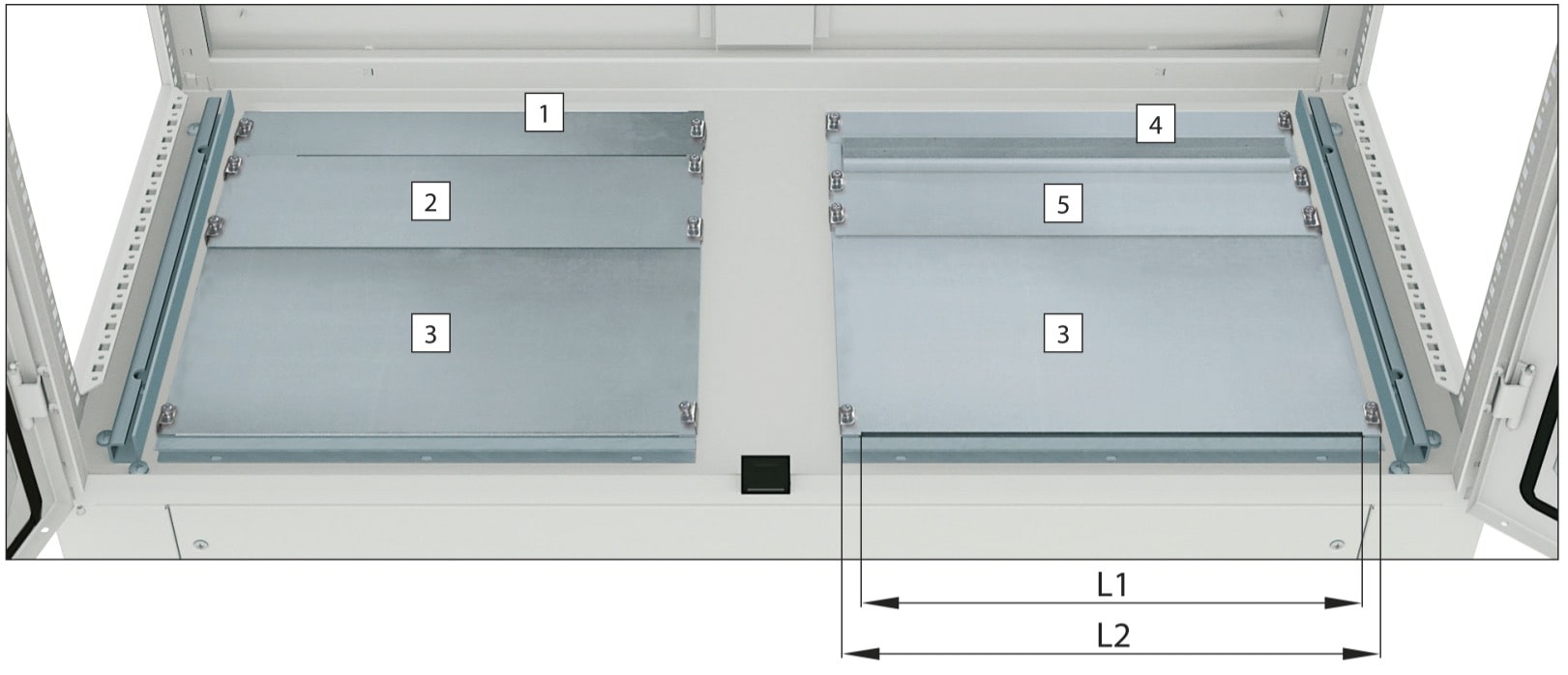

1, 2, 3 – standard sliding gland plates (without foam or brush) for each omening in the bottom plate of the cabinet.
Supplementary accessories:
4, 5 - spare kit of sliding gland plates with foam strip
or

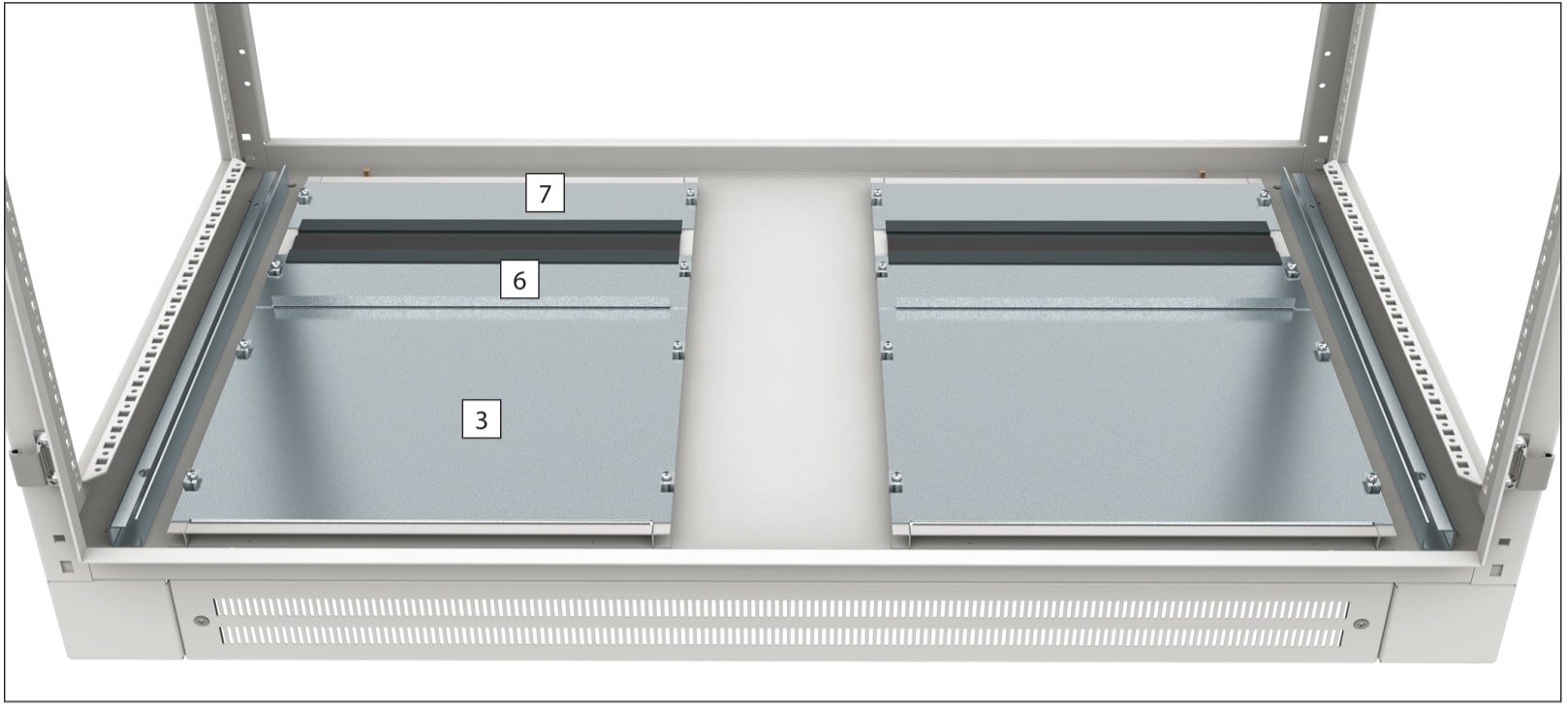

6, 7 - spare kit of sliding gland plates with brush strip (intended for fastening instead of standard gland plates without foam or brush)
Sealing set for bottom plate
Gasket for sliding gland plates.
Material: polyurethane foam
Scope of delivery: self-adhesive gasket, lenght 3.2 m.
Catalogue number: W-1951-45-10-000
Blanking and cable entry plates for cabinet's top plate
Available in 5 types.
For dimensions and spacing of openings in the top plate of the SZE2 cabinet.
Material
Sheet steel powder painted in RAL 7035.
Scope of delivery
Blanking or cable entry plate with mounting elements for fixing inside the cabinet
| Type of
blanking or cable entry plate |
Protection degree of cabinets equipped with a blanking plate |
For
opening [mm] |
Catalogue number | |
|---|---|---|---|---|
| Cabinet without a roof |
Cabinet with a roof |
|||
| Solid blanking plate | IP 54/55 | IP 54/55 | 380 x 380 | W-4810-07-00-011 |
| 380 x 210 | W-1951-26-00-011 | |||

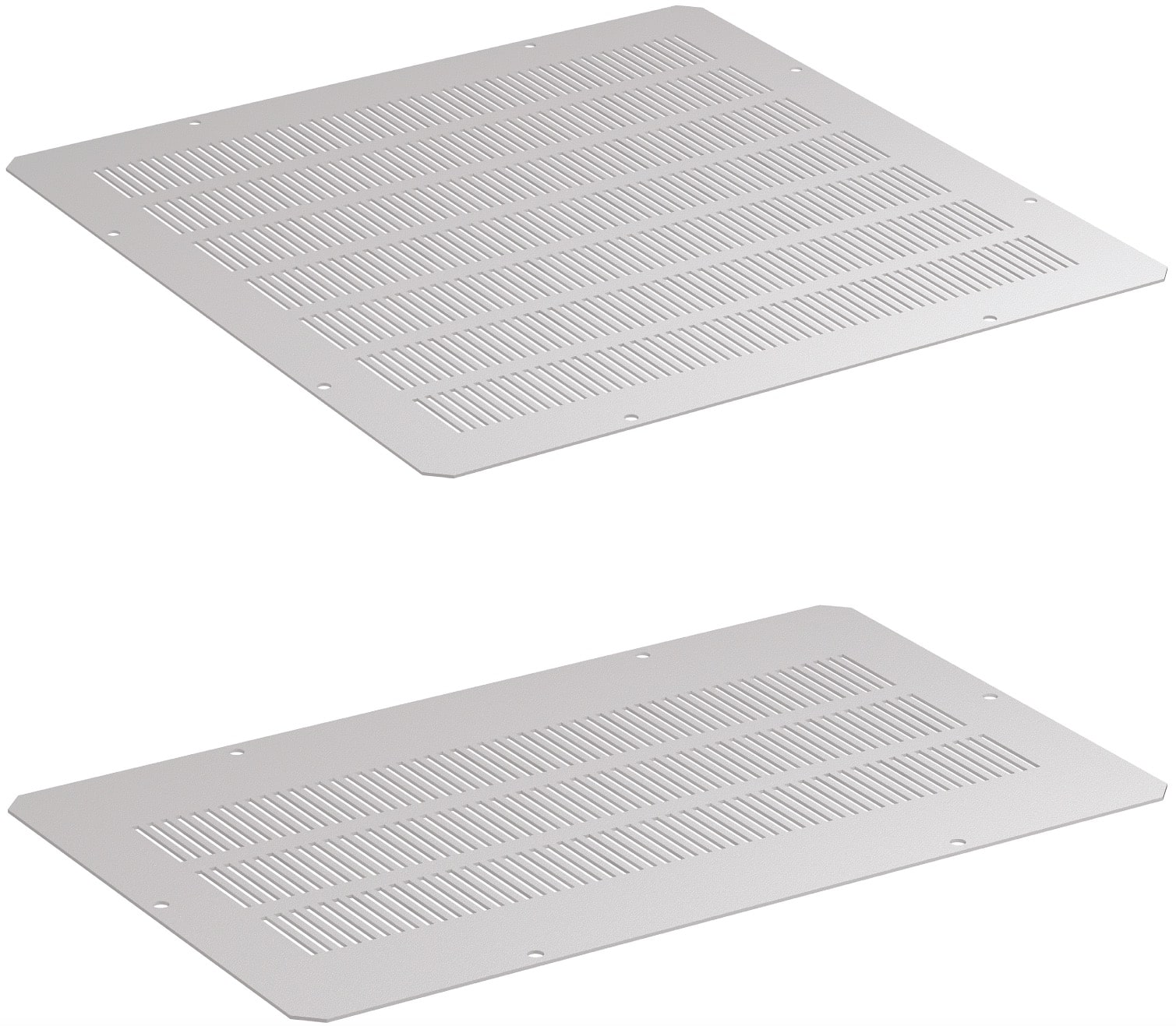

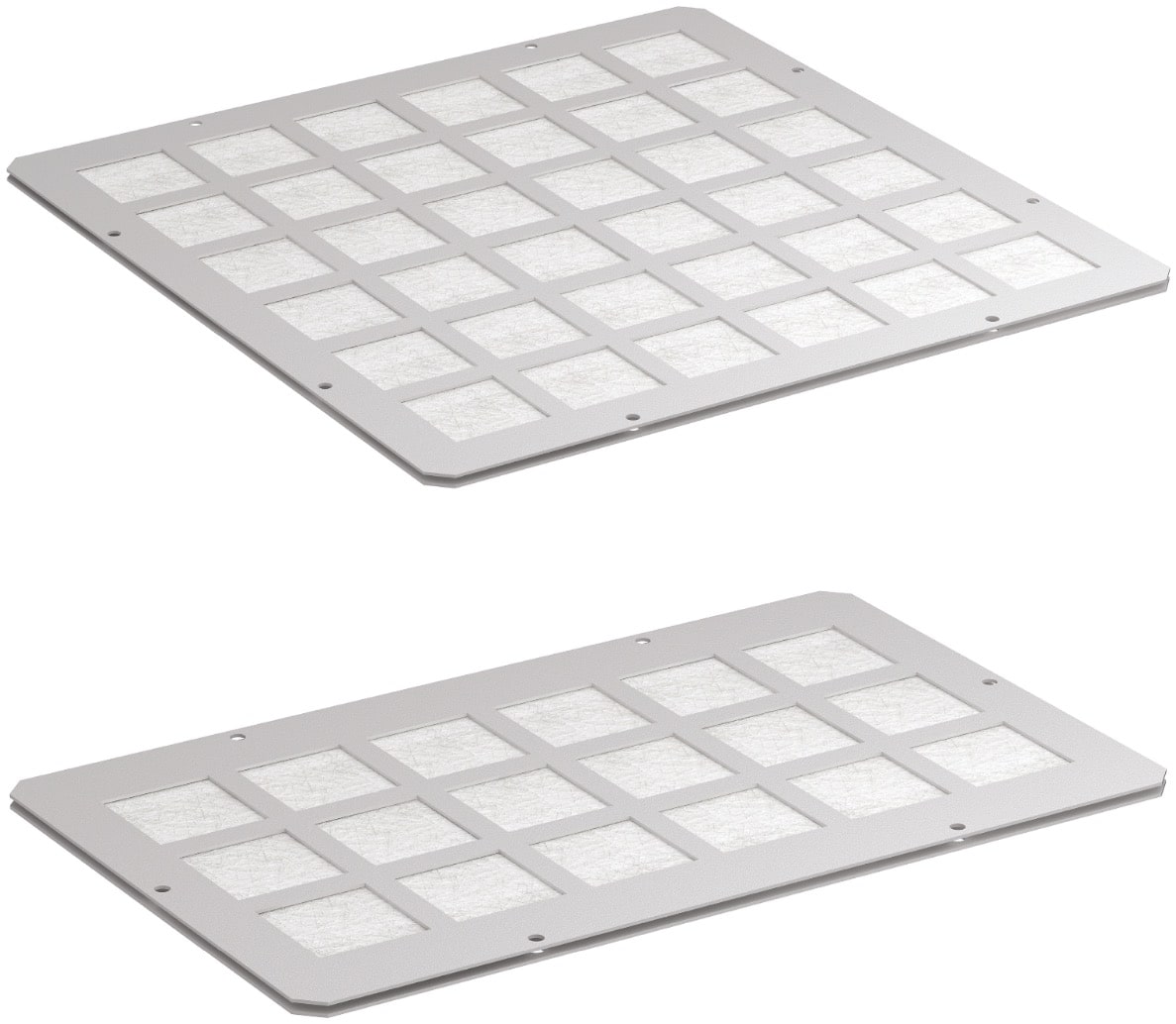

| Perforated blanking plate | IP 20 | IP 21 | 380 x 380 | W-1718-39-01-011 |
| 380 x 210 | W-1718-39-02-011 | |||
| Blanking plate with a fabric filter | IP 10 | IP 21 | 380 x 380 | W-1718-42-01-011 |
| 380 x 210 | W-1718-42-02-011 | |||

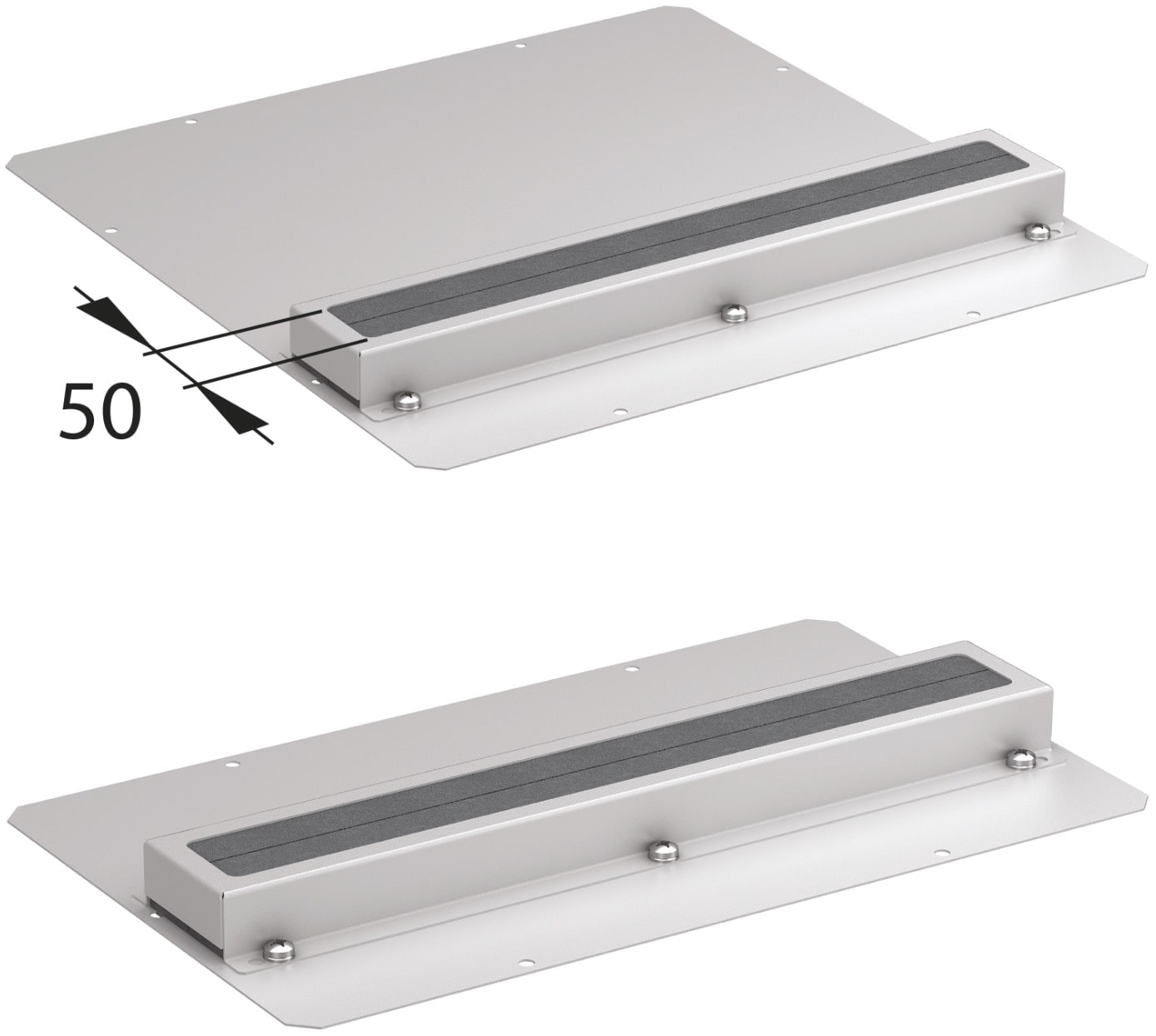

| Cable entry
plate with a brush strip |
IP 00 | IP 21 | 380 x 380 | W-5271-10-00-011 |
| 380 x 210 | W-5271-14-00-011 | |||

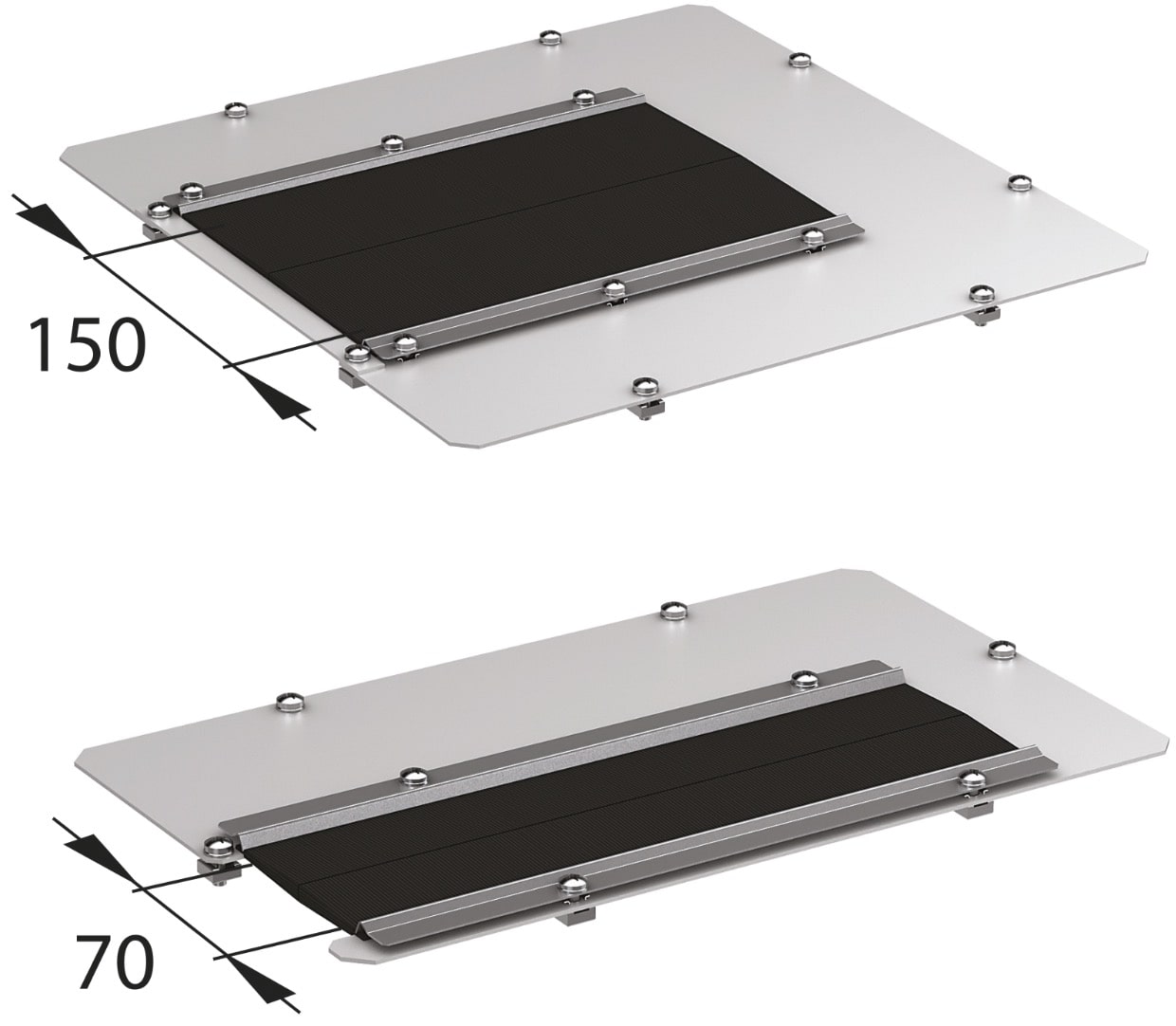

| Cable entry
plate with a foam strip |
IP 10 | IP 21 | 380 x 380 | W-1718-40-01-011 |
| 380 x 210 | W-1718-40-02-011 | |||
| Cable entry
plate with
a fabric filter and a brush strip |
IP 00 | IP 21 | 380 x 380 | W-SB76-00-00-011 |
Package: 1 set
Kit of sliding gland plates with a foam strip
For 800 mm deep SZE2 cabinets.
Consists two foam cable entry strips.
Material
Al-Zn coated sheet steel, polyurethane foam.
Scope of delivery
Set of 4 sliding gland plates with foam, 1 central plate, fixing elements.
Used for one opening in SZE2 cabinet bottom plate (note: 1000 and 1200 mm wide cabinets have two openings in the bottom plate).
| For cabinet width [mm] |
Width of the
opening for the sliding gland plate L1 [ [mm] |
Width of the
sliding gland plate L2 [mm] |
Catalogue number |
|---|---|---|---|
| 800 | 586 | 616 | W-5716-13-05-000 |
| 1200 or 600 | 386 | 416 | W-5716-13-07-000 |
| 1000 | 356 | 386 | W-5716-13-03-000 |
Package: 1 set
