ACCESSORIES FOR SZE2 CABINETS - DOORS

Doors

Intended for use instead of front solid door or rear panel.
Maximum door opening angle: 120°

Material
Sheet steel textured powder paint, light grey (RAL 7035),stiffened profiles, brown smoked safety glass

Scope of delivery
Complete wing of door with hinges and lock that includes double-bit insert (no handle).

SINGLE-LEAF DOOR

For cabinet
Door dimensions
Catalogue number
Height [mm]
Width [mm]
H [mm]
W [mm]
Solid door IP 54/55
door with glass IP 54/55
Door with passive ventilation IP54
Door with glass and passive ventilation IP54
right/left right/left right left right left
2000 600 1990 593 W-1951-10-02-011 W-1951-F2-02-011 W-1951-40-02-011 W-1951-40-10-011 W-1951-F4-02-011 W-1951-F4-10-011
800 1990 793 W-1951-10-01-011 W-1951-F2-01-011 W-1951-40-01-011 W-1951-40-09-011 W-1951-F4-01-011 W-1951-F4-09-011
2200 600 1990 593 W-4950-03-02-011 W-4950-96-02-011 W-4950-16-02-011 W-4950-16-04-011 W-4950-18-02-011 W-4950-18-04-011
800 1990 793 W-4950-03-01-011 W-4950-96-01-011 W-4950-16-01-011 W-4950-16-03-011 W-4950-18-01-011 W-4950-18-03-011

Package: 1 pc.

DOUBLE-LEAF DOOR

For cabinet
Door dimensions
Catalogue number
Height [mm]
Width [mm]
H [mm]
WR [mm]
WL [mm]
Solid door IP54/55
Door with glass IP54/55
Door with passive ventilation IP54
right wing left wing right wing left wing right wing left wing
2000 1000 1990 493 519,5 W-1951-15-02-011 W-1951-13-02-011 W-1951-F6-02-011 W-1951-F8-02-011 W-1951-59-02-011 W-1951-57-02-011
1200 1990 593 619,5 W-1951-15-01-011 W-1951-13-01-011 W-1951-F6-01-011 W-1951-F8-01-011 W-1951-59-01-011 W-1951-57-01-011
2200 1000 1990 493 519,5 W-4950-10-02-011 W-4950-08-02-011 W-4950-84-02-011 W-4950-84-04-011 W-4950-22-02-011 W-4950-20-02-011
1200 1990 593 619,5 W-4950-10-01-011 W-4950-08-01-011 W-4950-84-01-011 W-4950-84-03-011 W-4950-22-01-011 W-4950-20-01-011

Package: 1 pc. (wing)

*) when facing the structure

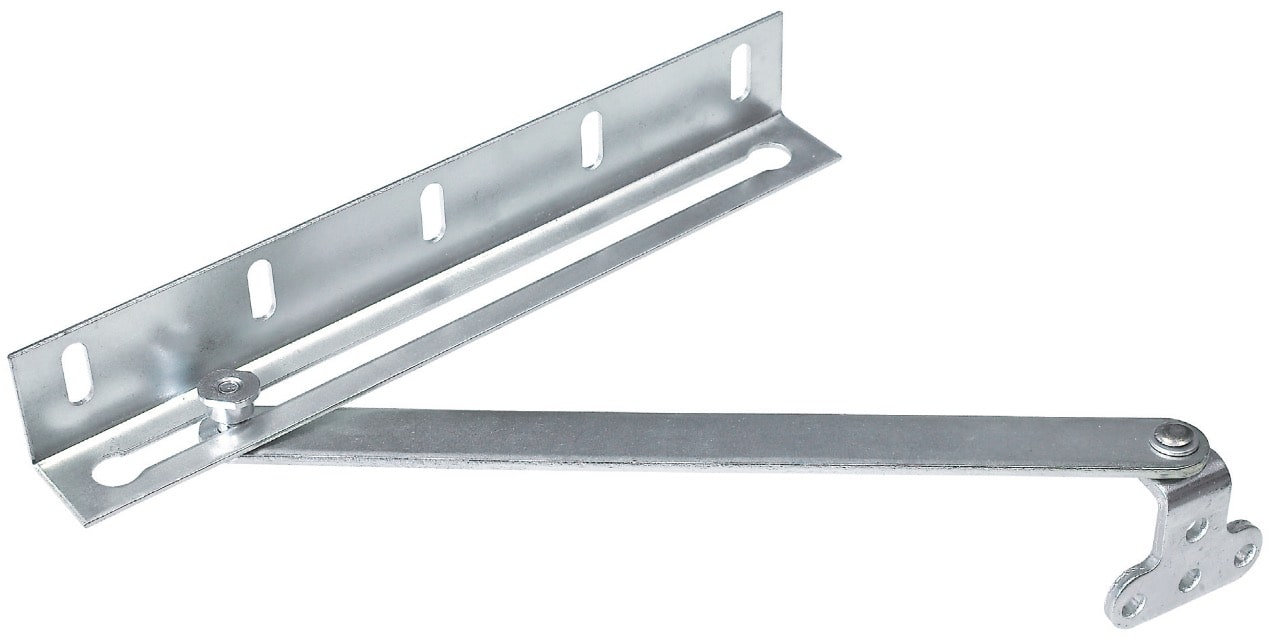

Door stop

Protects hinges from damage.
Fixed into the door’s frame and cabinet’s frame.
In the case of self-assembly, it is necessary to punch two 6 mm holes in indicated positions.

Material
Galvanised sheet steel

Scope of delivery
Door stop with fixing accessories for mounting into the cabinet.

Package Catalogue number
1 pc. W-1951-32-00-000

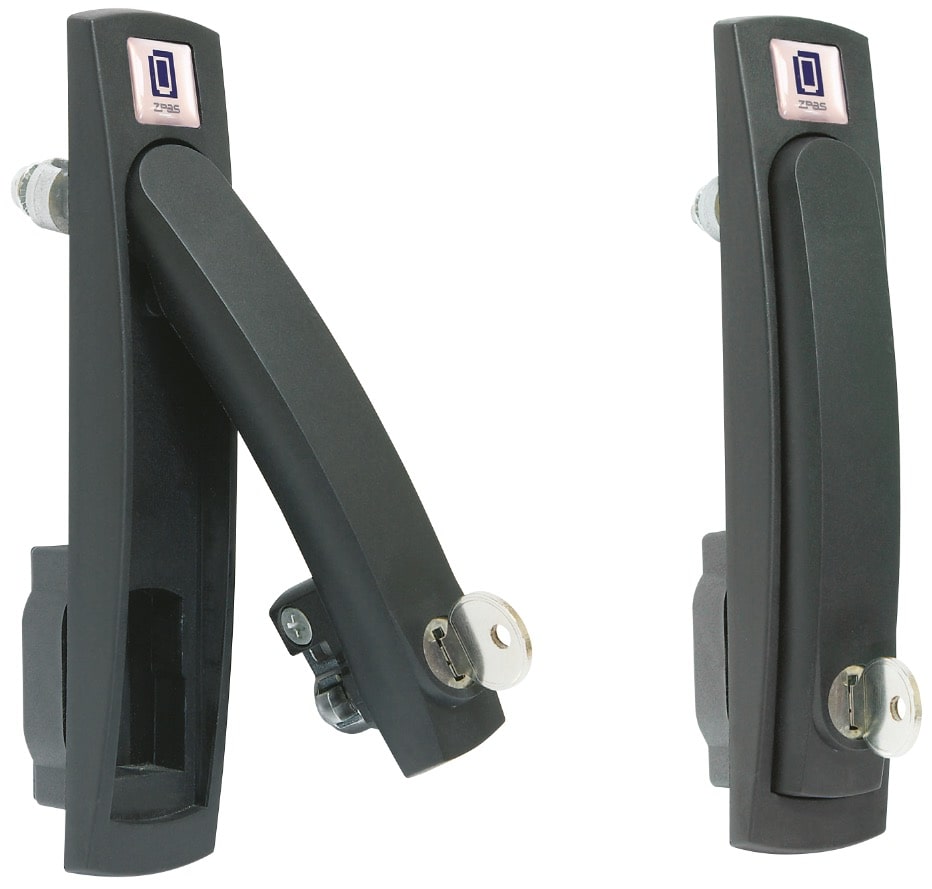

Swing handle with cylinder insert for the door’s lock

For applying in the cabinet instead of the standard pattern that includes double-bit insert.

Material of the body
Plastic

Scope of delivery
Swing handle and cylinder are to be ordered separately.

Product name Package Catalogue number
Swing handle without cylinder insert 1 pc. M1H-01-0024
Cylinder insert for swing handle + 1 key 1 set M1H-02-0028

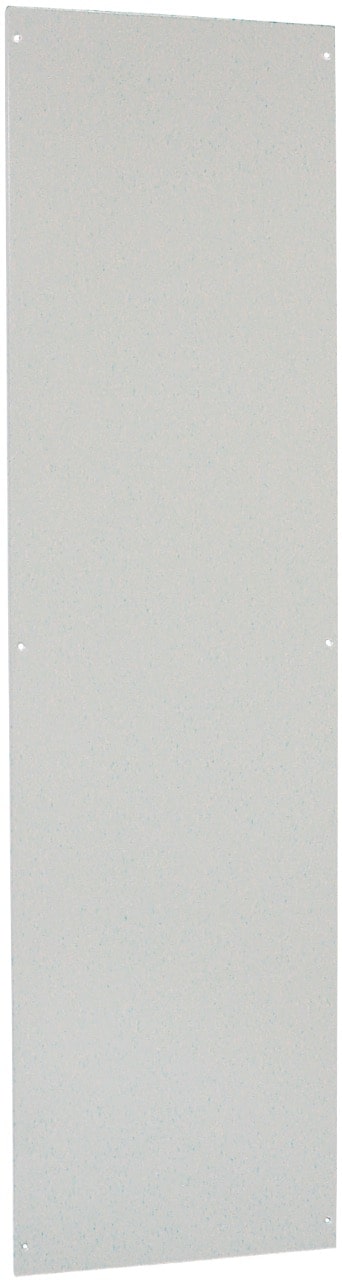

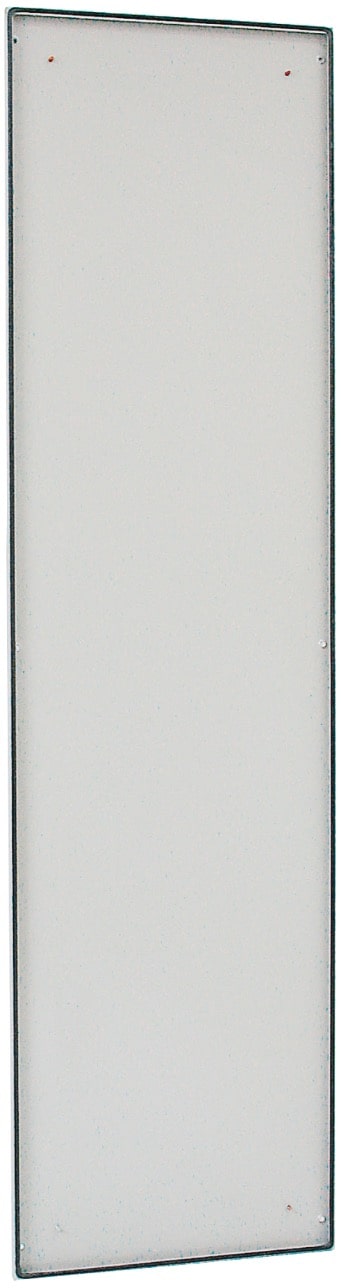

Side panels

Available in two options:

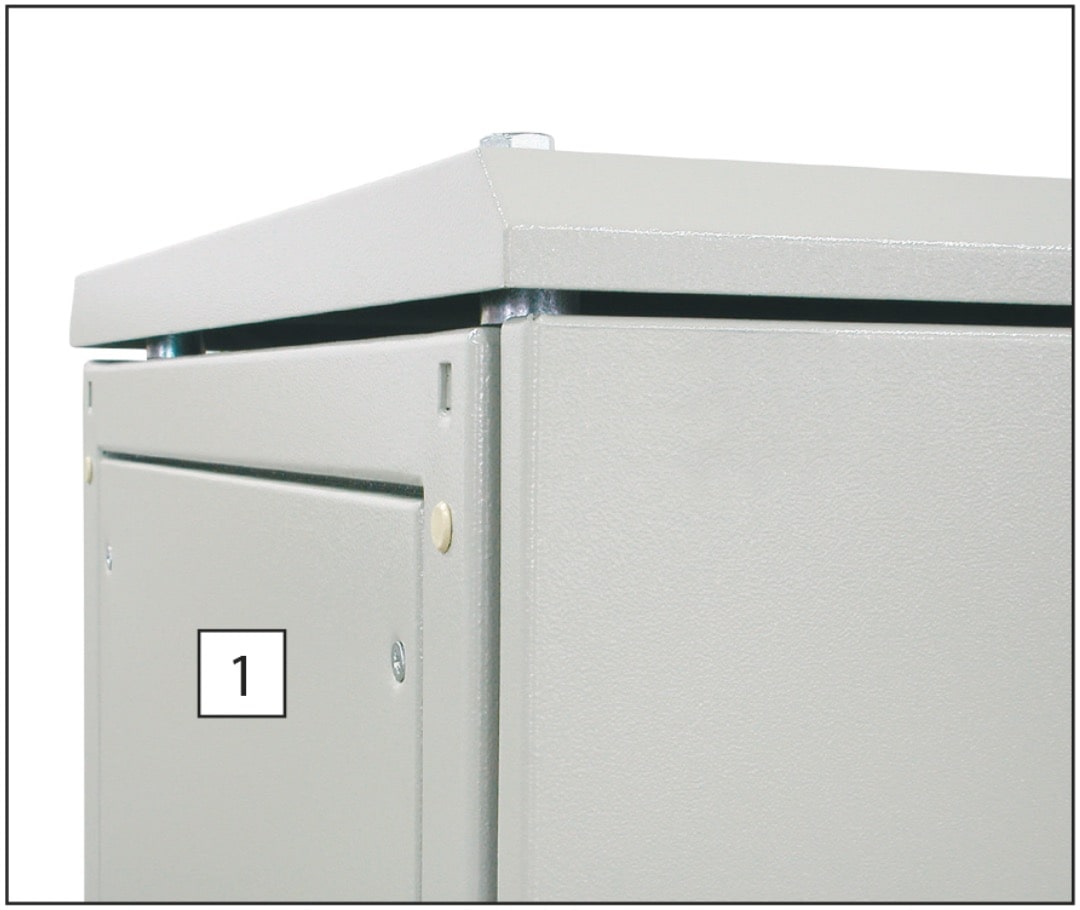

  • flushed side panels - do not affect overall domensions of the cabinet, also used as partition if cabinets are bayed.
  • external side panels - expanding the cabinet by 25 mm on each side.

All side panels are equipped with PU sealing gasket and stud-bolts for earthing cables.

Material
Sheet steel powder painted in RAL 7035

Scope of delivery
2 side panels (flushed or external) with fixing accessories for mounting into the cabinet.

For cabinet Catalog number
Height [mm] Depth [mm] Flushed side panels External side panels
2000 400 W-1951-09-13-011 W-1951-07-29-011
500 W-1951-09-03-011 W-1951-07-07-011
600 W-1951-09-02-011 W-1951-07-06-011
800 W-1951-09-01-011 W-1951-07-05-011
2200 500 W-4950-23-03-011 W-4950-24-07-011
600 W-4950-23-02-011 W-4950-24-06-011
800 W-4950-65-01-011 W-4950-24-05-011

Package: 1 pc. (wing)

Note:
Possibility to equip side panels with snapped filter fans and exhaust filter
