SUPPLEMENTARY ACCESSORIES - SWN WALL-MOUNTED CABINETS

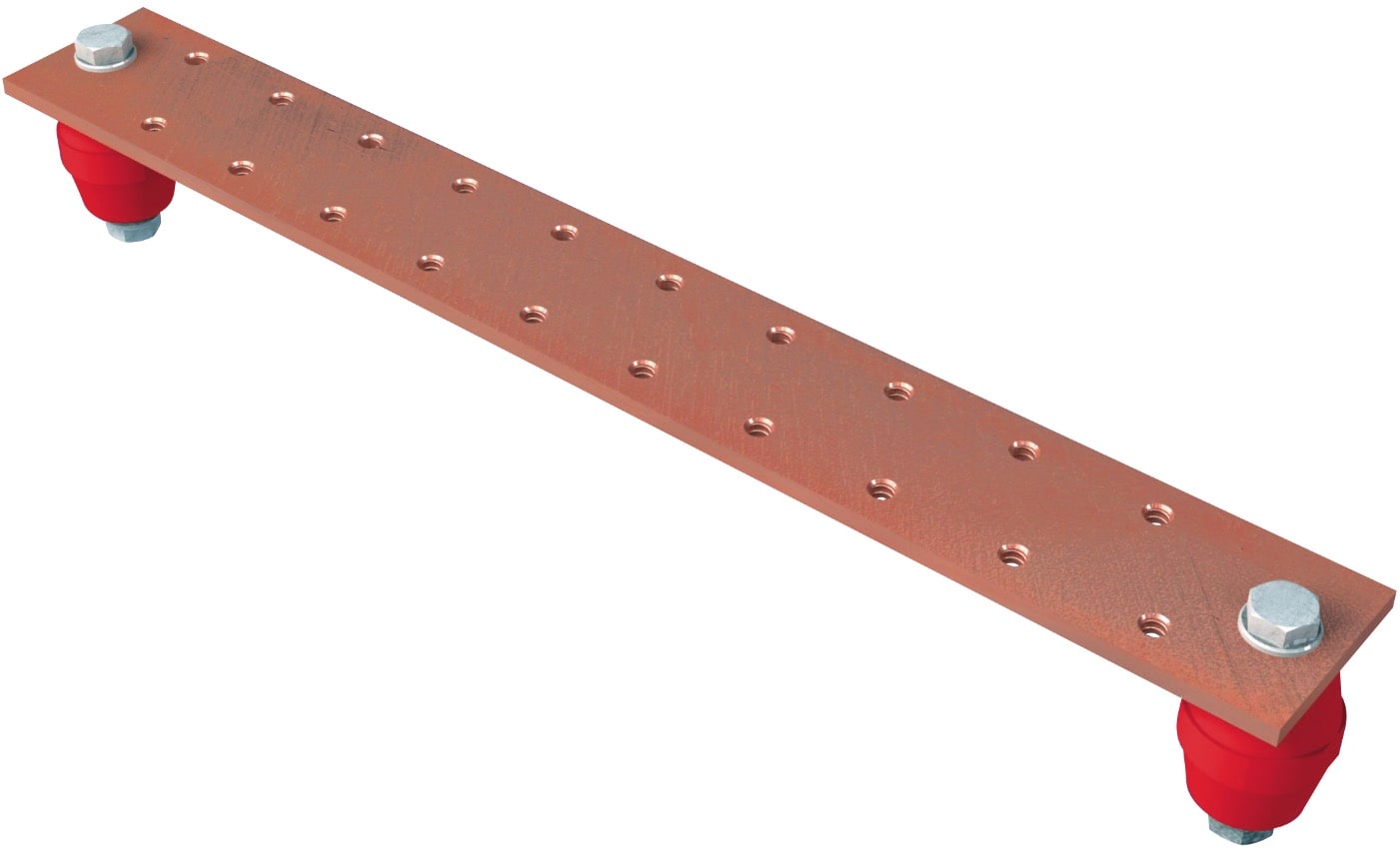

Shielding bar
Fixed to the mounting plate by insulators (fixing points are made during assembly).
Threaded holes M5 for fixing wires.
Material
Copper bar 30 x 4 mm.
Scope of delivery
Shielding bar with 2 insulators and screws for fixing on the mounting plate.
| For cabinets width [mm] |
Length of the bar [mm] |
Package | Catalogue number |
|---|---|---|---|
| 200 - 400 | 130 | 1 pc. | W-2285-10-01-000 |
| 500 - 800 | 230 | 1 pc. | W-2285-10-02-000 |
Earthing set
Consists of an earthing bar and 2 earthing cables.

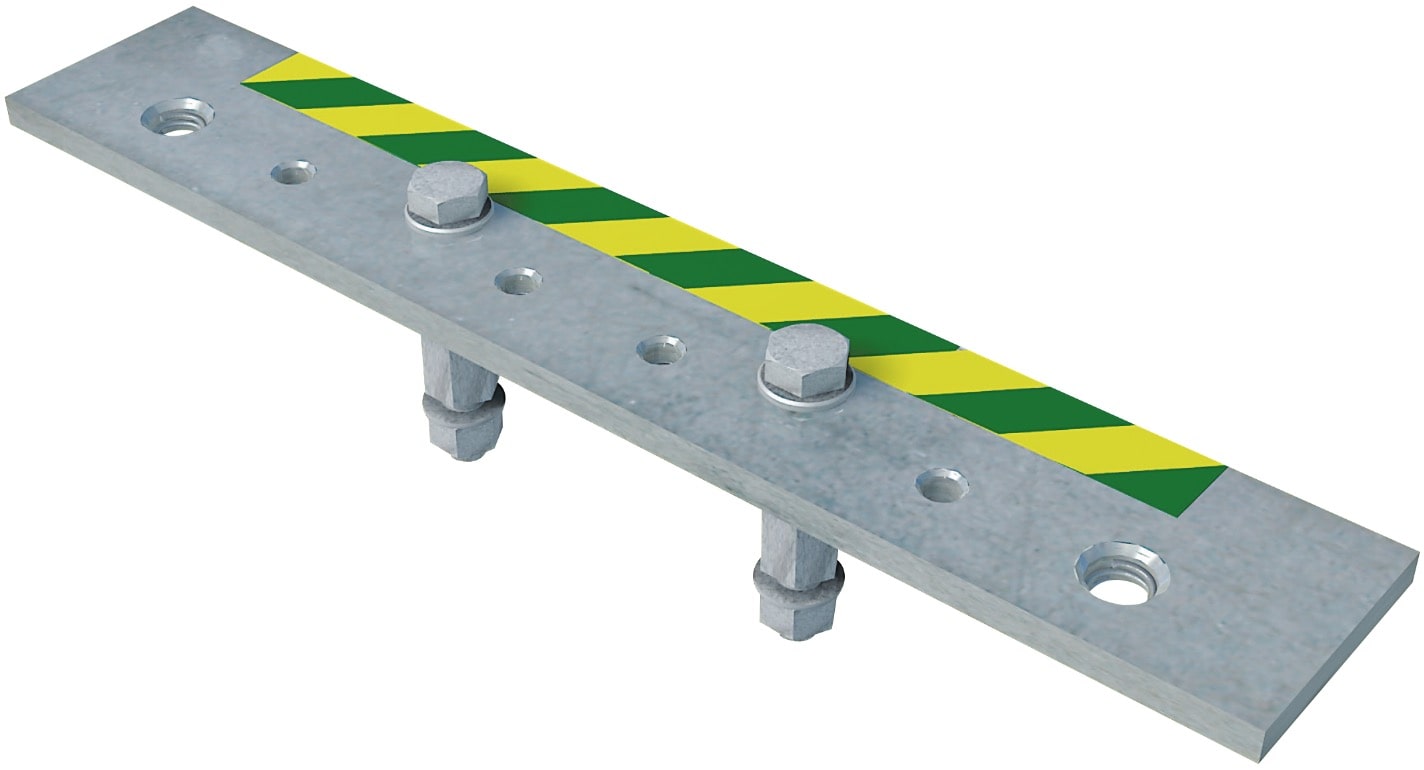

Earthing bar
- Fixed to mounting plate by distance pins (standard mounting plate includes fixing points for earthing bar).
- Threaded holes M5 for fixing wires.

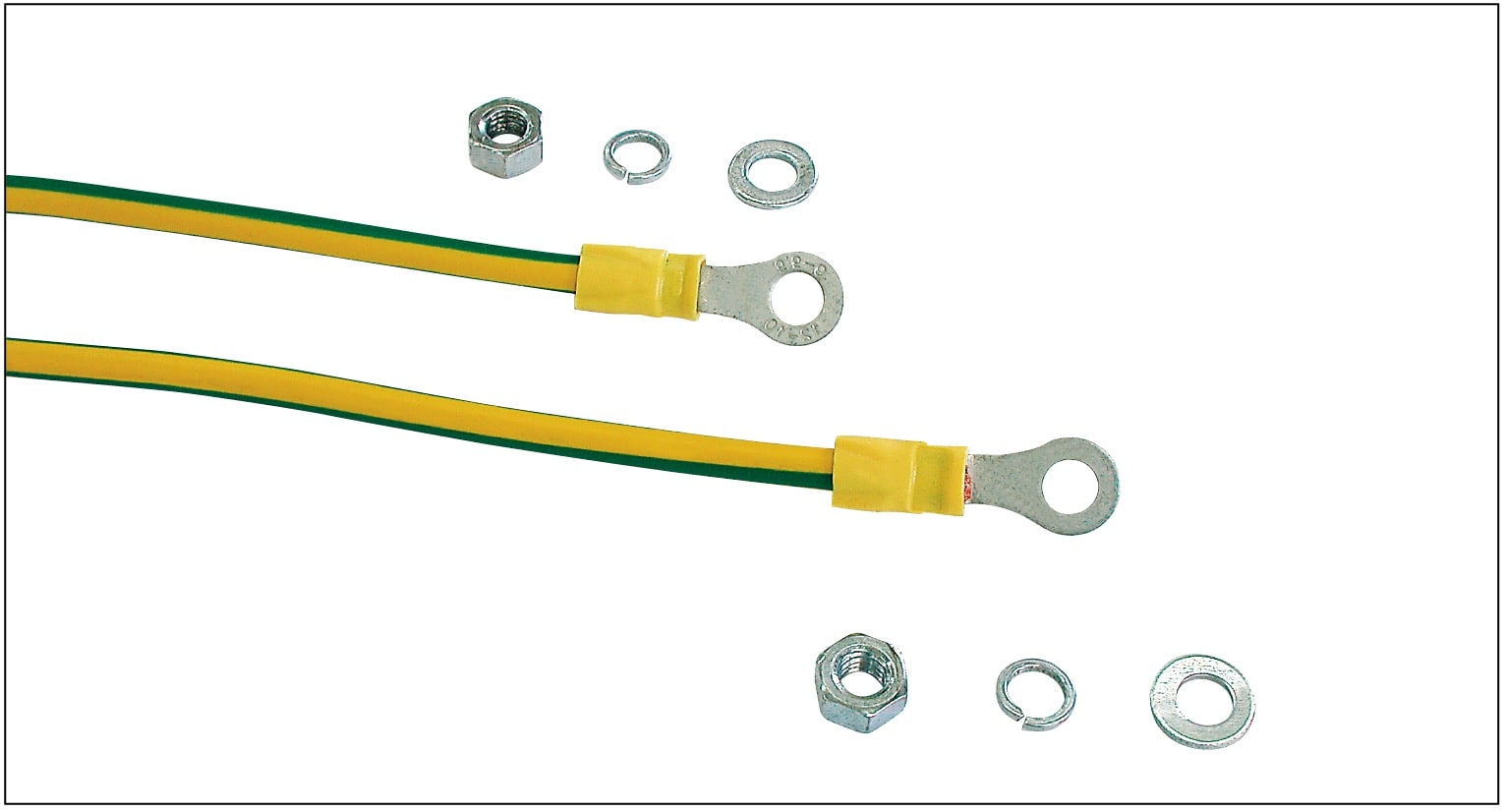

Earthing cables
- Insulated copper wires for joining removable elements of the cabinet with earthing bar or directly with cabinet’s body.
- With contact eyes.
Material
Galvanised steel rail 30 x 4 x 170 mm
Copper cables, full section 6 mm2
Scope of delivery
Set: earthing bar 170 mm long with distance pins, washers and nuts for fixing to mounting plate, 2 grounding cables 300 mm long, fixing accessories.
| Package | Catalogue number |
|---|---|
| W-2285-13-00-000 |

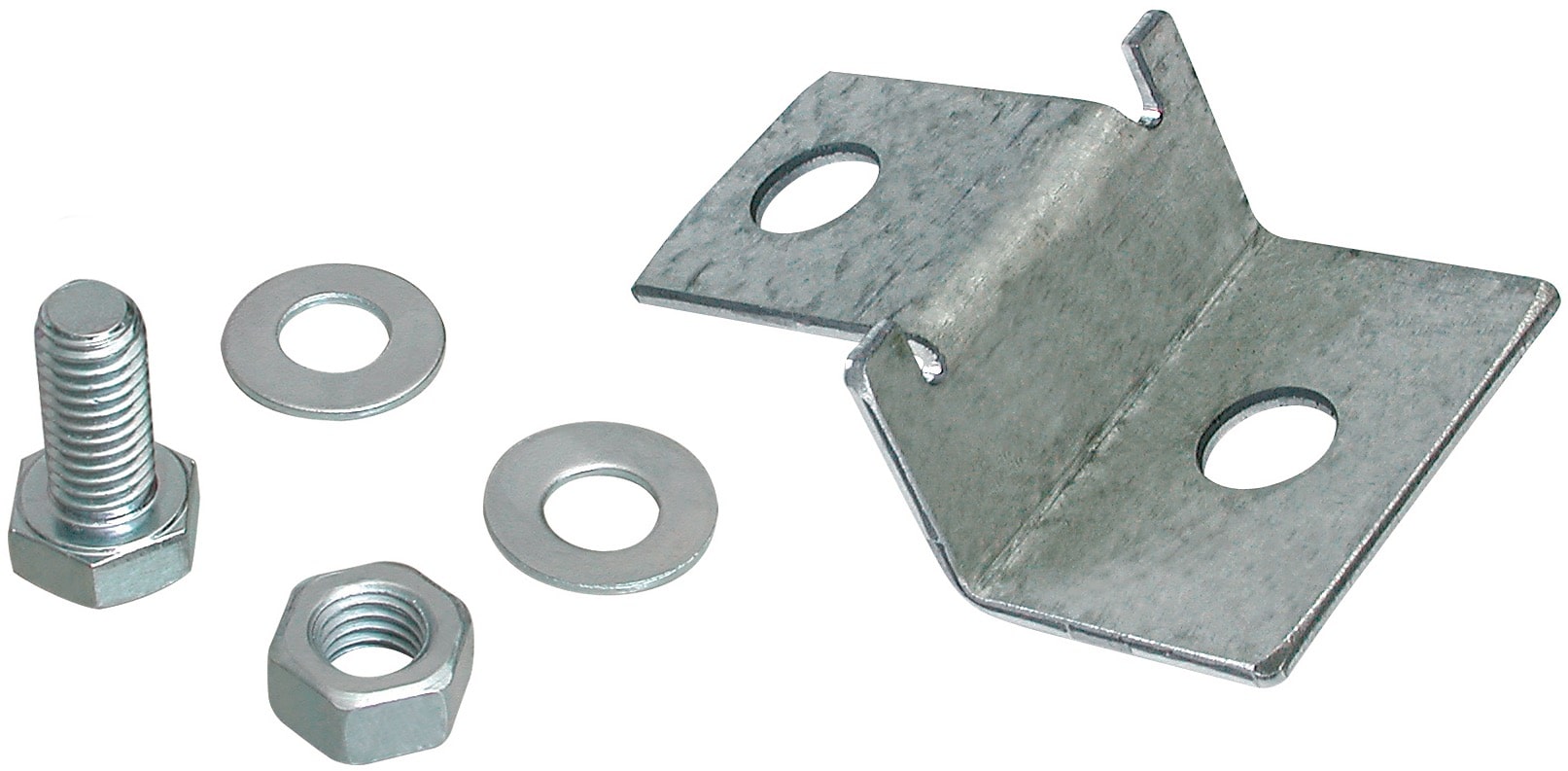

Set of wall brackets for wall mounting
Wall brackets are fixed to openings in the rear side of the cabinet horizontally or vertically.
Diameter of openings: 10 mm.
Spacing between rear side of the cabinet and the wall: 20 mm.
1 set = 4 brackets per cabinet.
Material
zinc coated sheet steel.
Scope of delivery
Set: 4 wall brackets with screws, nuts and washers for fixing to the rear side.
| Material | Catalogue number |
|---|---|
| W-2285-14-00-000 | |
| W-6742-14-00-000 |

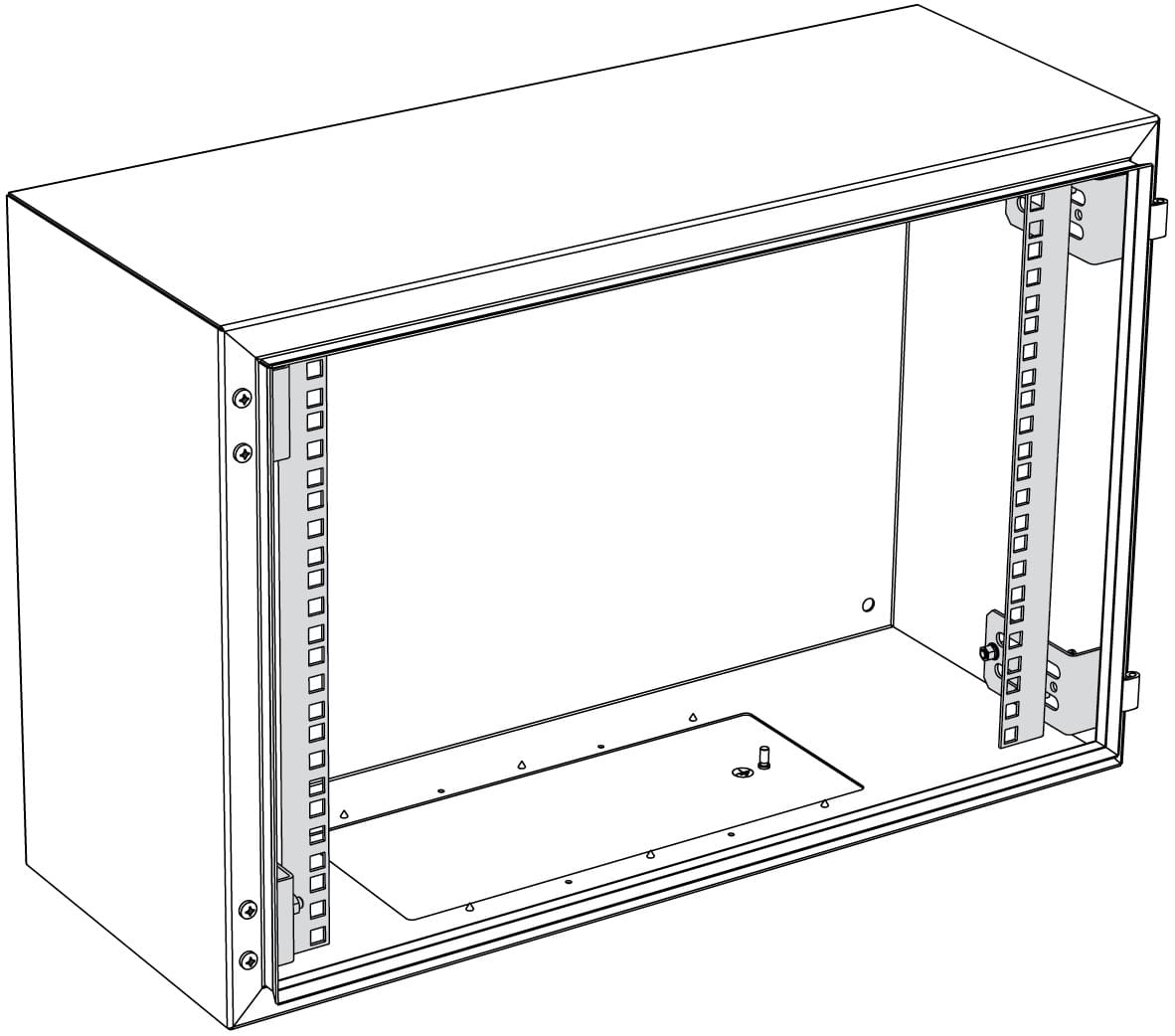

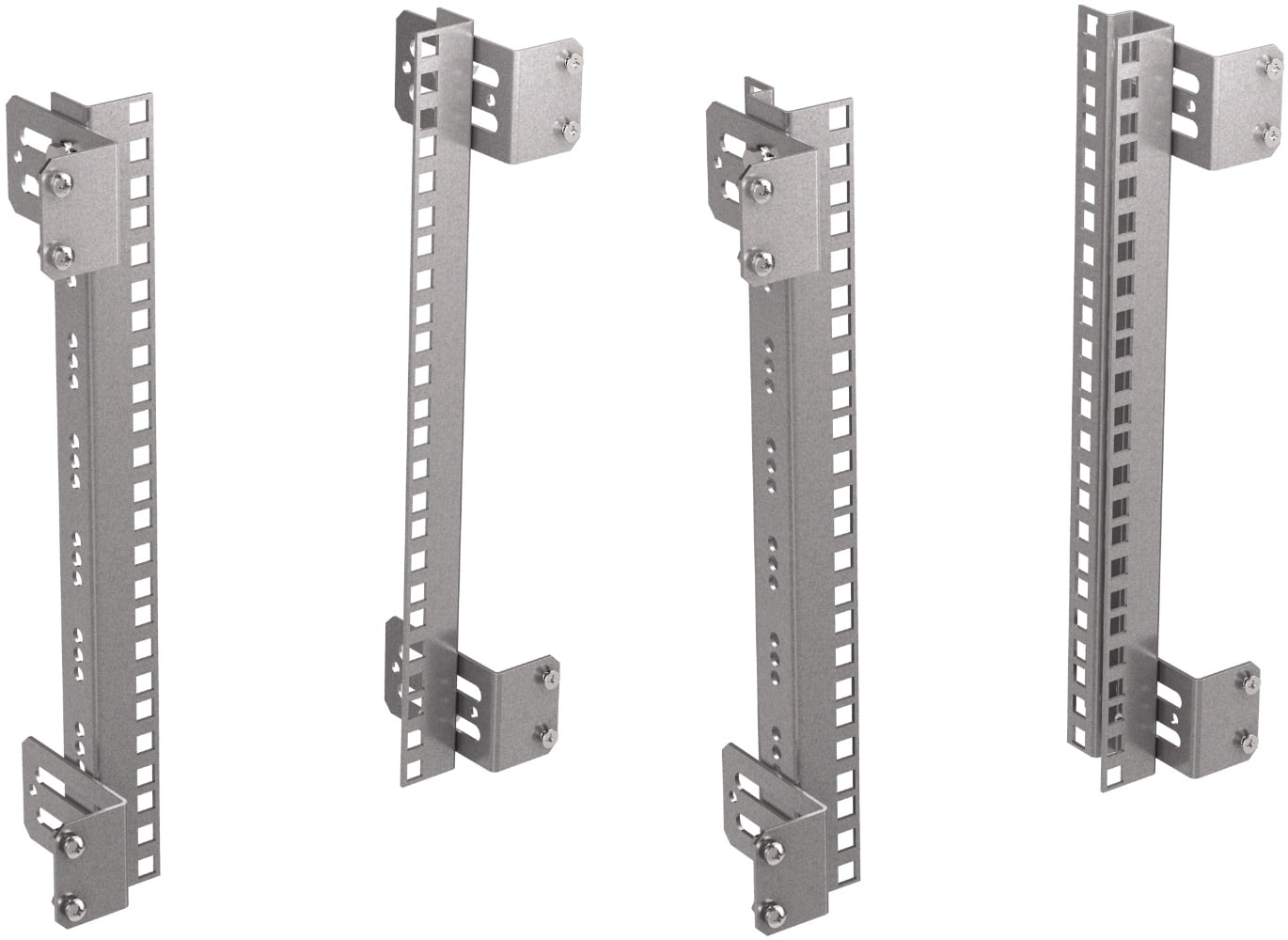

19" rack for SWN cabinets
It is used for mounting 19" devices inside SWN cabinets with a width of 600 mm.
It consists of 2 mounting profiles or mounting angles and 4 brackets with fixing accessories.
For installing the rack inside the cabinet, the openings intended also for mounting hinges are used.
Material
zinc coated steel sheet
Scope of delivery
2 mounting profiles or mounting angles, 4 brackets with fixing accessories.
| Product name | Usable height [U=44.45 mm] |
Catalogue number | ||
|---|---|---|---|---|
| Width | Height | |||
| Rack made of 19" mounting angles | 600 | 400 | 8 U | W-5922-02-01-000 |
| 600 | 12 U | W-5922-02-02-000 | ||
| 800 | 17 U | W-5922-02-03-000 | ||
| 1000 | 21 U | W-5922-02-04-000 | ||
| Rack made of 19" mounting profiles | 600 | 400 | 8 U | W-5922-02-05-000 |
| 600 | 12 U | W-5922-02-06-000 | ||
| 800 | 17 U | W-5922-02-07-000 | ||
| 1000 | 21 U | W-5922-02-08-000 | ||
Package: 1 set

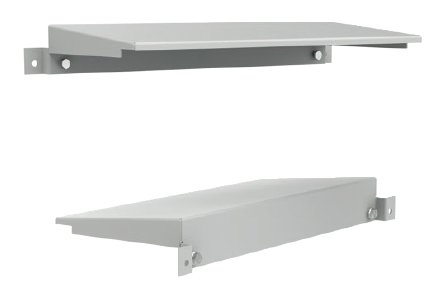

Roof
Designed for SWN cabinets installed in outdoor conditions.
Material
Galvanised steel sheet, powder painted in light grey (RAL 7035) for outdoor use, or stainless steel AISI 304 unpainted.
Scope of delivery
Roof with fixing accessories.
| For SWN cabinet | |||
|---|---|---|---|
| Width [mm] | Depth [mm] | Roof galvanised and painted in RAL 7035 |
Stainless steel roof, unpainted |
| 200 | 115 | W-6139-73-01-J61-501 | W-6139-73-13-000 |
| 300 | 115 | W-6139-73-02-J61-501 | W-6139-73-14-000 |
| 210 | W-6139-73-03-J61-501 | W-6139-73-15-000 | |
| 400 | 210 | W-6139-73-04-J61-501 | W-6139-73-16-000 |
| 250 | W-6139-73-05-J61-501 | W-6139-73-17-000 | |
| 300 | W-6139-73-06-J61-501 | W-6139-73-18-000 | |
| 500 | 210 | W-6139-73-07-J61-501 | W-6139-73-19-000 |
| 250 | W-6139-73-08-J61-501 | W-6139-73-20-000 | |
| 300 | W-6139-73-09-J61-501 | W-6139-73-21-000 | |
| 600 | 250 | W-6139-73-10-J61-501 | W-6139-73-22-000 |
| 300 | W-6139-73-11-J61-501 | W-6139-73-23-000 | |
| 800 | 300 | W-6139-73-12-J61-501 | W-6139-73-24-000 |
Package: 1 set
