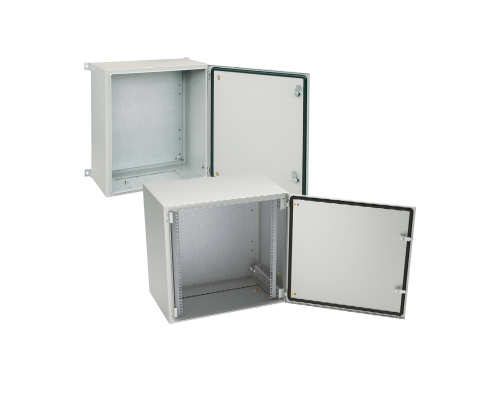

SWN WALL-MOUNTED CABINETS

Compact wall-mounted cabinets designed for electrical installations.
In the standard version they are designed for indoor applications.
Manufactured in 20 dimensions in accordance with the chart below.
Cabinets of non-standard dimensions are quoted individually.

TECHNICAL DATA

Material
Sheet steel

Protection degree
IP 65 in accordance with EN 60529

Surface finish
Body, door, blanking plate – Epoxide-polyester thick-texture powder paint in RAL 7035, intended for indoor usage. On customer’s request, it is possible to use facade paint
with improved resistance to adverse weather conditions and optional use of polyzinc base.
Mounting plate - zinc coated

Note:
The body, door and blanking plate can be made of stainless steel.

SCOPE OF DELIVERY

SWN cabinet:
body, door, mounting plate, 1 or 2 blanking plates

Supplementary accessories:
shielding bar, earthing bar, earthing cables, wall brackets, 19" rack.

REFERENCE CHART

Width [mm]	Depth [mm]	Height [mm]
		300	400	500	600	800	1000
		Catalogue numbers of standard SWN cabinets
200	115	W-SWN-302011-01-011	-	-	-	-	-
300	150	W-SWN-303015-01-011	-	-	-	-	-
300	210	-	W-SWN-403021-01-011	-	-	-	-
400	150	-	-	-	-	-	-
	210	W-SWN-304021-01-011	W-SWN-404021-01-011	W-SWN-504021-01-011	-	-	-
	250	-	-	-	W-SWN-604025-01-011	-	-
	300	-	W-SWN-404030-01-011	W-SWN-504030-01-011	-	-	-
500	210	-	-	W-SWN-505021-01-011	-	-	-
	250	-	W-SWN-405025-01-011	-	W-SWN-605025-01-011	-	-
	300	-	-	-	W-SWN-605030-01-011	-	-
600	250	-	W-SWN-406025-01-011	-	W-SWN-606025-01-011	W-SWN-806025-01-011	W-SWN-106025-01-011
600	300	-	-	-	-	W-SWN-806030-01-011	-
800	300	-	-	-	-	W-SWN-808030-01-011	W-SWN-108030-01-011

DESCRIPTION OF SWN CABINET DESIGN

Body

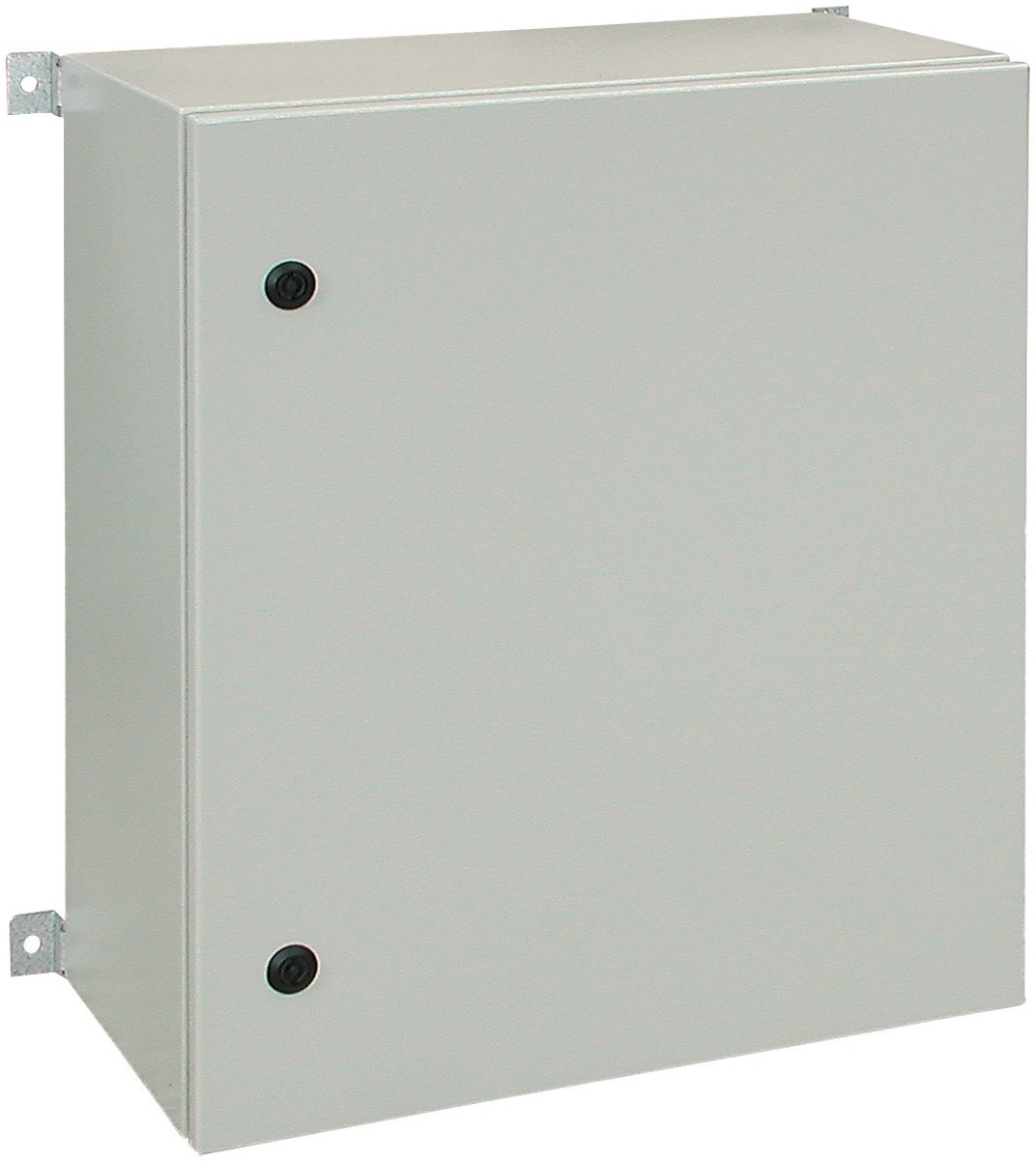

The body of SWN is a tight-welded sheet metal structure.
Optimised door light ensures maximum use of available space.
A multi-folded enclosure aperture protects against dust and moisture even when the door is open.

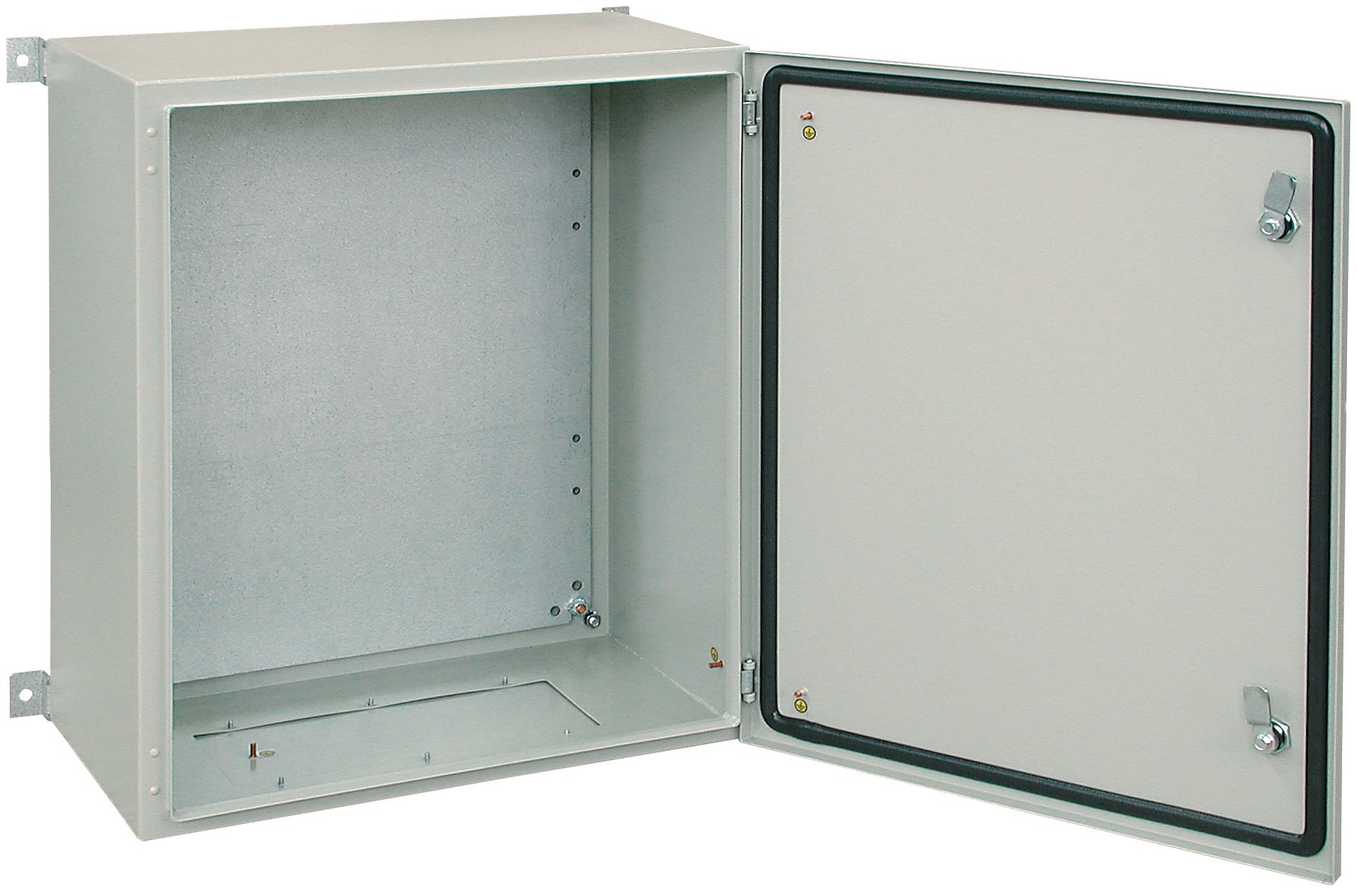

In the bottom of the body, there is an opening for a gland plate. Dimensions of the opening depend on cabinet dimensions.
Inside the body there are self-tapping screws for fixing the mounting plate.

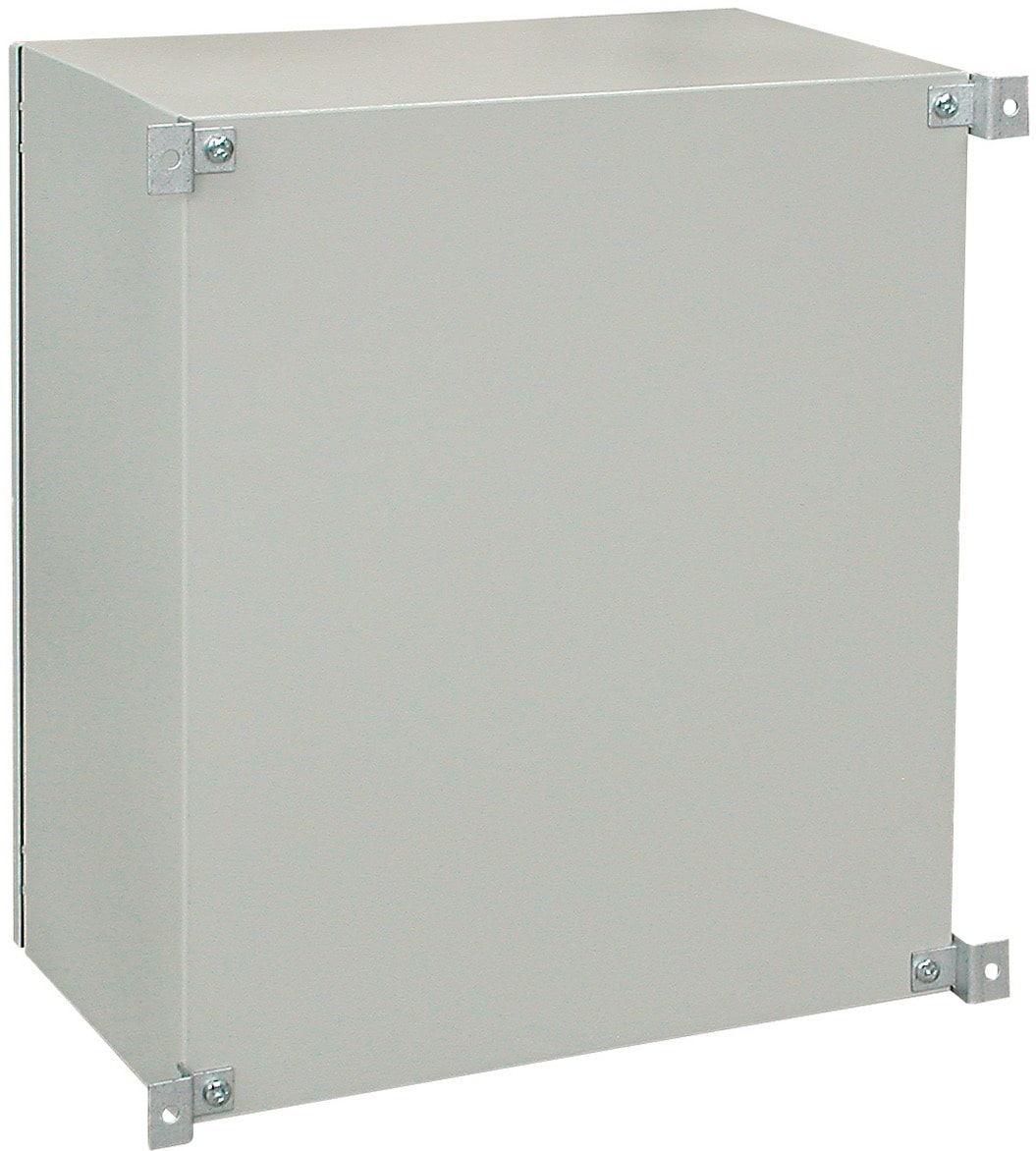

On the rear side of the body there are cut-outs for mountingthe cabinet directly on the wall or by using lifting brackets.

Door

Cabinets are provided with a single-leaf door.

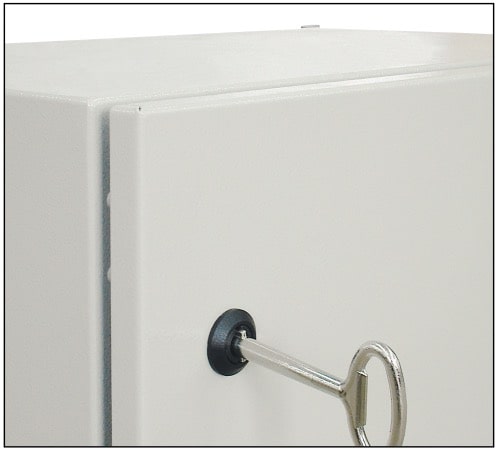

Depending on height, either one or two locks including double-bit insert are used:
- cabinets up to 400 mm high - one lock in the middle;
- cabinets from 500 to 1000 mm high - two locks.
There are hinges fixed to the door; the number depends on cabinet height: from 300 to 600 mm - two hinges, from 800 to 1000 mm - three hinges.

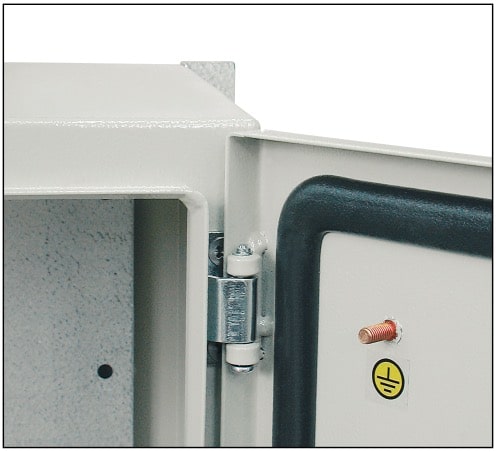

Interior of the door including sealing gasket and earthing studs.
Left or right door option.
Maximum door opening angle 120°.

Mounting plate

Fixed to rear side of the body.
In cabinets up to 600 mm high the flat mounting plate is used.
In cabinets 800 or 1000 mm high, a folded mounting plate is used to maintain appropriate stiffness.
Mounting plate including fixing points for earthing bar.

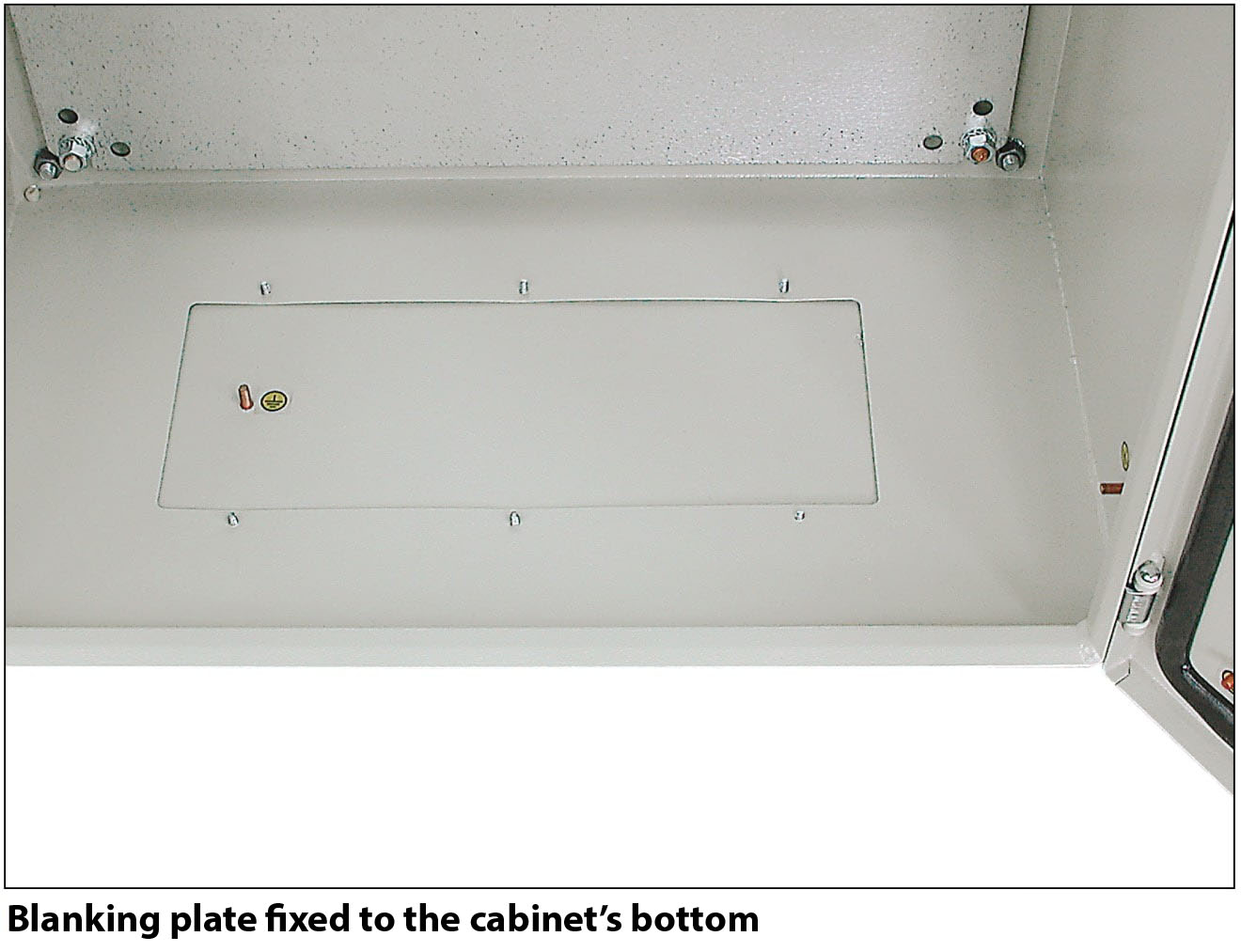

Blanking plate - cable entry plate

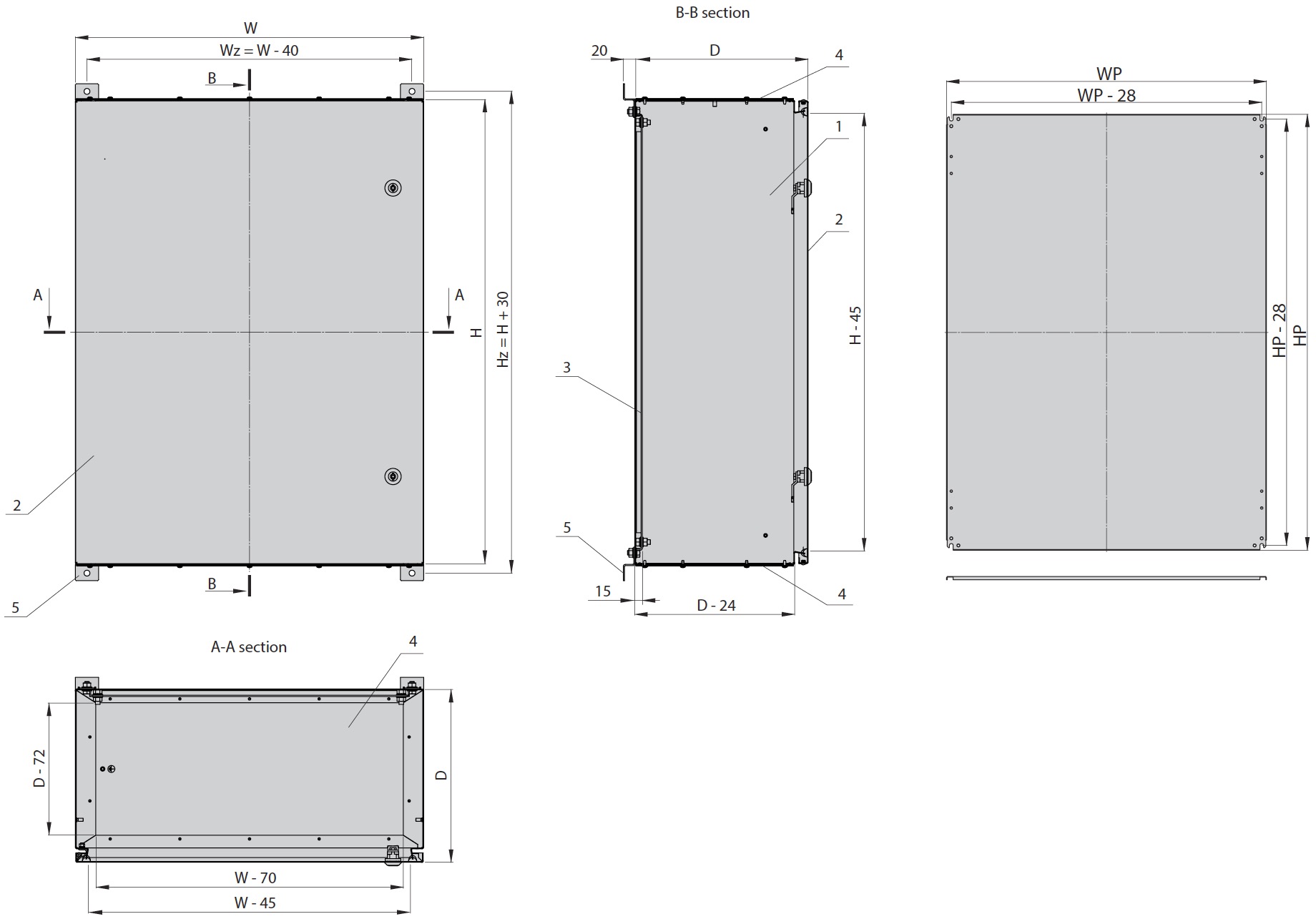

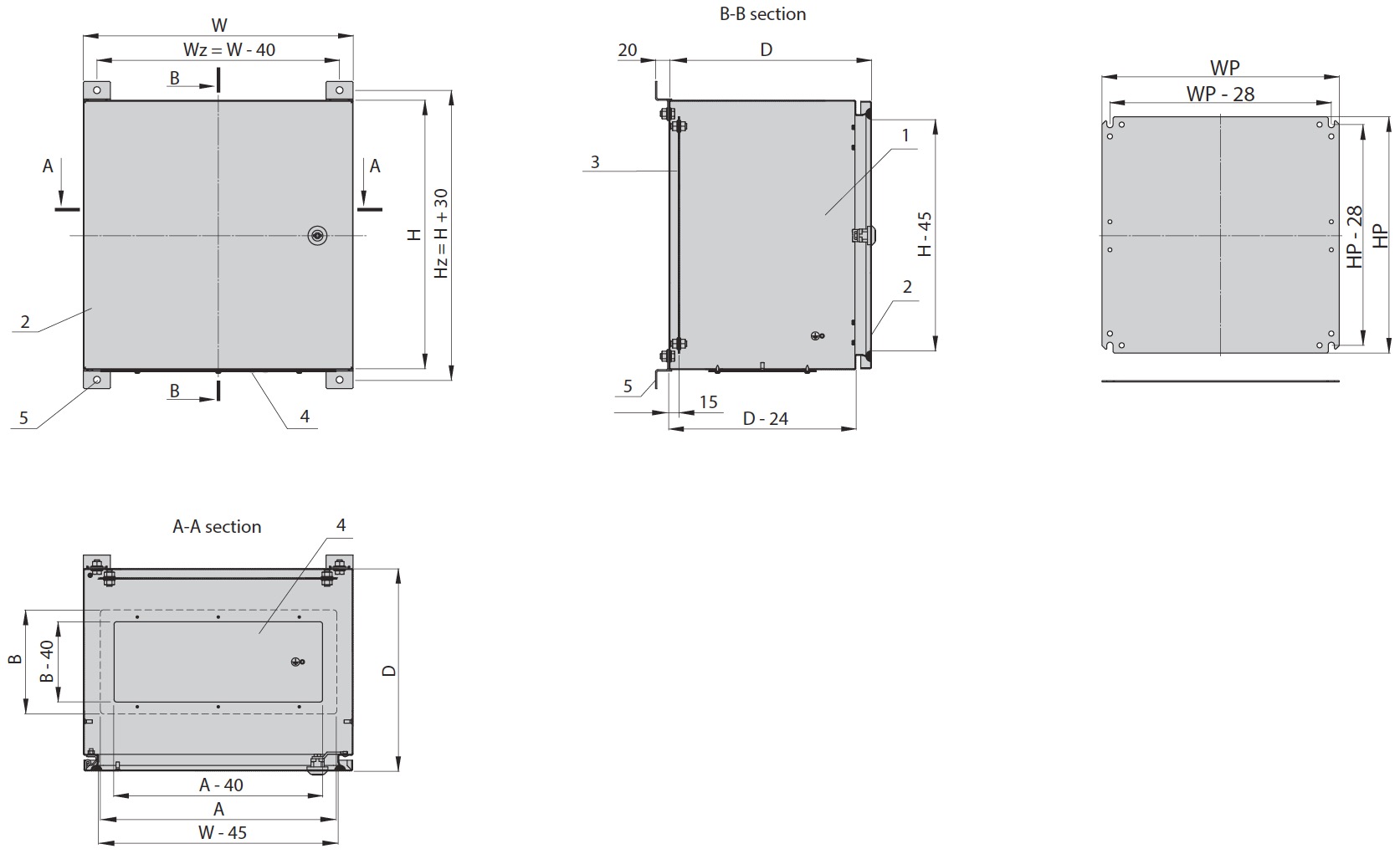

Cabinets, depending on the size, includes one or two blanking plates (see drawings on pages 220-221).
Blanking plates are fixed by self-tapping screws.
Includes sealing gasket and earthing stud.
Gland cable entries available on request.

Earthing and shielding

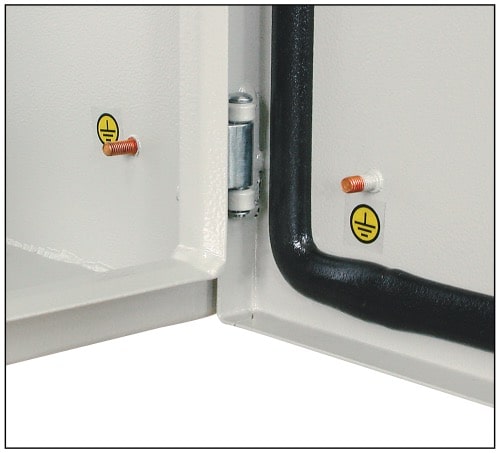

The door and the blanking plate including earthing studs.
Earthing bar and shielding bar (for fixing to the mountingplate) and earthing cables are delivered as supplementaryaccessories.

SWN AND SWN INOX CABINET CONFIGURATOR

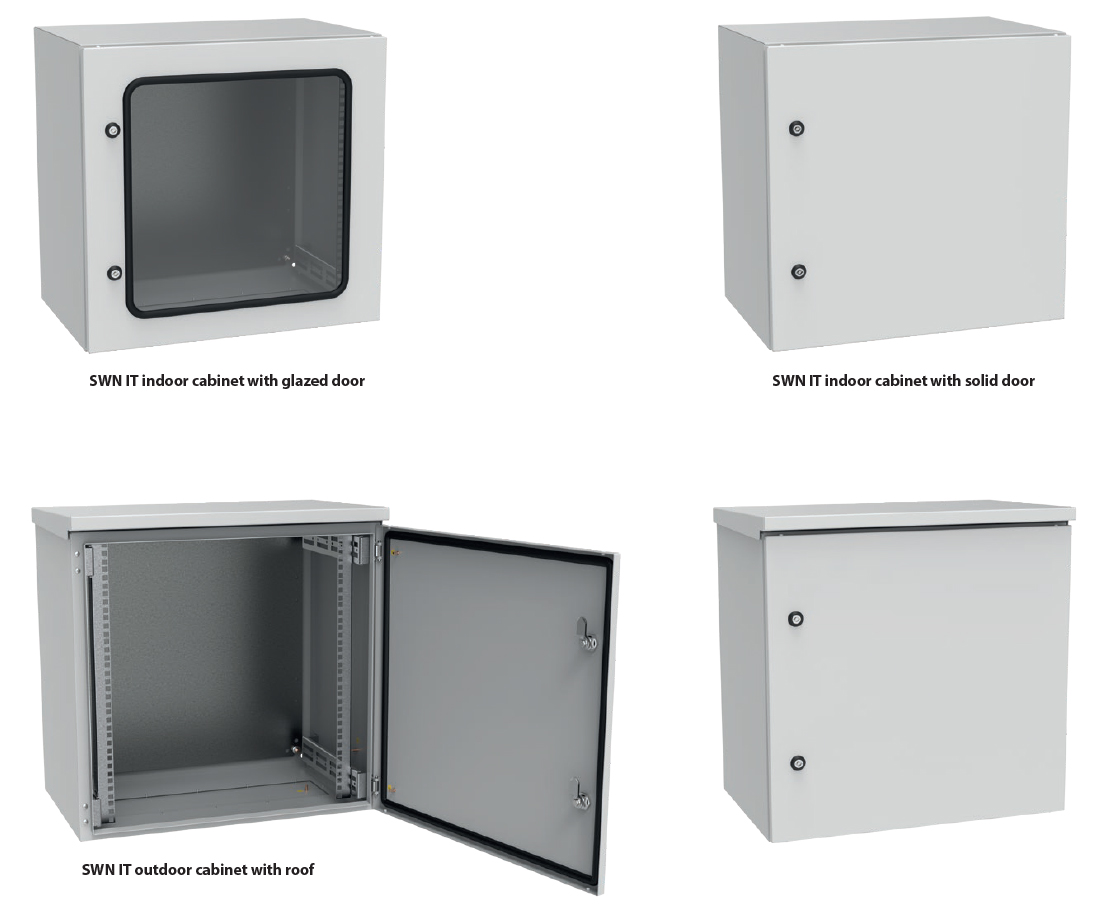

SWN IT 19''

Compact wall-mounted cabinets, designed for installing electrical equipment on mounting plates and 19" mounting profiles.
Depending on the version, designed for use indoors or outdoors.
Basic dimensions: usable height 12 U, width 600 mm, depth 400 mm

Material
Sheet steel.
Protection degree
IP 65 in accordance with EN 60529.
Surface finish
Body, door, blanking plate - powder paint in light grey (RAL 7035), for indoor (cabinets without roof) or outdoor (cabinets with roof) use.
Mounting plate, 19" mounting profiles and mounting profile brackets - zinc coated.

Scope of delivery
Body, door, mounting plate, blanking plate (cable entry plate), 19" set (four brackets, two 19" mounting profiles), roof (depending on the cabinet version).
Suplementary accessories
Elements shall be ordered separately: shielding bar, earthing bar, earthing cables, wall brackets.

WALL-MOUNTED CABINETS SWN INOX

Compact, versatile, single-door wall cabinets for installation of electrical equipment to be protected against unauthorized access, dust and moisture.
Intended for use in outdoor conditions in corrosion-aggressive environment or wherever extra hygiene is required.
Design and reference chart of SWN Inox stainless cabinets is fully compatible with standard SWN cabinets produced by ZPAS

Material:
Body, door, blanking plate, wall brackets - 1.4301 stainless steel as per EN 10088, other grade possible on demand
Mounting plate - Zinc coated sheet steel

Protection degree:
IP 65 in accordance with EN 60529

External surface finish:
Class 1

Cabinet’s scope of delivery:
Body, door, blanking plate, mounting plate.

Supplementary accessories ordered separately

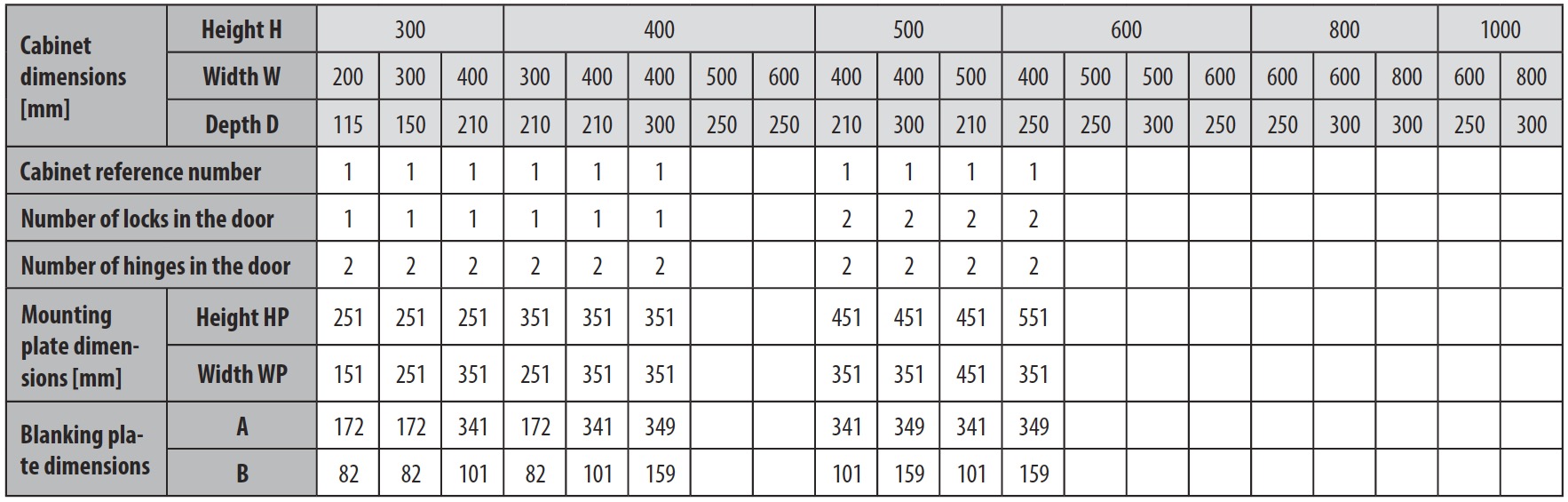

Basic dimensions of SWN cabinets with one blanking plate - smaller cabinets

REFERENCE CHART

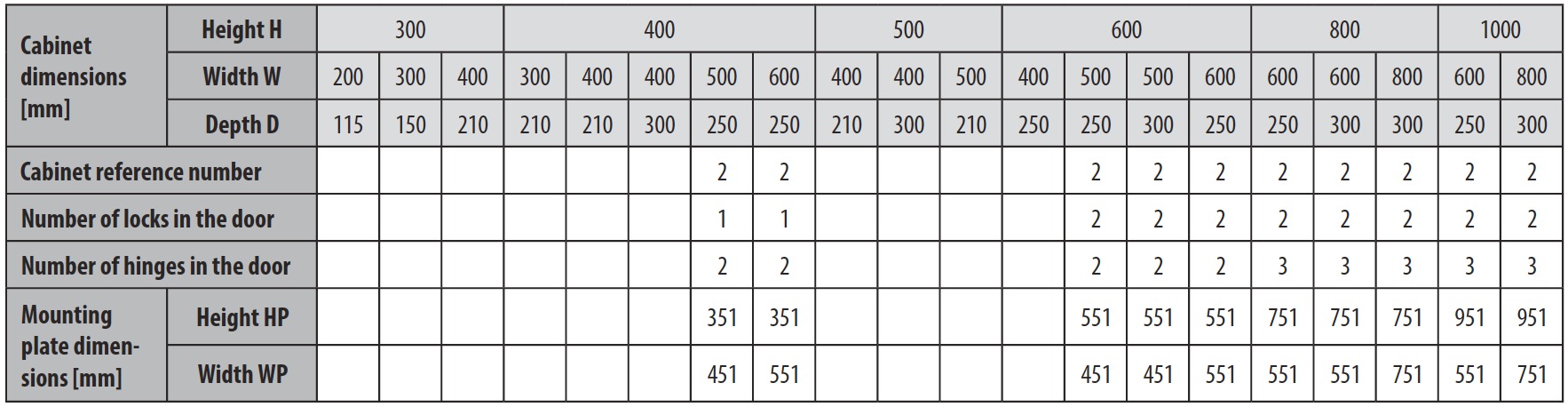

Basic dimensions of SWN cabinets with two blanking plates - bigger cabinets

REFERENCE CHART

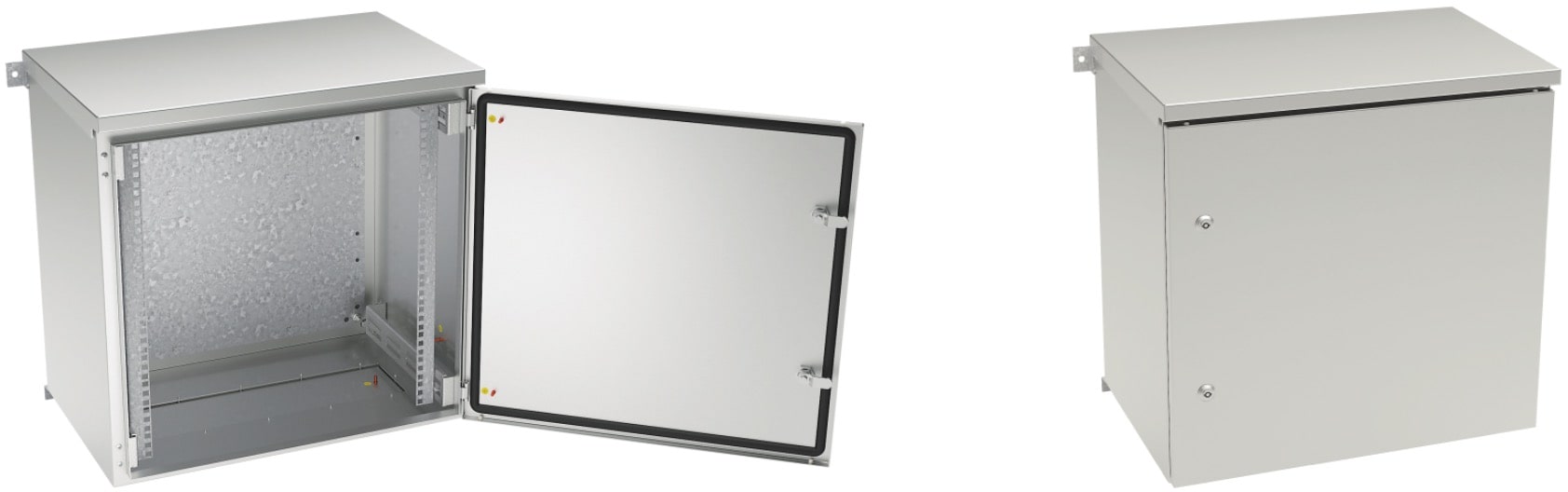

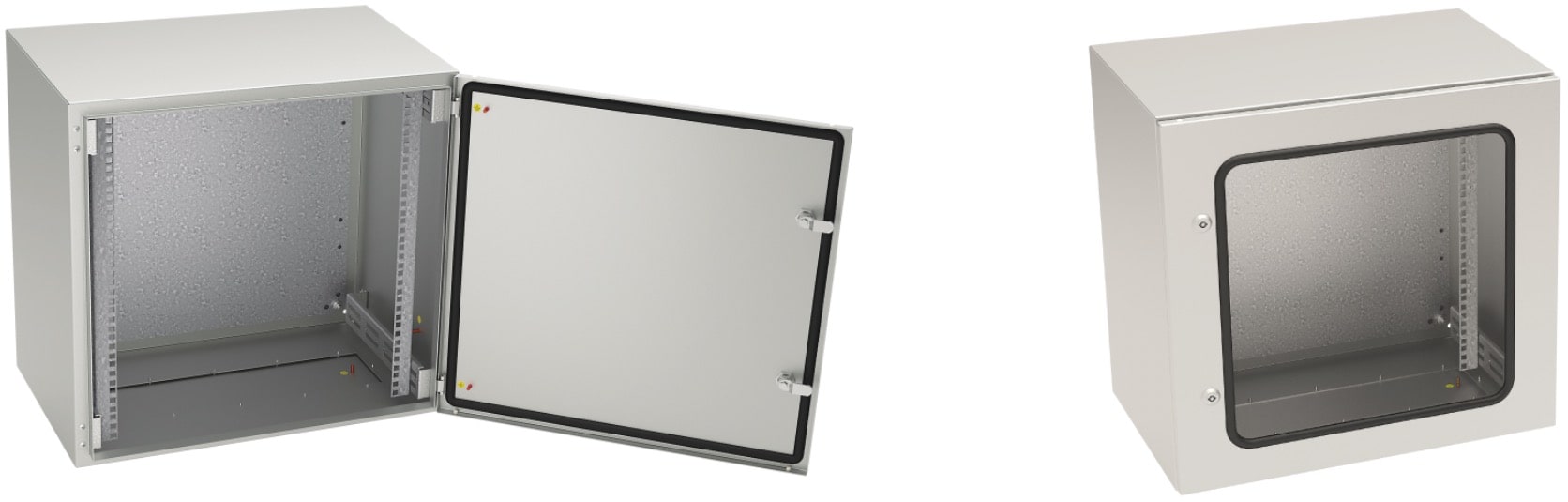

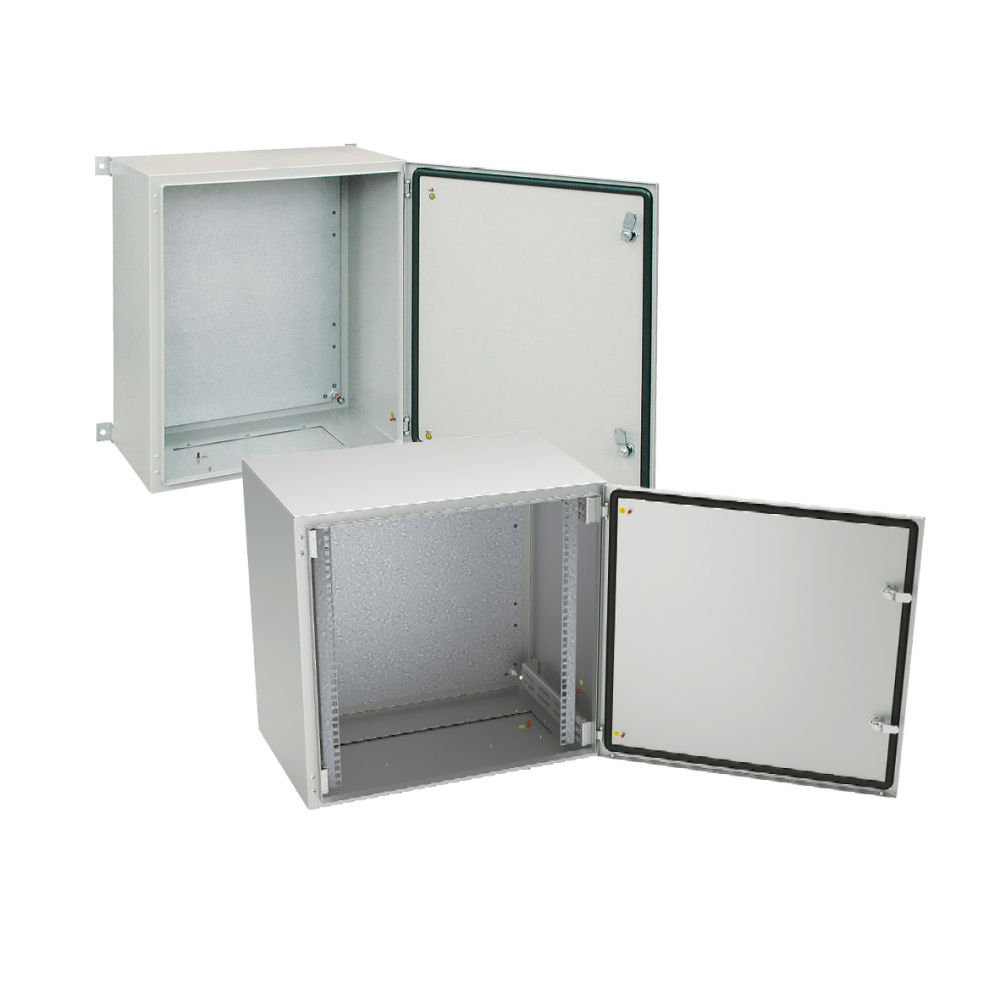

SWN IP65 cabinet with mounting plate and 19" rack, powder painted in RAL 7035 (light grey). External dimensions: height 575 mm, width 600 mm, depth 400 mm. Usable height 12 U. Versions with solid and glazed doors.

SWN Inox IP65 cabinet with mounting plate, 19" rack and rain hood. External dimensions: height (with hood) 606 mm, width 600 mm, depth 400 mm. Usable height 12 U

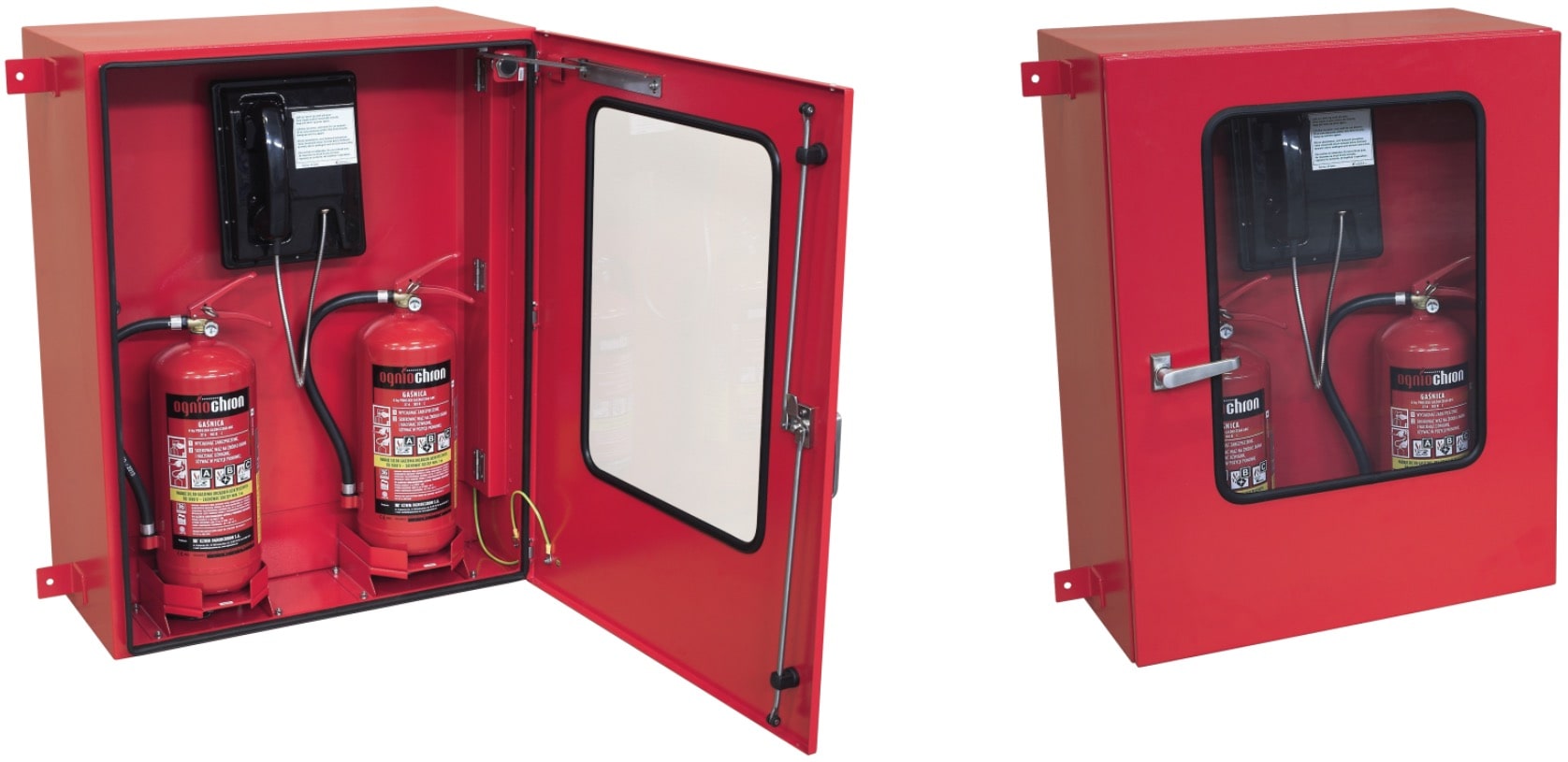

IP65 Emergency Cabinets made on the basis of SWN cabinets, can be used, for example, in tunnels
