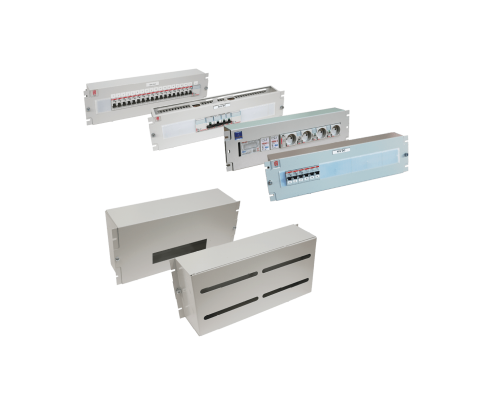

Power supply systems
.
POWER SUPPLY SYSTEMS

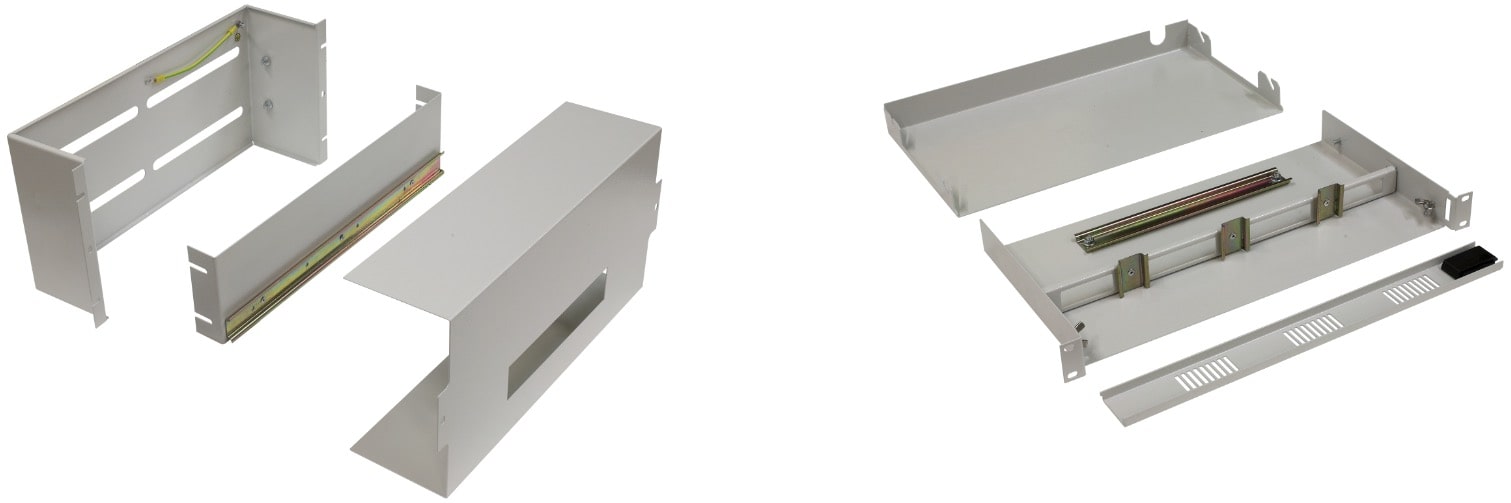

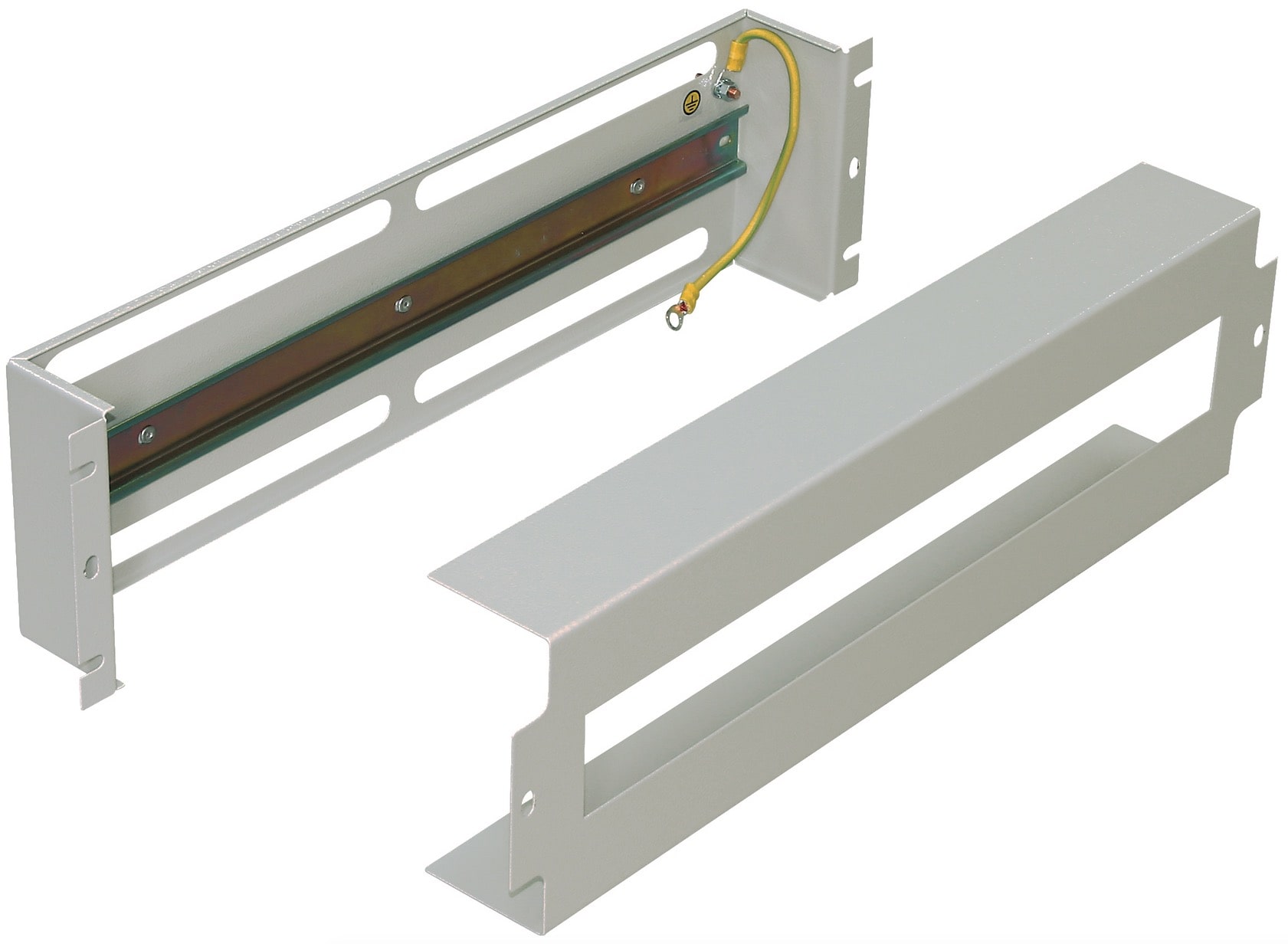

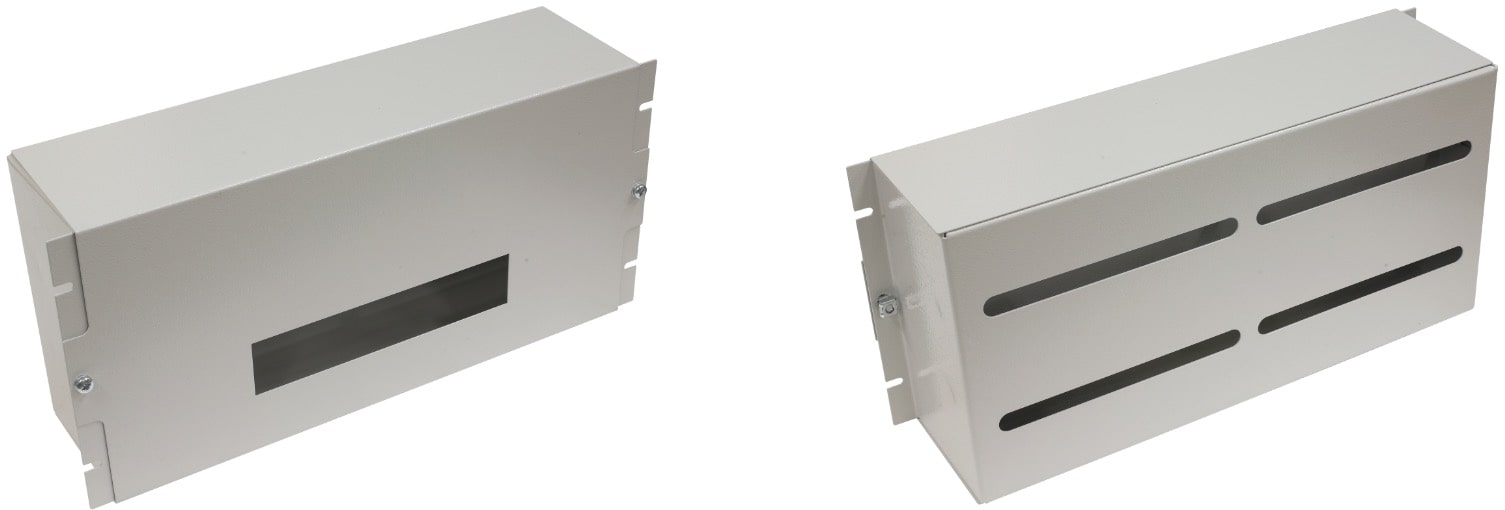

Voltage distribution panel
Universal 19" enclosure for modular devices.
In the standard version equipped with DIN rail and housing with 402.5 x 45.5 mm opening.
Dimensions
- height: 133 mm (3 U)
- width: 19" (szerokość wewnętrzna: 446 mm)
- depth: 60 mm.
Capacity of panel - maximum number of built-in S-type
modules (width of module 17.5 mm): 22 pcs.
Material
Sheet steel textured powder painted in light grey (RAL 7035)
or black (RAL 9005).
Scope of delivery
In the standard version, panels are sold as empty enclosures,
complete with: mounting base, DIN rail, housing, fixing accessories.
| Package | Colour | Catalogue number |
|---|---|---|
| 1 pc. | RAL 7035 | W-PS3U-00-00-011 |
| 1 pc. | RAL 9005 | W-PS3U-00-00-161 |

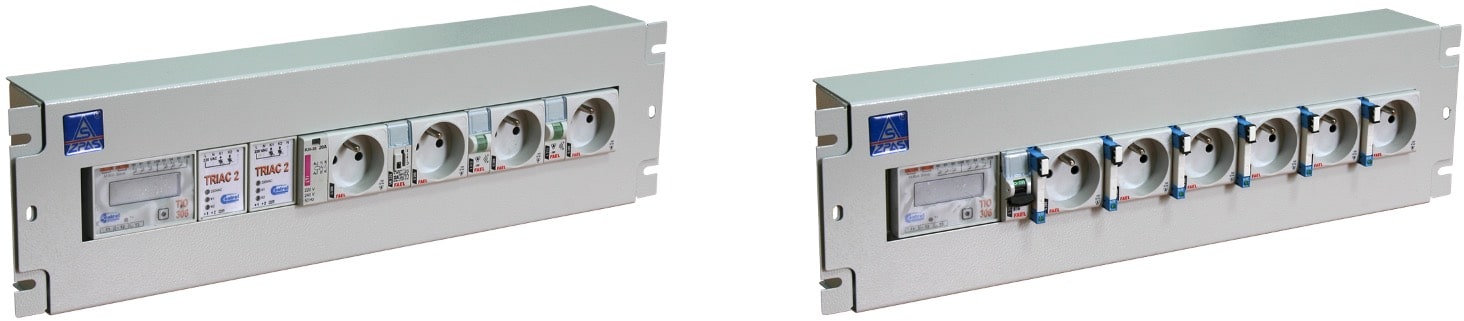

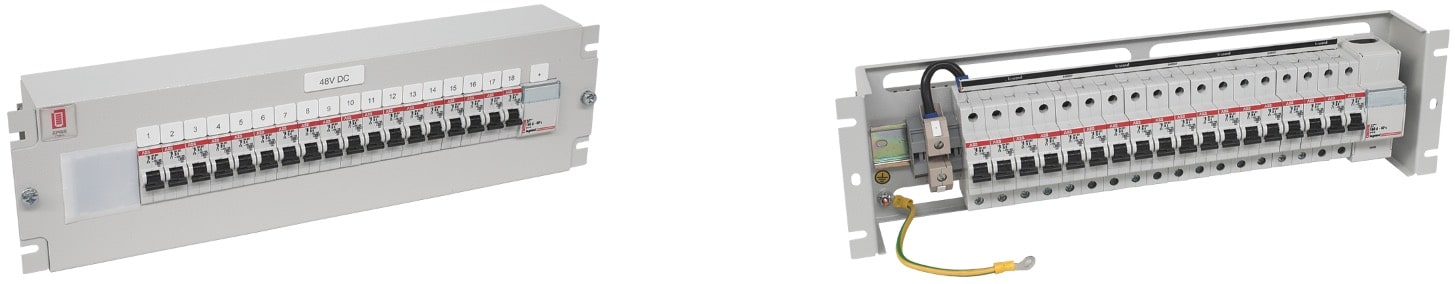

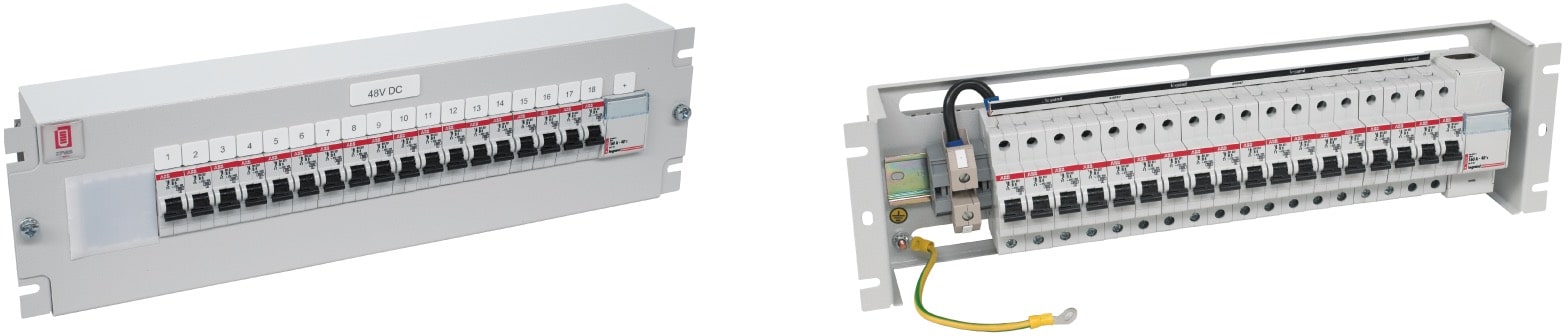

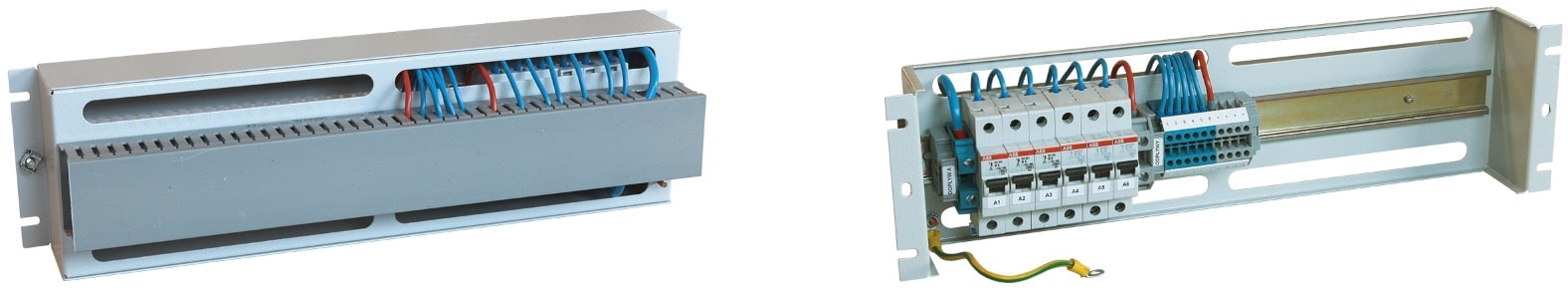

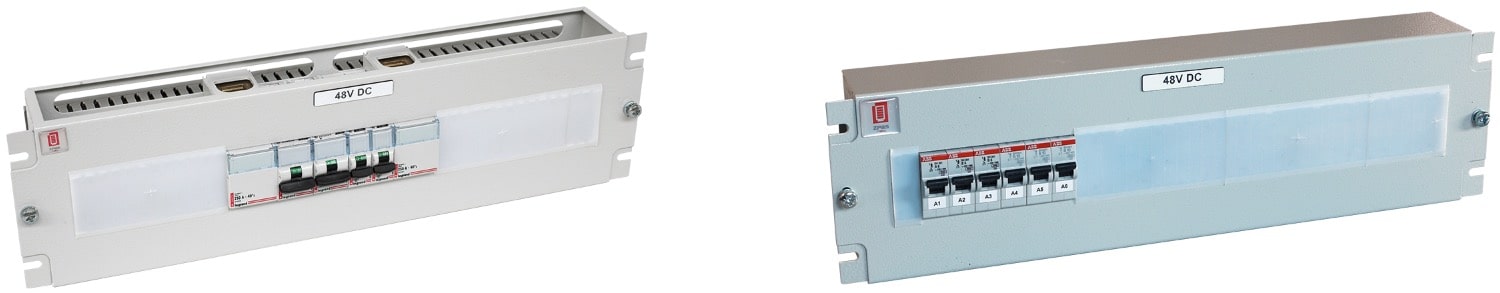

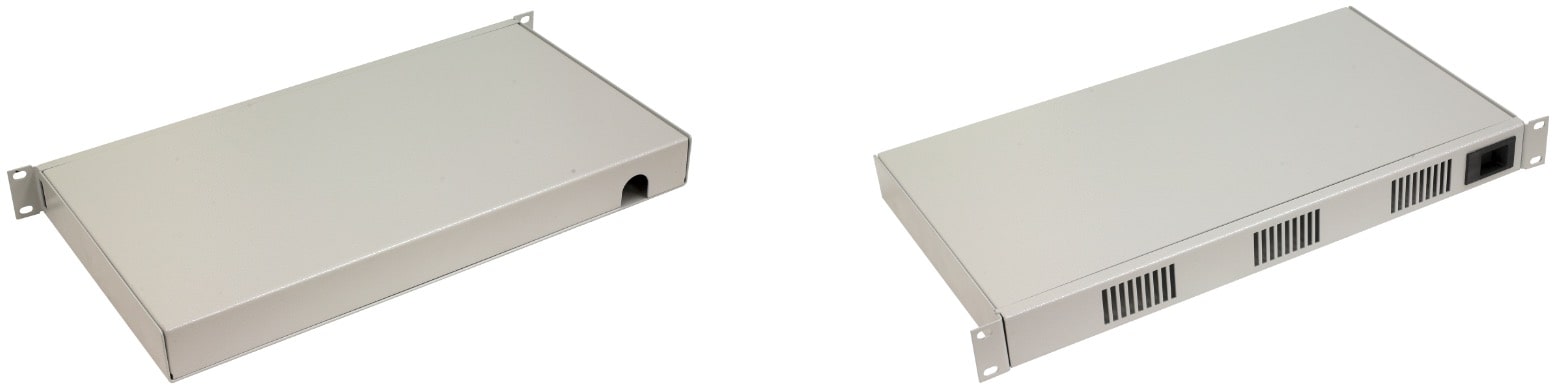

Voltage distribution panels equipped with electrical equipment
On special order, we also produce panels of other overall dimensions and equipped with electrical equipment according to the customer's wishes.

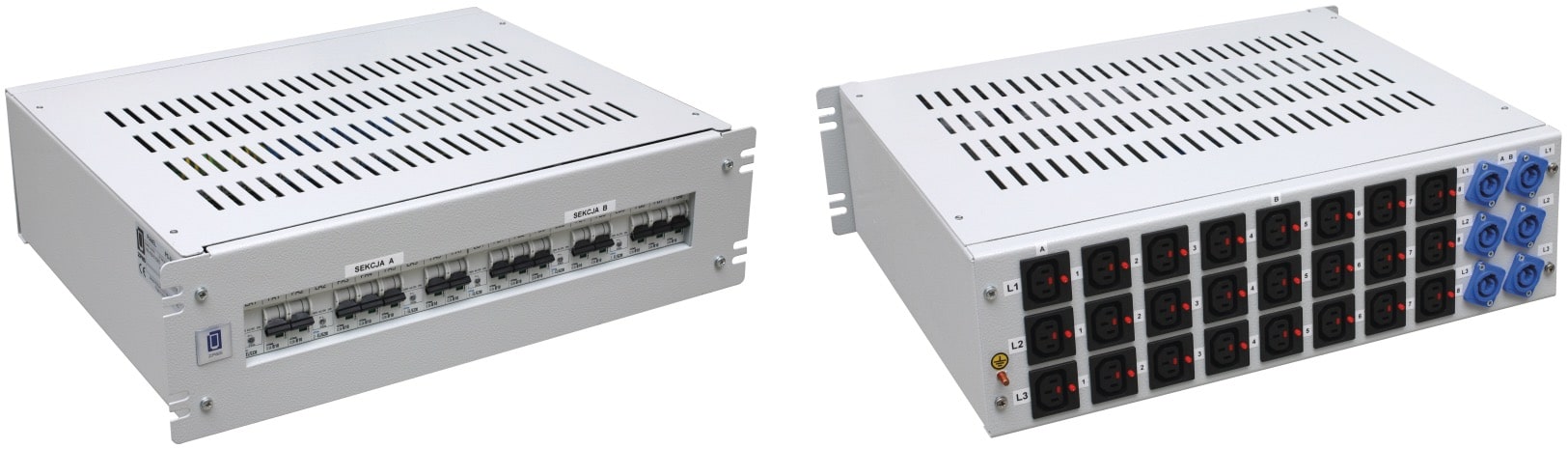

PRS-3U panel for supplying power to appliances requiring high reliability of 230 V power supply
It contains two three-phase sections, powered for each phase separately by Powercon NAC3 sockets with a maximum load capacity of 20 A. Each phase is equipped with a lamp indicating the presence of voltage from the power supply side. The number and power of the appliances can be adjusted to the customer's needs within the total allowable power of 4500 VA per phase. To connect appliances, you can use C13 sockets with an interlock in the maximum number of 24 pcs. A maximum of 15 S-type overcurrent circuit breakers can be used to protect the outgoing feeders.
Technical parameters:
rated voltage Un = 2 x 400 / 230 V
rated current for ingoing feeders In = 20 A
number and rated current for outgoing feeders = max. 24 pcs. with current according to customer's needs, max 4500 VA/phase
