ACCESSORIES FOR CABINETS AND OPEN RACKS - BASE

Plinth

Plinth consists of corners and side panels. Each part shall be ordered separately. For cabinets: Z-SERVER, SZB IT, DSR IT. Possibility of connecting the plinths in rows or stacked.

Plinth side panels

There are three types of plinth side panels available. Side panels can be removed even when the cabinet is loaded with equipment.

Material
Sheet steel powder painted in light grey (RAL 7035) or black (RAL 9005).

Scope of delivery
Panel with fixing elements.

Package: 1 pc

Product name Length of
side panel
[mm]
Length of
plinth’s side
[mm]
Catalogue number
RAL 7035 RAL 9005
Solid side panel 400 600 WZ-6935-46-05-011 WZ-6935-46-05-161
600 800 WZ-6935-46-03-011 WZ-6935-46-03-161
800 1000 WZ-6935-46-02-011 WZ-6935-46-02-161
1000 1200 WZ-6935-46-01-011 WZ-6935-46-01-161
Perforated side panel 400 600 WZ-6935-92-05-011 WZ-6935-92-05-161
600 800 WZ-6935-92-03-011 WZ-6935-92-03-161
800 1000 WZ-6935-92-02-011 WZ-6935-92-02-161
1000 1200 WZ-6935-92-01-011 WZ-6935-92-01-161
Side panel
with brush opening
400 600 WZ-6935-94-05-011 WZ-6935-94-05-161
600 800 WZ-6935-94-03-011 WZ-6935-94-03-161
800 1000 WZ-6935-94-02-011 WZ-6935-94-02-161
1000 1200 WZ-6935-94-01-011 WZ-6935-94-01-161
szafki_nascienne
szafki_nascienne

Plinth corners

Corners are equipped with removable plates that ease the access to assembling and levelling elements. Corners can be equipped with levelling set or vibro-shock absorbers.

Material
Body: sheet steel powder painted in light grey (RAL 7035) or black (RAL 9005). Covers: black plastic.

Scope of delivery
Set of 4 corners include fixing accessories for SZB IT, DSR IT and Z-SERVER cabinets.

Product name Height [mm]
Catalogue number
RAL 7035 RAL 9005
Set of 4 plinth corners 100 WZ-6935-74-00-011 WZ-6935-74-00-161
Wibroizolator / Narożnik z zamontowanym wibroizolatorem

Vibro-shock absorbers

Vibro-shoch absorbers reduce the transmission of possible vibrations between the floor and the cabinet (e.g. in industrial buildings). Plinth with vibro-shock absorbers should be fixed into the room’s floor.

Material
10 mm thick rubber.

Scope of delivery
Set of 4 vibro-shock absorbers.

Package Catalogue number
1 set WZ-M1Z-00-0048-000-4
Wibroizolator / Narożnik z zamontowanym wibroizolatorem

Vibro-shock absorber / Plinth corner with vibro-shock absorber

Sets for plinth levelling

Plinth corners can be equipped with additional levelling bolts, that enable stable setting of the cabinet on uneven floor.
Adjustment range: 0–10 mm

Product name Package Catalogue number
Set of 4 plinth levelling bolts for SZB IT or DSR IT cabinet 1 set WZ-6935-Z1-02-000
Set of 4 plinth levelling bolts for Z-SERVER cabinet 1 set WZ-6935-Z1-01-000
Wibroizolator / Narożnik z zamontowanym wibroizolatorem

Set of elements for connecting plinths

Plinths can be joined in row or stacked.
Joining in rows
In order to join two plinths, one connecting set is needed.
Stacking
In order to stack two plinths, two connecting sets are needed.
Maximum allowed height: 4 plinths x 100 mm

Product description Package Catalogue number
4 bolts M10x20
4 washers 10,5
4 flange nuts M10
1 set WZ-6935-Z1-03-000
Wibroizolator / Narożnik z zamontowanym wibroizolatorem

Levelling feet

Levelling feet for cabinets and racks.
Thread: M12x38
Ways of adjustment:
- with 19 mm open ended spanner,
- with 5 mm wrench spanner (imbus).

Material
Adjustable screw – zinc-coated steel
Base - plastic

Scope of delivery
Adjustable feet with lock nuts - set of 4 pcs.

Package Catalogue number
1 set = 4 pcs WZ-5571-42-00-000
Levelling feet for cabinets and racks

Levelling feet for cabinets and racks

Castors 150

For cabinets: SZB IT, as well as for open racks: SRD, SRX.
One cabinet or open rack requires 2 locking and 2 non-locking castors.
Maximum load capacity of 4 castors: 400 kg*

Scope of delivery
Set of 2 castors (locking or non-locking type) with screws and washers for fixing into the cabinet or rack.

Product name Package Catalogue number
Locking castor 150 1 set = 2 pcs WZ-SB72-00-01-000-2
Non-locking castor 150 1 set = 2 pcs WZ-SB72-00-02-000-2

* Applicable to castors only. Loading capacity of the cabinet (or open rack) is specified in the description.

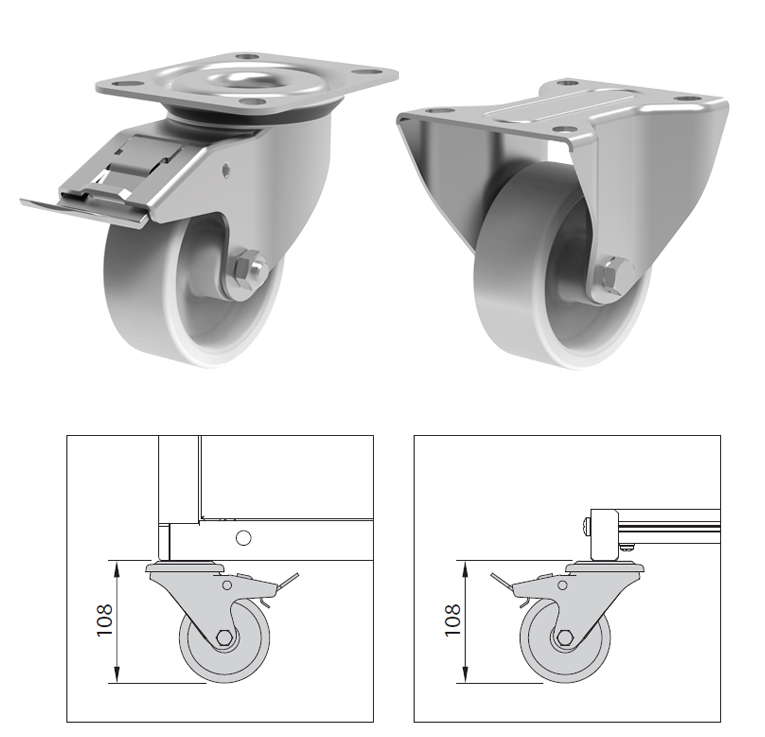

Kółko 150 skrętne z blokadą / Kółko 150 skrętne bez blokady

Locking castor 150 / Non-locking castor 150

Castors 300

For cabinets: SZB IT, DSR IT, SZE2 PC. One cabinet requires 2 locking, 2 non-locking castors and 2 strengthening bars. One bar with locking castors is fixed at the cabinet’s front, and the other bar with non-locking castors at the rear.
Maximum load capacity of 4 castors: 600 kg*

Surface finishing
Strengthening bar for castors powder painted in light grey (RAL 7035).

Scope of delivery

  • These are available in sets:
    - 2 castors (locking or non-locking type) with screws and washers for fixing into the strengthening bar,
    - 2 strengthening bars for castors with screws and washers for fixing into the bottom plate of the cabinet.
Product name Package Catalogue number
Locking castors 300 steering type 2 pcs WZ-SB73-00-01-000-2
Non-locking castors 300 fixed type 2 pcs WZ-SB73-00-02-000-2
Strengthening bars for cabinet’s width 600 mm 2 pcs WZ-SB74-00-01-011-2
800 mm 2 pcs WZ-SB74-00-02-011-2

* Applicable to castors only. Loading capacity of the cabinet is specified in the description.

Non-locking castor 300 fixed type

Non-locking castor 300 fixed type

Locking castor 300 steering type

Locking castor 300 steering type

SZB IT cabinet with castors 300

SZB IT cabinet with castors 300

Strengthening bar for castors 300

Strengthening bar for castors 300
