Structured cabling components

Reference Elementy okablowania strukturalnego

Description
Product Details

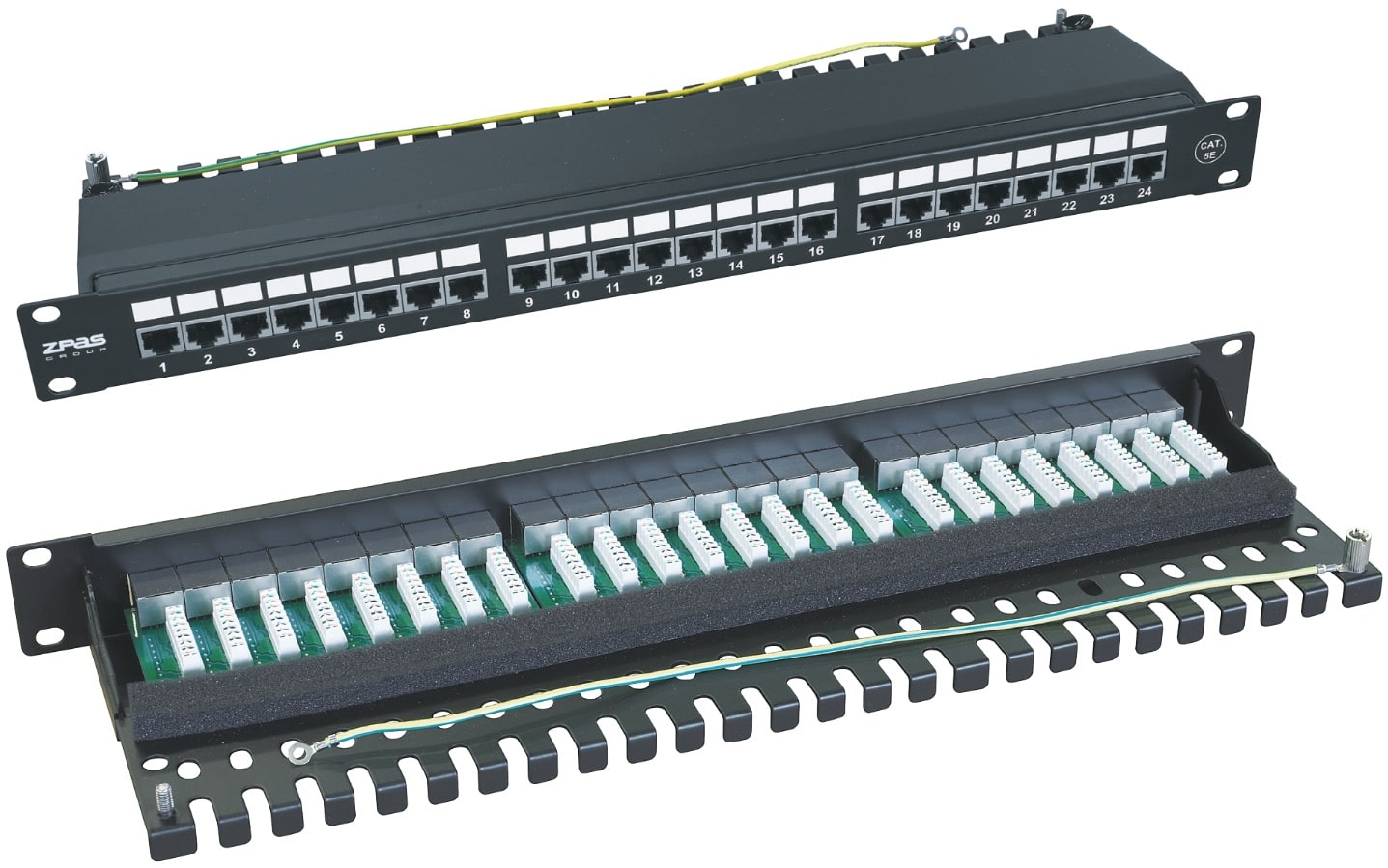

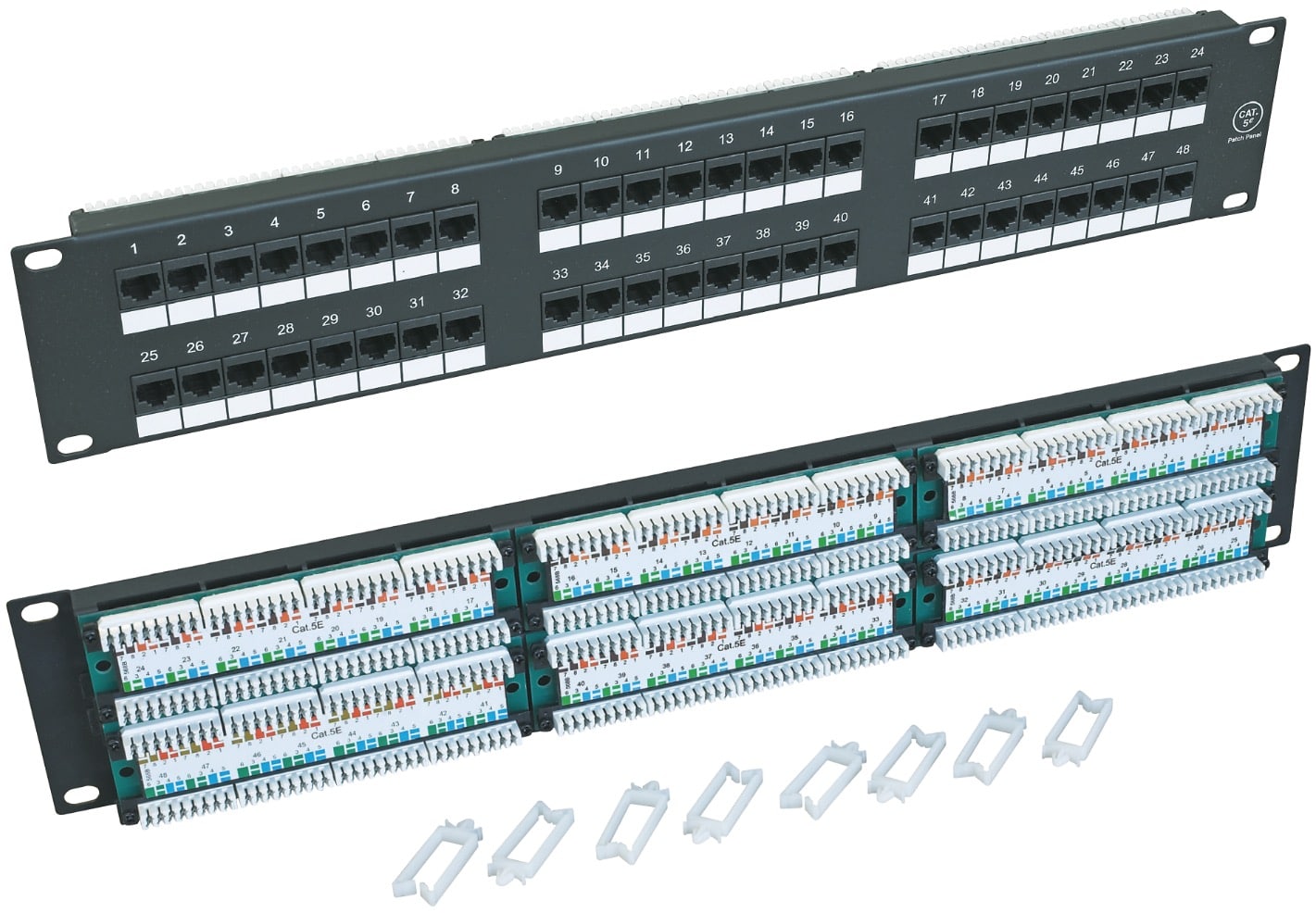

PATCH PANELS CATEGORY 5e

19" standard.
The basis of cat. 5e network system, designed
for main and through distribution points of fast
telecommunications systems.
UTP panels are constructed on the basis of specially
designed boards with compensation circuit.
Equipped with universal IDC (Insulation Displacement
Contact), compatible with 110 and Krone connectors
in 568A/B standard.
Place for cable labels.
Convenient use and reconfiguration.

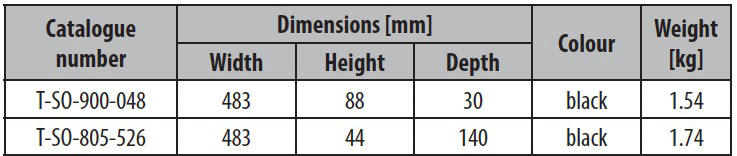

The all panels, in addition to T-SO-900-048, includes cable
ties and assembly hardware.

Material: sheet steel
Surface finish: powder painting

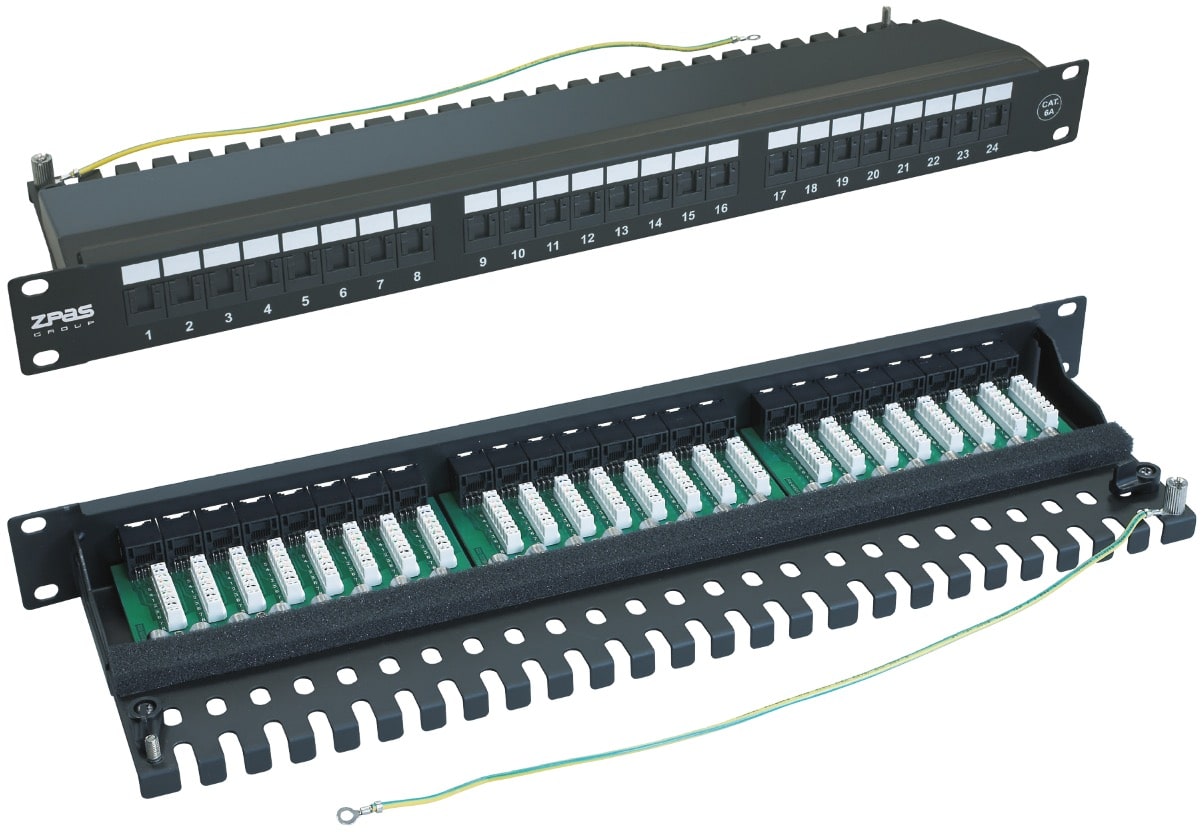

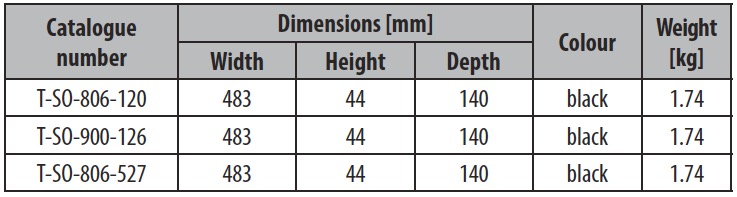

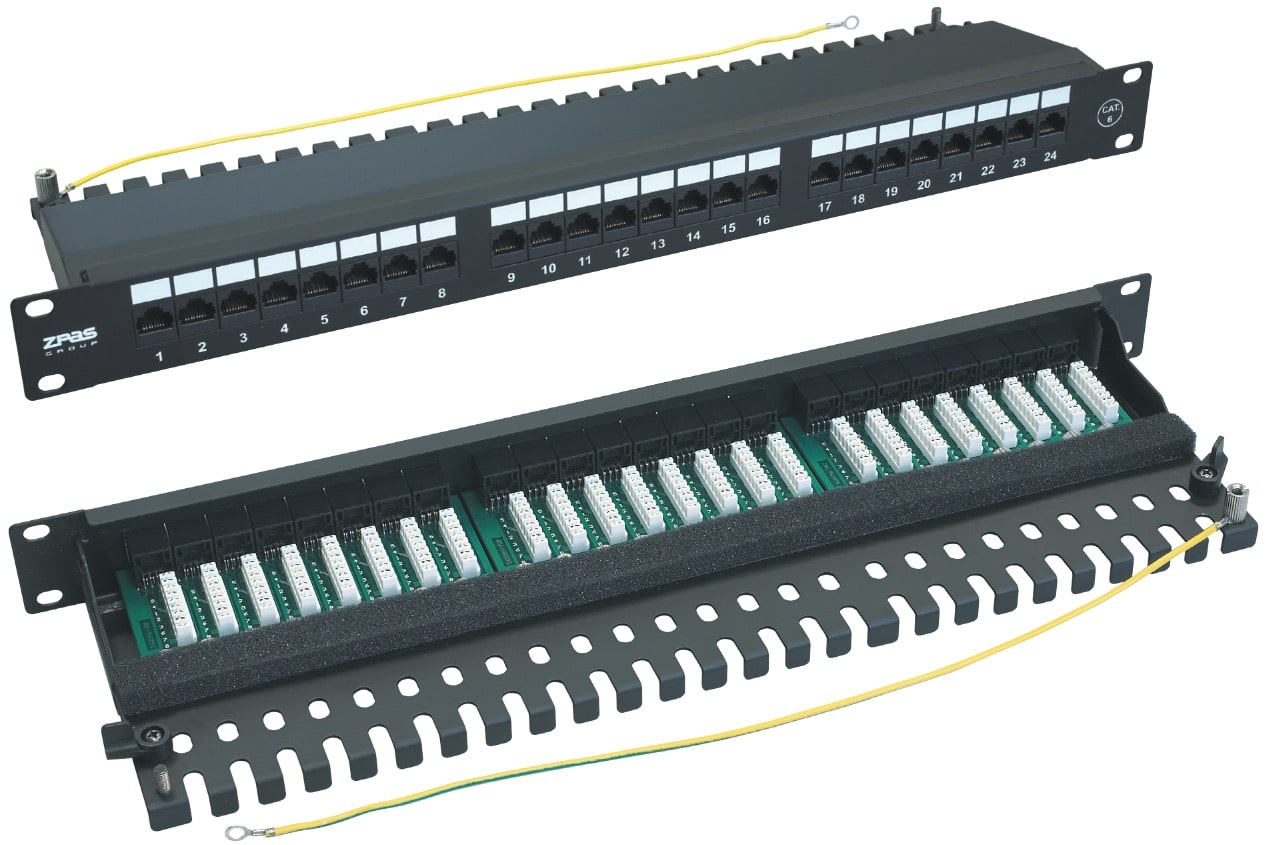

PATCH PANELS CATEGORY 6, 6A

19" standard.
The basis of cat. 6 and 6A network system, designed
for main and through distribution points of fast
telecommunications systems.
Panels are constructed on the basis of specially designed
boards with compensation circuit.
Equipped with universal IDC (Insulation Displacement
Contact), compatible with 110 and Krone connectors in
568A/B standard.
Place for cable labels.
Convenient use and reconfiguration.
All panel sets include cable ties and assembly hardware.

Material: sheet steel
Surface finish: powder painting

KEYSTONES AND SOCKETS

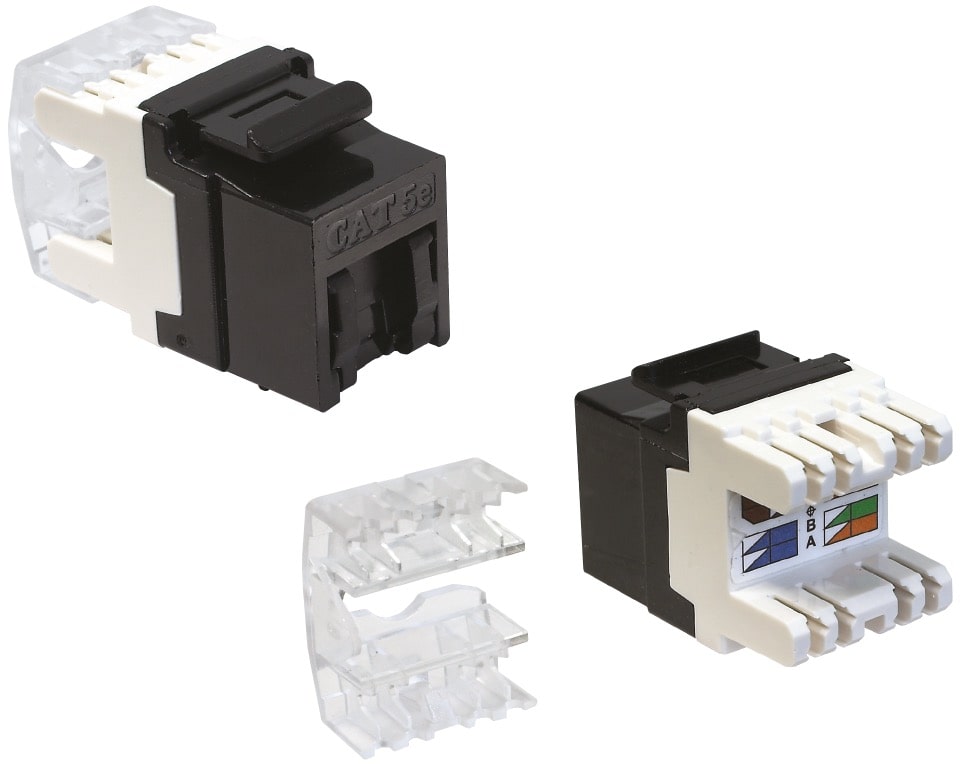

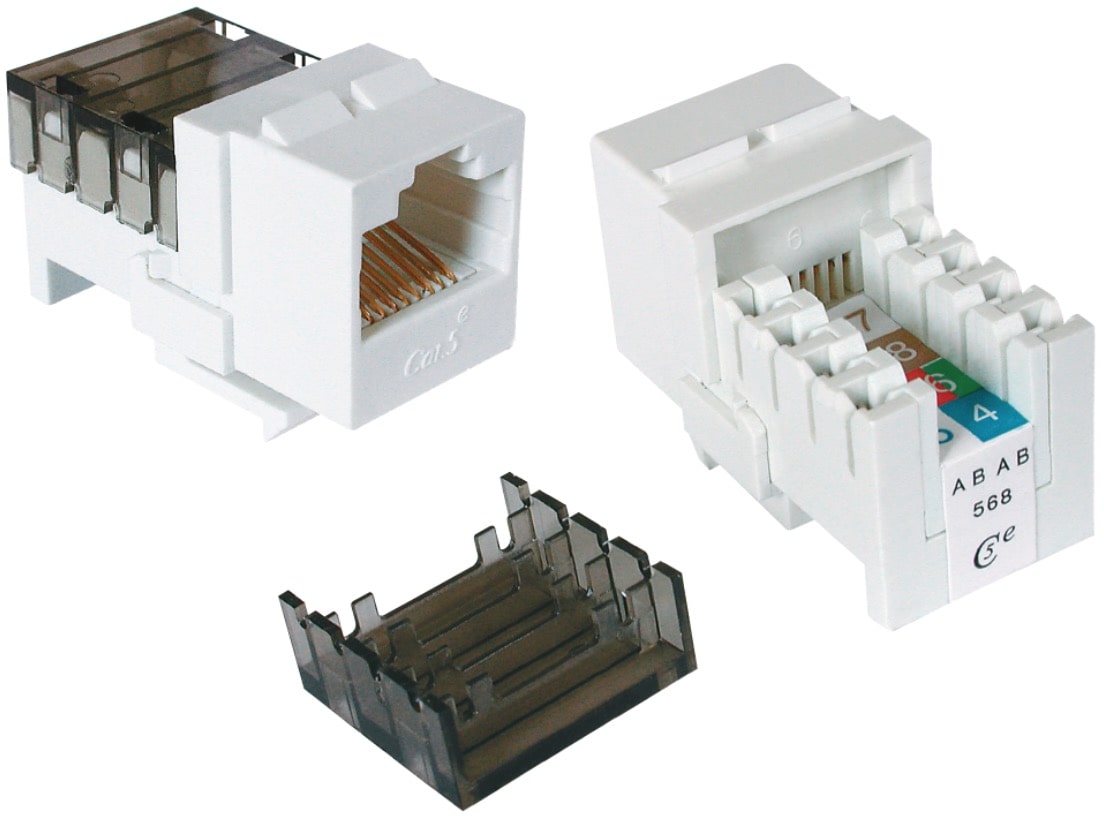

Transmission modules cat. 5e

Keystone modules RJ45 cat. 5e are designed for user
outlet, as well as patch panels.
The connection match the TIA/EIA 568A/B norm
and cat. 5e requirements.
The keystones are terminated using universal IDC (Insulation
Displacement Contact) with punch-down cap for quick
installation.

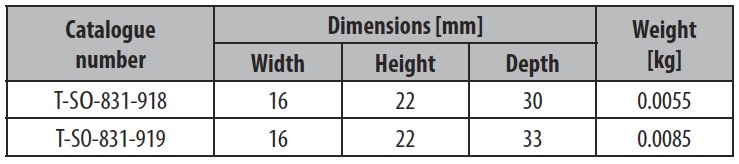

Modules T-SO-831-918 are built using monolithic
construction from ABS.
Restant modules are built using printed circuit board.

Material of case: socket - thermoplastic ABS and UL94V0

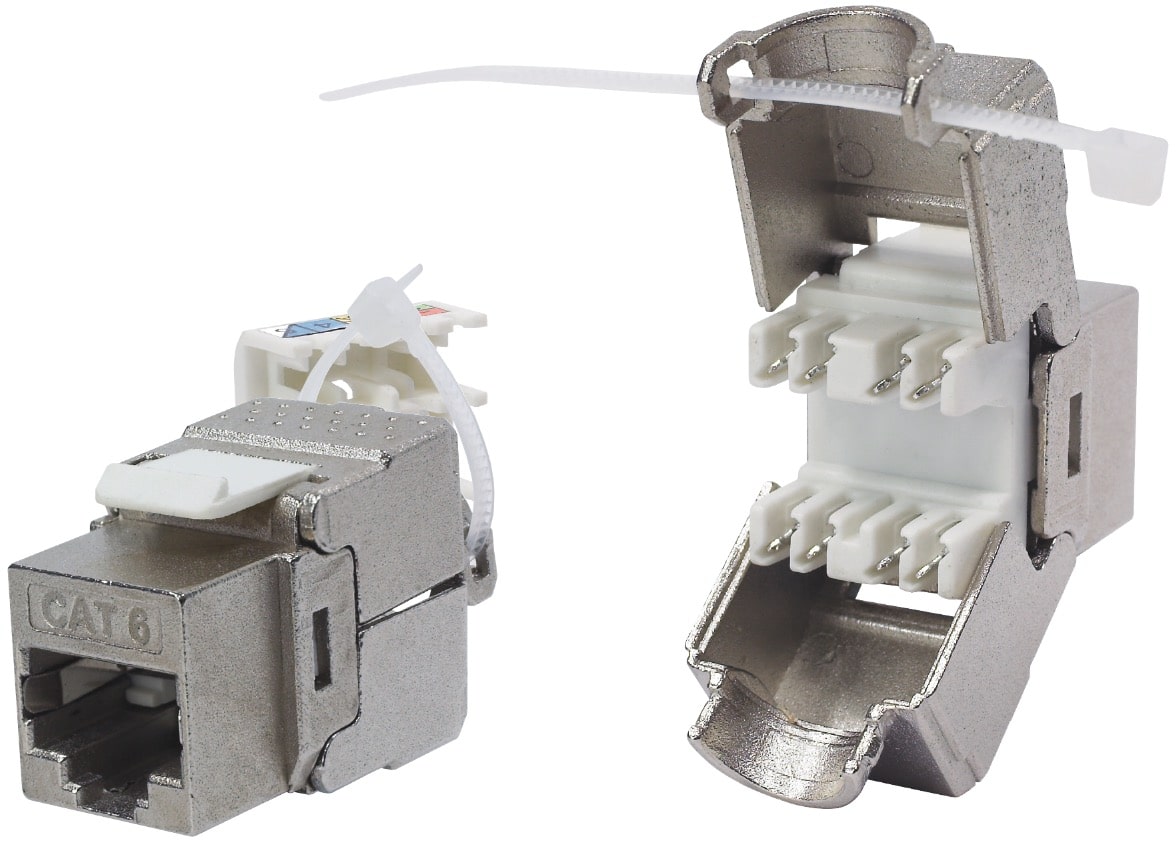

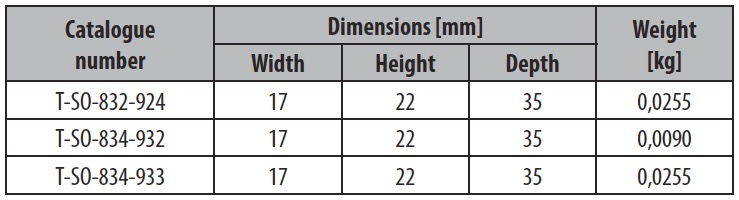

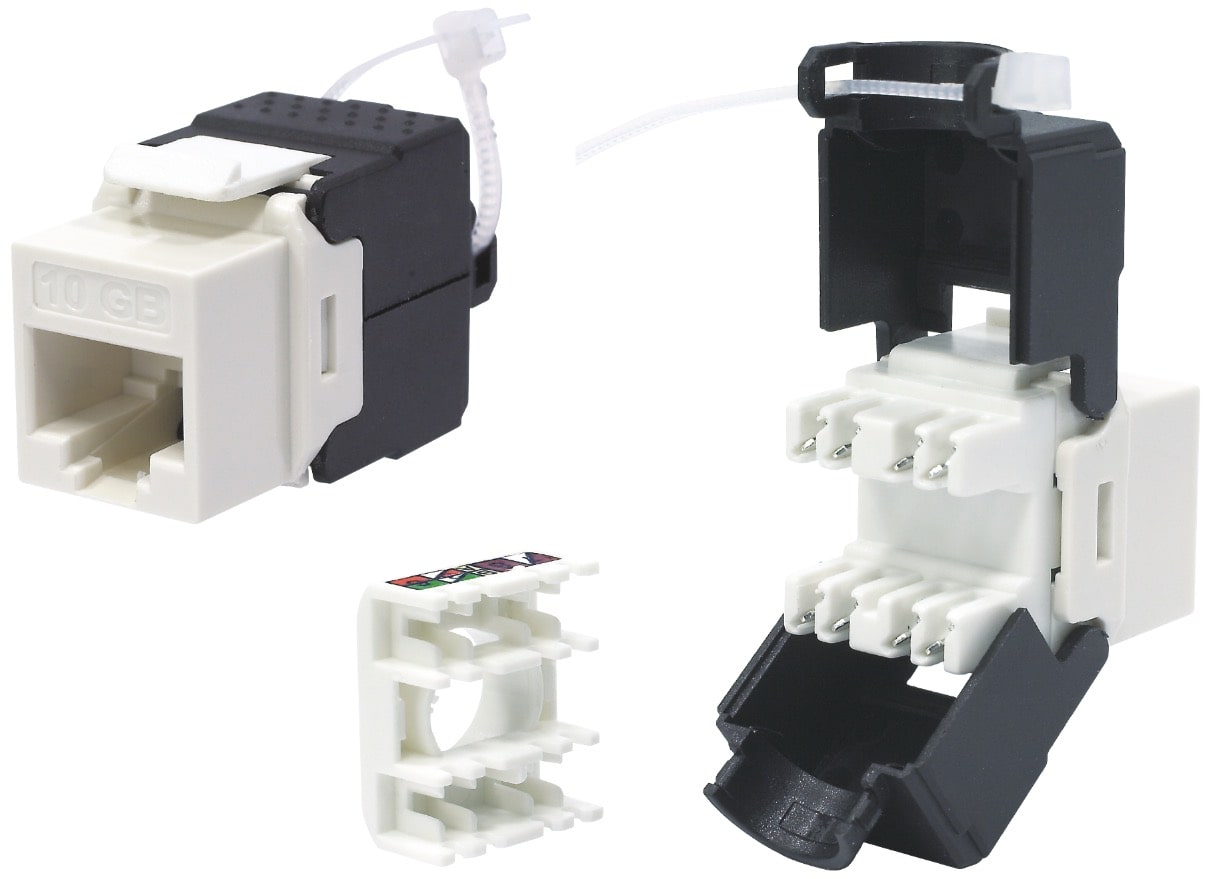

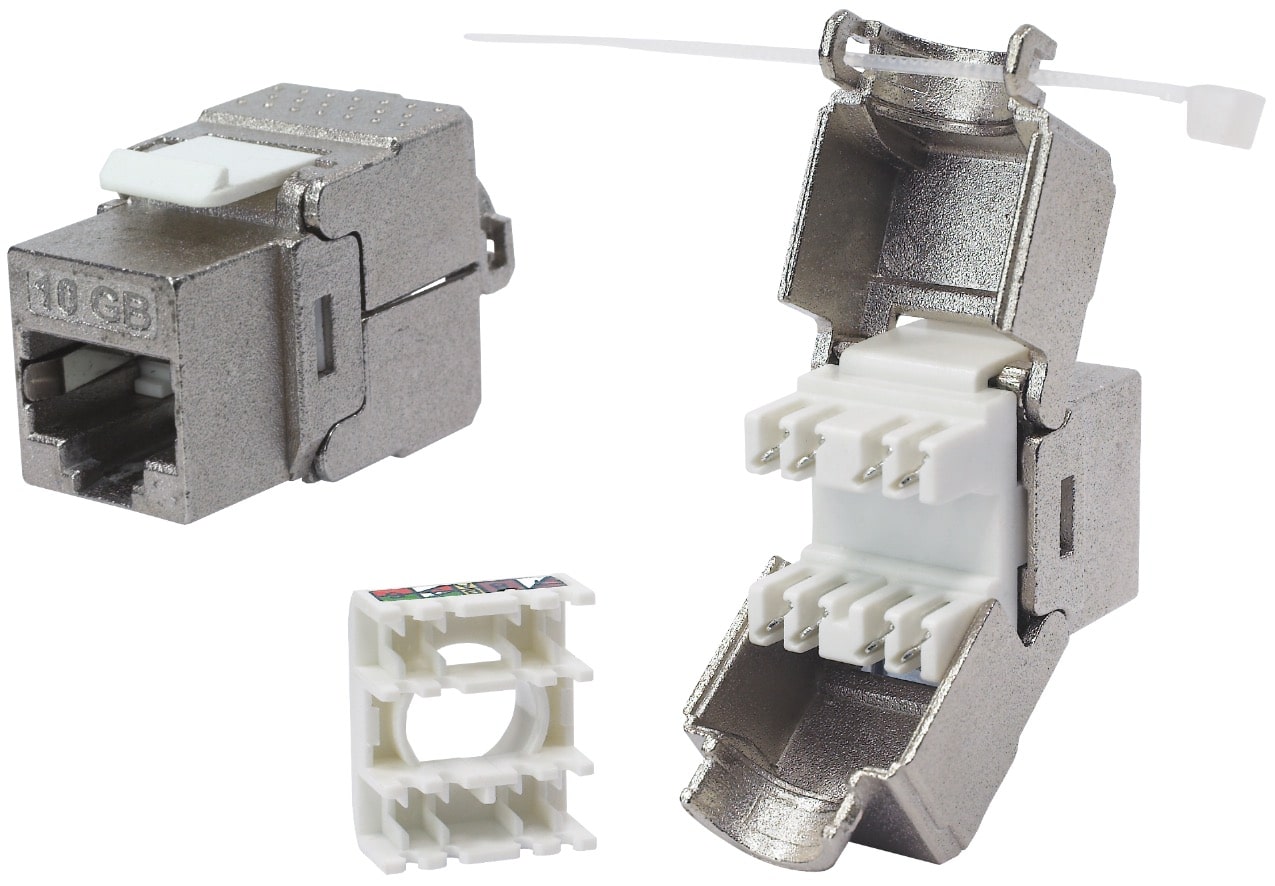

Transmission modules cat. 6 and 6A

Keystone modules RJ45 cat. 6 and 6A are designed for user
outlet, as well as patch panels.
Possibility of connecting cables in 568A and 568B
standards.
Advantages of universal displacement contact.

Material of case: thermoplastic ABS and UL94V0.
STP module shielding cover: phosphor bronze

TELEPHONE SYSTEM

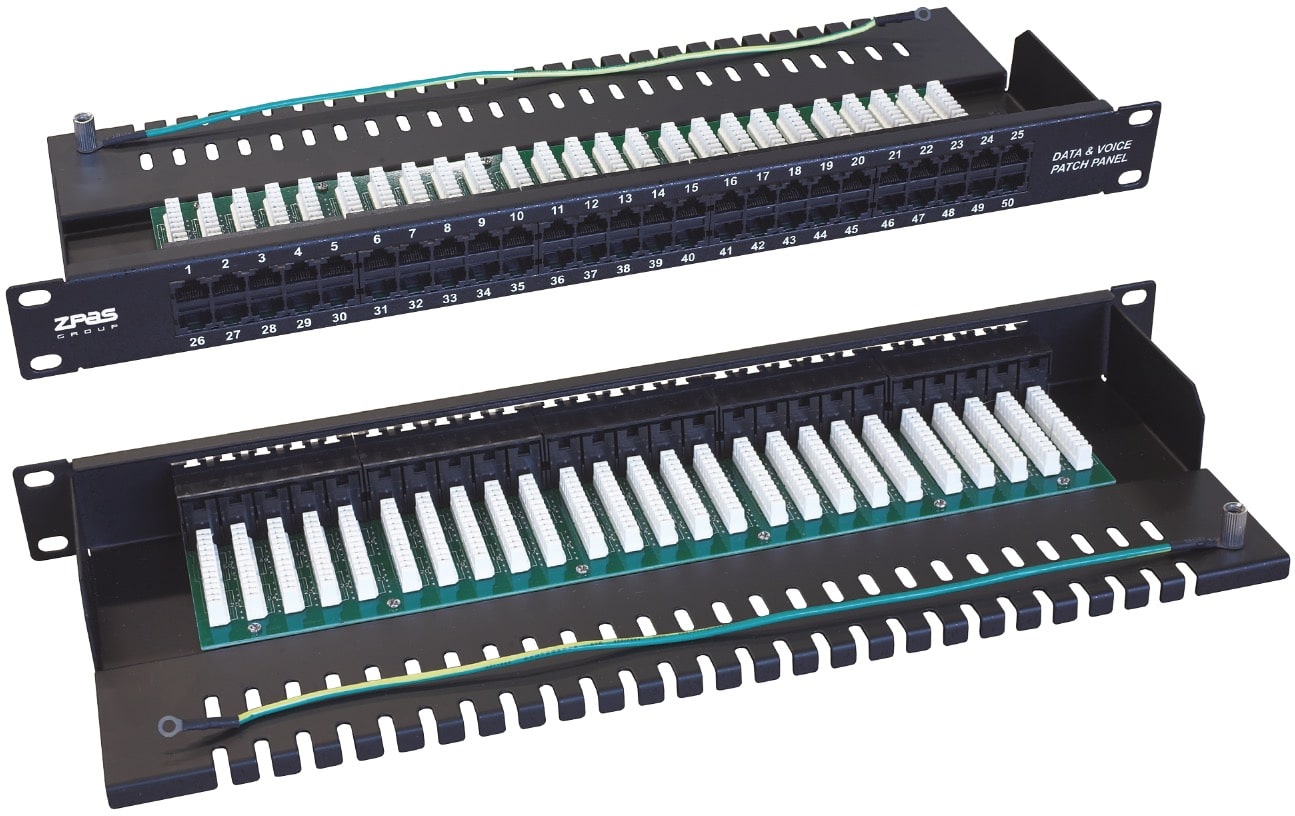

Telephone patch panel

19" panel 50 x RJ45 is designed for termination of vertical
cabling and accepts multi-pair unshielded telecom cables
or 4 pairs twisted cable.
Ensures transmission parameters required for telephone
applications, easy and convenient mounting, high
durability of wires and easy cross connections.
High density of cross connections (double pair modular
RJ45 sockets).
The panels includes assembly caps, cable ties and duct
markings.
In the back panel these is a shelf to provide easy cable
management.

Material: sheet steel
Surface finish: powder painting

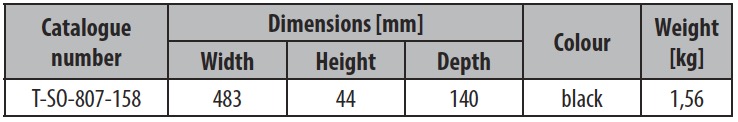

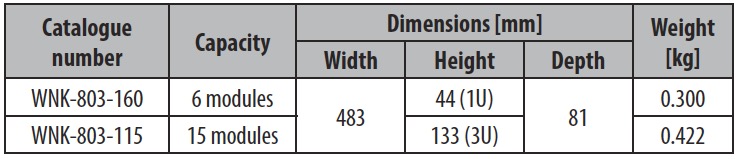

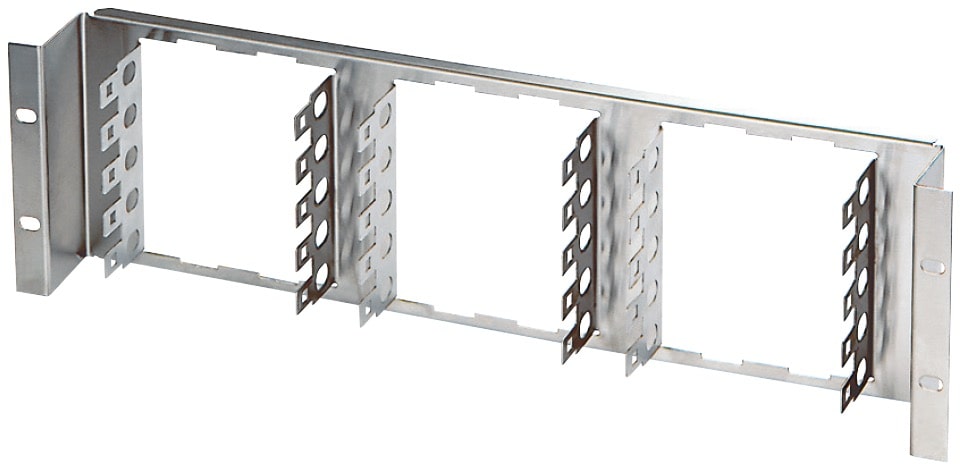

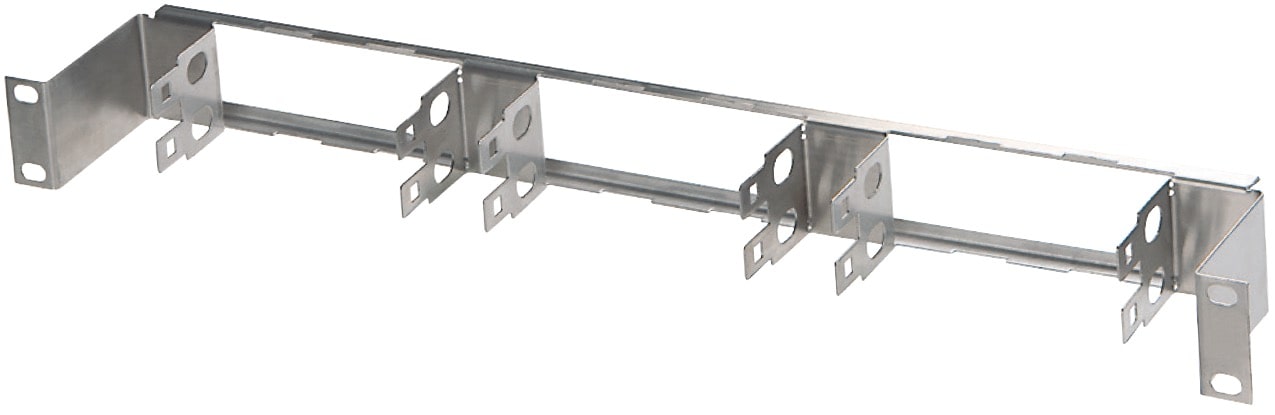

Mount frame for telephone modules

Produced of stainless steel.
Equipped with sockets for telephone modules.
Available in two sizes:
- 19" x 1 U - 6 modules
- 19" x 3 U - 15 modules

Material: stainless sheet steel 0.75 mm
Surface finish: none

Telephone connectors

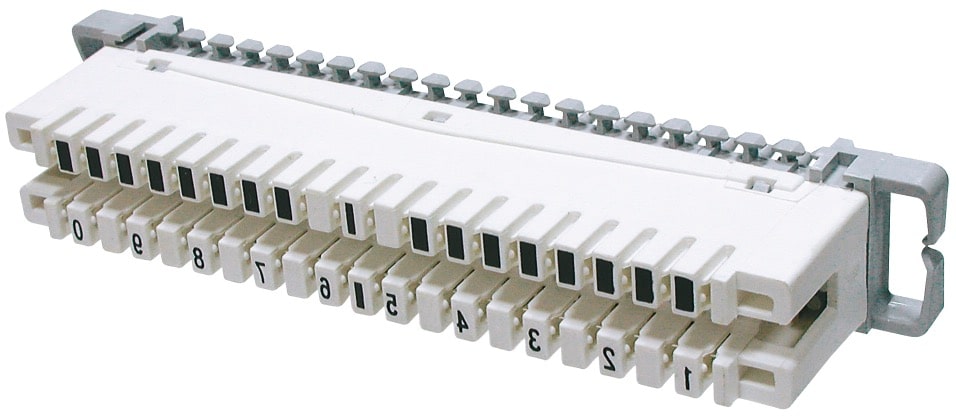

Disconnecting module
Disconnecting module is basis of telephone system. Module is placed on mount frame. Equipped with IDC contacts for termination of wires. There is also possibility of placing on them a set of magazine of gas surge arrestors. The module possesses shorted contacts. Application of insulation plug allows to disconnect any line.

Case material: thermoplastic ULV94V0
Connector material: silver plated phosphor bronze
Wire acceptance: 0.4 - 0.8 mm
Contact resistance: 5 mΩ
Accordance with norm: DIN 41611
Category: 3
Weight: 0.060 kg
Dimensions: 124.0 x 19.5 x 40.0 mm
Colour: white

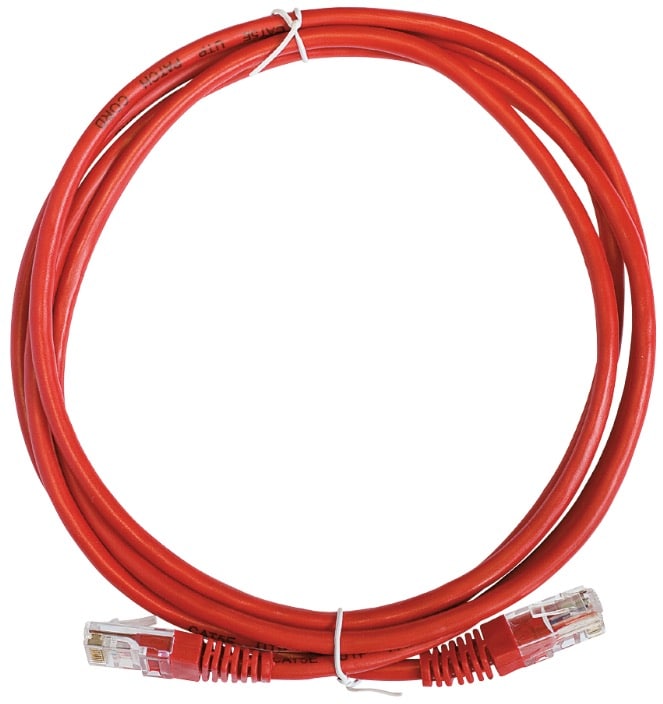

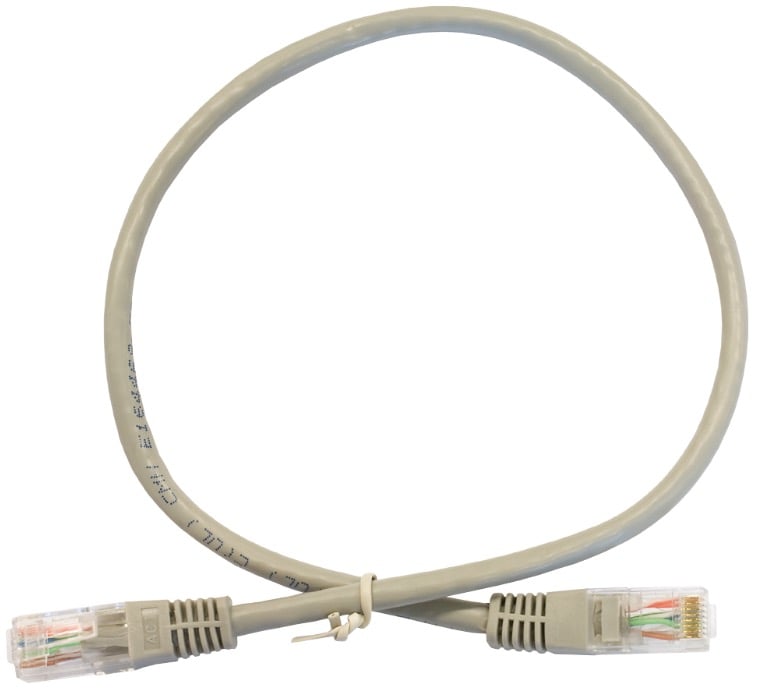

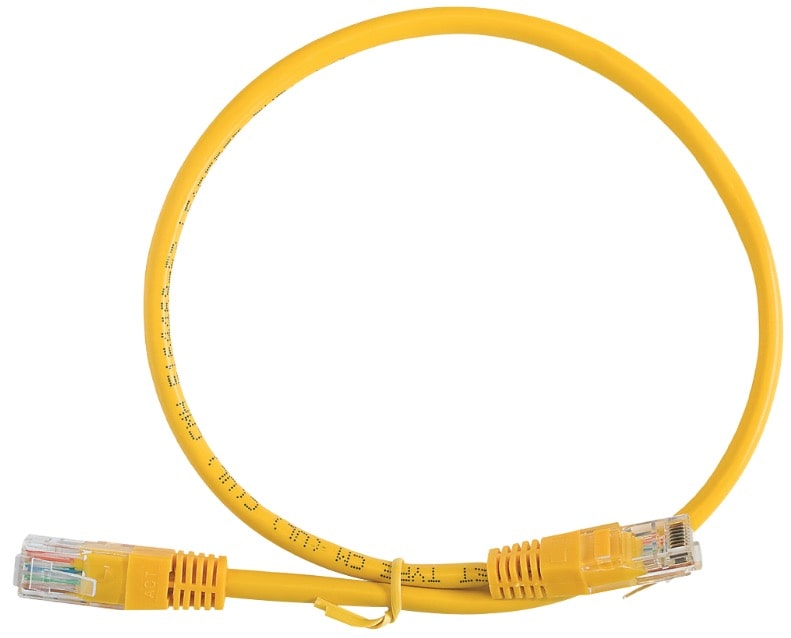

PATCH CORDS

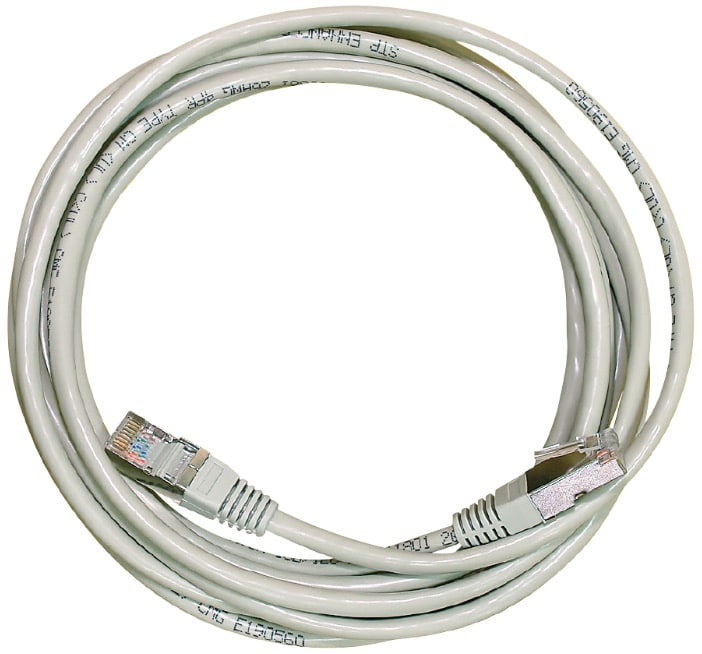

Patch cords category 5e and category 6 and 6A, U/UTP, F/UTP and S/FTP

Designed for cross connections at distribution points as well as connections of terminals
with user outlet.
Compatible with category 5e, 6 and 6A.
Sequence 568B.
F/UTP cables are resistant from mechanical damages, providing continuity of shielding.
Five standard length options: 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m.
Equipped with special type RJ45 plugs fixed on the cable by means of moulding technology.

MECHANICAL PARAMETERS

Cable insulation material: PVC
Plug case: UL94V2
Plug contacts material phosphor bronze
Plug contacts plating gold over nickel;
Durability > 750 cycles

ELECTRICAL PARAMETERS

Maximum voltage > 125 V
Maximum current: 1.5 A
Insulation resistance: > 500 MΩ

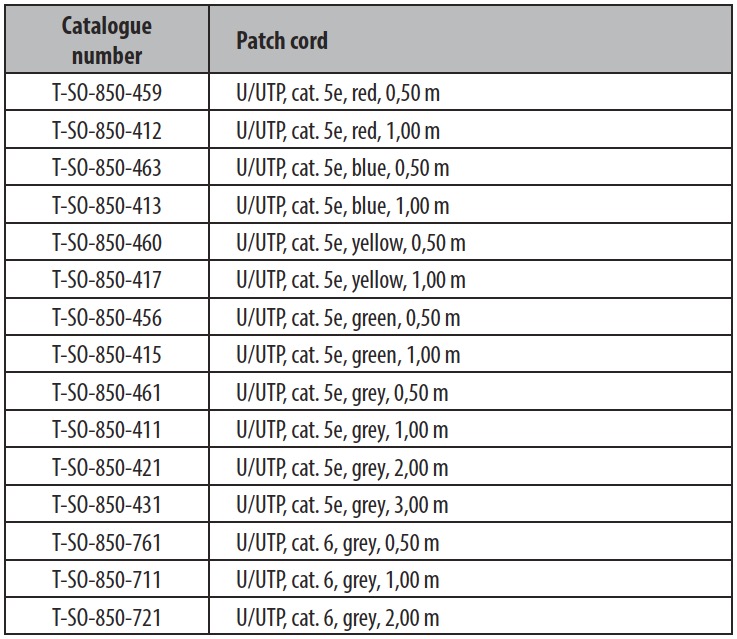

AVAILABLE TYPES OF PATCH CORDS

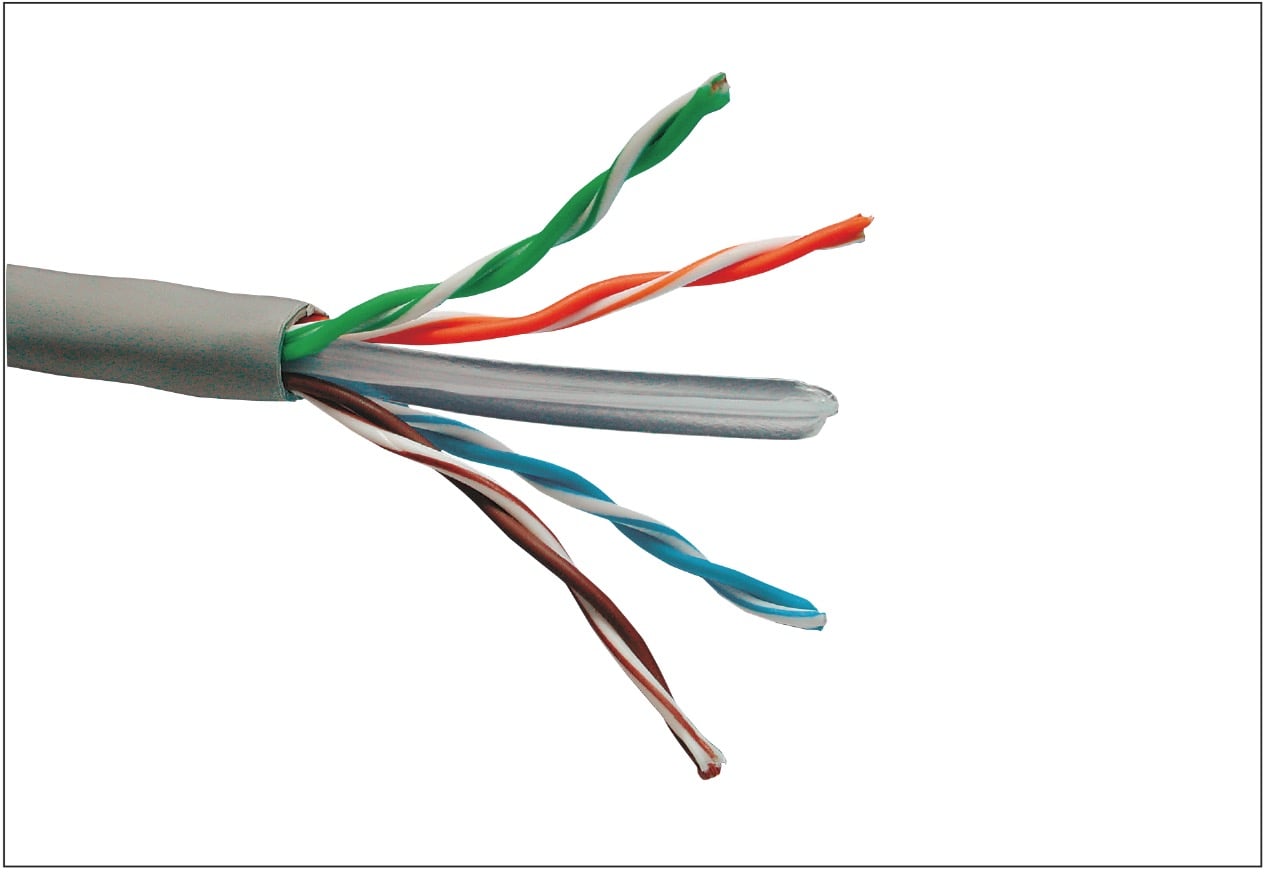

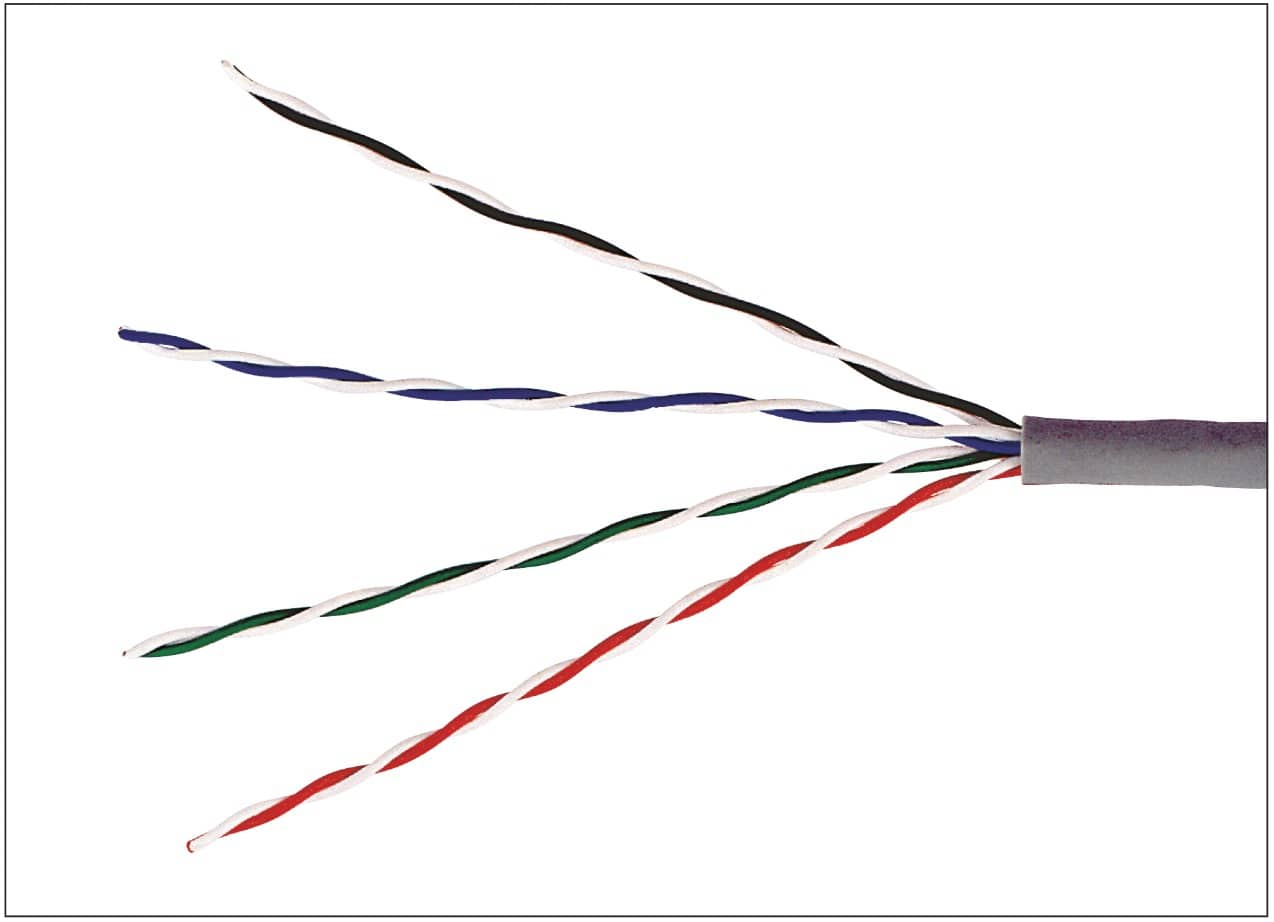

DATA TRANSMISSION CABLES

Internal data communication cables category 5e, U/UTP and F/UTP

U/UTP cables are designed for horizontal and vertical internal installations in data communication networks that are not exposed to electromagnetic interference.
F/UTP cables are designed for horizontal and vertical internal installations in data communication networks that are particularly exposed to electromagnetic interference.
5e cables routes are designed for operation at frequencies up to 100 MHz, with a bit rate up to 1 Gb/s.
Cables cannot be used to connect power equipment.
Cables are designed for use in an ambient temperature of -20°C to +70°C.
Cables in PVC sheath may be laid at temperatures from 0ºC to 50°C.
Cables in sheath made of halogen-free plastic may be laid at temperatures from -10ºC to 50°C.
Allowable cable bending radius is 4 x ext. Ø.
Cable pull force should not exceed 20 N per pair.

Standards:
ZN-MADEX-04, ISO/IEC 11801, EN 50173, IEC 61156-5,
EN 50288-3-1 (Cat.5e), ANSI/TIA/EIA 568-B.2.
Flammability test under IEC 60332-1

SOLID AND STRANDED CABLES

Note:
We can also deliver external cables, such as:
External U/UTP cable 4 pairs, solid, cat. 5e, PE, 305 m
- cat. no. T-SO-841-173

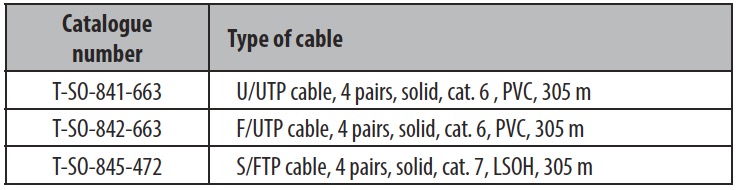

Internal data communication cables categories 6 and 7, U/UTP, F/UTP and S/FTP

U/UTP cables are designed for horizontal and vertical internal installations in data communication networks that are not exposed to electromagnetic interference.
F/UTP and S/FTP cables are designed for horizontal and vertical internal installations in data communication networks that are particularly exposed to electromagnetic interference.
6 category cables routes are designed for operation at frequencies up to 250 MHz, with a bit rate over 1 Gb/s.
7 category cables routes are designed for operation at frequencies up to 600 MHz, with a bit rate over 1 Gb/s.
Cables cannot be used to connect power equipment.
Cables are designed for use in an ambient temperature of -20°C to +70°C.
Cables in PVC sheath may be laid at temperatures from 0ºC to 50°C.
Cables in sheath made of halogen-free plastic may be laid at temperatures from -10ºC to 50°C.
Allowable cable bending radius is 4 x ext. Ø.
Cable pull force should not exceed 20 N per pair.

Standards:
ZN-MADEX-04, ISO/IEC 11801, EN 50173, IEC 61156-5,
EN 50288-6-1 (Cat. 6), EN 50288-4-1 (Cat. 7),
ANSI/TIA/EIA 568-B.2.
Flammability test under IEC 60332-1

SOLID CABLES

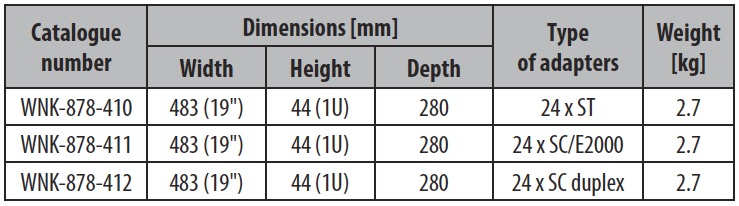

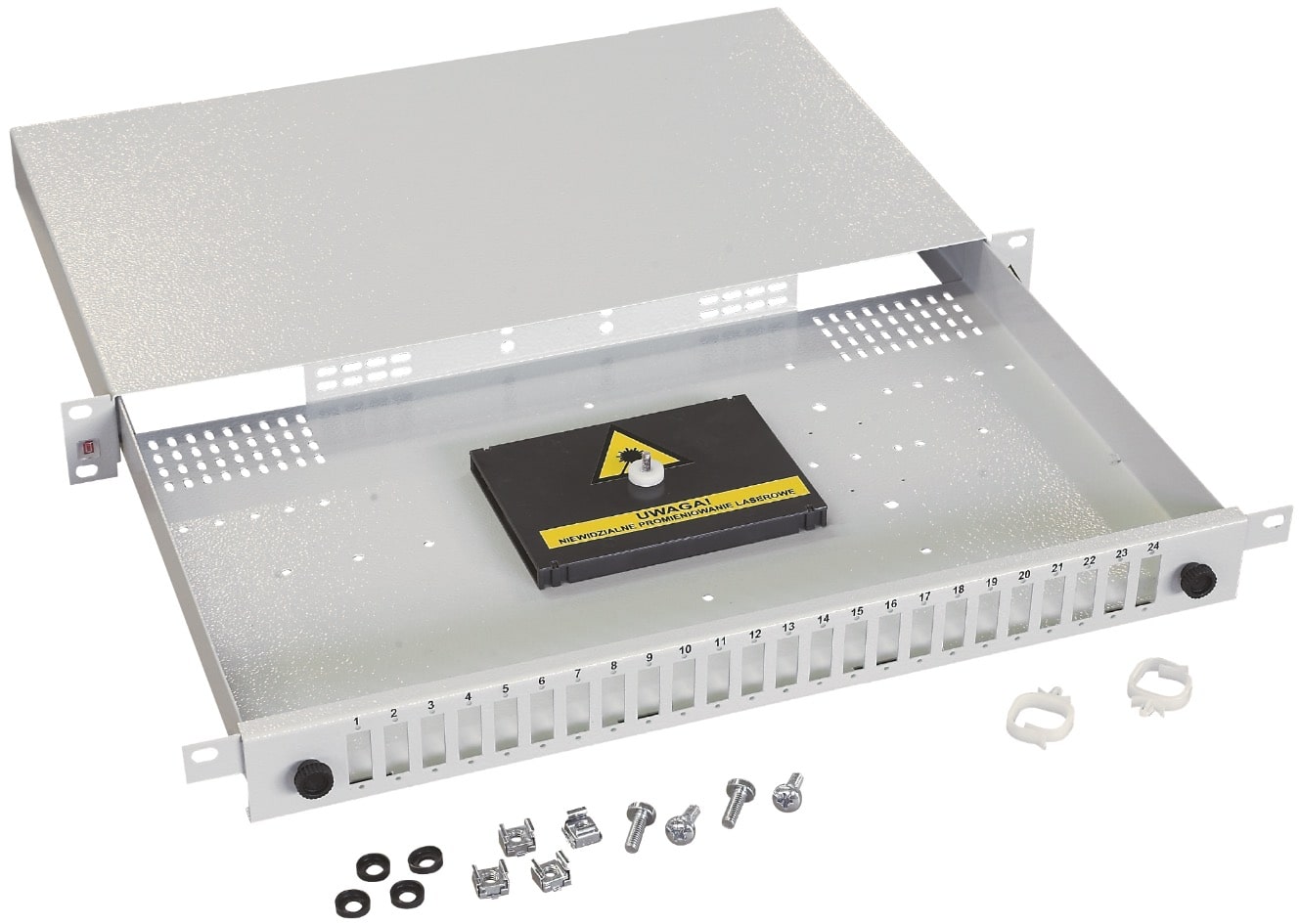

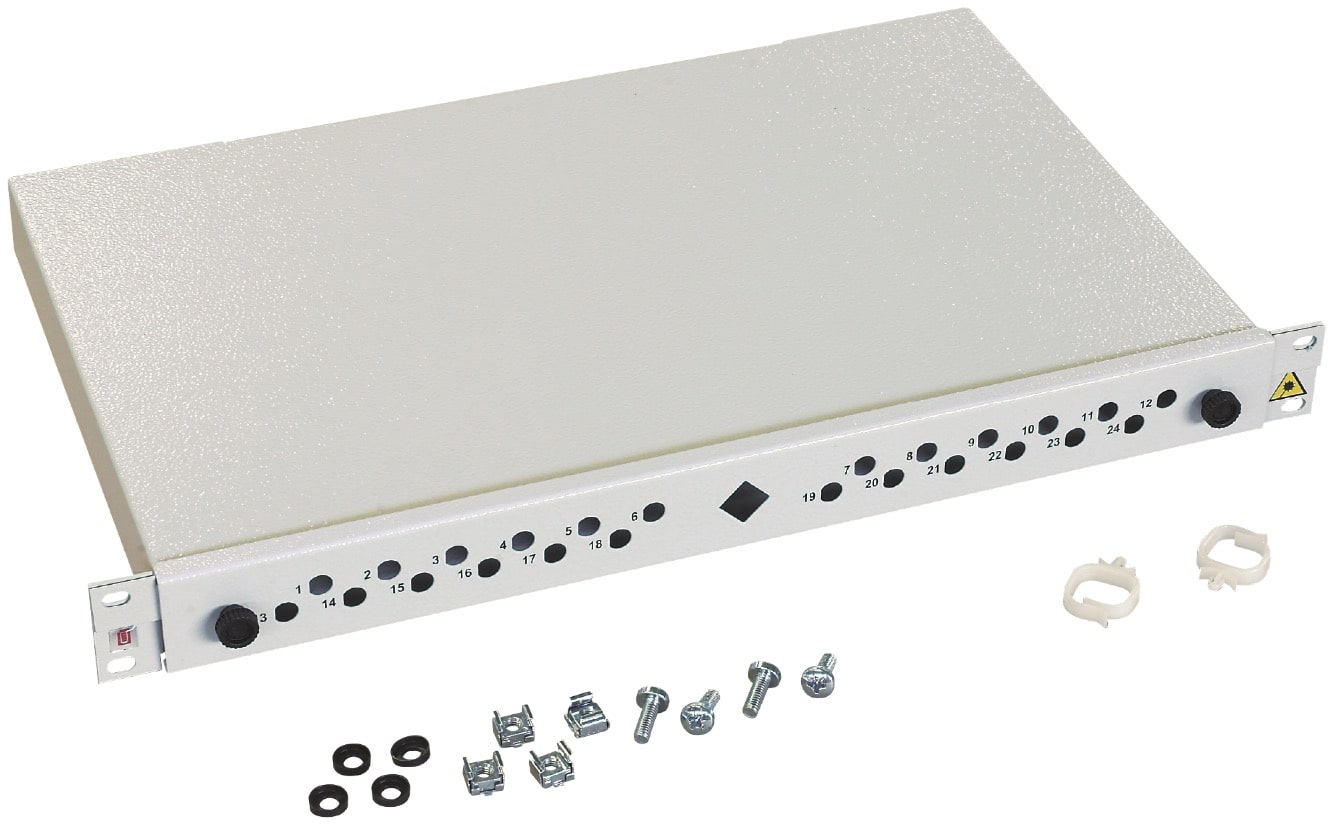

FIBRE OPTIC PATCH PANELS

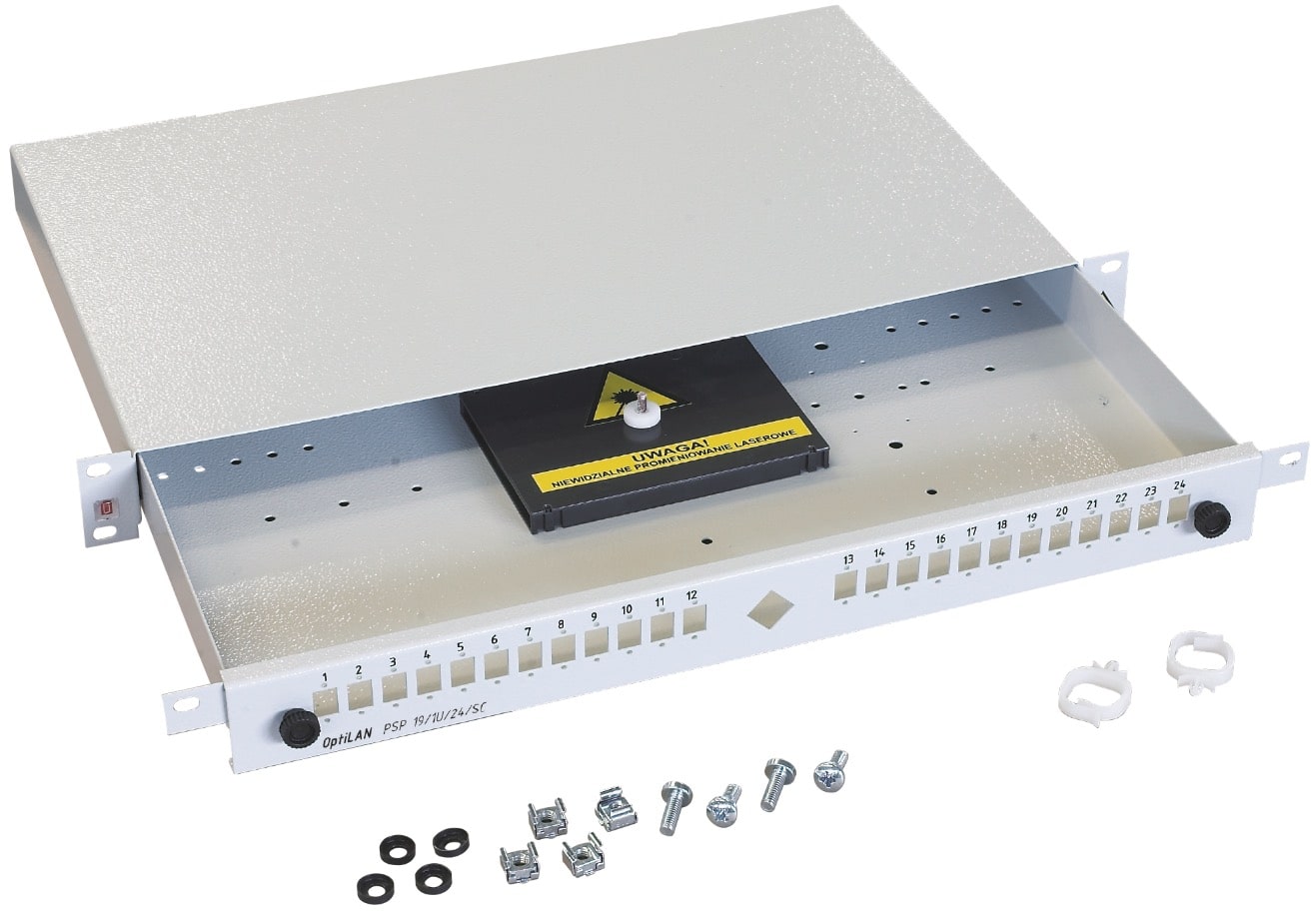

OptiLAN PSP III 19/1U/24

Intended for mounting in 19” cabinets and racks.
Number of adapter ports: 24
Available front panels for all types of adapters
(ST, SC/E2000, SC duplex,, or another according
to customer’s request).
Possibility of fev cables terminating.
The rest of fibre loose tube storage in housing.
Tube guiding units ensure that the minimum bend radius
is not exceeded.
Dismountable front cover.
Delivery with set of assembly hardware.

Material: sheet steel 1.5 mm
Surface finish: powder painting in RAL 7035 colour
