AKCP - Monitoring of device operating conditions and access control

System

Measurement of any environmental parameters and detection of alarm conditions
Continuous control of temperature, humidity, flooding, airflow, smoke, motion, vibration, power consumption, door opening and other parameters depending on the sensors used.

Video surveillance system
Possibility of connecting cameras and continuous recording of images on the server.

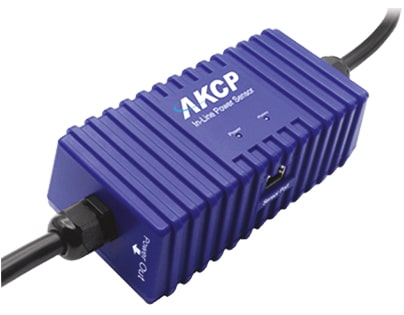

In-line Power Meter control and monitoring of power supply parameters
Power management for the connected power strips via AKCess Pro Server. Possibility of configuring notifications for exceeding the defined thresholds, automatic power off in emergency situations.

Software for managing equipment and collected data
The data from the connected devices can be viewed by the administrator using clear, configurable software and can be used as a basis for further actions.

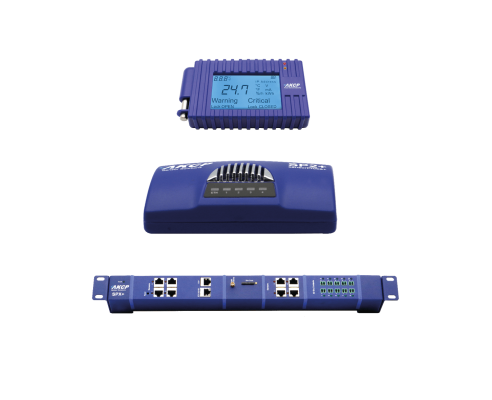

SensorProbeX+ (SPX+) and SensorProbe2+ (SP2+) data hubs
Choice of two types of data hubs for smaller installations and complex monitoring networks.

Easy to set up, expand and use
The modular configuration of the SPX+ data hub ensures easy customization according to your needs and requirements.

Intelligent ports – right-away readiness
Hubs are equipped with intelligent ports that automatically recognize the type of connected AKCP sensor.

Modbus communication – ideal for industrial applications
Thanks to the EXP port in the SPX+ data hub, it is possible to connect to sensors using Modbus RTU-TCP communication.

Access control – protection for cabinets and rooms
The AKCP system allows you to secure any door with remotely controlled lock and proximity card reader.

SensorProbeX+ modular data hub

Zaawansowany koncentrator danych, zaprojektowany do montażu poziomego 19-calowego lub pionowego. Budowany modułowo, pozwala na konfigurację dostosowaną do potrzeb klienta. Przykładami modułów mogą być: wewnętrzny modem komunikacyjny, moduł styków bezpotencjałowych lub portów inteligentnych czujników. SPX+ idealnie nadaje się do aplikacji monitorujących w centrach przetwarzania danych i obszarach przemysłowo-produkcyjnych.

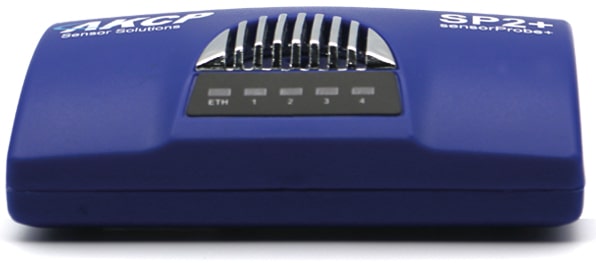

SensorProbe2+ basic data hub

Koncentrator danych, wyposażony w 4 gniazda RJ-45 i gniazdo Ethernet, opcjonalnie również w moduł GSM. Obsługa 4 inteligentnych czujników lub do 20 wejść bezpotencjałowych. Posiada możliwość podłączenia modułów rozszerzających.

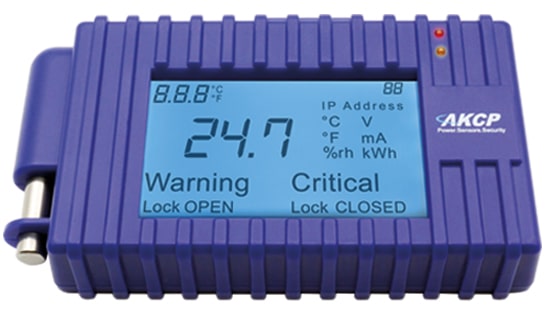

Programmable display

Power control

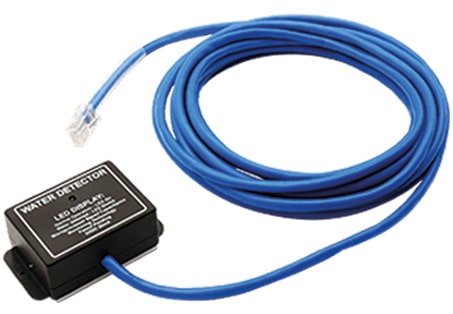

Sensors and detectors

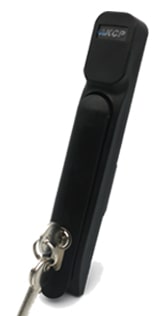

Access control handle

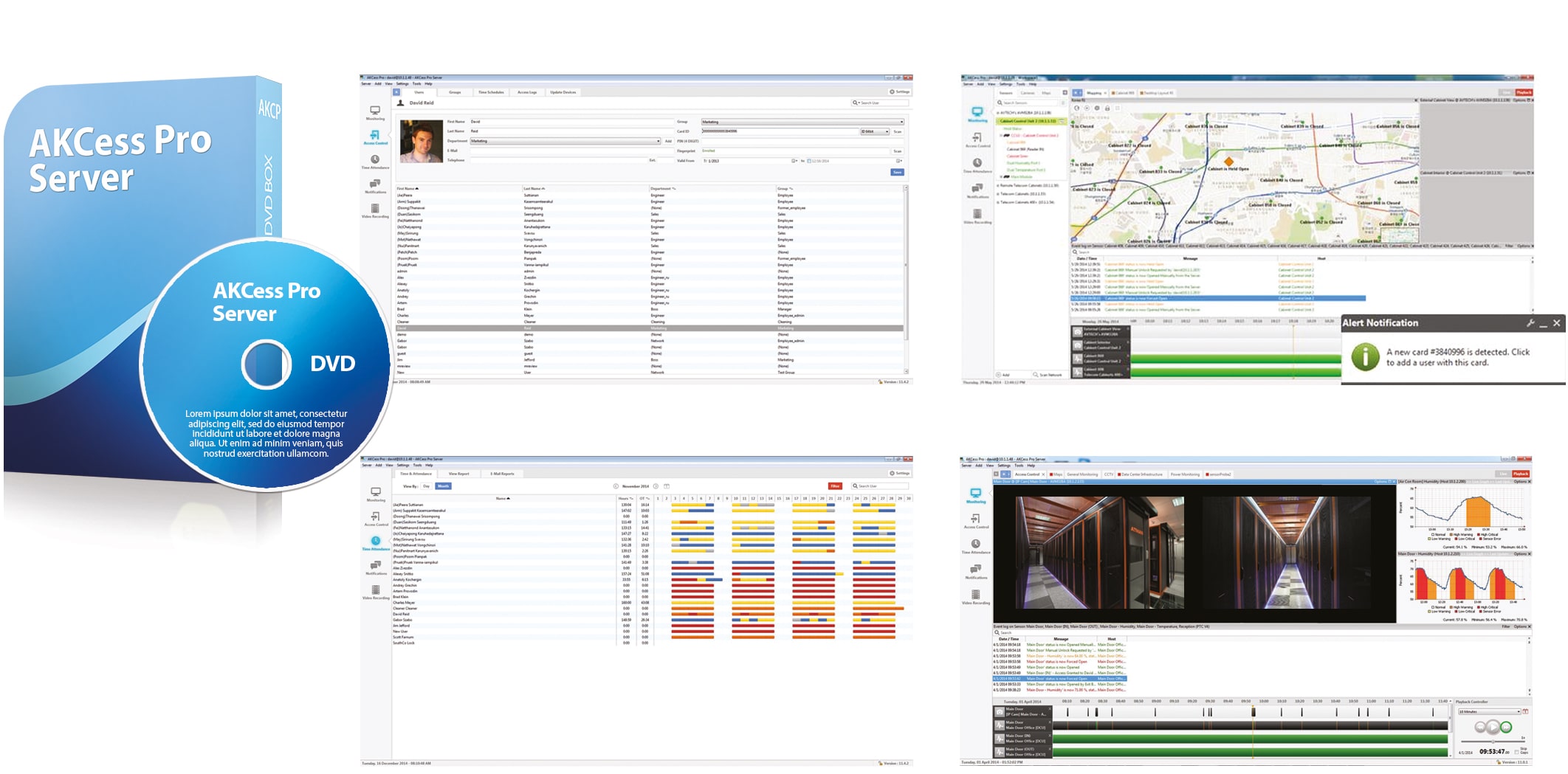

Software

Management software

Full supervision and prevention of accidents
Combines environmental monitoring, access control, and video surveillance functionality.

Automatic recognition of connected devices
Cameras, sensors, access control elements – just connect and start up.

Compatibility with other manufacturers' equipment
Possibility of connecting any cameras and sensors.

Monitoring and control of all devices on one screen
Easy configuration of the desktop and customisation of the control panel (dashboard) according to user's needs.

Creating scalable maps that contain data from connected sensors and cameras
Visualization of data on geographic maps, building plans and other monitored spaces.

Supervision from anywhere
Possibility of installing the software on any computer with Windows and Internet access.

Event notification system
Immediate notification of alarms and other defined events via e-mail, Skype or SMS.

Time schedules
Creating different automatically triggered event scenarios.
